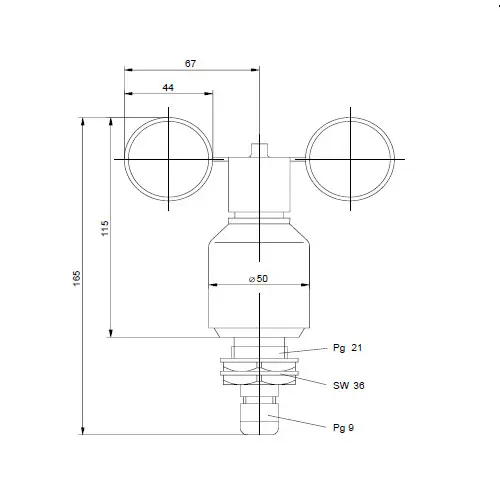

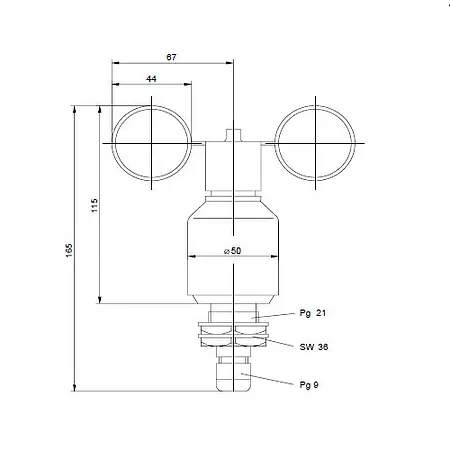

Air Flow Meter CWG 1

Order no.: CWG 1
GTIN (EAN):
US$ 528.00
ex. VAT, ex. delivery costs
CWG 1
Available in: 1-2 working days
Speed
Cup vane
No
Yes (mA output)

Accessory

Dual Mounting Arm PCE-CW-T2
Dual Mounting Arm PCE-CW-T2
US$ 152.00

Description

Compact air flow meter with 4 … 20 mA output

Compact air flow meter CWG 1 for weather monitoring. Basic cup anemometer with 4 … 20 mA output.

Highlights

- Basic cup anemometer
- Easy assembly
- 12 m / 39 ft connection cable
- 4 ... 20 mA output

Specification

Output4 … 20 mA
Measurement range0 … 50 m/s
Accuracy± 0.5 m/s or 3 % or measuring range
Loadmax. 80 m/s short-term
Load 500 Ohm at 15 V operating voltage
Power supply9 … 30 V AC / DC max. 50 mA
Assembly on mast tube
Heatingmax. 24 V DC/AC, max. 20 W
Ambient temperature  -25 … +60 °C /  -13 ... 140 °F (in ice-free conditions)
Cable12 m / 39 ft; LiYY 6 x 0.25 mm²
Protection classIP54
Weightapprox. 500g / 17. 6 oz
ApprovalUL

Delivery Scope

1 x Air Flow Meter CWG 1
1 x Data Sheet
