EMF measuring device / EMF test device LM-MP80

EMF measuring device / EMF test device LM-MP80

Order no.: LM-MP80
GTIN (EAN): 4262539312061
US$ 1,268.00
ex. VAT, ex. delivery costs
:
4262539312061
LM-MP80
Available in:1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

EMF measuring device / EMF test device / Gaussmeter for determining residual magnetism on metal parts / 8 mm measuring tip / 2 mm measuring distance / OLED display / Data memory / Wireless interface

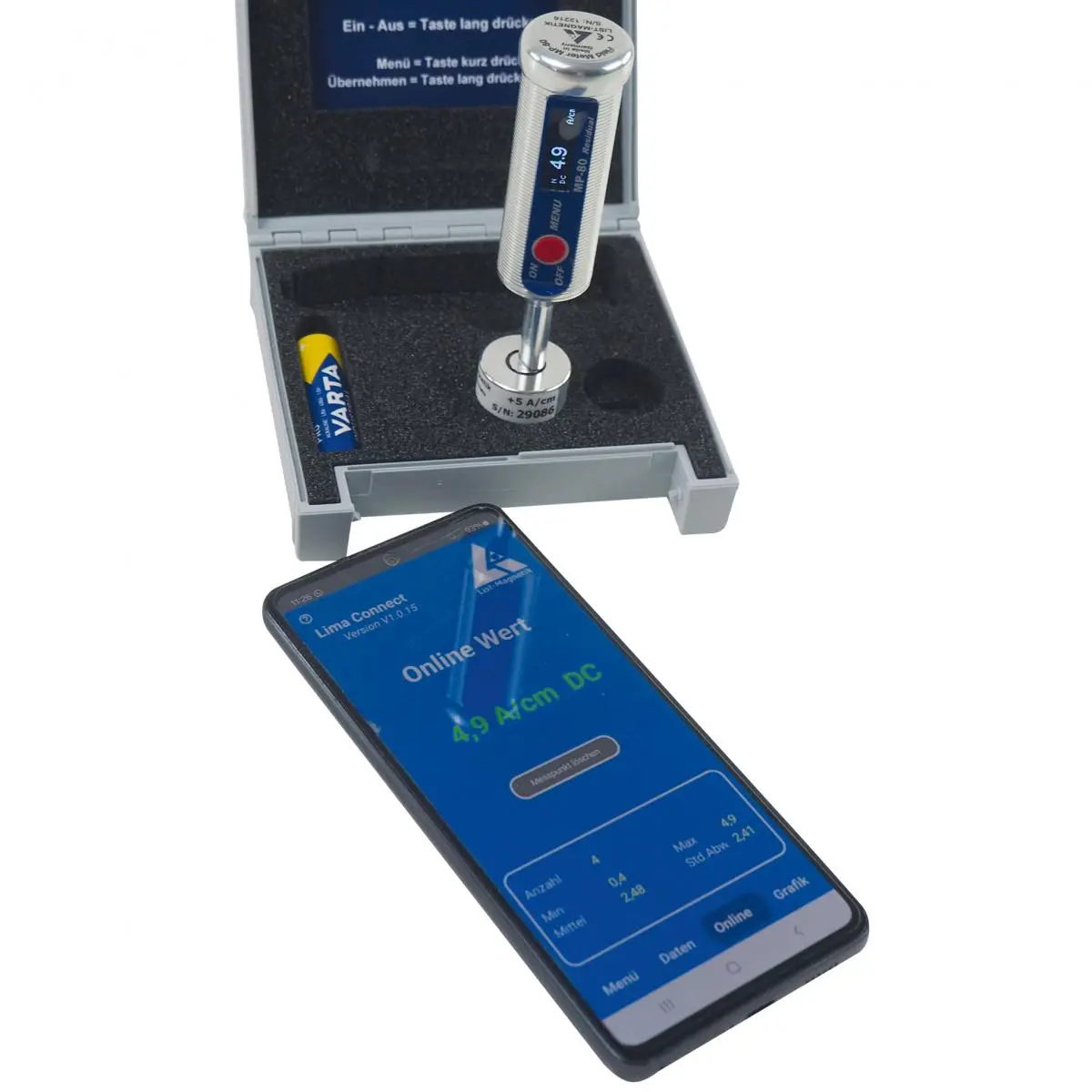

The EMF measuring device / EMF test device has an internal data memory and a wireless interface that allows you to manage measurement data directly in the device or conveniently via the Lima Connect app. These functions enable efficient and location-independent magnetic field measurement - ideal for testing residual magnetism in industrial production, quality assurance and material testing. Thanks to wireless connectivity, magnetic measurement data can be conveniently stored, evaluated and integrated into magnetic field analyses or test procedures. The Lima Connect app offers a user-friendly interface for data management, including photo assignment of measuring points, statistical analysis and graphical visualization. The app is available free of charge for Android, iOS and Windows.

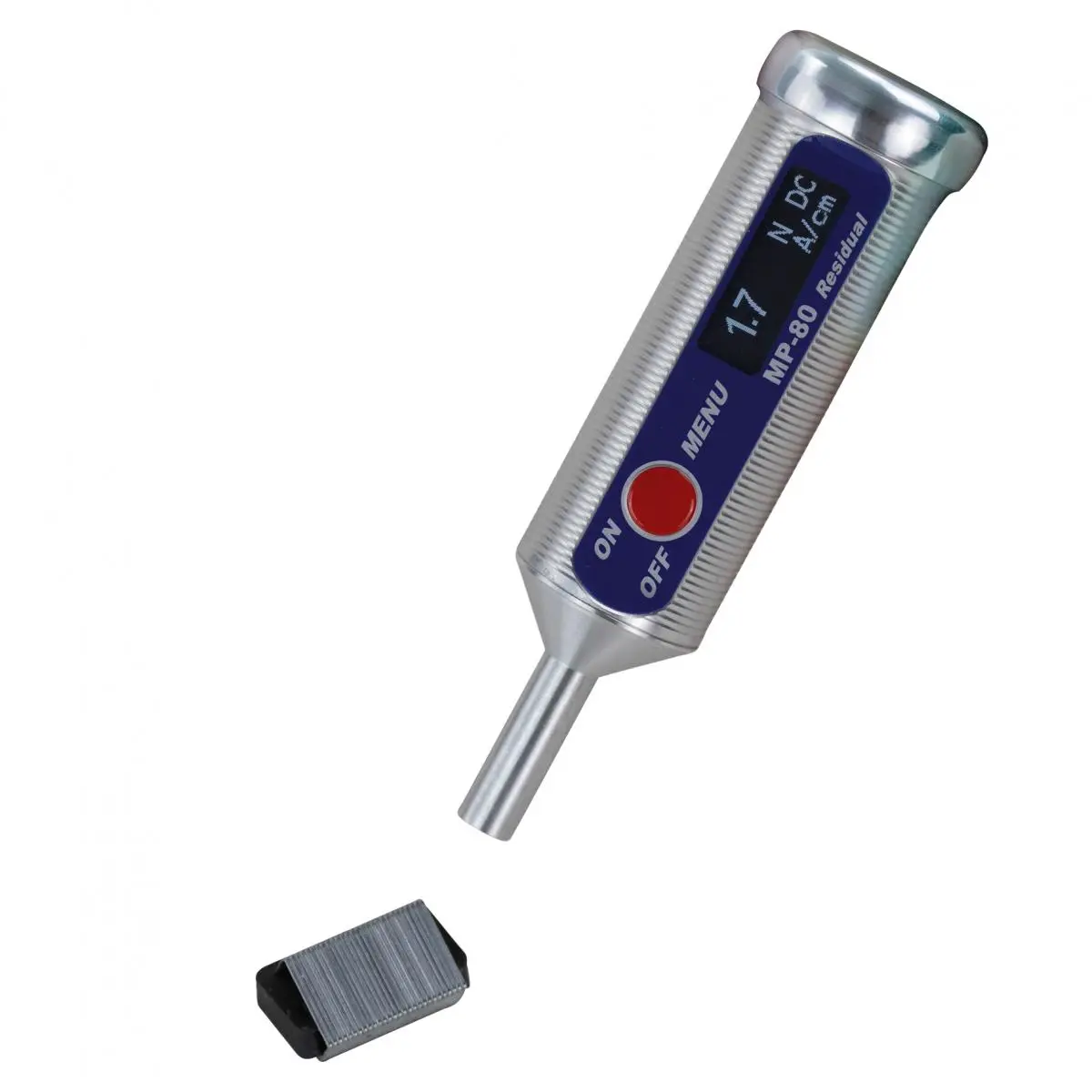

The compact, battery-operated EMF measuring device / EMF test device allows you to quickly and precisely determine residual magnetism on ferromagnetic materials. It is also easy to check demagnetization. As the "little brother" of the MP-810, the MP-80 V2 specializes in the detection of weak magnetic fields. The robust design with metal housing provides reliable protection against external influences such as moisture or oily vapors - perfect for use in harsh industrial environments. The axial field probe contains a highly sensitive Hall sensor with a fixed measuring distance of 2.0 mm from the measuring surface, which ensures precise and repeatable results. The supplied calibration standard (5 A/cm) guarantees reliable and precise calibration of the measuring device at all times. The EMF measuring device / EMF test device and calibration standard are supplied protected in a compact transport case.


Highlights

- Residual magnetic field measurement in 5 units
- OLED display
- Axial probe with ø 8 mm
- Defined measuring distance of 2.0 mm
- Memory for 4000 measured values
- Wireless interface

Specification

Magnetic field DC
Measurement range up to  0 ... 100 A/cm
Resolution  0,1 A/cm
Accuracy  in a homogeneous field: ± 0.3 A/cm up to 10 A/cm, ± 3% of the measured value from 10 A/cm

General technical data
Measuring functions  Quantity, MAX, MIN, Average value, Standard deviation
Units  A/cm, kA/m, g, Oersted, T
Units additional information  1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT
Display type  OLED
Storage capacity  4000 Values
Memory information  Peak value memory: Recording rate approx. 10 measured values / second
Interface  Wireless
Sensor  Hall sensor
Sensor additional information  Integrated axial field probe, ø 8 mm with defined measuring distance of 2.0 mm
Operating time  40 h
Menu language  German, English (GB), English, French, Italian, Spanish, Hungarian, Polish, Dutch
Power supply  1x 1.5V AA Alkaline
(Rechargeable) battery  1 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Dimensions ( L x W x D )  103 x 103 x 28 mm
Weight  70 g

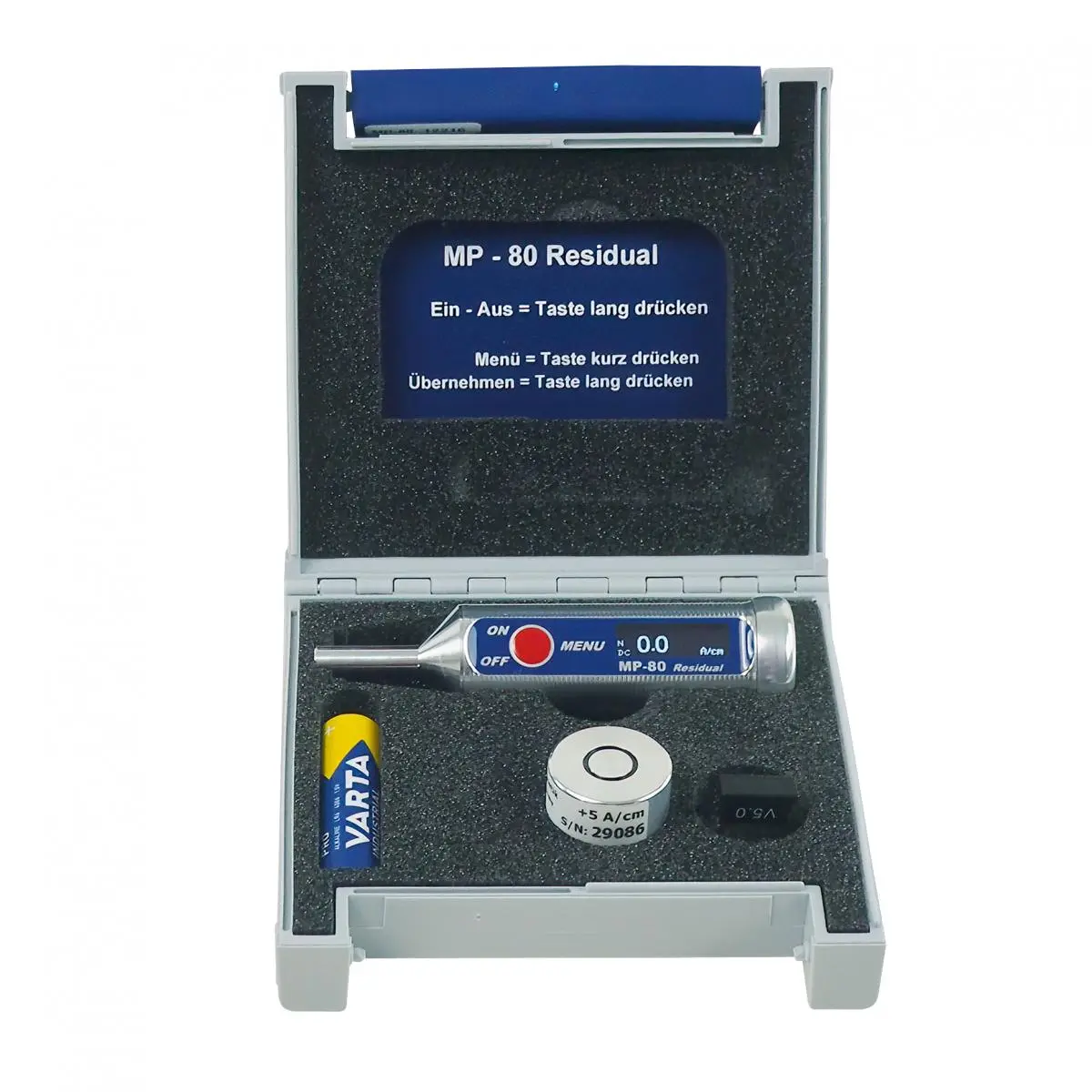

Delivery Scope

1 x MP-80 V2 EMF measuring device / EMF test device with integrated axial field probe
1 x Calibration standard 5 A/cm
1 x Spare battery and case
1 x Calibration certificate
