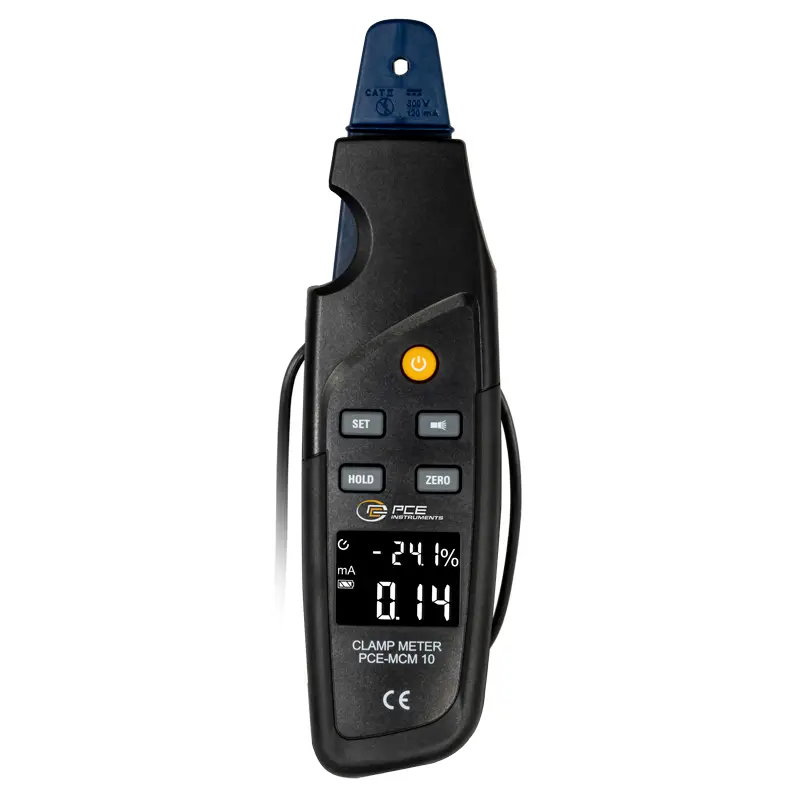

Electrical Tester PCE-MCM 10

Order no.: PCE-MCM 10
US$ 376.00
ex. VAT, ex. delivery costs
Available in: 5-7 working days
Electrical Tester with 1 m (3.3 ft) cable / measurement range ±99.9 mA DC / manual zero point /
battery life of approx. 40 hours / automatic power off / clamp opening Ø 5 mm /
  accuracy of ±0.3 % of rdg./ optional ISO calibration certificate

The electrical tester has a measurement range of ±99.9 mA DC. With an accuracy of 0.3% of rdg. +8 digits, the electrical tester is a particularly accurate measuring instrument. In order to conveniently perform measurements with the electrical tester, the current clamp itself is connected to a 1 meter / 3.3 ft cable. The current clamp can thus be attached to the cable to be measured. The electrical tester can be conveniently placed aside at the workplace. This leaves both hands free while reading the measured values, for example to carry out adjustments or configurations on the process technology. Due to the high accuracy and the external sensor, the electrical tester is ideally suited to make quick and reliable current measurements when process signals are involved.

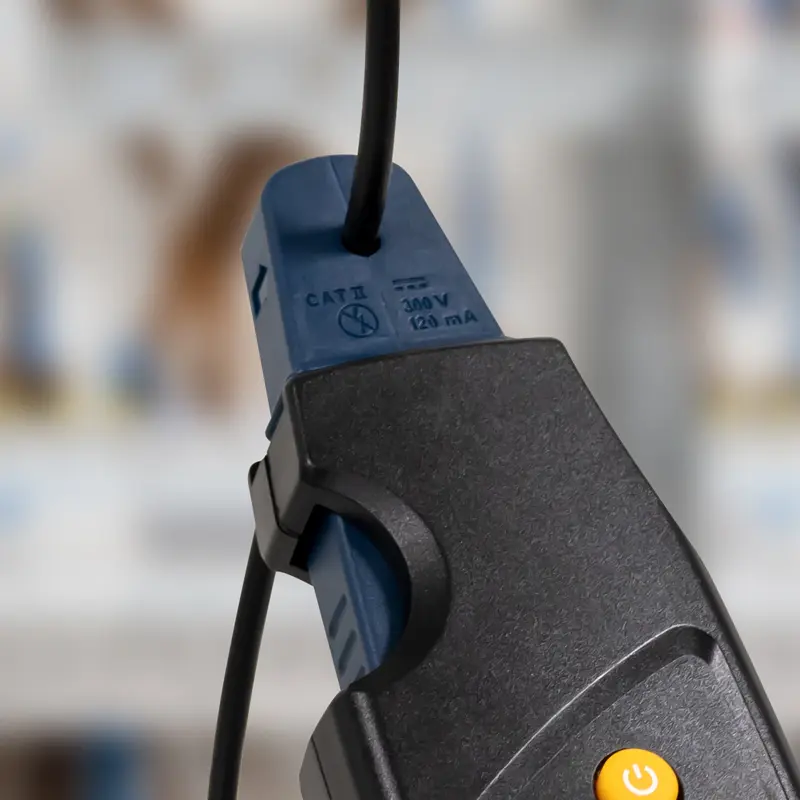

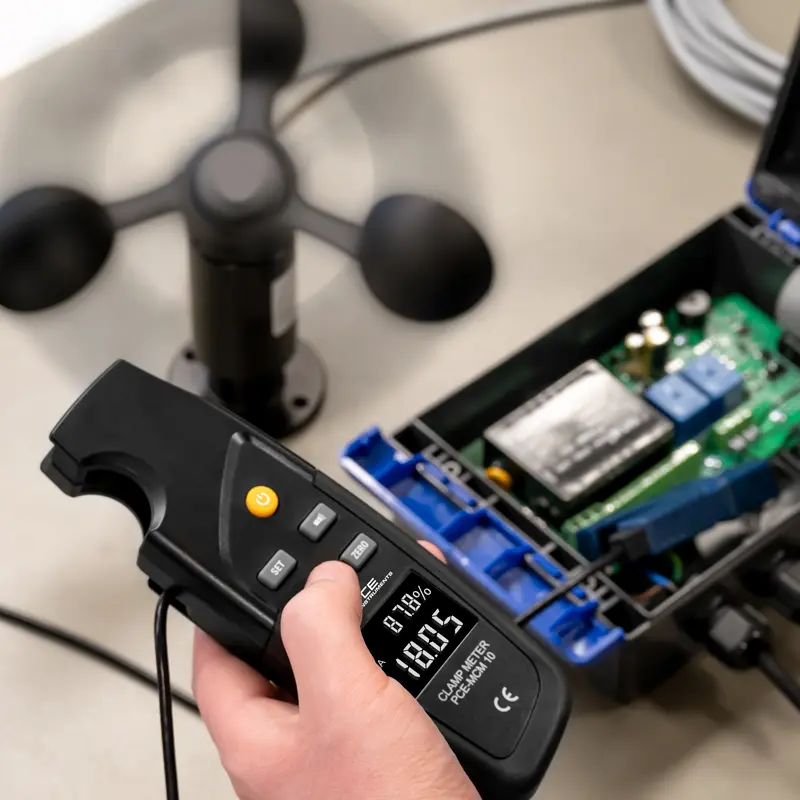

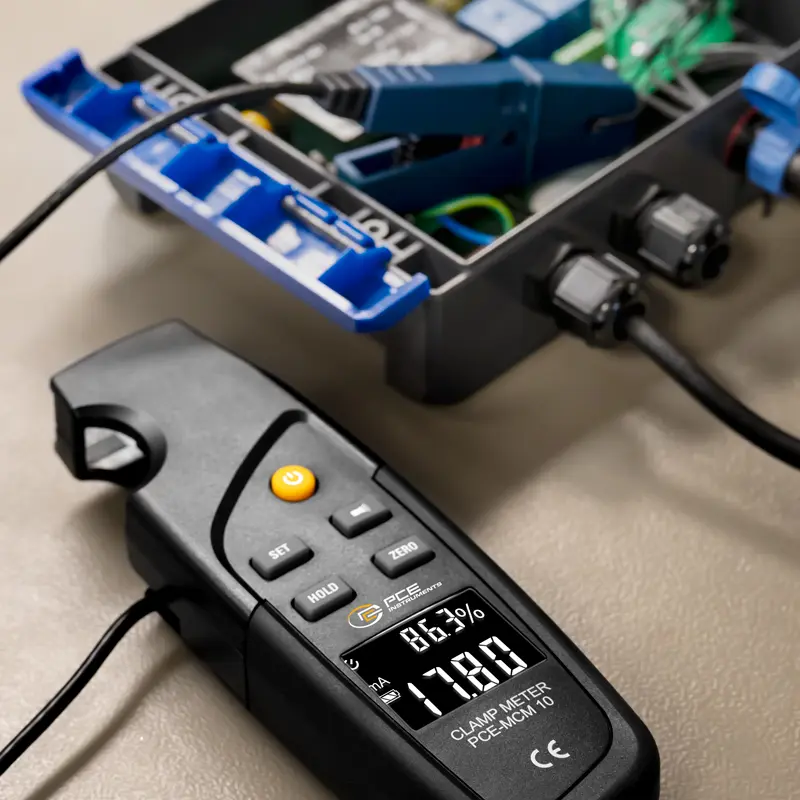

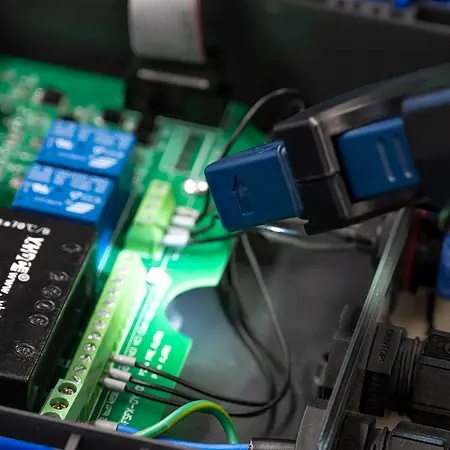

In order to carry out a current measurement, the current clamp of the electrical tester must be clamped around the cable to be checked. This allows the electrical tester to measure the flowing current inductively. This has the particular advantage that a current measurement can be carried out during operation with the electrical tester.

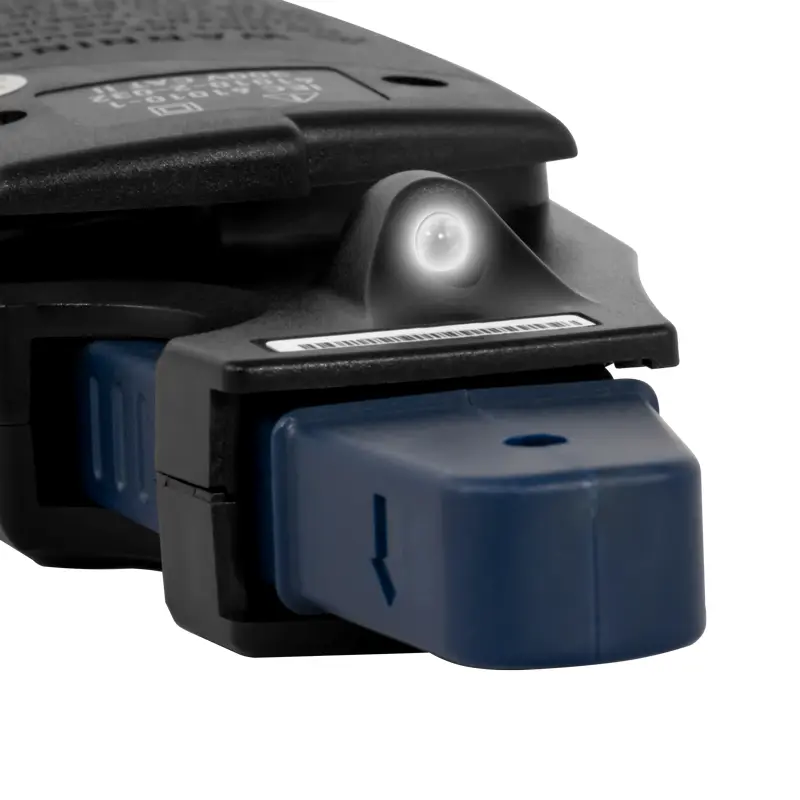

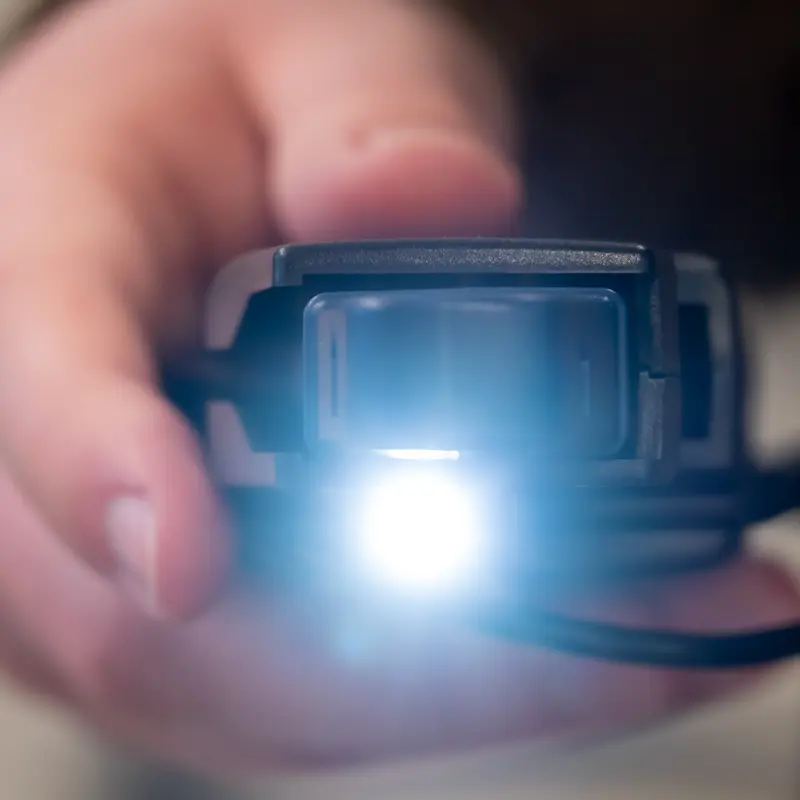

For improved visibility, the electrical tester is equipped with an LED. With the LED of the electrical tester, the measuring spot can be ideally illuminated. Optionally, the electrical tester can be delivered with an ISO calibration certificate.

If you have any further questions about the PCE-MCM 10 electrical tester, please take a look at the following technical data or use our contact form. Our technicians and engineers will be happy to advise you on the electrical tester or any other products in the fields of control, laboratory or measuring technology or scales and balances from PCE Instruments.

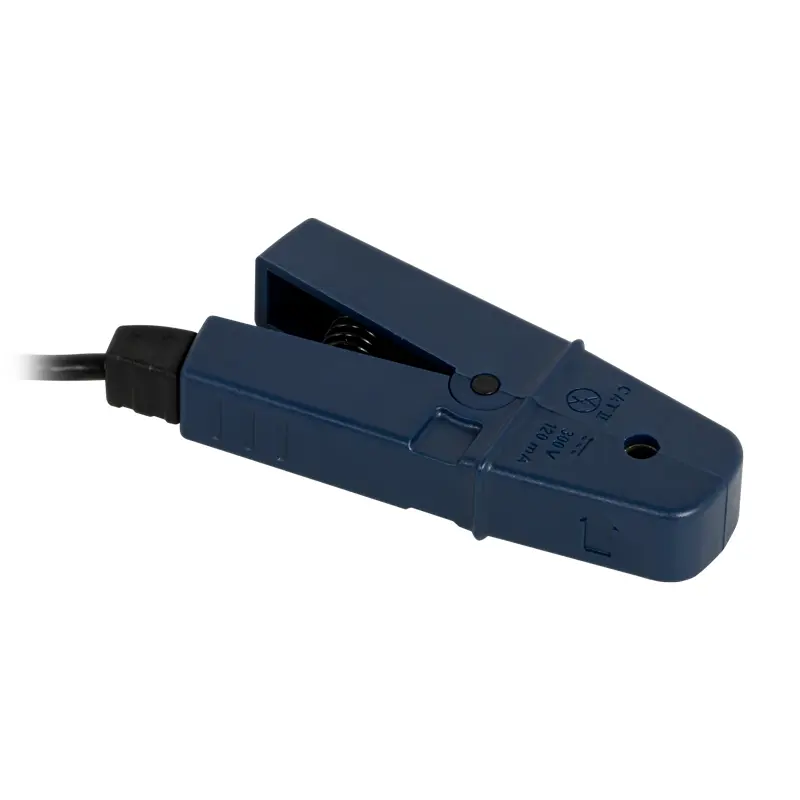

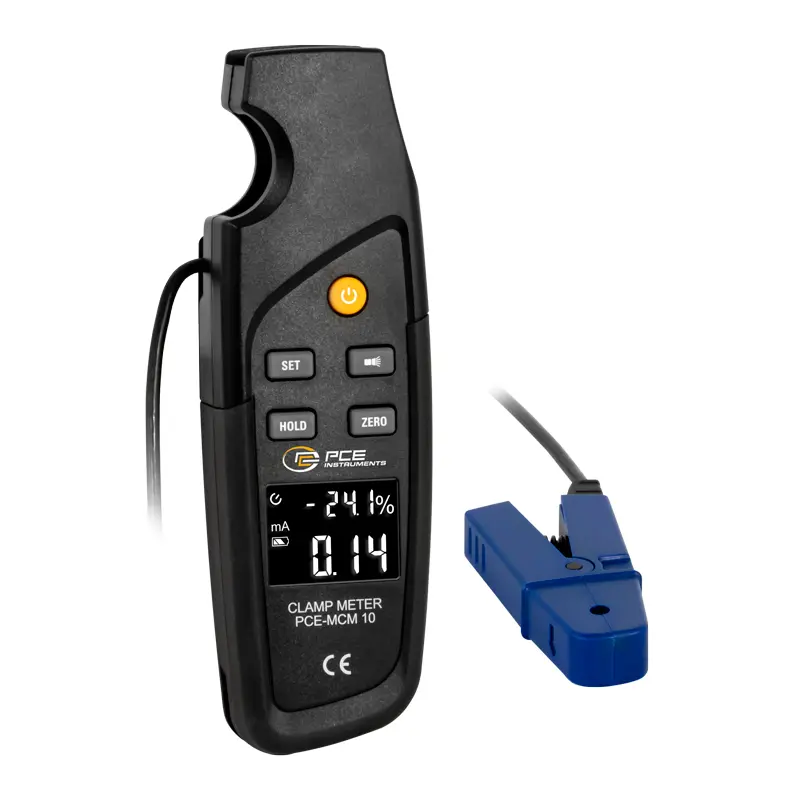

- Detachable process clamp meter with 1 m / 3.3 ft cable
- Clamp opening of 5 mm diameter
- Measurement range ±99.9 mA DC

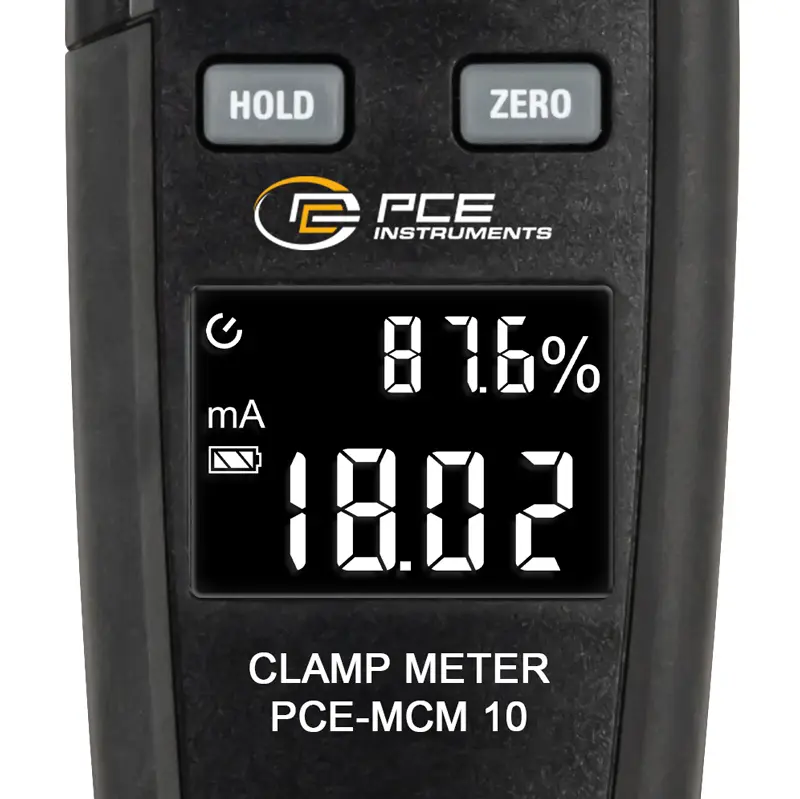

- Display with backlight
- Operating time of approx. 40 hours
- Optional ISO calibration certificate

Measuring range ±20.99 mA DC
Resolution 0.01 mA
Accuracy ±(0.3 % of rdg. + 8 Digits)
Measuring range ±21.0 … ±99.9 mA DC
Resolution 0.1 mA DC
Accuracy ±(1 % of rdg. + 8 Digits)
Influence of the earth's magnetic field on the measured value, max. 0.25 mA DC
Diameter of clamp opening      Ø5 mm
Switch-off automatic
Continuously switched on after 10 minutes OFF
Operating voltage 3V via 2 AA batteries
Battery life approx. 40 hours
Protection class IP40
Overvoltage categories CAT II 300V
Operating conditions -10 … 50°C / 14 ... 122°F
Storage conditions -15 … 60°C / 5 ... 140°F
Environmental humidity <90% RH at < 30°C / 86°F
  <75% RH at 30 ... 50°C / 86 ... 122°F
Working altitude 0 ... 2000 m / 6,561 ft above sea level
Dimensions handheld device: 180 x 55 x 39 mm / 7.1 x 2.2 x 1.5 in
  current clamp: 90 x 40 x 1.5 mm / 3.5 x 1.6 x 0.06 in
  cable length: approx. 1 m / 3.3 ft
Weight 268 g / 0.6 lbs with batteries inserted

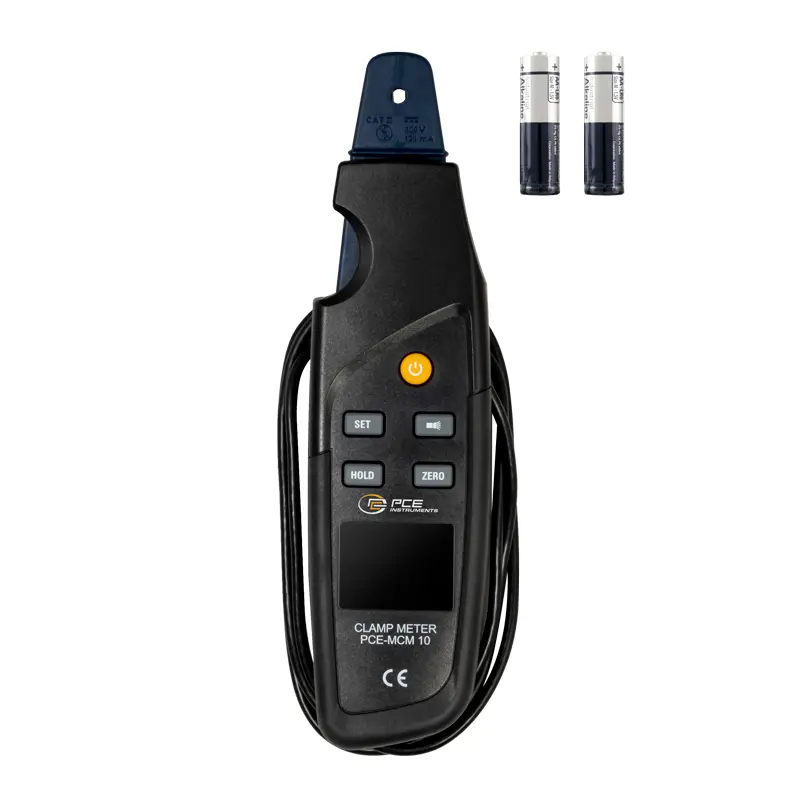

1 x Electrical Tester PCE-MCM 10
2 x 3V via 2 AA batteries
1 x instruction manual
