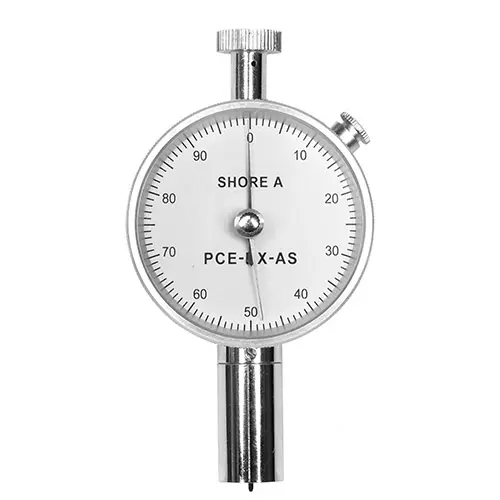

Durometer PCE-DX-AS Shore A

Order no.: PCE-DX-AS
GTIN (EAN): 4250348702517
US$ 189.00
ex. Sales Tax, ex. delivery costs
:
4250348702517
PCE-DX-AS
Available in:1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

Mechanical durometer for measuring hardness of soft elastomer,
with drag needle for an accurate measurement of peak value

The PCE-DX-AS durometer is used for measuring surface hardness (shore A) of hard rubbers and soft plastics. The shore durometer is composed of a single component with a measuring head and a 360º dial. To improve the readability of peak value, the device comes with a drag needle, that ensures the maximum reading can be captured. Once it has been measured, it can be reset to zero. With the PCE-DX-AS (A) model of durometer, you will always obtain the most accurate value of maximum pressure and also be able to accurately reproduce this value.

Highlights

- With drag needle
- Measures in different hardness units
- A 360º dial
- Highly accurate
- Meets with all standards
- Supplied with a small carrying case

Specification

Force of pressure0 to 12.5 N
Penetrating body35º (according to Shore A)
Diameter of dial57 mm / 2.2 in
Total length110 mm / 4.3 in
Displayed range0 ... 100
Measurement range  10 ... 90
(pressure diminishes below 10 and above 90)
Margin of error± 1
Division of scale1
Drag needleYes
Weight160 g / < 1 lb

Delivery Scope

1 x PCE-DX-AS Shore A durometer with drag needle
1 x Carrying case
1 x User's manual
