Order no.: PCE-DDA 10

Durometer PCE-DDA 10 Shore A

US$ 830.00
:
4250348713698
PCE-DDA 10
ex. VAT, ex. delivery costs
Available in: 1-2 days

Description

PCE-DDA 10 Shore A Durometer
Measures Shore A hardness in soft gums, rubber and elastomers / Features a USB port and downloadable PC software for data transfer

The PCE-DDA 10 Shore A durometer is a portable handheld device used to check Shore A hardness in soft gums, elastomers, natural rubber, neoprenes, casting resin, white PVC, leather, etc. This digital durometer has a reading accuracy of 0.1 hardness units. The durometer comes manufacturer calibrated and can be optionally certified to ISO standards for an additional fee (see accessories for details).


Highlights

- Portable handheld digital hardness testing device
- Measures Shore A hardness in soft gums, rubber and elastomers

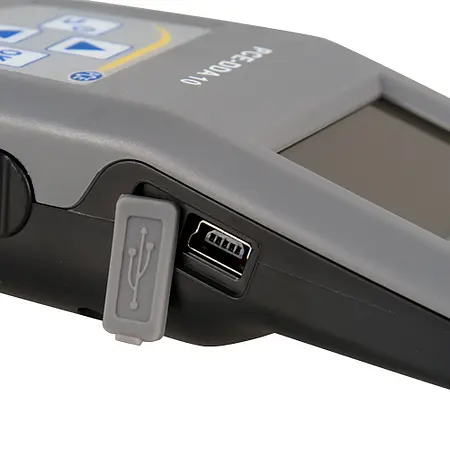

- Features a USB port and downloadable PC software for data transfer

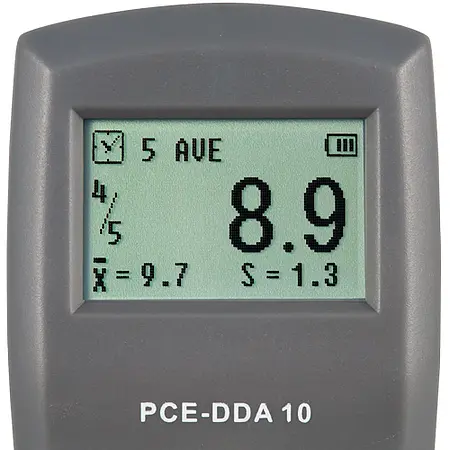

- Large, easy-to-read display
- For single and serial measurements

Specification

Measurement range  0 ... 100 Shore A
Resolution  0.1
Accuracy  < ± 1

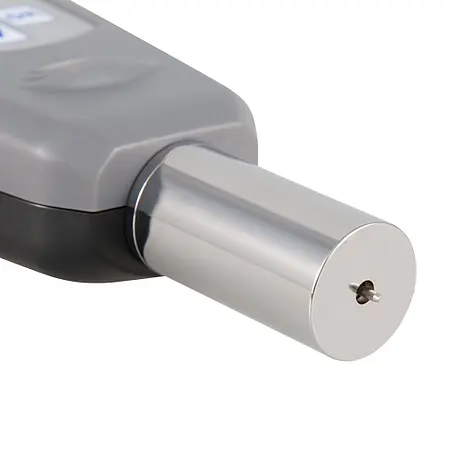

Indenter

 35°± 0.25°

Memory  Saves up to 500 measurements
Dimensions  153 x 50 x 29 mm / 6 x 1.9 x 1.1 in (main body)
Weight  Approx. 300 g / < 1 lb
Power supply  3.6V rechargeable Ni-MH battery
Max. operating time     Up to 20 h continuous use at full charge
Charging time  Approx. 3 h
Standards  GB/T 531.1, ISO 7619-1, ASTM D 2240

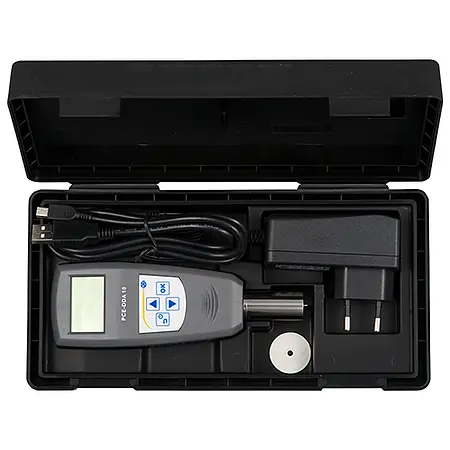

Delivery Scope

1 x PCE-DDA 10 Shore A durometer
1 x Calibration plate
1 x Charger / AC power adapter
1 x Mini USB cable
1 x User manual
1 x Carrying case

Note: Software is available for download from this website.
