Durometer for Metals PCE-2800

Order no.: PCE-2800

Question / Callback

Available in: 1-2 days

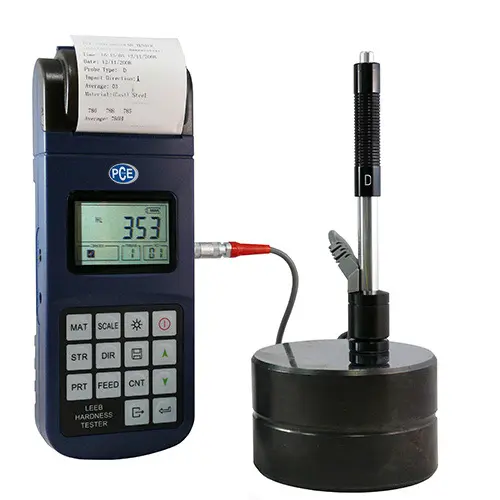

PCE-2800 Durometer for Metals
With built-in printer, internal memory, USB interface, data cable and software included

PCE-2800 is a portable handheld material hardness tester or durometer designed for the quick and easy surface hardness testing of metals. This user-friendly device displays measurements in Rockwell A, B & C (HRA, HRB & HRC), Vickers (HV), Brinell (HB), Shore (HS) and Leeb (HLD) hardness units. It also indicates the tensile strength (N / mm²). The hardness tester has a built-in printer, statistics function, an internal memory for storage of up to 100 data sets, and a USB port to transfer the data to a computer (PC-compatible software and data cable included in the delivery contents) for analysis, reporting and archival. The hardness tester can be used as a portable handheld device or permanently mounted with angle selection and adjustment. The external probe features a streamlined design and a 1.5 m / .06 in long cable, allowing for use in small access points.

- Type D impact device on external probe with 1.5 m / .06 in long cable
- Measures all common hardness parameters
- Large measuring range
- High accuracy
- Portable handheld or fixed mount
- Printer is built into the device
- USB interface for data transfer
- Internal memory (stores up to 100 data sets)
- PC-compatible software and data cable included
- Many other impact devices and adapters available as optional accessories

Hardness max.

976 HV

Accuracy

± 6 HLD

Statistics

Averaging

Impact device

Type D

Minimum weight of the material sample

2 kg / 4.41 lb on stable support (0.05 kg / 0.12 lb with coupling gel - gel not included)

Minimum thickness of the material sample

3 mm / 0.12 in with coupling gel (gel not included)

Display

Memory

Internal, stores up to 100 data sets

Interface

USB 1.1 port

Power supply

Rechargeable 6V Ni-Mh battery (charger included)

Operating temperature range

-10 ... 50°C / 14 ... 122°F

Device dimensions

Approx. 212 x 80 x 32 mm / 8.35 x 3.15 x 1.26 in

Device weight

Approx. 650 g / 1.4 lbs

Technical specification

Measuring ranges on different metal surfaces (fields with - - - = no measurement)

No.	Material	HRA	HRC	HRB	HB	HS	HV
1	Steel / Cold- rolled steel	59.1 ... 85.8	20 ... 68.5	38.4 ... 99.6	127 ... 651	32.2 ... 99.5	83 ... 976
2	Alloy tool steel	- - - - - -	20.4 ... 67.1	- - - - - -	- - - - - -	- - - - - -	80 ... 898
3	Stainless steel	- - - - - -	- - - - - -	46.5 ... 101.7	85 ... 655	- - - - - -	85 ... 802
4	Cast iron	- - - - - -	- - - - - -	- - - - - -	93 ... 334	- - - - - -	- - - - - -
5	Ductile iron	- - - - - -	- - - - - -	- - - - - -	131 ... 387	- - - - - -	- - - - - -
6	Cast aluminum	- - - - - -	- - - - - -	23.8 ... 84.6	19 ... 164	- - - - - -	- - - - - -
7	Brass	- - - - - -	- - - - - -	13.5 ... 95.3	40 ... 173	- - - - - -	- - - - - -
8	Bronze	- - - - - -	- - - - - -	- - - - - -	60 ... 290	- - - - - -	- - - - - -
9	Copper	- - - - - -	- - - - - -	- - - - - -	45 ... 315	- - - - - -	- - - - - -

No.	Material	HLD	Tensile strength (N / mm²)
1	Structural steel	350 ... 522	374 ... 780
2	High-carbon steel	500 ... 710	737 ... 898
3	Cr steel	500 ... 730	707 ... 1829
4	Cr-V steel	500 ... 750	704 ... 1980
5	Cr-Ni steel	500 ... 750	763 ... 2007
6	Cr-Mo steel	500 ... 738	721 ... 1875
7	Cr-Ni-Mo steel	540 ... 738	844 ... 1933
8	Cr-Nm-Si steel	500 ... 750	755 ... 1993
9	High strength steel	630 ... 800	1180 ... 2652
10	Stainless steel	500 ... 710	703 ... 1676

1 x PCE-2800 durometer for metals
1 x Charger
1 x PC-compatible software
1 x Data cable
1 x Test block
1 x Printer paper
1 x User manual

Manual

Accessories

Order no.: CAL-HT-2

Calibration certificate CAL-HT-2

Calibration certificate for our hardness testers. This is often required to comply with DIN ISO 9000.

ISO calibration certificate for hardness testers with rebound hardness test according to Leeb / 3 measuring points (about 490 HLD, 660 HLD, 780 HLD)

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Manufacturer: PCE Instruments

US$ 321.00

ex. VAT, ex. delivery costs

Order no.: SG-DC

Impact Sensor DC

Special feature: Extremely short impact device e.g. in holes, cylinders or for internal measurements on machine parts. Suitable for limited accessibility

Technical Data

- Impact energy: 11 Nmm

- Mass of the impactor: 5.5g

- Max. sample hardness: 940 HV

- Height: 87 mm

Depth of impression

- At 300 HV: diameter 0.54 mm, depth 24 μm

- At 600 HV: diameter 0.45 mm, depth 17 μm

- At 800 HV: diameter 0.35 mm, depth 10 μm

Manufacturer: PCE Instruments

US$ 325.00

ex. VAT, ex. delivery costs

Order no.: SG-D

Impact Sensor D

Special feature: standard impact device for most hardness testing applications e.g. on flanges, engine blocks, axles, gears, chassis, coil hardness tests, coils, rods, pipes and heat treatments.

Technical Data

- Impact energy: 11 Nmm

- Mass of the impactor: 5.5g

- Max. sample hardness: 940 HV

Depth of impression

- At 300 HV: diameter 0.54 mm, depth 24 μm

- At 600 HV: diameter 0.45 mm, depth 17 μm

- At 800 HV: diameter 0.35 mm, depth 10 μm

Manufacturer: PCE Instruments

US$ 325.00

ex. VAT, ex. delivery costs

Order no.: SG-G

Impact Sensor G

Special feature: Increased impact body with increased impact energy (about nine times the size of type D), eg. in the application of castings.

Technical Data

- Impact energy: 90 Nmm

- Mass of the impactor: 20g

- Max. sample hardness: 650 HB

Depth of impression

- At 300 HV: diameter 1.03 mm, depth 53 μm

- At 600 HV: diameter 0.90 mm, depth 41 μm

Manufacturer: PCE Instruments

US$ 641.00

ex. VAT, ex. delivery costs

Order no.: RS232-USB

Adaptor RS-232 to USB

[more]

Manufacturer: USB ONLINE INT'L ELECTRONICS LIMITED

US$ 43.00

ex. VAT, ex. delivery costs

Order no.: HK16.5-30

Adaptor spherical inside HK16.5-30

Adapter for measuring in spherical surfaces, e.g. in mold making. Allows centering and prevents slipping and thus measuring errors

Radius: 16.5 ... 30mm
Only for PCE-900, PCE-1000 and PCE-2000

Manufacturer: PCE Instruments

US$ 47.00

ex. VAT, ex. delivery costs

Order no.: HK12.5-17

Adaptor spherical inside HK12.5-17

Adapter for measuring in spherical surfaces, e.g. in mold making. Allows centering and prevents slipping and thus measuring errors

Radius: 12.5 ... 17mm
Only for PCE-900, PCE-1000 and PCE-2000

Manufacturer: PCE Instruments

US$ 47.00

ex. VAT, ex. delivery costs

Order no.: HK11-13

Adaptor spherical inside HK11-13

Adapter for measuring in spherical surfaces, e.g. in mold making. Allows centering and prevents slipping and thus measuring errors

Radius: 11 ... 13mm
Only for PCE-900, PCE-1000 and PCE-2000

Manufacturer: PCE Instruments

US$ 47.00

ex. VAT, ex. delivery costs

Order no.: HZ16.5-30

Adaptor concave inside HZ16.5-30

Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.

radius: 16.5 ... 30mm
only for PCE-900, PCE-1000, PCE-2000

Manufacturer: PCE Instruments

US$ 47.00

ex. VAT, ex. delivery costs

Order no.: HZ12.5-17

Adaptor concave inside HZ12.5-17

Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.

radius: 12.5 ... 17mm
only for PCE-900, PCE-1000, PCE-2000

Manufacturer: PCE Instruments

US$ 53.00

ex. VAT, ex. delivery costs

Order no.: HZ11-13

Adaptor concave inside HZ11-13

Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.

radius: 11 ... 13mm
only for PCE-900, PCE-1000, PCE-2000

Manufacturer: PCE Instruments

US$ 47.00

ex. VAT, ex. delivery costs

Order no.: Z25-50

Adaptor convex outside vZ25-50

Adapters for measuring with external radii, e.g. on round bars and pipes. Allows centering and prevents slipping and thus measuring errors
- radius: 25 ... 50mm
- only for PCE-900, PCE-1000 & PCE-2000

Manufacturer: PCE Instruments

US$ 53.00

ex. VAT, ex. delivery costs

Order no.: Z10-15

Adaptor convex outside Z10-15

Adapters for measuring with external radii, e.g. on round bars and pipes. Allows centering and prevents slipping and thus measuring errors
- radius: 10 ... 15mm
- only for PCE-900, PCE-1000 & PCE-2000

Manufacturer: PCE Instruments

US$ 53.00

ex. VAT, ex. delivery costs
