Condition Monitoring Stethoscope PCE-S 42

Order no.: PCE-S 42
US$ 521.00
PCE-S 42
ex. VAT, ex. delivery costs
Available in: 1-2 days

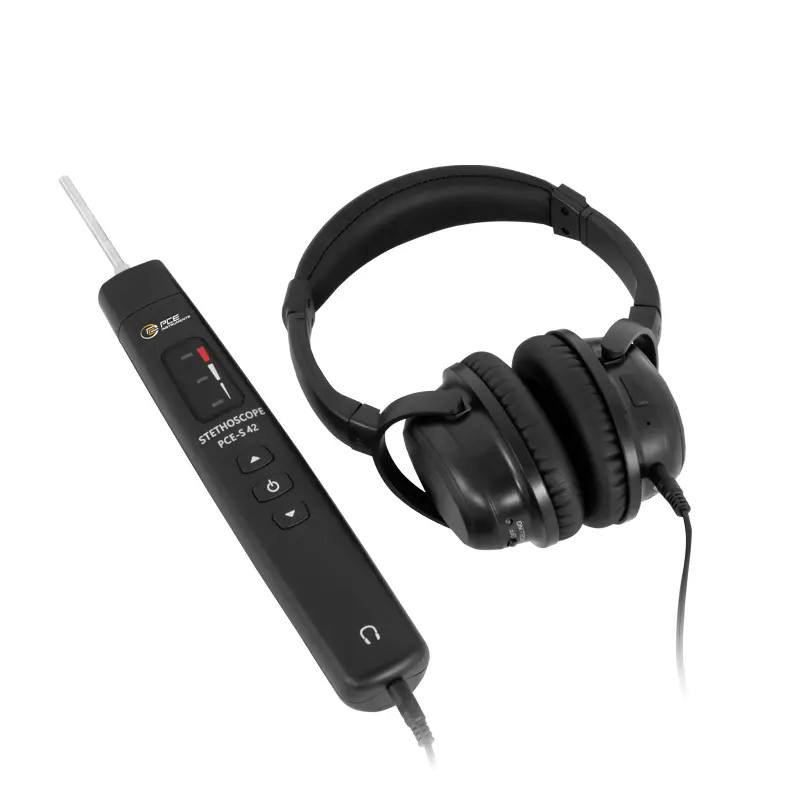

Condition Monitoring Stethoscope PCE-S 42
Machine stethoscope to listen to bearings and motors /
two measuring tips of different lengths / 32 sound levels /
noise-suppressing headphones included in delivery

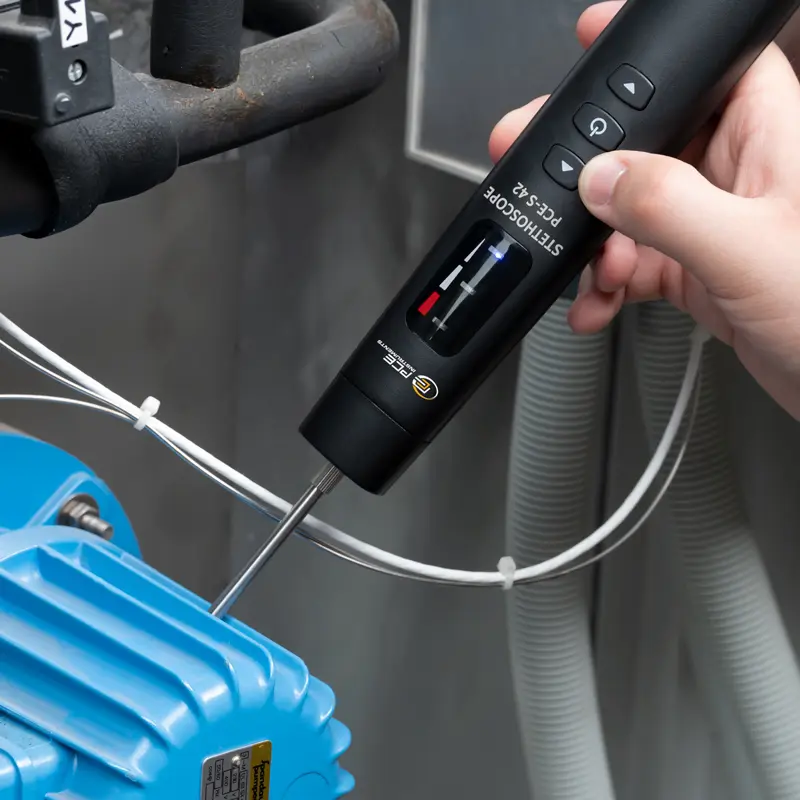

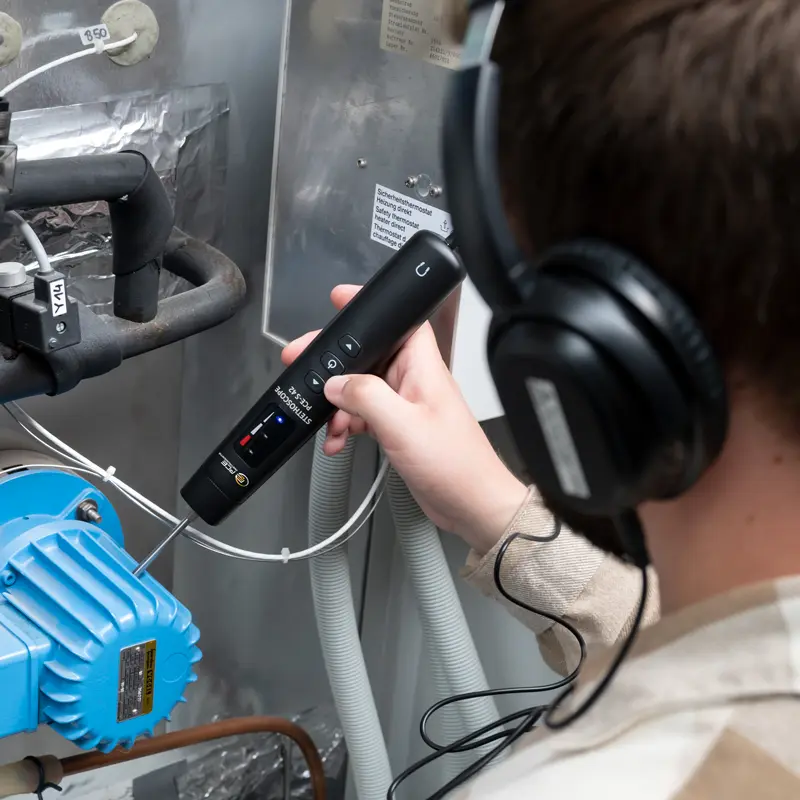

The condition monitoring stethoscope PCE-S 42 is designed for listening to individual machine parts, which enables you to carry out maintenance and repair work using the machine stethoscope. The use of a machine stethoscope thus makes it easier to listen to sound phenomena in bearings and motors. This makes it possible to amplify noises that imply that the machine is slightly damaged, which can cause severe impairments and damage to the machine if not observed. The machine stethoscope comes with headphones the shape of which is adapted to the human head and thus is perfectly suitable to be used in noisy environments. The big, padded earpieces have a noise-suppressing effect and at the same time offer wearing comfort.
The machine stethoscope is most frequently used to amplify knocking and grinding noises. When these noises occur, it is urgently necessary to maintain the machine tested thoroughly and, if necessary, replace individual parts to prevent financial losses due to machine downtime.

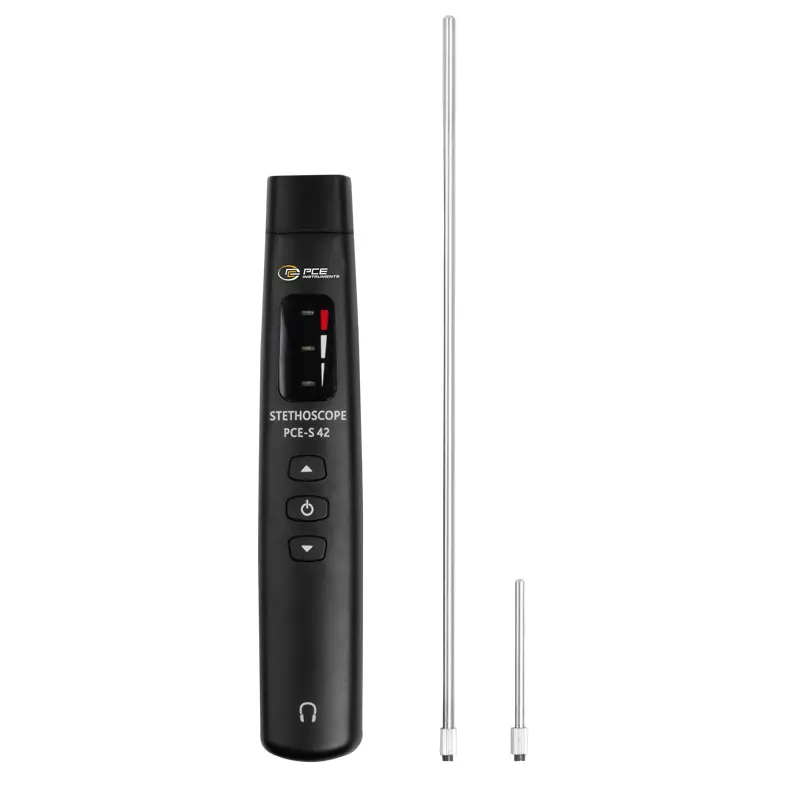

- two different measuring tips
- non-stationary measuring device
- 32 volume levels
- headphones adapted to the human head
- for preventive maintenance and servicing
- noise-suppressing headphones

Technical Specifications
Frequency range30 Hz ... 15 KHz
Operating temperature-10 ... +40 °C
Output volumedigitally adjustable (32 levels)
Headphones32 Ω
Power supply4 x AAA battery
Battery life30 h
Dimensions220 x 35 x 35 mm
Length sensors70 / 280 mm

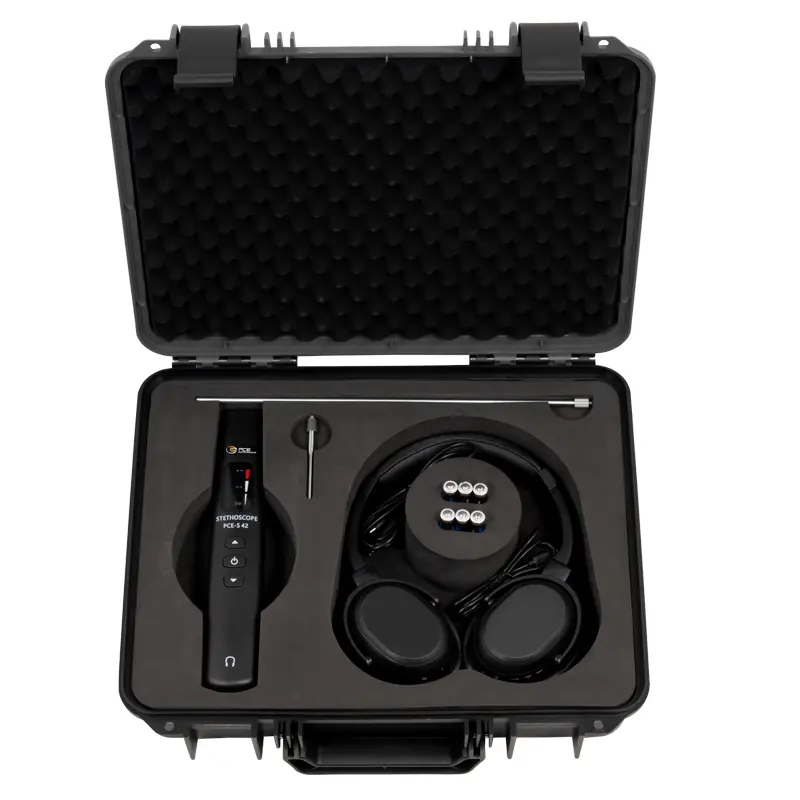

Delivery contents
1 x condition monitoring stethoscope PCE-S 42,
1 x headphones,
1 x long measuring tip,
1 x short measuring tip,
6 x AAA batteries,
1 x carrying case with shoulder strap,
1 x instruction manual
