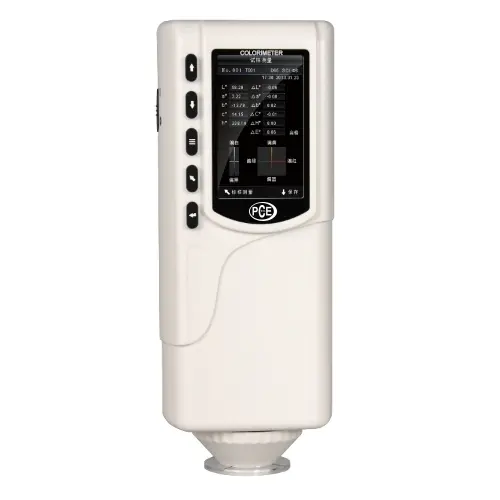

Color Meter PCE-CSM 5

Order no.: PCE-CSM 5
US$ 2,400.00
ex. VAT, ex. delivery costs
Handheld / Desktop
Internal Sensor
Available in: 1-2 days
Color meter PCE-CSM 5 for quality control
PC software included / Li-ion battery / different color spaces /
determination of reference values and samples / white calibration

The color meter PCE-CSM 5 was developed for quality control and offers a high accuracy. When using the color meter, you can choose between different color spaces (CIE LAB, XYZ, LCh, RGB, LUV). In addition, the color meter PCE-CSM 5 comes with two different measuring apertures (Ø6mm and Ø10 mm). After a measurement with the color meter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the color meter, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

- white calibration
- determination of reference values and samples
- exchangeable measuring apertures
- rechargeable lithium-ion battery
- suitable for many different surfaces
- easy to use
- incl. PC software

Measuring geometry 8°/d
Measuring aperture Ø 6 mm, Ø 10 mm (exchangeable)
Sensor Silicon photoelectric diode
Color spaces CIE LAB, XYZ, LCh, RGB, LUV
Color difference formular ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00
Other color parameters WI ( E313,CIE, AATCC,Hunter ),YI ( D1925,313),Color Fastness, Staining Fastness, J PC79,BFD( 1. 5: 1),FMCII
Observation angle CIE 10°
Light source D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12
Data on display colorimetric value
color difference (value/graph)
PASS/FAIL result
color offset
Measurement time 0.4 s
Repeatability Standard deviation within ΔE*ab 0.03
Average of 30 measurements of standard white plate
Error between Equipment ΔE* ab 0. 2
Storage 100 reference values, 20,000 samples
Interface USB / RS-232
Display TFT 2.8" (16:9)
Power supply Rechargeable lithium-ion battery
3.7 V @ 3,200 mAh
Battery life approx. 5,000 measurements
Lamp life 5 years, more than 1.6 million measurements
Operating temperature 0 ... +40 °C / 32 ... 104 °F
Storing temperature -20 ... +50 °C / -4 ... 122 °F
Dimensions 205 x 67 x 80 mm / 8 x 2.6 x 3.1 in
Weight 500 g / 17.6 oz

1 x Color meter PCE-CSM 5
1 x Lithium-ion battery
1 x Mains adapter
1 x Calibration plate (white)
1 x PC software
1 x Instruction manual
1 x aluminum carry case
