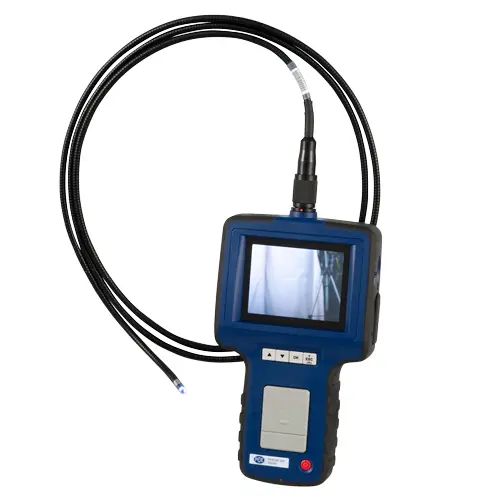

Automotive Tester / Borescope PCE-VE 340N

Order no.: PCE-VE 340N
US$ 1,486.00
4250348709271
PCE-VE 340N
ex. VAT, ex. delivery costs
Available in: 1-2 days

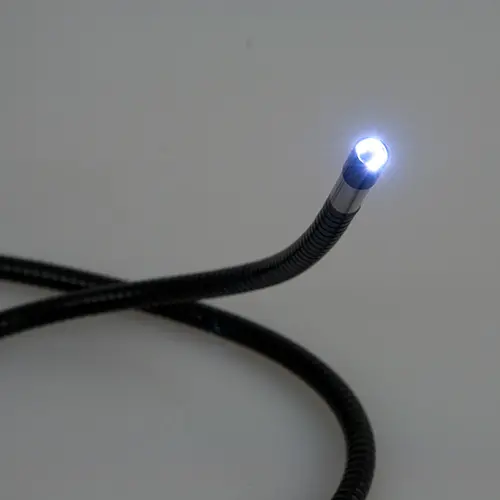

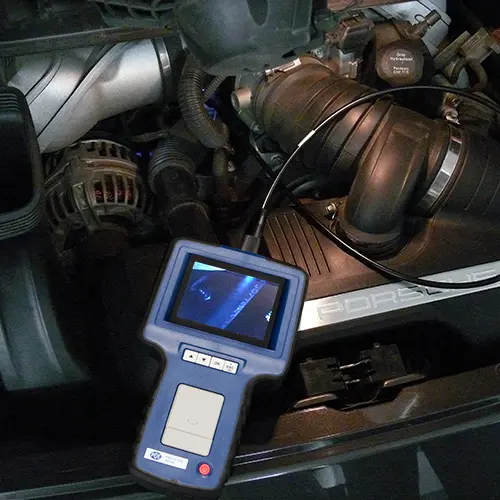

PCE-VE 340N is an automotive tester, borescope, inspection camera or industrial endoscope for the non-destructive inspection (NDI) of engines, machines and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 4 LED lights with automatic illumination. In addition, digital image magnification or zoom of up to 2 times is available.

The borescope stores the recorded images and videos directly to an SD card memory (included), allowing easy transfer to a PC. The 10 m / 32.8 ft cable length and 5.5 mm / 0.22 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.

***Not for medical use***

- Cable length 1m, 2m or 10m / 3ft 3", 6ft 6" or 32ft 9" (depending on model)
- Cable diameter 5.5 mm / 0.22"
- Storage of pictures and videos
- 8 GB memory card incl.
- LED lighting
- Robust carrying case included
- Additional camera cables optional

Cable diameter

5.5 mm / 0.22 in

Cable length

10 m / 32.8 ft

Depth of field

1.5 … 10 cm / 0.59 ... 3.94 in

Field of view

67°
Bending radius 90 mm / 3.54 in
Illumination 4 LEDs, automatic
Image sensor CMOS
Picture rate 30 frames per second (fps)
Display
 88.9 mm / 3.5 in TFT LCD monitor
Interface Mini USB 1.1 / AV out
Storage options Image or video
Storage Up to 32 GB SD memory card
Compression format MPEG 4
Picture format JPEG (640 x 480 pixel resolution)
Video output format NTSC / PAL
Video format ASF (320 x 240)
Operation and storage temperature 0 ... 60°C / 32 ... 140°F
Voltage supply Rechargeable 3.7V lithium-ion battery
Dimensions, handheld device 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case 450 g / 1 lb
Protection type, camera IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.9 ft





1 x Automotive Tester / Borescope PCE-VE 340N
1 x 8 GB SD memory card
1 x Cable (PCE-VE-N-SC10)
1 x USB cable
1 x Carrying case
1 x Power adapter
1 x User manual

Please note: Not to be used for medical applications!

Accessories

Order no.: PCE-VE-N-SC2
Semi-Flexible Camera Cable for PCE-VE Series
PCE-VE-N-SC2 is a semi-flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.

- 5.5 mm diameter
- 2 meters long
- 320 x 240 pixel resolution





***Attention: NOT compatible with the VE 200 Series!***

Manufacturer: PCE Instruments
US$ 657.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE-N-SC2F
Flexible Borescope Cable PCE-VE-N-SC2F
Flexible borescope cable suitable for all borescopes of the PCE-VE-N series with front camera / 2 meters / Ø 5.5 mm
Manufacturer: PCE Instruments
US$ 759.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE-N-SC1-HR
Semi-rigid borescope cable HighRes PCE-VE-N-SC1-HR
1 m (3.28 ft) with HighRes function borescope cable for PCE-VE-N series borescopes 1 meter / Ø 5.5 mm / semi-rigid
Manufacturer: PCE Instruments
US$ 759.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE-N-ROL
Cable reel PCE-VE-N-ROL
Cable reel PCE-VE-N-ROL suitable for PCE-VE-N-SC10. Cable reel for holding the 10 m cable and the hand-held device of the PCE-VE 3xx N series.
Manufacturer: PCE Instruments
US$ 546.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE-CB
Centering brush PCE-VE-CB
Centering brush suitable for PCE-VE-N-SC22
Manufacturer: PCE Instruments
US$ 132.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE-WAGON
Camera guide PCE-VE-WAGON
- Working area: 150-300 mm (5.9-11.8")
- 6 rollers
- Waterproof
- Length 140mm (5.5")
- Width 125mm (4.9")
- Height 180mm (7")
- Material: stainless steel and aluminium
- Ambient temperature: -10 ... +60 °C (14 ... 140 °F)
Manufacturer: PCE Instruments
US$ 1,188.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE-LOC
Locator PCE-VE-LOC for videoscope
- Handset / digital
- Test depth up to 1.8 m / 5.9 ft
- Locator for videoscope transmitter
- To determine the location of damage
- LED backlight
- Easy calibration
- Adjustable units m/ft
Manufacturer: PCE Instruments
US$ 1,700.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE-4W1-HR
Four-Way Articulating Camera Cable for PCE-VE Series
PCE-VE-4W1-HR is a four-way articulating camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.

- Flexible
- Joystick operated
- 6 mm diameter
- 1 meter long
- 640 x 480 pixel resolution
- IP 65 international / ingress protection rating





***Attention: NOT compatible with the VE 200 Series!***

Manufacturer: PCE Instruments
US$ 3,400.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE-4W3-HR
Four-Way Articulating Camera Cable for PCE-VE Series
PCE-VE-4W3-HR is a four-way articulating camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.

- Flexible
- Joystick operated
- 6 mm diameter
- 3 meters long
- 640 x 480 pixel resolution
- IP 65 international / ingress protection rating





***Attention: NOT compatible with the VE 200 Series!***

Manufacturer: PCE Instruments
US$ 4,509.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE-2W3-HR
Two-Way Articulating Camera Cable for PCE-VE Series
PCE-VE-2W3-HR is a two-way articulating Hyperion camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.

- 6 mm diameter
- 3 meters long
- 640 x 480 pixel resolution
- IP 67 international / ingress protection rating





***Attention: NOT compatible with the VE 200 Series!***

Manufacturer: PCE Instruments
US$ 2,310.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE-N-SC30
Semi-Flexible Camera Cable for PCE-VE Series
PCE-VE-N-SC30 is a semi-flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.

- IP67 rating - dust tight, protected against liquid immersion
- 5.5 mm / 0.22 inch diameter
- 30 m / 98.42 ft long
- 320 x 240 pixel resolution



***Attention: NOT compatible with the VE 200 Series!***

Manufacturer: PCE Instruments
US$ 2,363.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE-2in1-N
Two-in-One Semi-Flexible Camera Cable for PCE-VE Series
PCE-VE-2in1-N is a 2-in-1 semi-flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.

- 2-in-1: 1 front-facing and 1 side-facing camera in 1 head
- 4.9 mm diameter
- 1 meter long
- 320 x 240 pixel resolution
Manufacturer: PCE Instruments
US$ 820.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE-2W1-N
Two-Way Articulating Camera Cable for PCE-VE Series
PCE-VE-2W1-N is a two-way articulating camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.

- 6 mm diameter
- 1 meter long
- 320 x 240 pixel resolution





***Attention: NOT compatible with the VE 200 Series!***

Manufacturer: PCE Instruments
US$ 996.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: HT-55-PCE-VE
Cable Holder for the PCE-VE 3xxN series
The cable holder can be used for all 5.5 mm diameter cables of the PCE-VE N series. Ideal attachment for use when a rigid cable tip is desired.

- 60 ... 99 cm length
- 8 mm diameter





***Attention: NOT compatible with the VE 200 Series!***

Manufacturer: PCE Instruments
US$ 169.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: GB-25-PCE-VE-N
Guide Ball for PCE-VE Series
GB-25-PCE-VE-N is a guide ball attachment for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras. The guide ball facilitates passage of the camera cable through tight spaces without contaminating the lens. The guide ball also aids in unscrewing the camera head.

- 25 mm guide ball diameter
- Exclusively for use with 5.5 mm diameter camera cables





***Attention: NOT compatible with the VE 200 Series!***

Manufacturer: PCE Instruments
US$ 76.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: GB-15-PCE-VE-N
Guide Ball for PCE-VE Series
GB-15-PCE-VE-N is a guide ball attachment for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras. The guide ball facilitates passage of the camera cable through tight spaces without contaminating the lens. The guide ball also aids in unscrewing the camera head.

- 15 mm guide ball diameter
- Exclusively for use with 5.5 mm diameter camera cables





***Attention: NOT compatible with the VE 200 Series!***

Manufacturer: PCE Instruments
US$ 46.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: MAG-H-VE-N
Magnetic Hook Attachment for PCE-VE 3xxN series
Screw-on magnetic hook attachment for removing small metallic objects from hard-to-reach places. This magnetic attachment is screwed securely onto the head of the camera cable, so the attachment stays firmly connected. Suitable for use with 5.5 mm diameter cables only.





***Attention: NOT compatible with the VE 200 Series!***

Manufacturer: PCE Instruments
US$ 39.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE-N-SCS
Semi-Flexible Camera Cables for PCE-VE Series

PCE-VE-N-SCS includes two semi-flexible camera cables for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.

- 3.9 mm diameter
- 1 meter long
- 320 x 240 pixel resolution
- 1 cable with front view camera
- 1 cable with side view camera



***Attention: NOT compatible with the VE 200 Series!***

Manufacturer: PCE Instruments
US$ 920.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE-N-SC1
Semi-Flexible Camera Cable for PCE-VE Series
PCE-VE-N-SC1 is a semi-flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.

- 5.5 mm diameter
- 1 meter long
- 320 x 240 pixel resolution





***Attention: NOT compatible with the VE 200 Series!***

Manufacturer: PCE Instruments
US$ 632.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: SOFT-M-VE-N
Surveying Software for PCE-VE 3xxN series
Survey software for Videoscope PCE-VE-N series (only for 5.5mm cable)





***Attention: NOT compatible with the VE 200 Series!***

Manufacturer: PCE Instruments
US$ 298.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-VE-N-SC10
Flexible Camera Cable for PCE-VE Series

PCE-VE-N-SC10 is a flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.

- 5.5 mm diameter
- 10 meters long
- 320 x 240 pixel resolution
- Integrated LED light

 ***Attention: NOT compatible wit the VE 200 Series!***

Manufacturer: PCE Instruments
US$ 1,280.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: ES-45-VE 300N
Field-of-View Mirror ES-45-VE 300N (90º)
ES-45 VE 300N is a 45º mirror designed to increase the field of vision by 90º for PCE-VE series borescopes, industrial endoscopes, videoscopes and inspection cameras.

- For use with 5.5 mm diameter inspection camera cables
- Allows viewing of sidewalls and around corners
- No camera head articulation required
- Outer diameter is 6 mm



***Attention: NOT compatible with the VE 200 Series!***

Manufacturer: PCE Instruments
US$ 39.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
