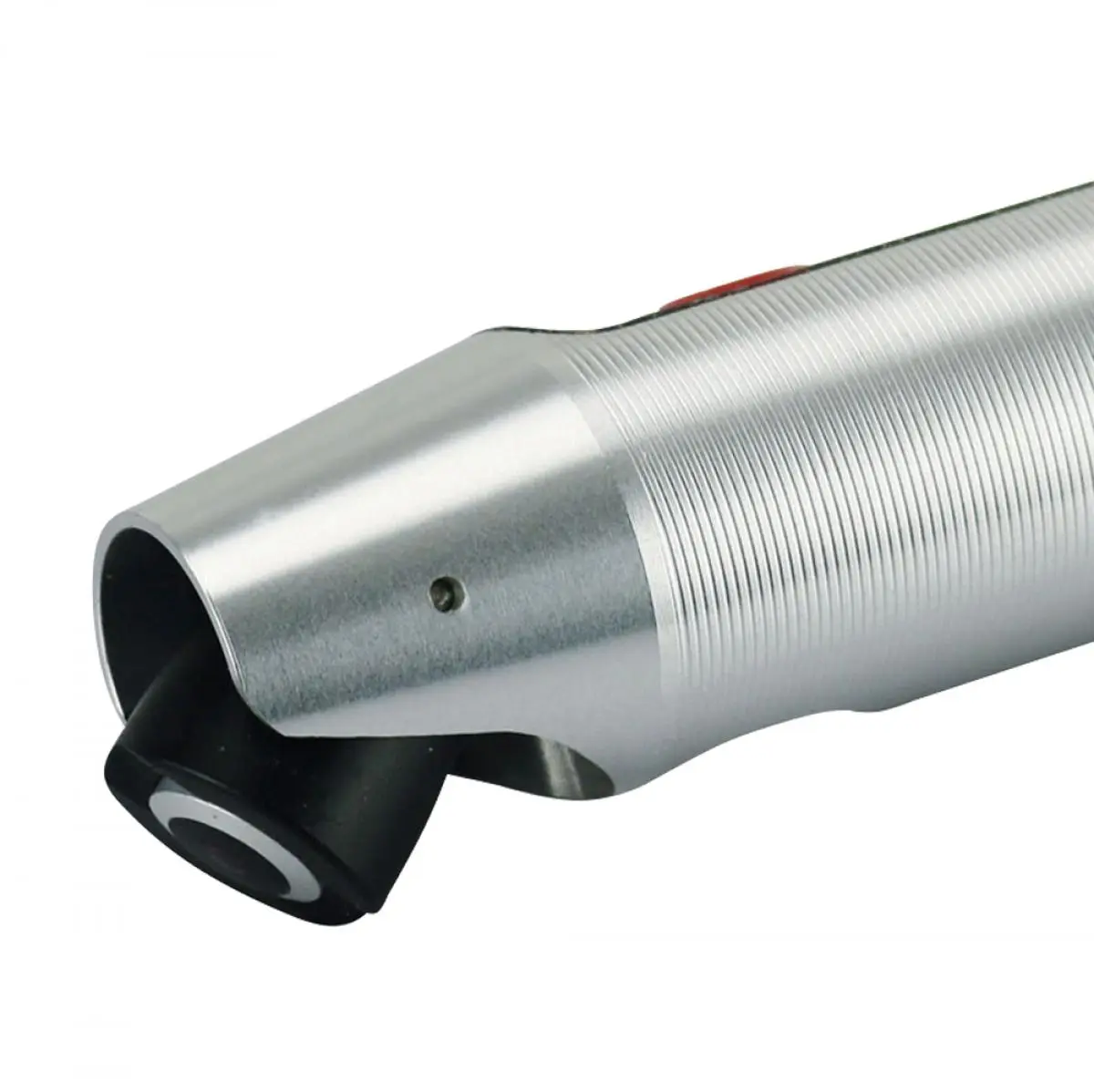

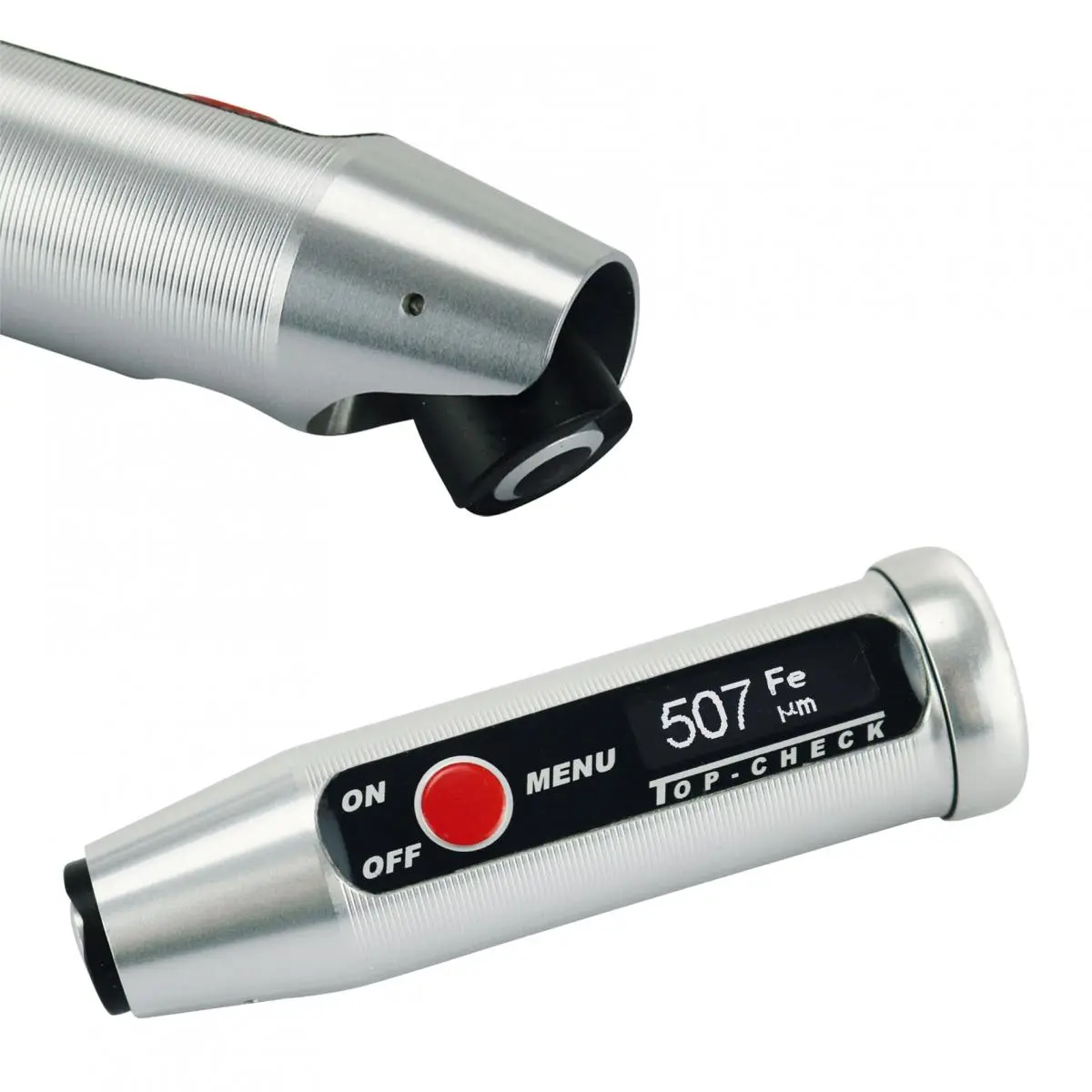

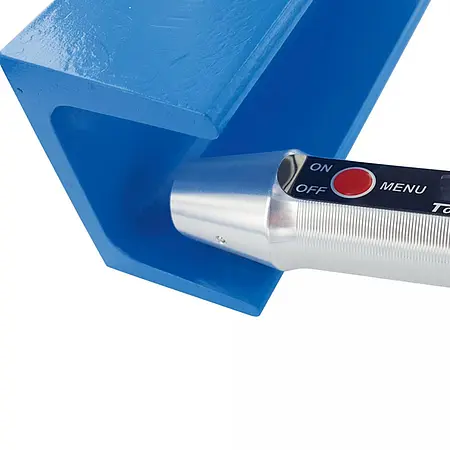

The Automotive Tester has a globally unique measuring probe that can be swiveled through 90°, allowing you to always carry out precise coating thickness measurements. The Automotive Tester with the compact, lightweight devices is barely larger than a measuring probe and is therefore ideal for on-site applications in hard-to-reach places. The handy metal housing is splash-proof to IP 64 for interference-free measurements in harsh environments. A coating thickness tester with flowing water protection is also available as an option. For a long service life with frequent measurements on rough surfaces, the measuring probe has a wear-resistant ruby probe pole.
With a single button and the self-explanatory, multilingual menu navigation, the Automotive Tester is very easy to operate.

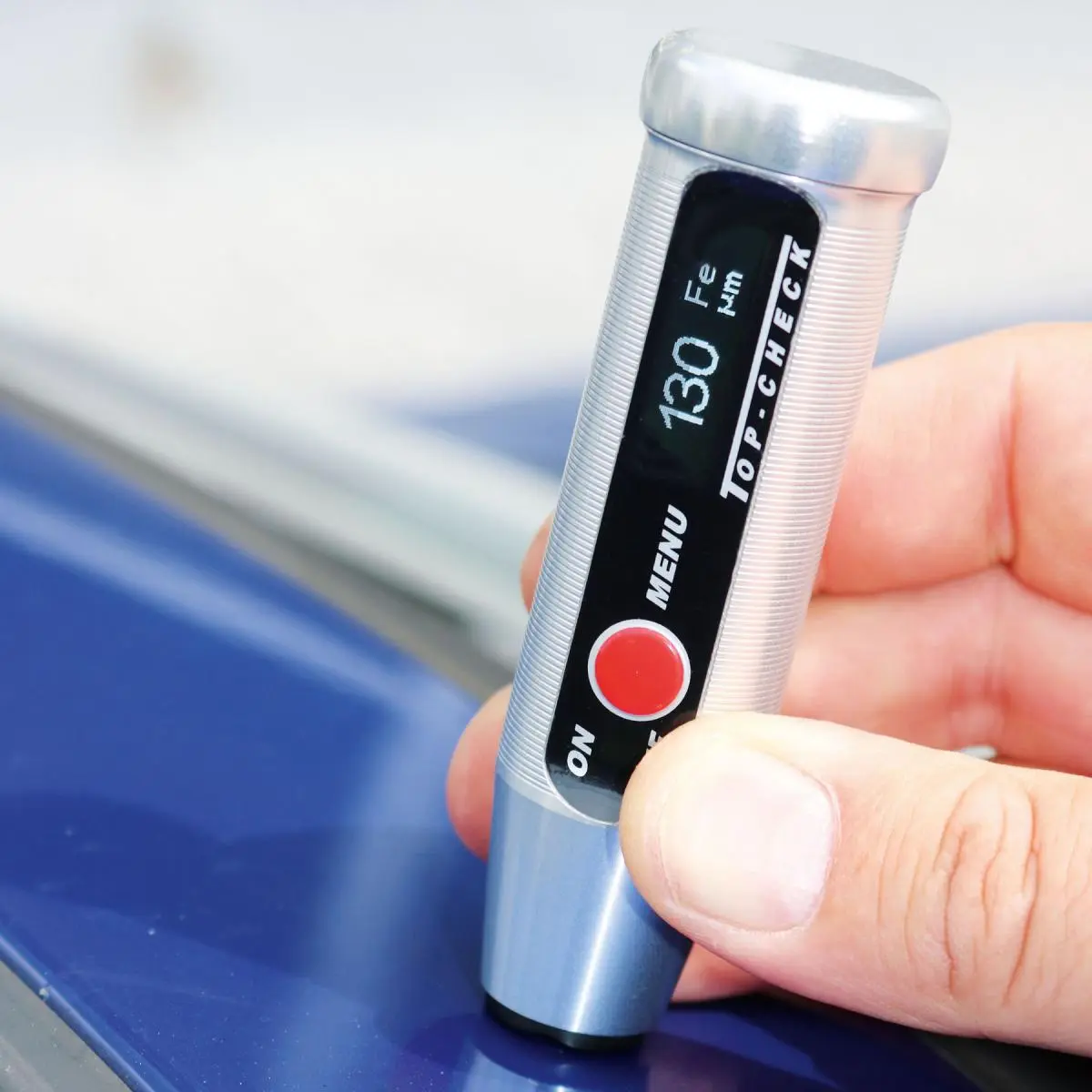

A Automotive Tester is usually used in the quality assurance of coating processes. For example, to determine the paint thickness of a coating, when testing vehicles or steel structures or in fire protection (determining the coating thickness of steel doors). However, it is not only a Automotive Tester, but can also be used to reliably measure rubber coatings, anodizing and galvanic coatings.
The Automotive Tester uses a combined probe to measure insulating layers of paint, varnish, plastic, rubber, ceramic and galvanic coatings (excluding nickel) using the magnetic induction measuring method. The device is used on iron and steel substrates. It is also suitable for measuring insulating coatings (paint, plastic, etc.) using the eddy current method on non-ferrous metals such as aluminum, brass, copper, bronze and non-magnetic stainless steels in accordance with ISO 2178 and ISO 2360.
To further process your measurement data, you can connect your Automotive Tester to mobile Android and iOS devices. Or you can communicate with a Windows PC. Wireless technology makes it possible. With the Lima Connect app, you can manage projects and allocate the measuring points on a photo. The measurement results can be statistically analysed and displayed graphically. The app for Android, iOS and Windows is free of charge.
| Layer thickness | |
| Material | Fe |
| Measurement range up to | 2 ... 5000 µm |
| Resolution | 0,1 µm |
| Accuracy | 2 ... 100 µm ± 1 µm 100 ... 1000 µm: ± 1% 1000 ... 2000 µm: ± 3% 2000 ... 5000 µm: ± 5% |
| Layer thickness | |
| Material | NFe |
| Measurement range up to | 2 ... 2000 µm |
| Resolution | 0,1 µm |
| Accuracy | 2 ... 100 µm ± 1 µm 100 ... 1000 µm: ± 1% 1000 ... 2000 µm: ± 3% 2000 ... 5000 µm: ± 5% |
| Sensor | |
| Designation | TOP CHECK Dual |
| Measurement range up to | 2 ... 5000 µm |
| Measurable materials | Measurement of paint, varnish, plastic and galvanic coatings on steel (ISO 2178) and insulating coatings on non-ferrous metals (ISO 2360) |
| Min. measuring surface | Ø 8 mm |
| Min. layer thickness | 0 µm |
| Min. radius of curvature convex | 6 millimetres |
| Min. radius of curvature concave | 38 mm |
| Additional description | Sensor can be swivelled by 90 Automatic detection of the base material |
| General technical data | |
| Measuring functions | Quantity, MAX, MIN, Average value, Standard deviation |
| Units | µm, mils |
| Display type | OLED |
| Storage capacity | 4000 Values |
| Memory capacity (additional information) | flexibly divisible |
| Interface | Wireless |
| Operating time | 50 h |

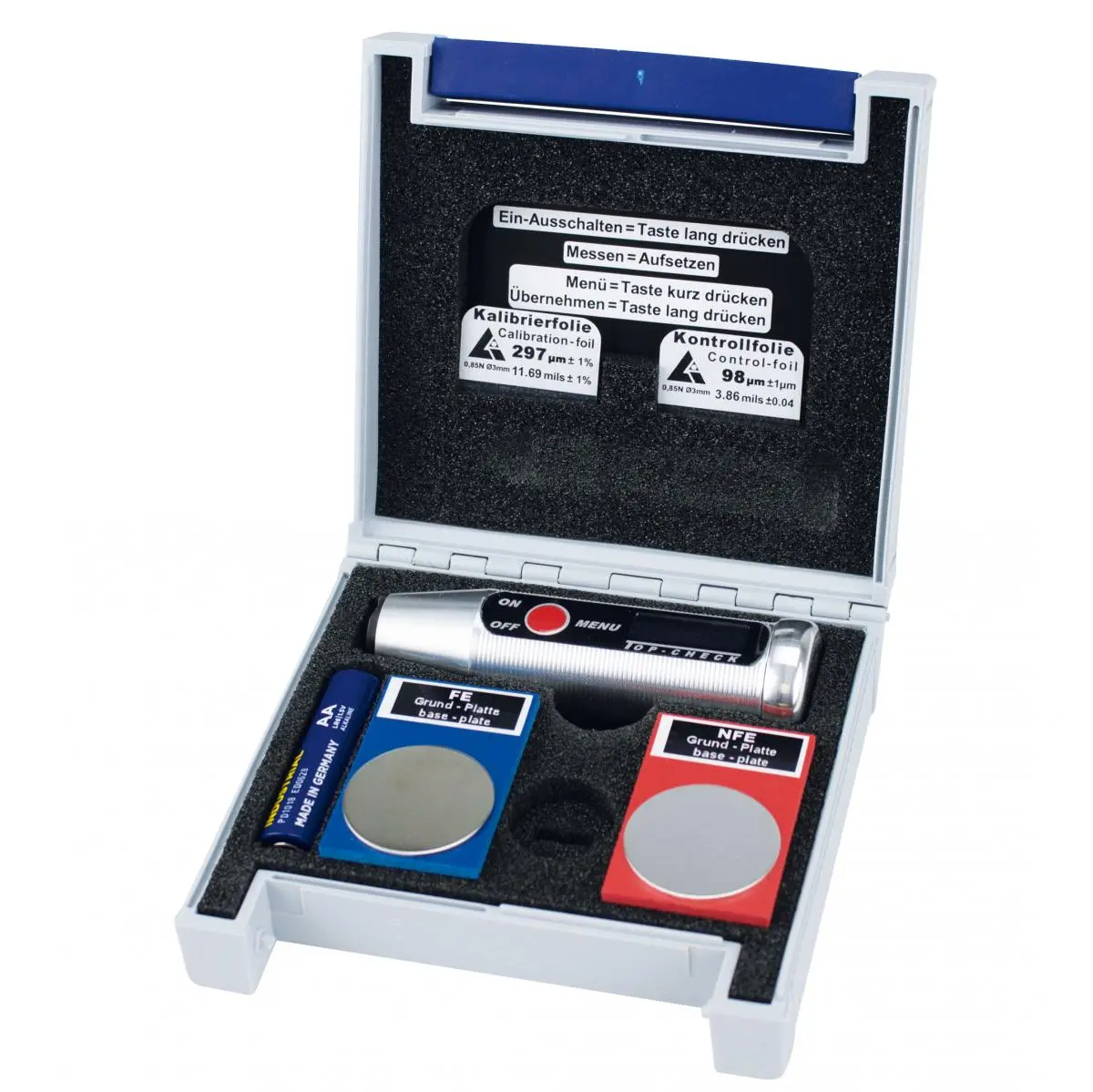

| Calibration | 300 µm |
| Menu language | German, English (GB), English, French, Italian, Spanish, Hungarian, Polish |
| Protection class (device) | IP64 |
| Power supply | 1x 1.5V AA Cute |
| (Rechargeable) battery | 1 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Dimensions ( L x W x D ) | 95 x 95 x 28 mm |
| Weight | 76 g |
