ex. VAT, ex. delivery costs
- 5 m / 16 ft sensor cable

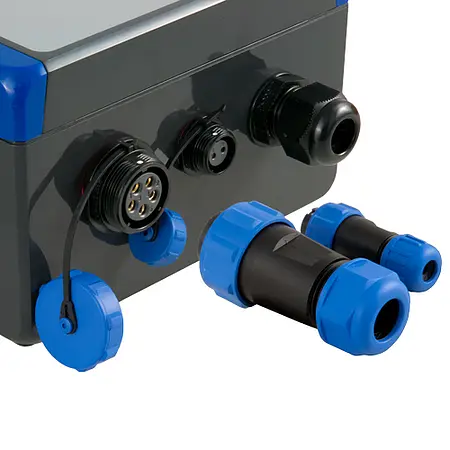

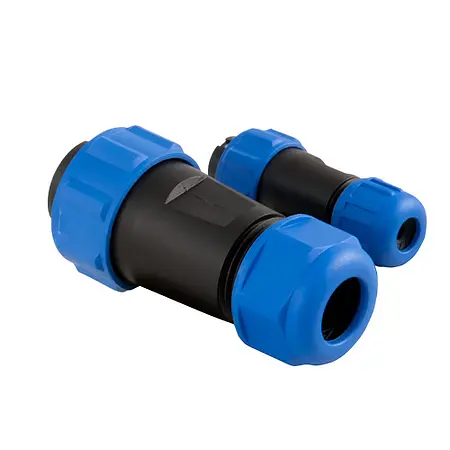

- M12 coupling sensor side
- M12 connector on the device side

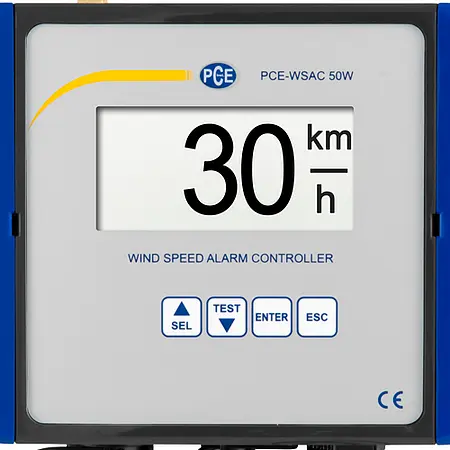

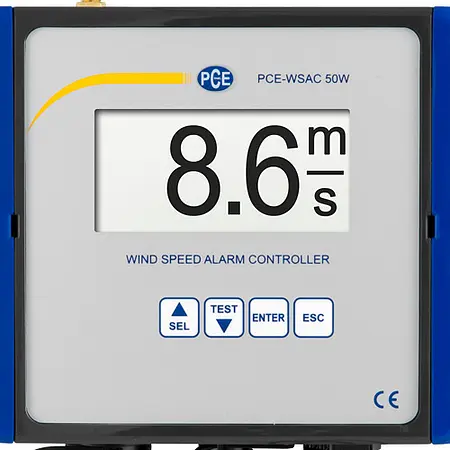

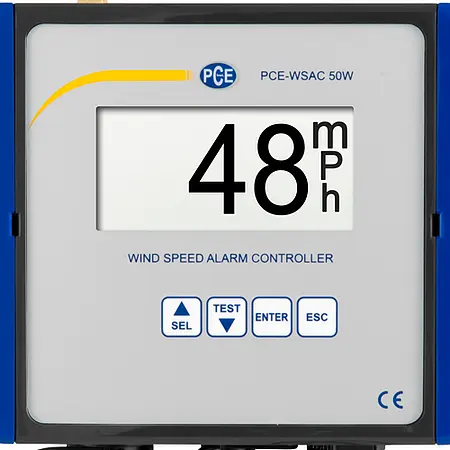

Display of anemometer PCE-WSAC 50W 24 | |
Entrance | Pulse, analog (4 ... 20-mA) or radio |

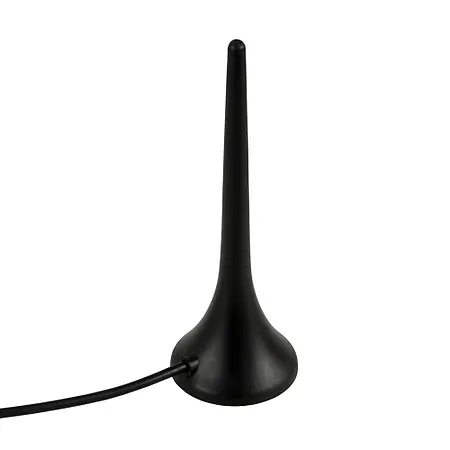

Radio | IEEE 802.15.4 ISM 2.4 GHz |
Units | km / h, mph, m / s |
Power supply for sensors | +15V DC |
Analog output | 4 ... 20-mA |
Maximum input impedance | 500 Ω |
Resolution of the analog output | 10 bits |
Accuracy of the analog output | ± 1.5% |
Alarm relay | Max. 250V AC, 8 A |
Display | Backlit 128 x 64 pixel LC display |
Casing | Robust plastic housing |
Protection class | IP65 |
Dimensions | 145 x 95 x 125 mm / 5.7 x 3.7 x 4.9 in |
Weight | 650 g / 1.4 lbs |

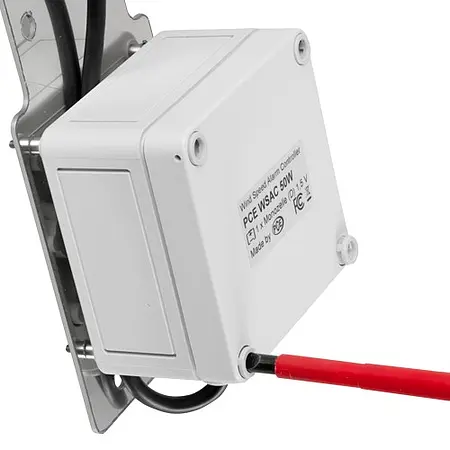

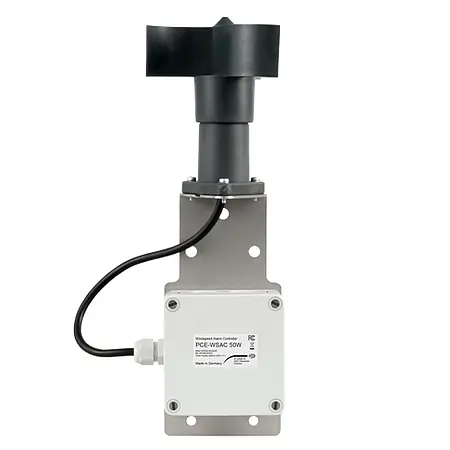

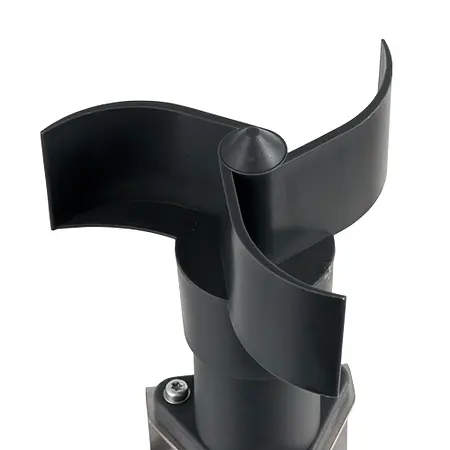

Sensor of anemometer PCE-WSAC 50W | |
Measuring range | 4 ... 180 km / h |
Minimum start speed | 8 km / h |
Accuracy | ± 1 km / h in the range 4 ... 15 km / h |
± 3% in the range 16 ... 180 km / h | |

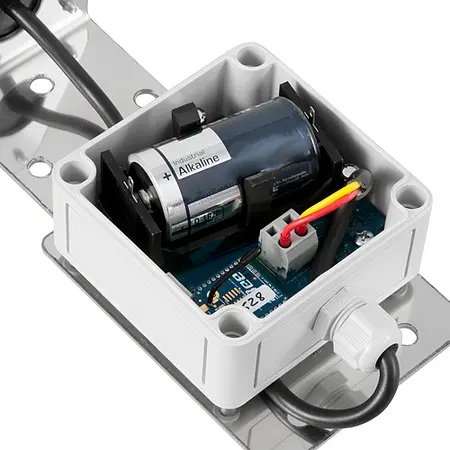

Power supply | Battery mono cell D 1.5V DC |
Power consumption | Approx. 0.3 W with 1.5V DC power supply |
Housing material | PA + FG |
Ball-bearing | Stainless steel X65Cr13 |

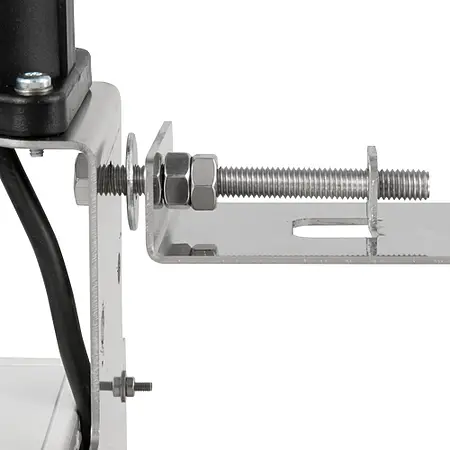

Holder | Stainless steel AISI 304 |
Weight (with standard bracket) | About 680 g / 1.5 lbs |
Weight with self-leveling bracket | About 900 g / 2 lbs |
Dimensions | 320 x 110 x 100 mm / 12.6 x 4.3 x 3.9 in |
Storage temperature | -35 ... 70°C / -31 ... 158°F |
Ambient temperature | -20 ... 70°C / -4 ... 158°F |
Protection | IP65 |
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
15 m / 49 ft sensor cable to connect the wind sensors PCE-FST-200-201 to the wind detector PCE-WSAC 50.
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
The wind speed sensor is compatible with and can be mounted on to a wide variety of available measuring equipment. The sensor will detect even the minutest movements of air and the results are then output in analogue form.
ex. VAT, ex. delivery costs
25 m Sensor cable for connecting the wind sensors PCE-FST-200-201 to the wind sensor PCE-WSAC 50.
