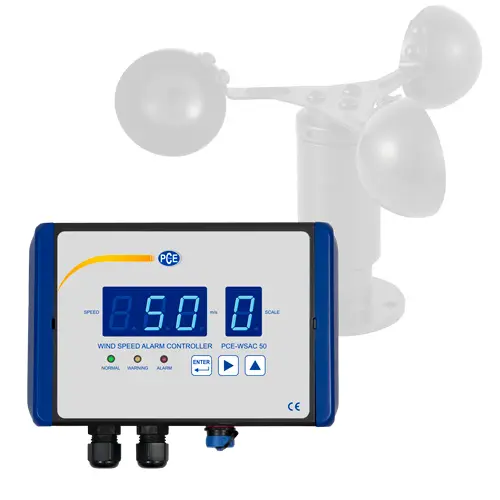

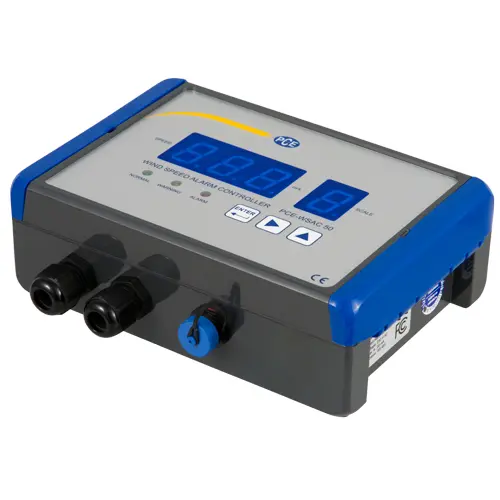

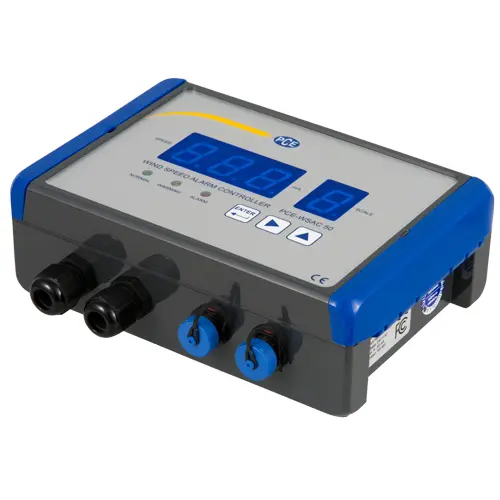

PCE-WSAC 50-920 Air Flow Meter
Pre-alarm and full alarm / Displays current wind speed and average wind speed of last 2 and 5 minutes
The PCE-WSAC 50 is an airflow meter alarm controller that displays the current wind speed as well as the average wind speed of the last 2 and 5 minutes. A pre-alarm and full alarm can be activated based on preset values. If wind speeds are higher than the preset values, a pre-alarm is first applied before the full alarm is issued. Both alarms are delivered visually and audibly. If the pre-alarm is triggered, a yellow LED will flash on the front of the unit and a beep will periodically be emitted as a warning tone. If the full alarm is triggered, a red LED will flash on the front of the unit and a beep will continuously be emitted.

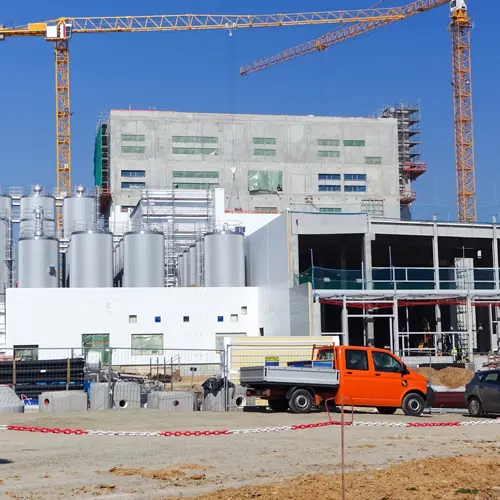

The airflow meter allows measurement of the slightest of wind movements. This airflow meter alarm controller is used for a variety of wind monitoring applications in industries such as construction, mining, renewable energy and manufacturing. If necessary, a relay can also be connected to the controller.
***Sensors sold separately***
| Power supply | 24 V DC | |
| Supply voltage for sensors (output) |
12 V DC 24 V DC |
|
| Measuring range | 0 ... 50 m/s or 0 ... 110 mph | |
| Measuring accuracy | ± 3% of measuring range | |
| Signal input | 0 ... 10 V | |
| Alarm relay |
|
|
|
| ||
| Operating temperature | -20 ... +60 °C / -4 ... +140 °F | |
| Dimensions | 197.5 x 90 x 45 mm / 7.7 x 3.5 x 1.7" | |
| Weight | Approx. 400 g / 0.89 lb |
1 x PCE-WSAC 50-920 Air Flow Meter
1 x User manual

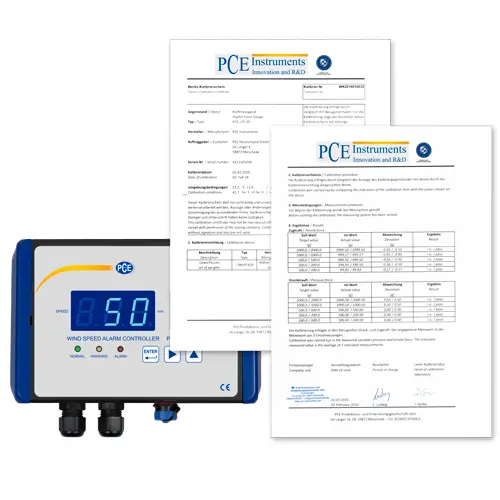

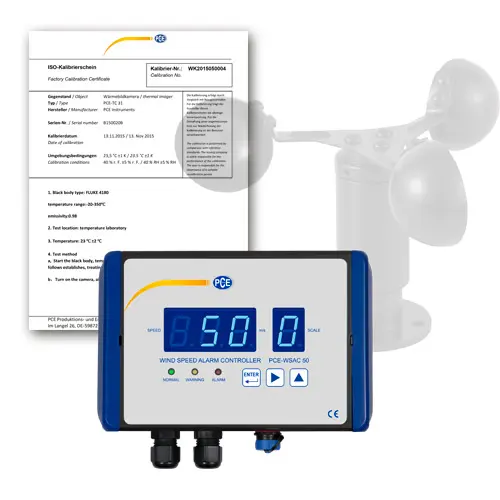

1 x ISO Calibration certificate
***Sensors sold separately***
ex. VAT, ex. delivery costs
- up to 100 devices with 25 registers can be connected
- Configuration via webbrowser
- Interface: RS485, Ethernet
- Memory: 1 GB Flash
- additional inputs / outputs: digital input or relay output (selectable)
The air flow meter is compatible with and can be mounted on to a wide variety of available measuring equipment. The sensor will detect even the minutest movements of air and the results are then output in analogue form. With heating.
- Output signal: 4 … 20-mA
- Operating voltage: 12 … 36V DC
- Measurement reading range: 0.5 m/s … 50 m/s (1.1 ... 111.8 mph)
The air flow meter is compatible with and can be mounted on to a wide variety of available measuring equipment. The sensor will detect even the minutest movements of air and the results are then output in analogue form.
- Output signal: 0 … 10V
- Operating voltage: 12 … 36V DC
- Measurement reading range: 0.5 m/s … 50 m/s (1.1 ... 111.8 mph)
The air flow meter is compatible with and can be mounted on to a wide variety of available measuring equipment. The sensor will detect even the minutest movements of air and the results are then output in analogue form.
- Output signal: 4 … 20-mA
- Operating voltage: 12 … 36V DC
- Measurement reading range: 0.5 m/s … 50 m/s (1.1 ... 111.8 mph)
The air flow meter is compatible with and can be mounted on to a wide variety of available measuring equipment. The sensor will detect even the minutest movements of air and the results are then output in analogue form. With heating.
- Output signal: 0 … 10V
- Operating voltage: 12 … 36V DC
- Measurement reading range: 0.5 m/s … 50 m/s (1.1 ... 111.8 mph)
