Order no.: PCE-VDR 10

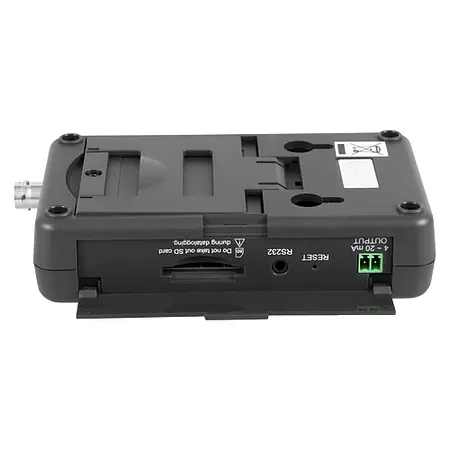

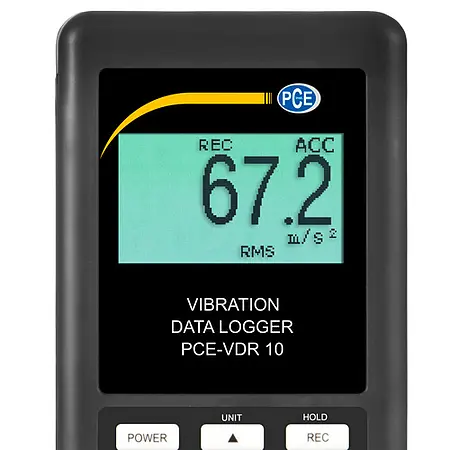

Accelerometer PCE-VDR 10

Question / Callback

Available in: 1-2 days

Description

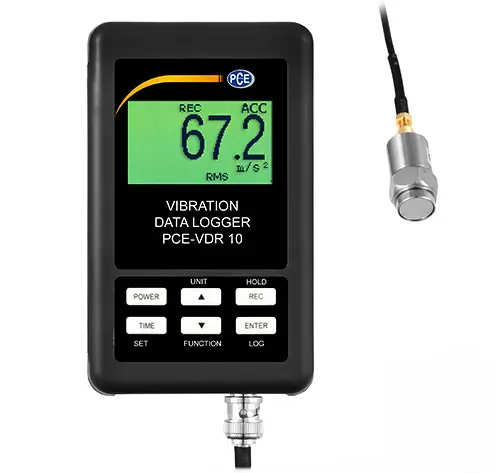

PCE-VDR 10 is a single-axis accelerometer or vibration monitor with real-time measurement and data logging capabilities. This vibration analyzer records acceleration (m/s, g, ft/s) as well as speed (mm/s, cm/s, in/s) measurements and saves the measured data to an included SD card memory. Note: To set up the SD card for the first time, the PCE-VDR 10 must be connected to AC power.

Note: To set up the SD card for the first time, the PCE-VDR 10 must be connected to AC power (AC power supply NET-LUT or NET-LUT-US sold separately - see accessories tab).

Highlights

- Measures acceleration (m/s, g, ft/s) and speed (mm/s, cm/s, in/s)
- Adjustable automatic data logging
- SD card memory
- RS-232 and USB interface
- Data can be downloaded to a computer and analyzed using Microsoft Excel

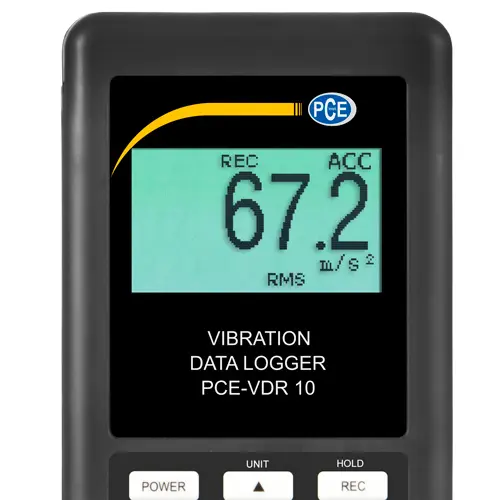

- Backlit LCD screen
- Portable

Specification

Frequency range	10 ... 1000 Hz
Acceleration measuring range (at 50 m/s, 160 Hz)	0.5 ... 199.9 m/s, 0.05 ... 20.39 g, 2 ... 656 ft/s
Resolution	0.1, 0.01, 1
Accuracy	± (5% of reading + 2 digits)

Speed measuring range (at 50 mm/s, 160 Hz)	0.5 ... 199.9 mm/s, 0.05 ... 19.99 cm/s, 0.02 ... 7.87 in/s
Resolution	0.1, 0.01, 1
Accuracy	± (5% of reading + 2 digits)

Display	LCD
Display update time	update time: 1 second
Memory	SD card (included)
Automatic data logging interval	5 ... 3600 seconds (adjustable)
Analog output	4 ... 20 mA

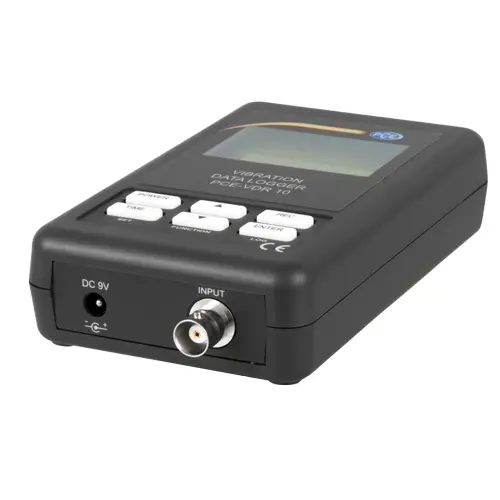

Power supply	6 x 1.5 V AAA batteries or 9 V DC electric power (adapter sold separately)

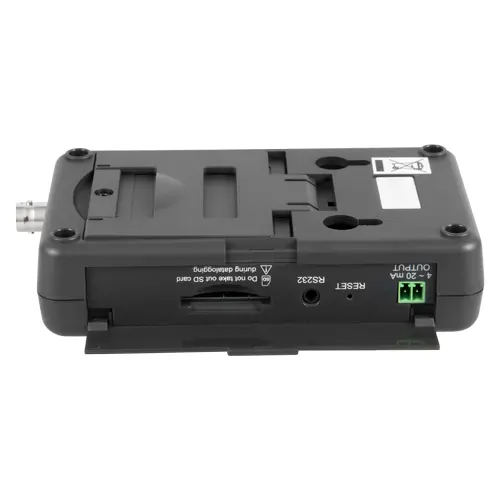

Interface	RS-232 and USB
Dimensions	132 x 80 x 32 mm (5.20 x 3.15 x 1.26")

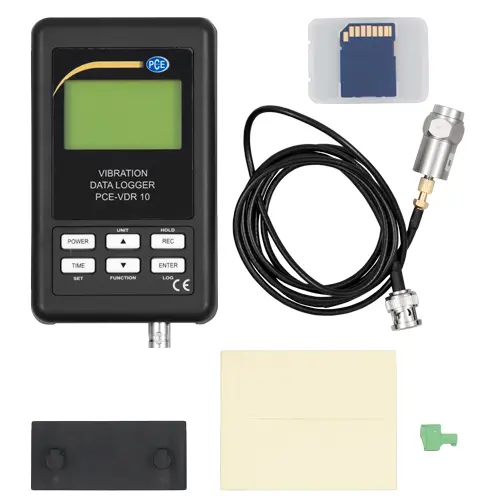

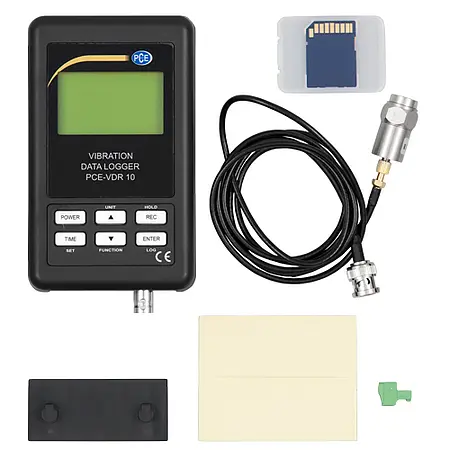

Delivery Scope

1 x Accelerometer PCE-VDR 10

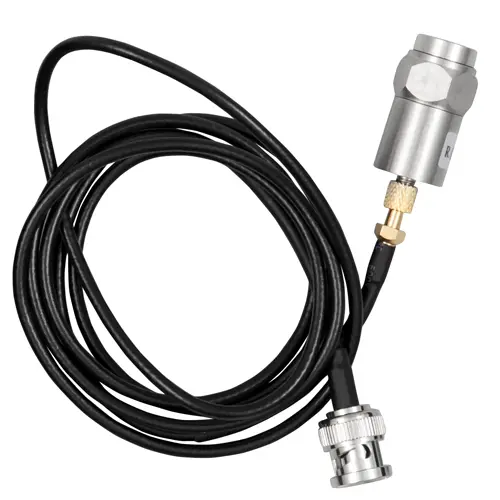

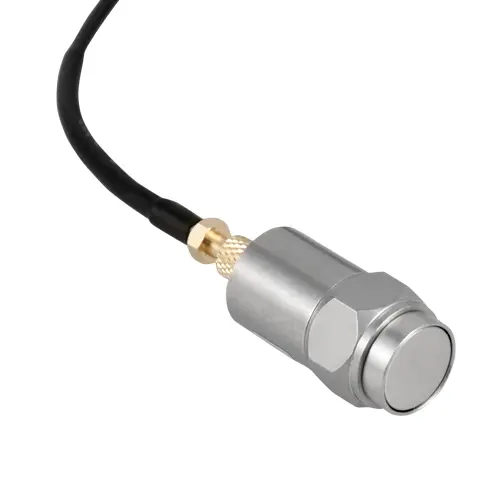

1 x vibration sensor
1 x wall bracket
6 x 1.5 V AAA batteries
1 x SD memory card
1 x connector for 4 ... 20 mA output
1 x user manual

Downloads

Manual

Datasheet

Accessories

Carrying Case with hard foam insert

US$ 34.00

ex. VAT, ex. delivery costs

The BOX-LT1 carrying case offers protection when transporting and storing measuring devices and their accessories.

Inlay partly pre-punched
Foam in the lid
Material: plastic
Colour: black
Exterior dimensions: 275x245x65mm / 10.8 x 9.6 x 2.5"

ISO Calibration Certificate CAL-V-I for Vibration Meter

US$ 285.00

ex. VAT, ex. delivery costs

ISO calibration certificate for vibration measuring devices, for example of the PCE-VT series, PCE-VM series or PCE-MSR series, e.g. to comply with your DIN ISO 9000

1 point calibration for vibration measuring devices at: 159.2 Hz; 10 mm/s; 14.1 m/s²; 0.028 mm

N.B. calibration certificates are issued specifically for the customer and are excluded from the right of return.

Power Supply 9 V / 0.8 A (US / North American)

US$ 21.00

ex. VAT, ex. delivery costs

Input voltage: 110 V AC, 60 Hz
Output voltage: DC 9 V
Output current: 0.8 A
Connector: US / North American style plug

USB Data Cable Incl. Software SOFT-LUT-USB

US$ 114.00

ex. VAT, ex. delivery costs

USB data cable incl. PC software for many different PCE instruments. This USB data cable connects the instrument via USB to the PC and allows a live visualisation on the PC using the software.
