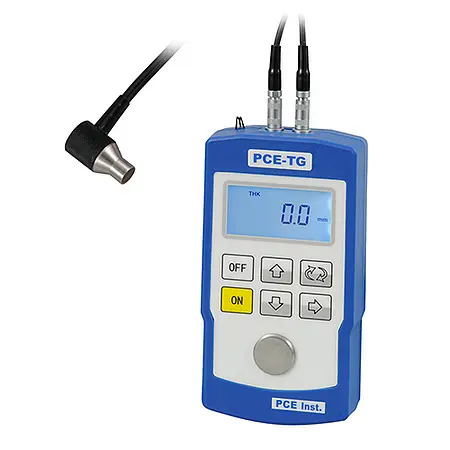

Ultrasonic Thickness Gauge PCE-TG 120
Thickness meter for homogeneous materials / With special test probe for edges and thin tubes
/ Adjustable ultrasonic speed / Easy operation / May only be used on a clean and flat surface
/ Not suitable for welding seams (displays in mm only)
The Ultrasonic Thickness Gauge PCE-TG120 is a very easy-to-use wall thickness gauge for all materials. This ultrasonic thickness gauge works to accurately measure the material thickness / wall thickness with ultrasound. Different materials require different ultrasonic speeds. The ultrasonic thickness gauge is factory pre-set with five different sound velocities for different material. With the ultrasonic thickness gauge, you can determine the material thicknesses of metal, glass, plastics and other homogeneous materials in seconds. The speed of sound can be freely adjusted on the ultrasonic thickness gauge and thus adapted to a wide variety of materials. The test head of the ultrasonic thickness gauge is designed in such a way that it can easily measure on angular workpieces.
The ultrasonic thickness gauge is delivered calibrated. As an accessory, you can order an ISO laboratory calibration including certificate at the time of initial order or recalibration.
Measurement range | 1 ... 30 mm / 0.04 ... 1.18 in |
Measurable materials | Ferrous and non-ferrous metals, steel, plastic, glass, gold, and other homogeneous materials (without air pockets) |
Frequency | 5 MHz |
Resolution | 0.1 mm / 3.94 mil |
Calibration | 3.0 mm / 0.1 in integrated steel block |
Accuracy | ± (0.5% + 0.1 mm) at 0.8 ... 99.9 mm / 0.03 ... 3.9 in ± (1% + 1 mm) at 100 ... 300 mm / 3.9 ... 11.8 in |
Sound velocity range | 1000 ... 9999 m/s (freely adjustable, depending on the material to be tested) |
Sound velocity resolution | 1 m/s |
Display | 4 digit LCD display |
Surface temperature for probe | 0 ... 50°C / 32 ... 122°F |
Measuring head diameter | 7 mm / 0.27 in |
Measuring head shape | Square |
Operating temperature range | 0 ... 40°C / 32 ... 104°F |
Ambient humidity | 20 ... 90% r.H. |
Battery status | Low power indicator |
Power supply | 2 x 1. V AA batteries |
Battery life | 250 h |
Auto shutdown | For battery conservation (after about 3 minutes without operation) |
Dimensions | 127 x 67 x 30 mm / 5 x 2.64 x 1.18 in (H x W x D) |
Weight | 270 g / 9.5 oz incl. batteries |
The thickness gauge may only be used on a clean and flat surface and is not suitable for welding seams!
1 x PCE-TG 120 Ultrasonic Thickness Gauge
1 x High-temperature contact transducer with 1 m (3.3 ft) cable
2 x Batteries
1 x Bottle of contact gel
1 x Carrying strap
1 x Carrying case
1 x User manual
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Measurement accuracy: | five parallel gauge blocks with the thicknesses 5 mm; 10 mm; 20 mm; 50 mm and 100 mm |
N.B. The calibration certificate is issued by the PCE calibration service specifically for the customer and is excluded from the right of return.
