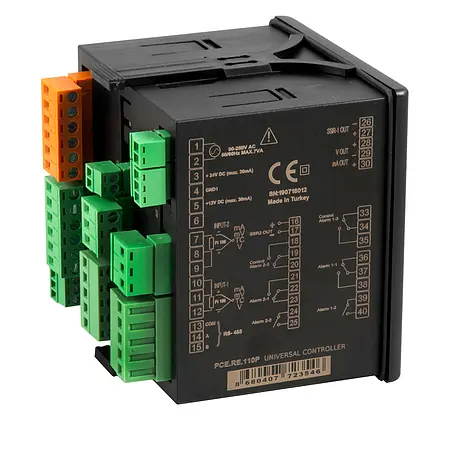

Universal Input Controller PCE-RE110P

Name: Universal Input Controller PCE-RE110P
Brand: PCE Instruments
SKU: 5931464
Price: 198 USD
Availability: InStock

Order no.: PCE-RE110P

GTIN (EAN): 4250348722041

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Description

Universal controller with various control outputs / Universal analogue input / Program control / RS485 interface / 4 digital inputs / Int. Sensor supply

The process controller has two usable measuring inputs that can be used for process control. The universal controller is also equipped with 2 control output circuits. Each control loop consists of an exchange relay and an SSR. In the menu of the universal controller is then set which output is to be used for control. The control relays of the universal controller can also be used for alarming. Furthermore, there are 2 more relays in the universal controller for alarming, per channel. For continuous control, an analog output is available.

The universal controller displays the measured and set point values on a color LCD display. The universal controller is set using the buttons provided. To pass on the process data to a process control system, there is an RS485 Modbus RTU interface on the universal controller. Control is optionally via ON-OFF or PID control. The universal controller uses among other things a self-optimization as well as an AUTO-PID function to find the optimal control parameters. To prevent overshoot at the start of the control process, the universal controller has been equipped with a soft start function.

Highlights

- 2 measuring inputs
- Relay, SSR and analog outputs
- 92 x 92 panel mounting
- 3.5" color display
- Modbus RTU interface
- 90 ... 250V AC power supply
- Program control, softstart, autotune
- Digital input

Specification


Measuring function
Input type thermocouple	Measuring & display area	Accuracy
Type B	200 ... 1800°C / 392 ... 3272°F	± 0.1% ± 2°C / 3.6°F
Type E	-100 ... 900°C / -148 ... 1652°F	± 0.1% ± 0.5°C / 0.9°F
Type J	-100 ... 900°C / -148 ... 1652°F	± 0.1% ± 0.5°C / 0.9°F
Type K	-100 ... 1300°C / -148 ... 2372°F	± 0.1% ± 0.5°C / 0.9°F
Type L	-100 ... 900°C / -148 ... 1652°F	± 0.1% ± 1.5°C / 2.7°F
Type N	-200 ... 1300°C / -328 ... 2372°F	± 0.1% ± 0.5°C / 0.9°F
Type R	0 ... 1700°C / 32 ... 3092°F	± 0.1% ± 1°C / 1.8°F
Type S	0 ... 1700°C / 32 ... 3092°F	± 0.1% ± 1°C / 1.8°F
Type T	-250 ... 300°C / -418 ... 572°F	± 0.1% ± 0.5°C / 0.9°F
Type U	-200 ... 400°C / -328 ... 752°F	± 0.1% ± 0.5°C / 0.9°F

Input type resistance sensors	Measuring & display area	accuracy
Pt100	-200 ... 850°C / -328 ... 1562°F	± 0.1% ± 0.5°C / 0.9°F
	-100 ... 160°C / -148 ... 320°F	± 0.1% ± 0.5°C / 0.9°F
NTC	-60 ... 150°C / -76 ... 302°F	± 0.1% ± 0.5°C / 0.9°F

Input type process stre	Measuring & display area	Accuracy
0 ... 20-mA	-32768 ... 32767	± 0.1% ± 1 digit
4 ... 20-mA	-3276.8 ... 3276.7	± 0.1% ± 1 digit

Input type mV	Measuring & display area	Accuracy
0 ... 150 mV	-327.68 ... 327.67
	-32,768 ... 32,767	± 0.1% ± 20 μV

Input type process voltage	Measuring & display area	Accuracy
0 ... 5V		± 0.1% ± 1 digit
1 ... 5V		± 0.1% ± 1 digit
0 ... 10V		± 0.1% ± 1 digit

Input type resistor	Measuring & display area	Accuracy
0 ... 550 Ω		± 0.2% ± 0.1 Ω
0 ... 10 kΩ		± 0.5% ± 10 Ω

Digital input for program control	Measuring & display area	Accuracy
	5V or 30V	Start-Stop Pause
	RI = 100 Ω	Previous program
		Next program

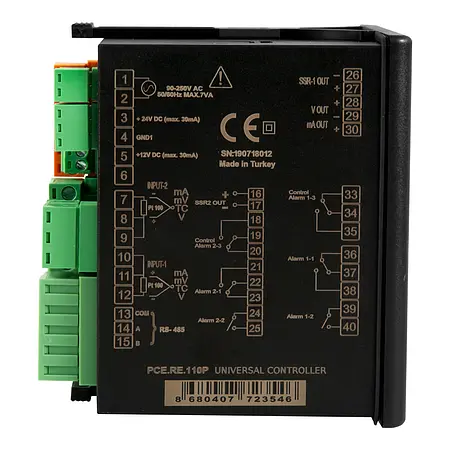

Channels	2 measuring inputs
Output	Control relay: NO / NC 250V AC / 2 A
	Alarm 1: NO / NC 250V AC / 2 A
	Alarm 2: NO 250V AC / 2 A
	SSR: 0 ... 12V / 40-mA
	mA: 0/4 ... 20-mA (750 Ω max.)
	V: 0 ... 10V
Power supply	90 ... 250V AC / 50/60 Hz
Input	7 VA

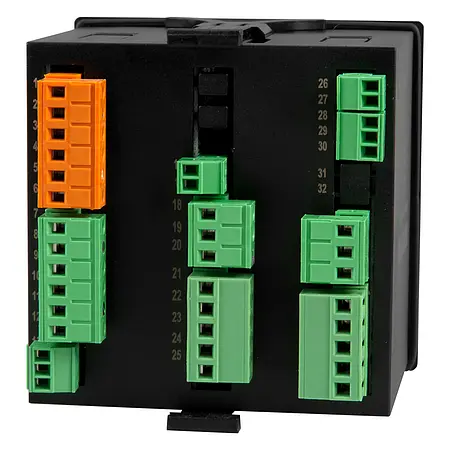

Electrical connection	2.5 mm² via screw terminals
Interface	RS485 Modbus RTU
Operating conditions	0 ... 50°C / 32 ... 122°F, max. 80% rh
Storage conditions	-25 ... 70°C / -13 ... 158°F, max. 80% rh
Degree of protection	Front: IP65
	Back side: IP20
Dimensions	96 x 96 x 81 mm / 3.8 x 3.8 x 3.2 in
Panel cut	92 x 92 mm / 3.6 x 3.6 in
Weight	About 400 g / < 1 lb

Delivery Scope

1 x Universal Input Controller PCE-RE110P
2 x Mounting bracket
1 x Seal
1 x User manual
