Panel Meter PCE-BPD-U-46A

Order no.: PCE-BPD-U-46A

Question / Callback

Available in: 10 - 14 days

Panel Meter with metal housing / Wall and switch cabinet mounting / IP65 /
Bright red LED display / Individually configurable / Digit height of up to 100 mm /
Various output signals / Display readable from a great distance

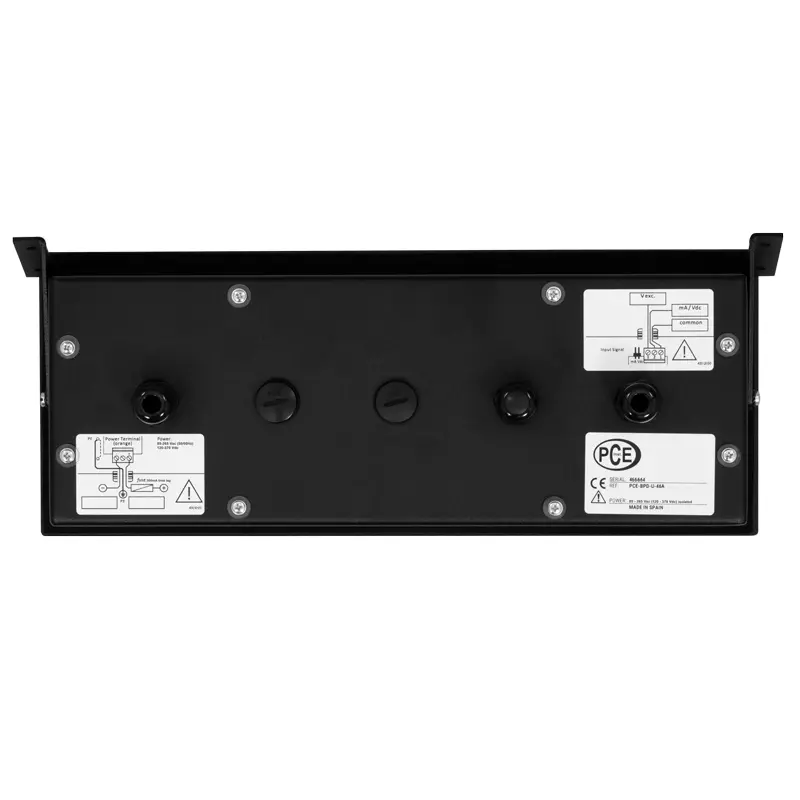

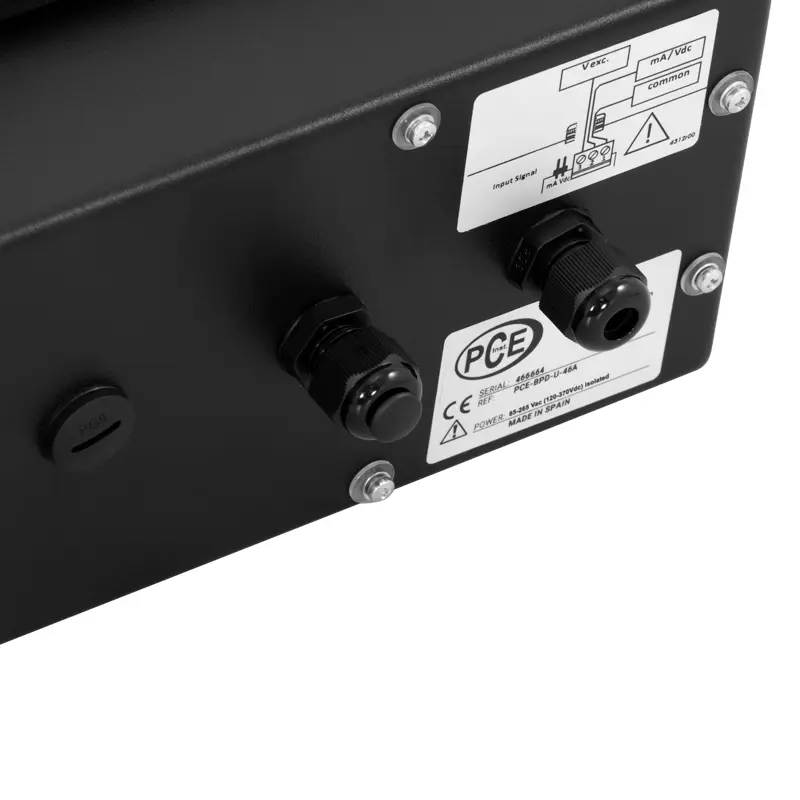

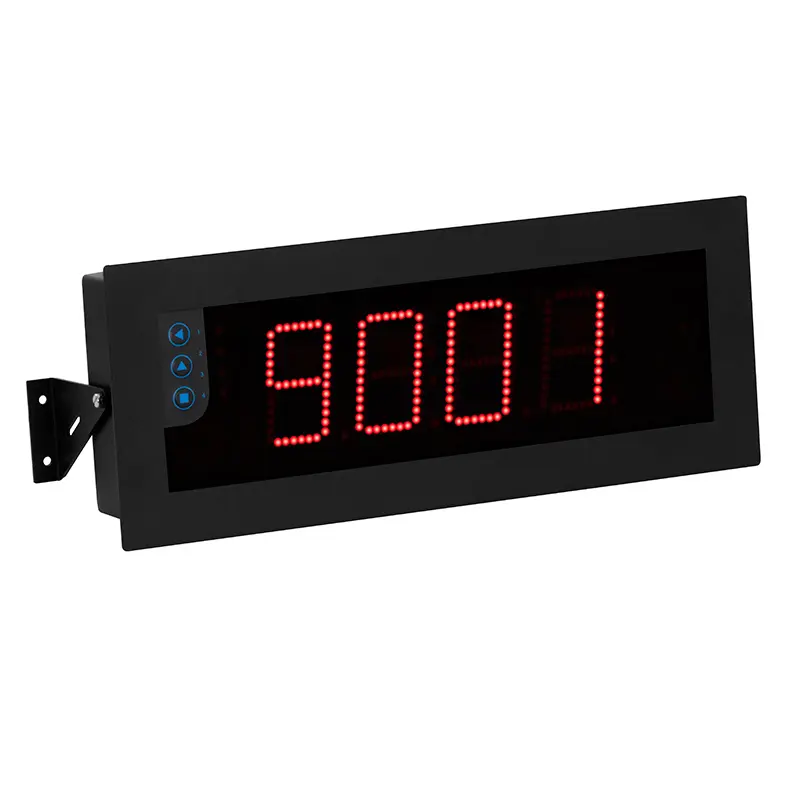

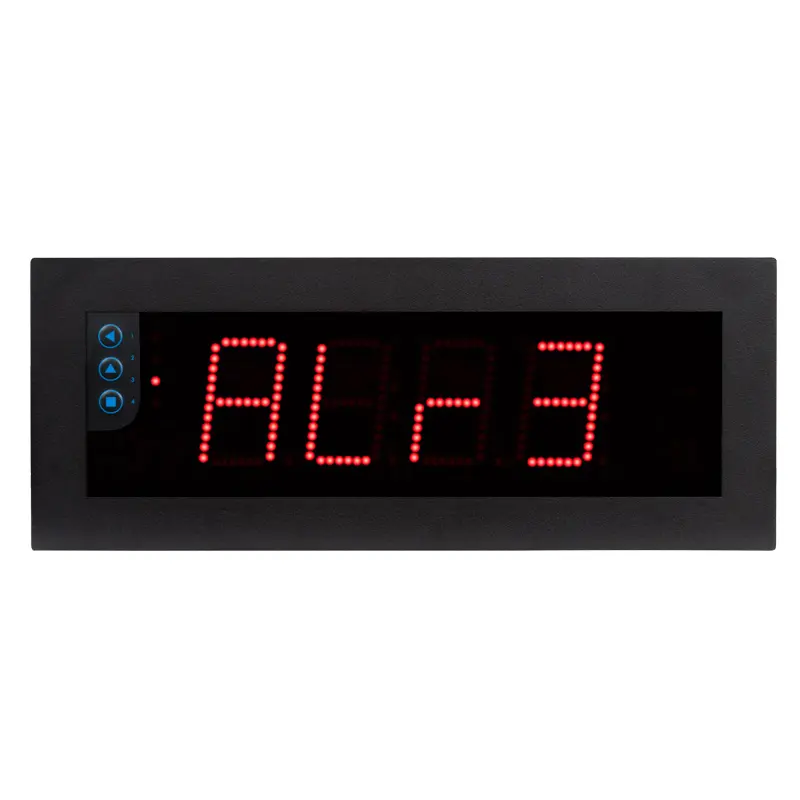

The panel meter is designed in such a way that the measured values displayed can be read from a large distance. With a digit height of 60 mm or 100 mm, the reading distance for the panel meter is 25 m or 50 m. The red LEDs of the panel meter enable reading of the measured values even in very bright surroundings. The housing of the panel meter is made of metal and is splash-proof with IP65. Thus, the panel meter can be used under harsh environmental conditions.

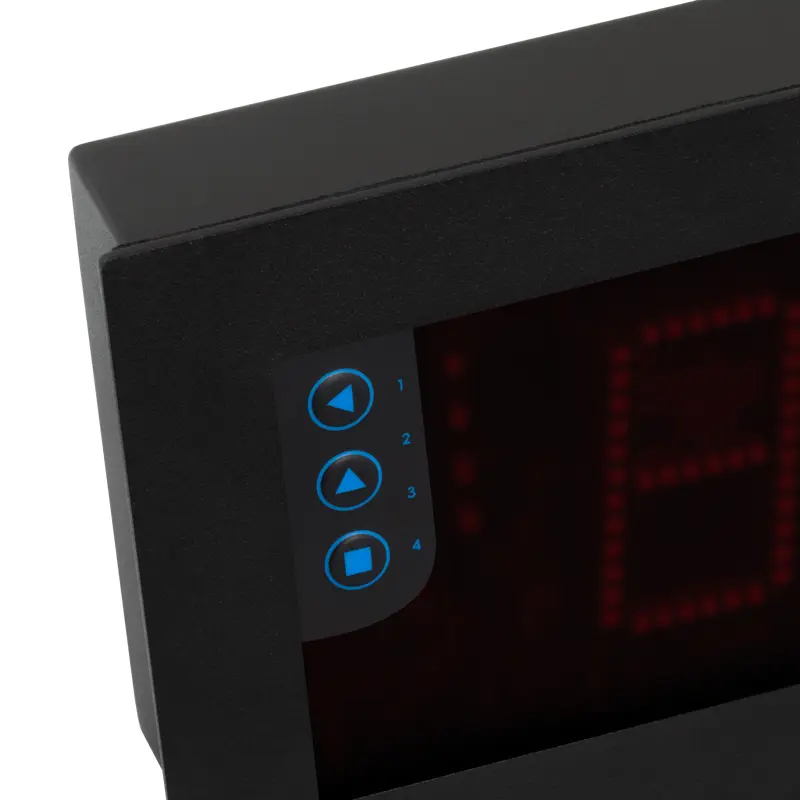

Many different variants are available as input signals for panel meters. Among other things, the industry supports digital displays 4 ... 20 mA and pulses. The panel meter is configured directly via the keypad. Digital display output interfaces are optionally available for industry. This makes it possible to switch process signals and pulses via the panel meter when a limit value is reached, for example.

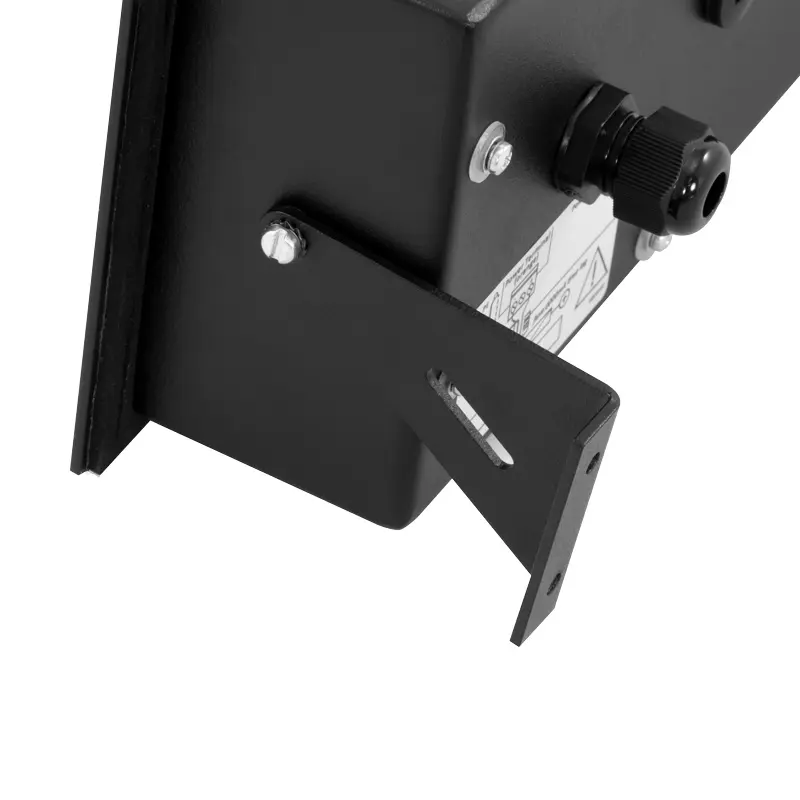

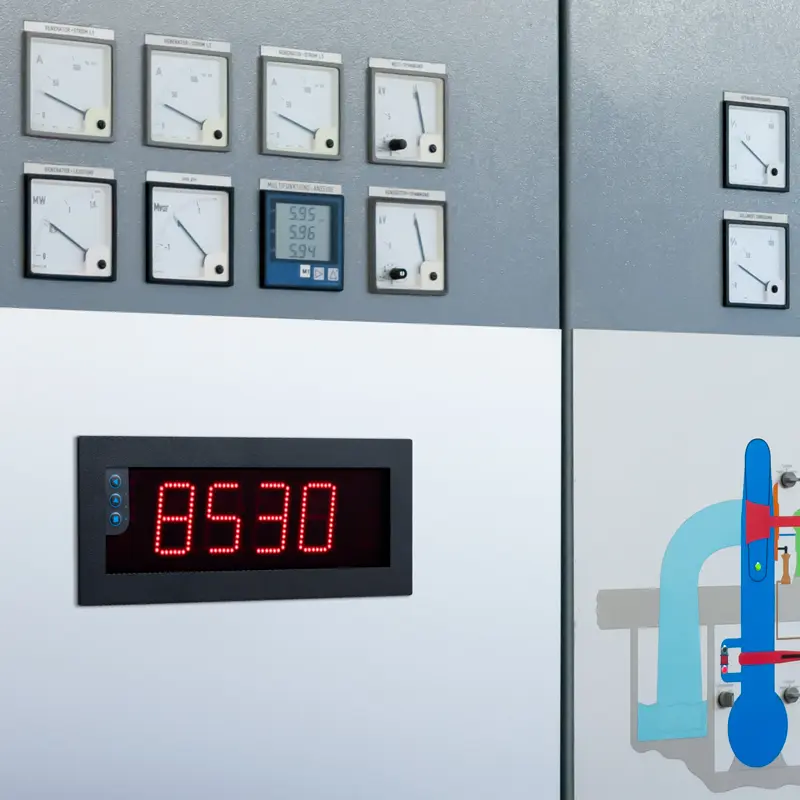

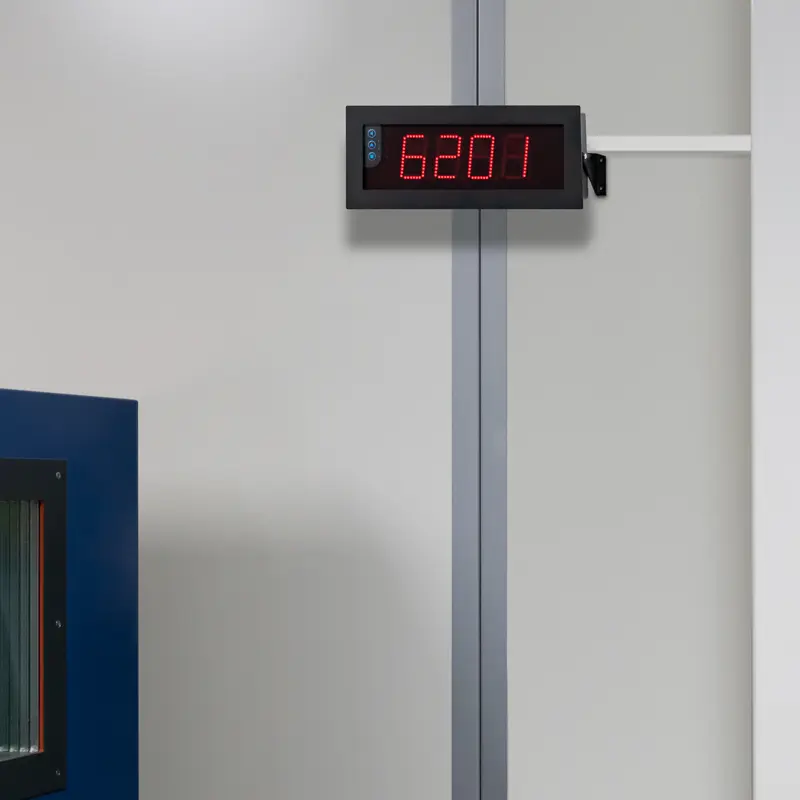

The panel meter can be aligned vertically for optimal alignment when mounted on the wall. In addition to wall mounting, the panel meter can be mounted on a control cabinet. The insulation on the housing of the panel meter ensures that no water can get into the control cabinet.

- Protection class IP65
- Robust metal housing
- Individually parameterizable
- Bright red LED indicator
- For wall or control cabinet mounting
- Different input signals

Function	to convert analog signal into a usable value
Input signal	4 ... 20 mA, ±20 mA DC, 0 ... 10 V DC, ±10 V DC
Maximum input signal	100 mA or 100 V DC
Input impedance (current measurement)	11 Ω
Input impedance (voltage measurement)	932 kΩ
Number of digits	4
Digit height	60 mm / 2.3"
Maximum reading distance	25 m / 82 ft
Accuracy	0.05 % of measuring range
Measuring rate	15 Hz
Response time for value changes	120 ms
from 0 to 99% of the signal
Display range	-1999 ... 9999
Number of outputs	2
Power consumption	3 W
(without optional accessories)
Power consumption	5 W
(with optional accessories)
Sensor voltage supply	20, 15, 10, 5 V DC
Sensor power supply accuracy	±5 %
Maximum sensor supply current	35 mA (with short-circuit protection)
Power supply	85 ... 265 V AC / 120 ... 370 V DC
Weight	2200 g / 77.6 oz

Further specifications
Cable cross-section for input	<0.5 mm²
and output signal
Cable cross-section for	<2.5 mm²
supply voltage
Display	7 segment display
Viewing angle	120 °
Warm-up time	15 minutes
Dimensions	further information can be found in the instructions
Operating conditions	0 ... 50 °C / 32 ... 122 °F, <90 % RH, non-condensing
Storage conditions	-20 ... 70 °C / -4 ... 158 °F, <90 % RH, non-condensing

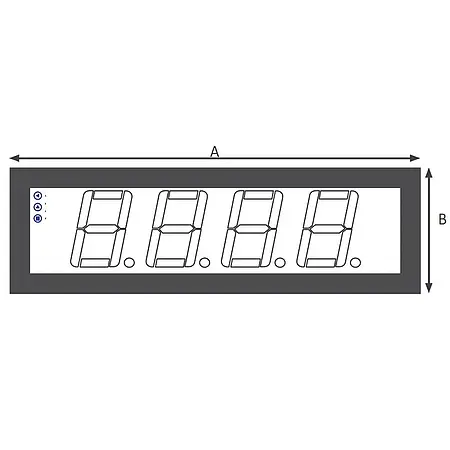

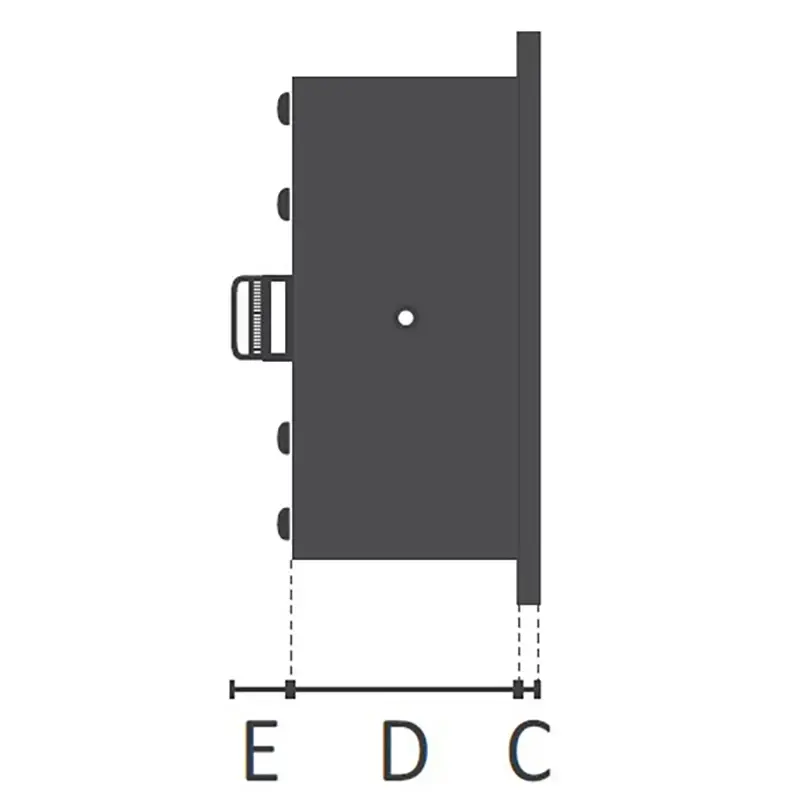

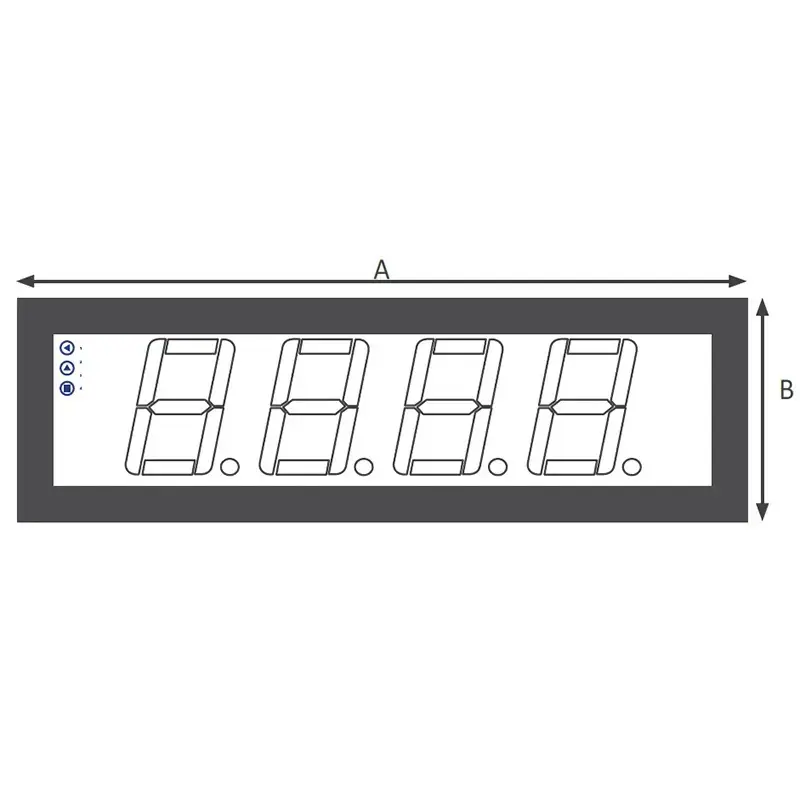

Dimensions	A 340 mm / 13.3"
(diagram above in the images)	B 135 mm / 5.3"
	C 3 mm / 0.1"
	D 55 mm / 2.1"
	E 25 mm / 0.9"

1 x Panel Meter PCE-BPD-U-46A
1 x Instruction Manual

man-large-format-indicator-pce-bdp-u-series-en.pdf

Manual
