Panel Meter PCE-BPD-P-66D

Panel Meter PCE-BPD-P-66D [zoom]
Panel Meter PCE-BPD-P-66D

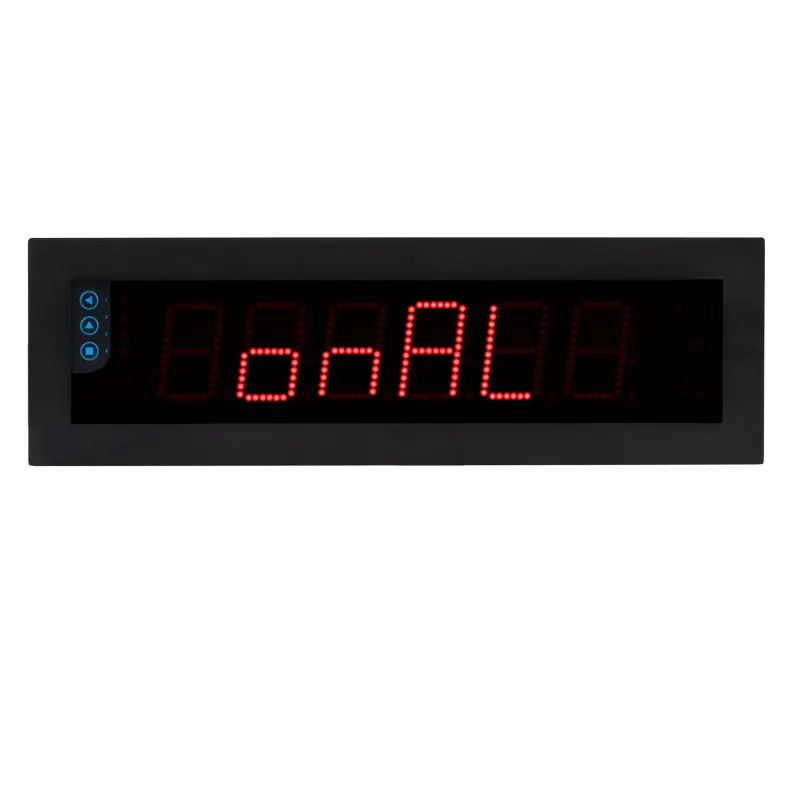

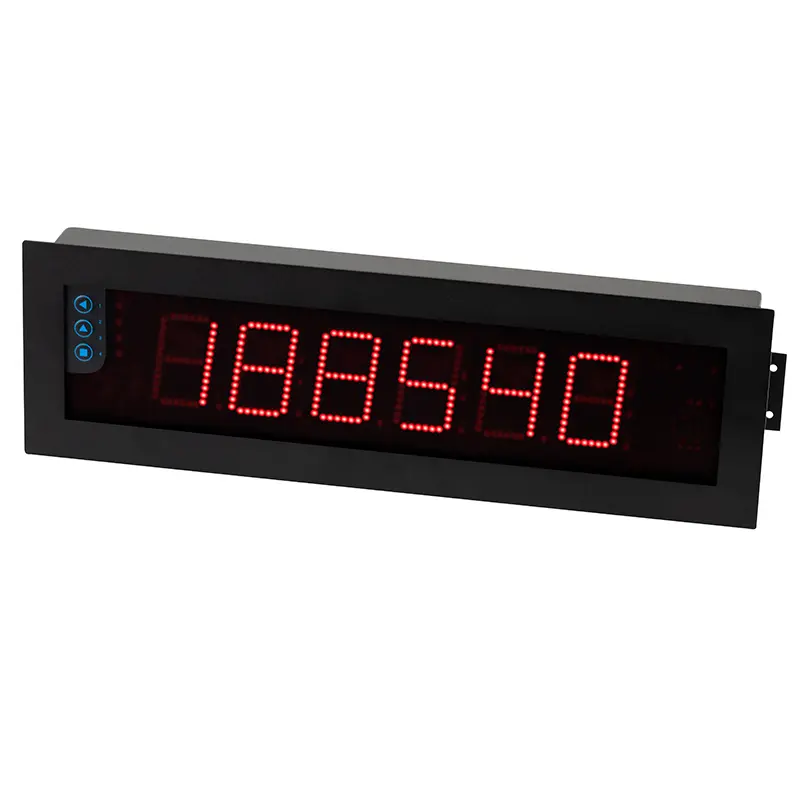

Panel Meter front

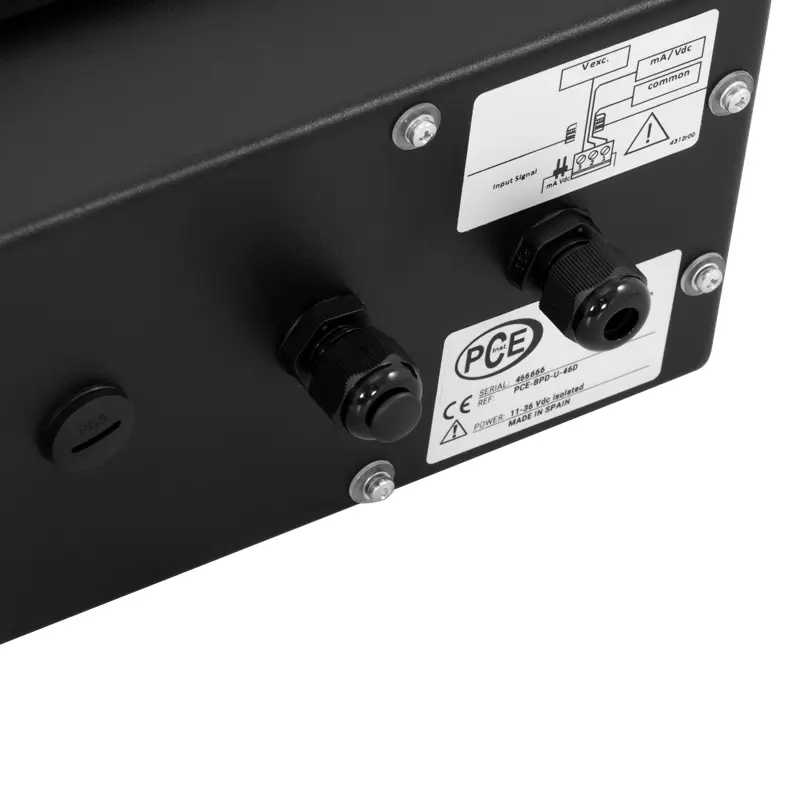

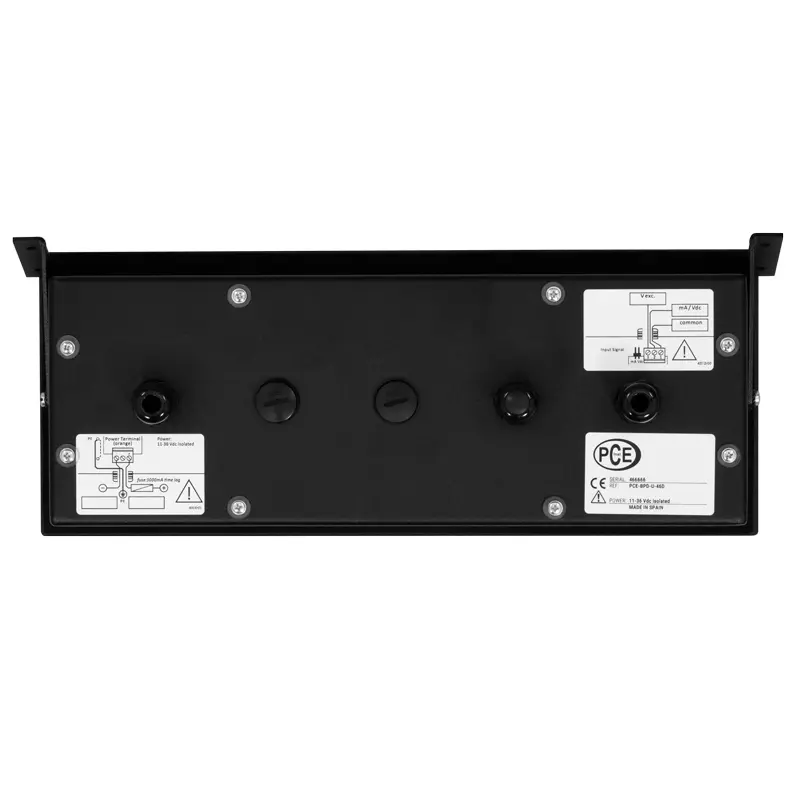

Panel Meter rear

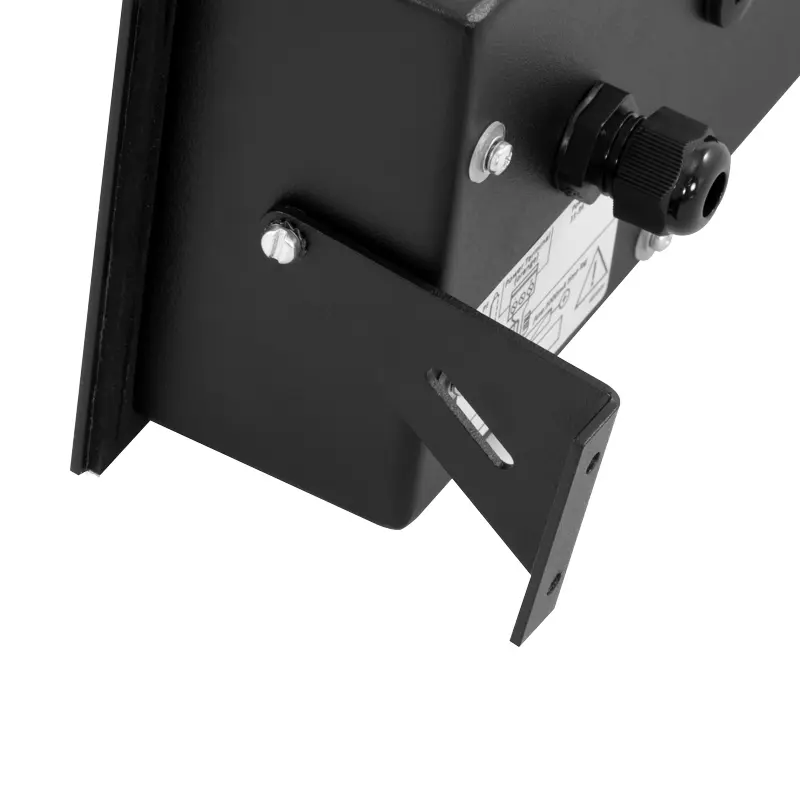

Panel Meter bracket
Panel Meter connections

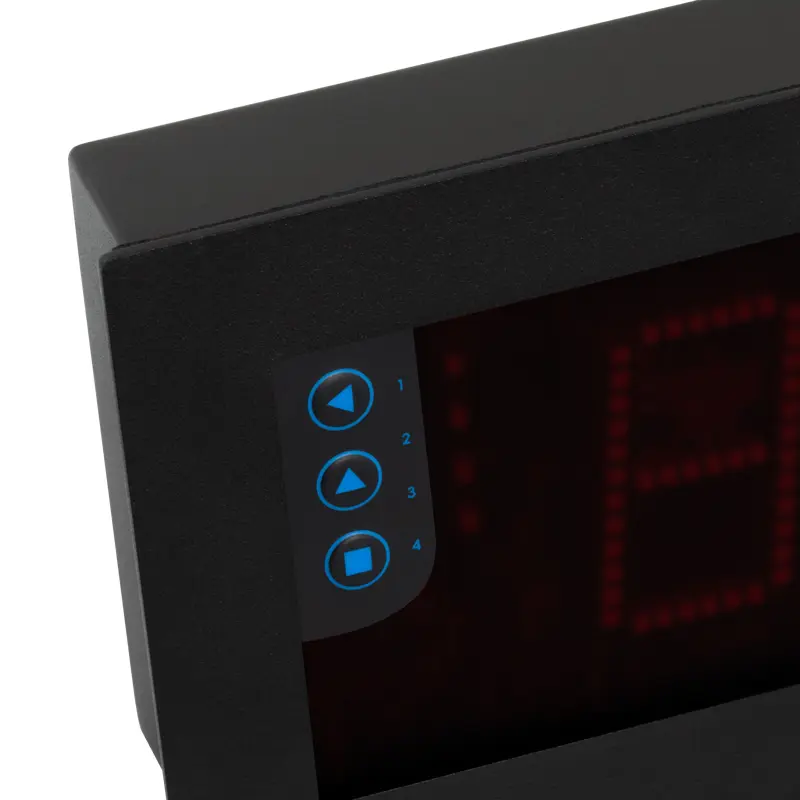

Panel Meter buttons

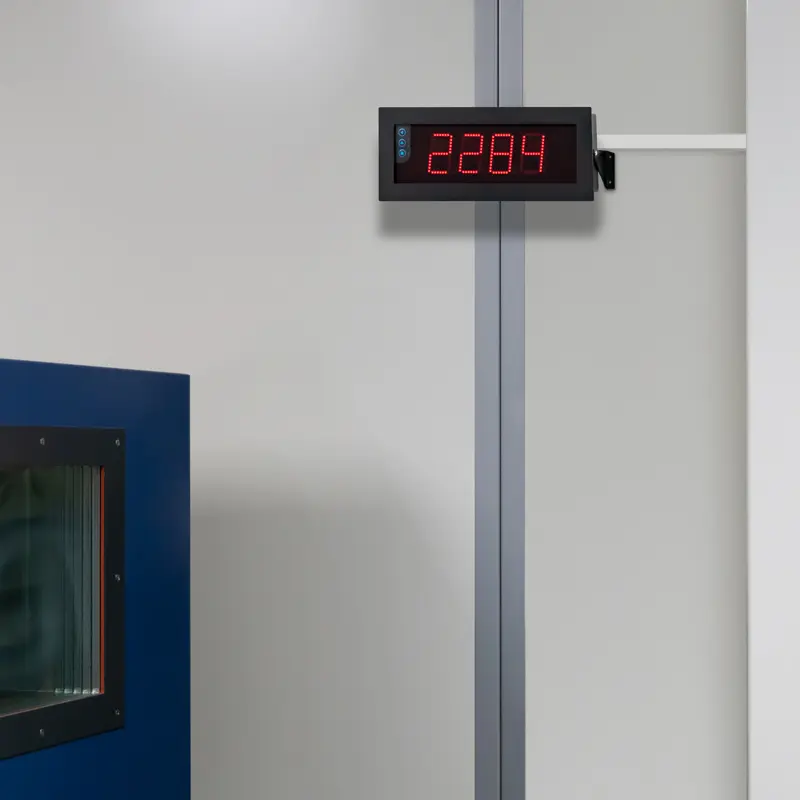

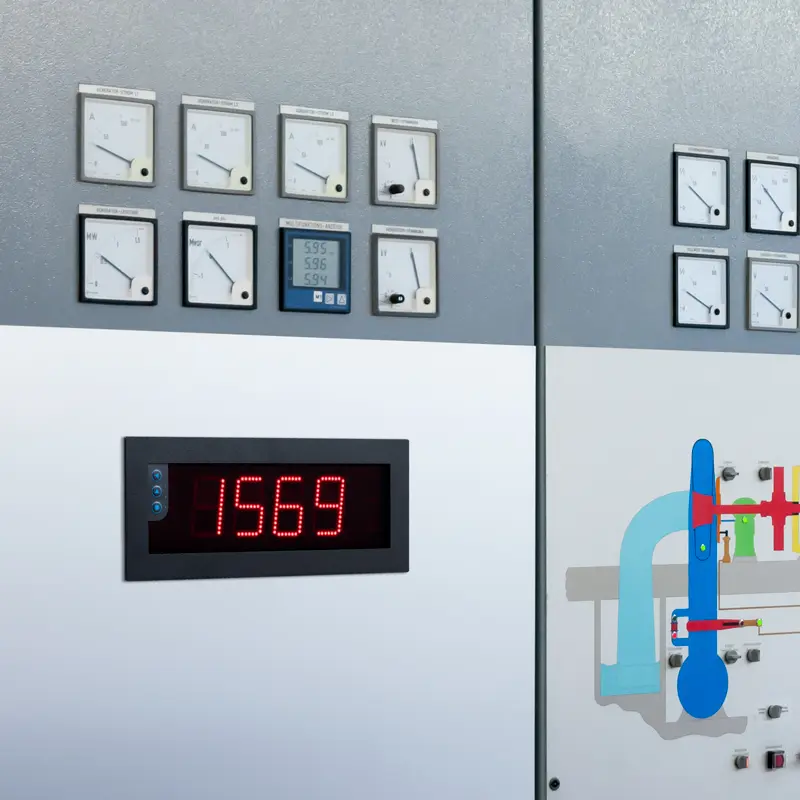

Panel Meter application
Panel Meter application

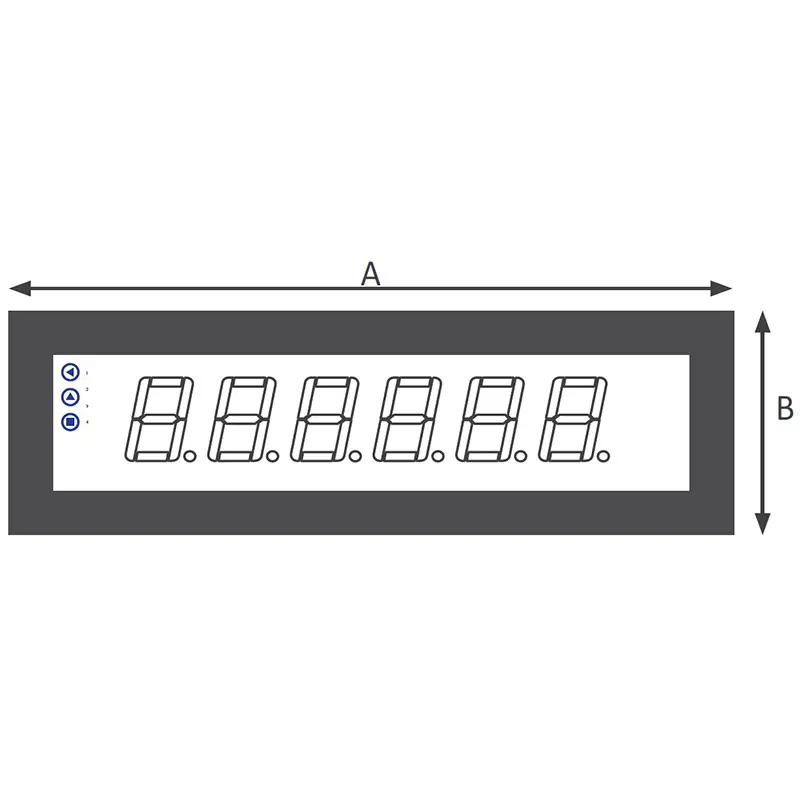

Panel Meter diagram dimensions A-B

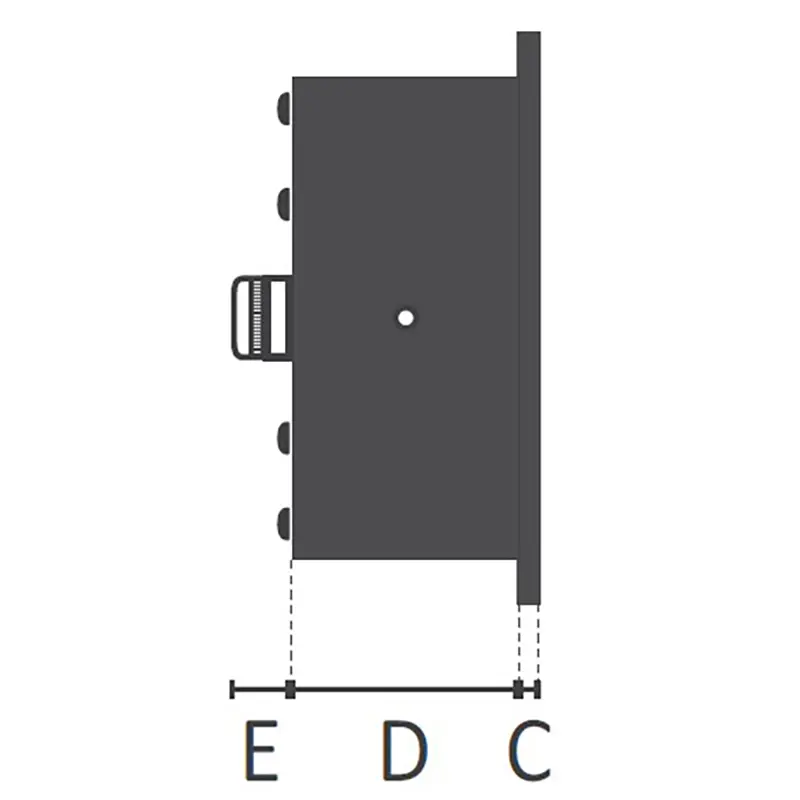

Panel Meter diagram dimensions E-D-C

Panel Meter PCE-BPD-P-66D

Order no.: PCE-BPD-P-66D
GTIN (EAN):
US$ 1,188.00
ex. Sales Tax, ex. delivery costs
PCE-BPD-P-66D
Available in:10 - 14 days
Built-in
No
6-Digit LED
No
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Accessory

Description

Panel Meter with metal housing / Wall and switch cabinet mounting / IP65 /
Bright red LED display / Individually configurable / Digit height of up to 100 mm /
Various output signals / Display readable from a great distance

The panel meter is designed in such a way that the measured values ​​displayed can be read from a large distance. With a digit height of 60 mm or 100 mm, the reading distance for the panel meter is 25 m or 50 m. The red LEDs of the panel meter enable reading of the measured values ​​even in very bright surroundings. The housing of the panel meter is made of metal and is splash-proof with IP65. Thus, the panel meter can be used under harsh environmental conditions.

Many different variants are available as input signals for panel meters. Among other things, the industry supports digital displays 4 ... 20 mA and pulses. The panel meter is configured directly via the keypad. Digital display output interfaces are optionally available for industry. This makes it possible to switch process signals and pulses via the panel meter when a limit value is reached, for example.

The panel meter can be aligned vertically for optimal alignment when mounted on the wall. In addition to wall mounting, the panel meter can be mounted on a control cabinet. The insulation on the housing of the panel meter ensures that no water can get into the control cabinet.

Highlights

- Protection class IP65
- Robust metal housing
- Individually parameterizable
- Bright red LED indicator
- For wall or control cabinet mounting
- Different input signals

Specification

Function convert frequency to a usable value
Input signal NPN, PNP
Input voltage ±30 V DC
Input impedance 2.4 kΩ with pull-up or pull-down resistor
  470 kΩ without pull-up or pull-down resistor
Quartz accuracy ±0.01 %
Number of digits 6
Digit height 60 mm / 2.3"
Maximum reading distance 25 m / 82 ft
Accuracy 0.03% of measuring range
Measuring rate 15 Hz
Response time for value changes 300 ms
from 0 to 99% of the signal
Display range -199,999 ... 999,999
Number of outputs 3
Power consumption 3.5 W
(without optional accessories)
Power consumption 5.5 W
(with optional accessories)
Sensor voltage supply 18, 15, 9, 5 V DC
Maximum current for the sensor supply    70 mA (with short-circuit protection)
Power supply 11 ... 36 V DC
Weight 3500 g / 123.4 oz

Further specifications
Cable cross-section for input <0.5 mm²
and output signal
Cable cross-section for <2.5 mm²
supply voltage
Display 7 segment display
Viewing angle 120 °
Warm-up time 15 minutes
Operating conditions 0 ... 50 °C / 32 ... 122 °F, <90 % RH, non-condensing
Storage conditions -20 ... 70 °C / -4 ... 158 °F, <90 % RH, non-condensing

Dimensions A 436 mm / 17.1"
(diagram above with the images) B 135 mm / 5.3"
  C 3 mm / 0.1"
  D 55 mm / 2.1"
  E 25 mm / 0.9"

Delivery Scope

1 xPanel Meter PCE-BPD-C-66D
1 x Instruction Manual
