Order no.: PCE-DPG 25

Pressure Indicator PCE-DPG 25

US$ 433.00
ex. VAT, ex. delivery costs
Available in: 1-2 days


Pressure Indicator PCE-DPG 25
Pressure sensor for water and gases / 1/4" NPT threaded connection / Adjustable backlight / PEAK function / Battery status indicator / Battery-operated

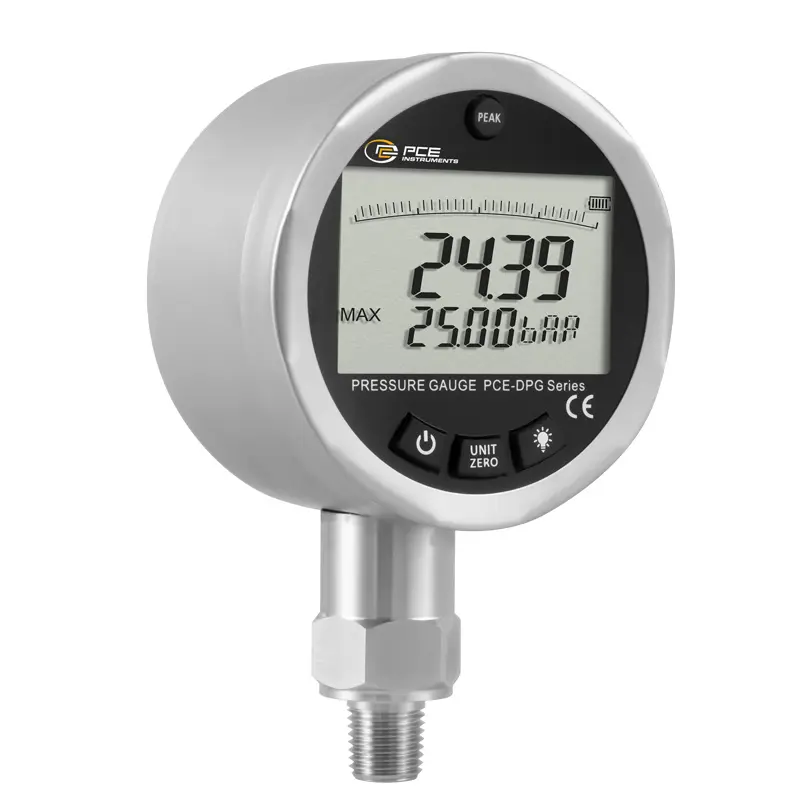

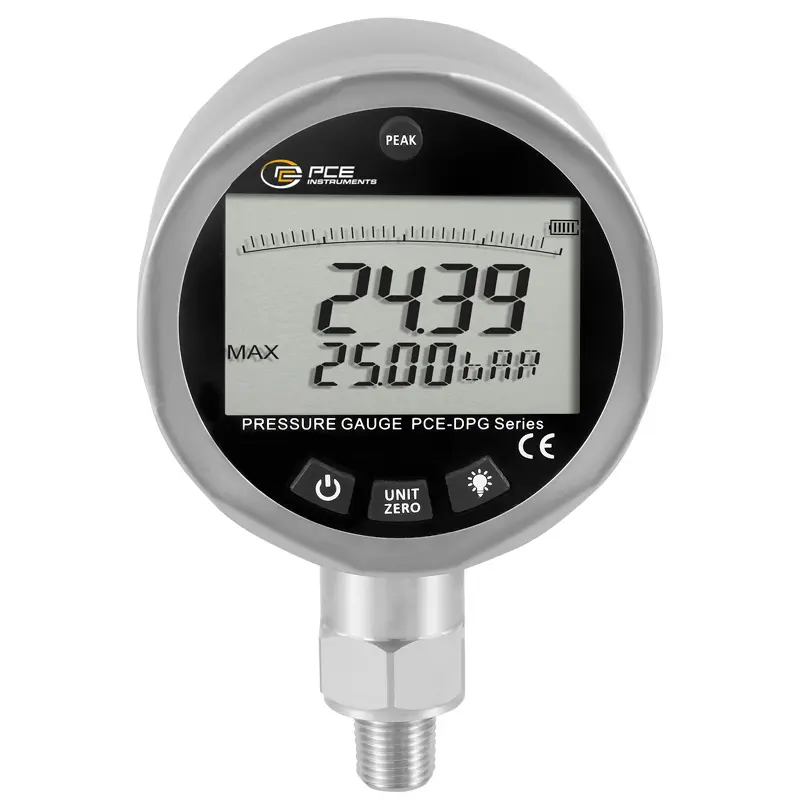

The pressure indicator of the PCE-DPG series is well suited for monitoring and displaying air pressure and water pressure. Thanks to its high measuring resolution and high accuracy, this pressure indicator is versatile. The current pressure is displayed by the pressure indicator as a value and at the same time as a bar graph. As an additional function, the pressure indicator offers a peak function. This function shows the operator the maximum and minimum pressure measured on the pressure indicator at the push of a button.

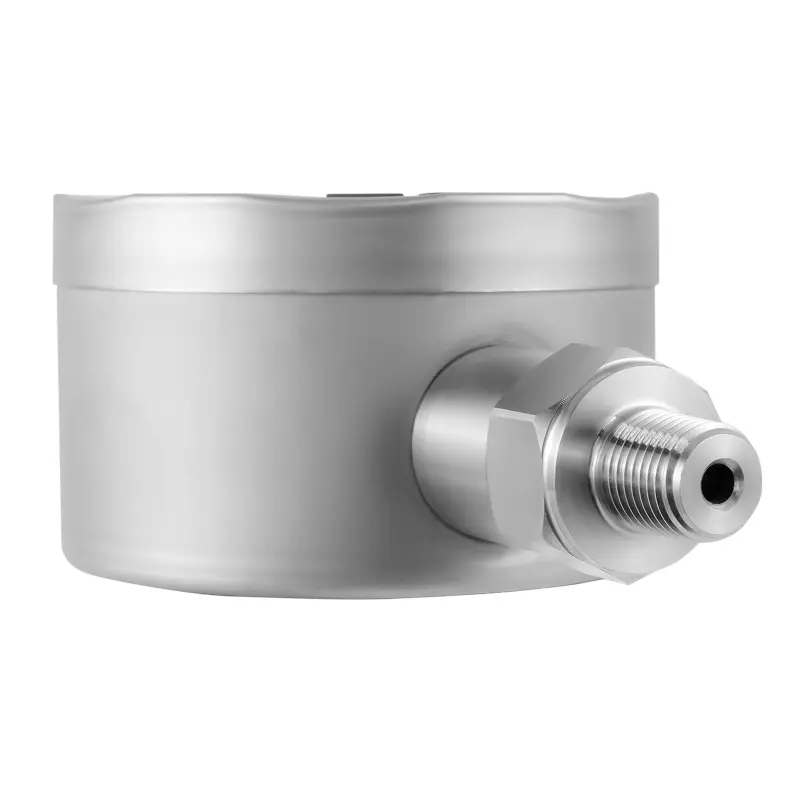

Thanks to the large display of 2.5" almost all measured values ​​can be read directly. Possible adjustable units for the pressure indicator would be Mpa, bar, Kpa, mH2o, kg / cm2, psi, mmH2o, in.WC and mbar. The response time of the pressure indicator is < 50 ms. The connection of the pressure indicator to the process is realized via a 1/4" NPT connection. Typical applications include suction control, leak testing or pressure monitoring.


- Measuring range up to 362.6 psi, 25 bar
- Scaled bar graph
- Battery powered 3 x 1.5V AAA
- Large 2.5" display
- Adjustable backlight
- 1.4" NPT connection thread


Measuring range 0 ... 362.6 psi, 0 ... 25 bar
Resolution 0.145 psi, 0.01 bar
Accuracy 0.25% FSO
Pressure Relative
Overpressure 1.5 times
Measurable media Gases, water
Response time < 50 ms
Housing material Metal
Measurement units Mpa, bar, Kpa, mH2o, kg / cm²,
  psi, mmH2o, in.WC, mbar
Protection class IP56
Diameter display 2.5"
Dimensions (without sensor)       Ø80 x 50 mm / 3.1 x 2 in
Pressure connection 1/40" NPT
Power supply 3 x 1.5V AAA batteries
Environmental conditions    -10 ... 60°C / 14 ... 140°F, < 80% RH
Weight Approx. 276 g / < 1 lb (without batteries)

Delivery Scope

1 x Pressure indicator PCE-DPG 25
3 x Batteries 1.5V AAA
1 x Operating instructions
