Power Indicator PCE-ND30

Name: Power Indicator PCE-ND30
Brand: PCE Instruments
SKU: 5844807
Price: 600 USD
Availability: InStock

Order no.: PCE-ND30

GTIN (EAN):

US$ 600.00

Price

ex. VAT, ex. delivery costs

Order no.

PCE-ND30

Available in: 10 - 14 days

Type

–

Input Voltage

Additional Outputs and Inputs

Interface

Power Supply

Question / Callback

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

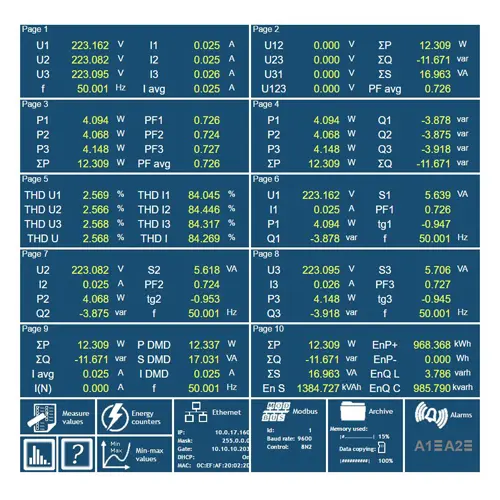

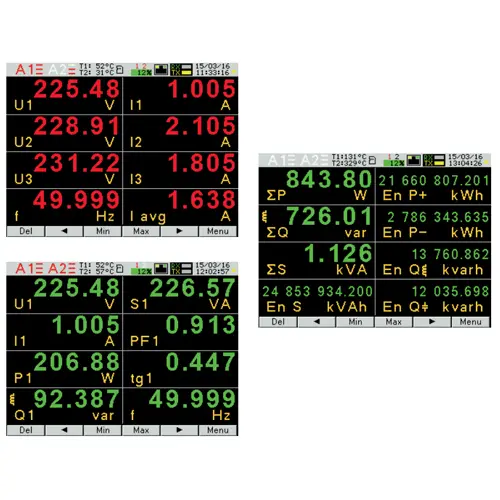

The power indicator PCE-ND30 can be used to measure 54 parameters in a UI network. In addition to the performance measurement of the power indicator PCE-ND30, it can detect voltage, current, and harmonics up to the 51st order. The power display can be used as 1 or 3 phase. It does not matter if the connected load is balanced or unbalanced. All readings are displayed graphically on the display from the power meter. What measurement values are displayed, can be set by the user. This can be done in up to 10 groups with 8 measurement parameters. In addition to displaying the current measured values, the power display can also represent maximum and minimum values.

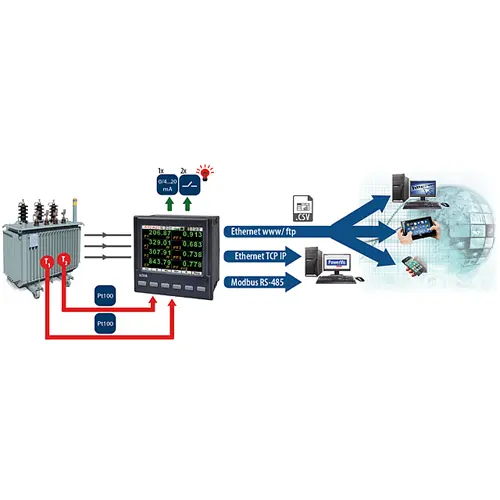

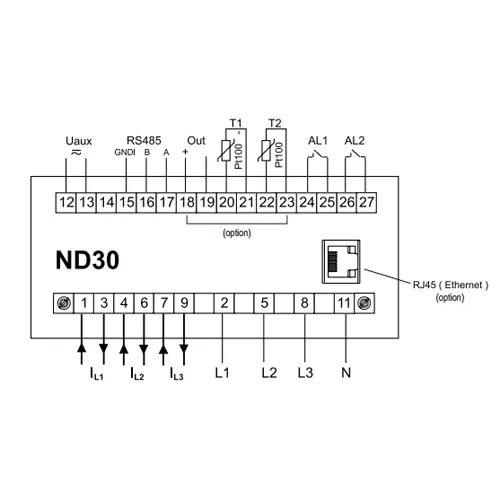

Two built-up relays can be used for alarming at reduced or crossing borders. Optionally, the user still a 0/4 ... 20 mA analog output and two inputs for PT100 temperature sensors. Also, the power indicator can be equipped with an 8 GB memory and Ethernet interface. The network interface can be accessed on a web interface and the memory of the performance indicator. On delivery the RS485 Modbus interface is installed, on the power meter can be programmed and read.

****Note: Please call regarding configuration

Highlights

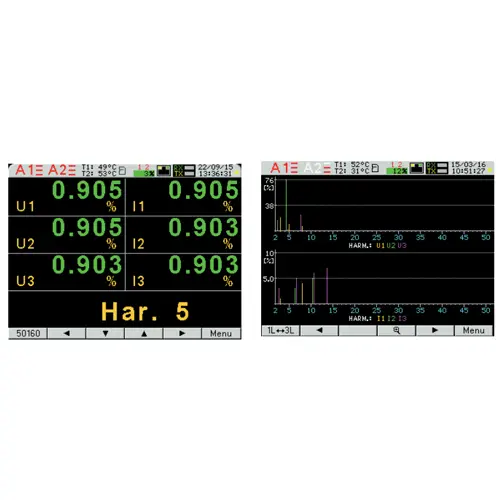

- Measurement of all parameters from a U / I network - Measurement of harmonics up to 51th order
- 2 x PT100 input optional
- RS485 Modbus
- Alarm relay and analog output
- Web interface and data memory optional
- Panel mounting

Specification

Technical specifications
Measuring ranges
Power (Class 0.2) 1 A AC 5 A AC	0.1 ... 1.2 A 0.5 ... 6.0 A max. Display Area: 20 kA
Voltage LN (Class 0.2) 57.7 V AC 230 V AC 400 V AC	11.5 ... 70 V 46 ... 276 V 80 ... 480 V max. Display area: 480 kV
Voltage LL (Class 0.5) 100 V AC 400 V AC 690 V AC	20 ... 120 V 80 ... 480 V 138 ... 830 V max. Display area: 830 kV
Active Power (Class 0.5)	± 1999.9 W max. Display range: ± 1999.9 MW
Reactive power (Class 1)	± 1999.9 Var max. Display range: ± 1999.9 MVar
Apparent power (Class 0.5)	0 ... 1999.9 Va max. Display range: 0 ... 1999.9 MVA
Active energy (Class 0.5)	± 1999,9Wh max. Display range: ± 1999.9 MWh
Reactive energy (class 1)	± 1999.9 Varh max. Display range: ± 1999.9 Mvarh
Apparent energy (Class 0.5)	0 ... 1999 VAh max. Display range: 0 ... 1999.9 MVAh
Active power factor	-1 .... 1
Action bill money	-1.2 ... 1.2
Frequency	45 ... 65 Hz
Harmonic distortion / Harmonic Distortion	0 ... 100%
Harmonics voltage and current up to 51. order	0 ... 100%
Additional Specifications
Temperature input (optional)	2 x 2-wire PT100 -50 ... 400 ° C / -58 ... 752 ° F ± 0.5% v. MB.
RS485 interface	Modbus RTU 8N2, 8E1, 8O1, 8N1 address: 1 ... 247 Baud rate: 4800, 9600.19200, 38400, 57600, 115200
Ethernet 10/100	Protocols: TCP, HTTP. FTP
display	3.5 "LCD 320 x 240 pixels
dimensions	96 x 96 x 77 mm / 3.7 x 3.7 x 3 in
Panel Cutout	92.5 x 92.5
Weight	300 g / 10.5 oz
Protection	Front: IP65 connection side: IP20
Power supply	85 ... 253 V AC 90 ... 300 V DC
Input	6 VA
Power loss	Voltage side: 0.2 VA current side: 0.1 VA
Heating time	5 minutes
Operating conditions	-10 ... 55 ° C / 0 ... 95% rh
Operating position	Each
Overload	Voltage: 2 x Un (5 seconds), current: 50 A (1 second).
Electromagnetic compatibility	EN 61000-6-2 EN 61000-6-4
Housing insulation	Double to EN61010-1
Pollution degree	2
Insulation Category	III

Delivery Scope

Delivery
1 x Power Indicator PCE-ND30 (in the selected configuration) 1 x Manual
