Order no.: PCE-SCS 60-ICA

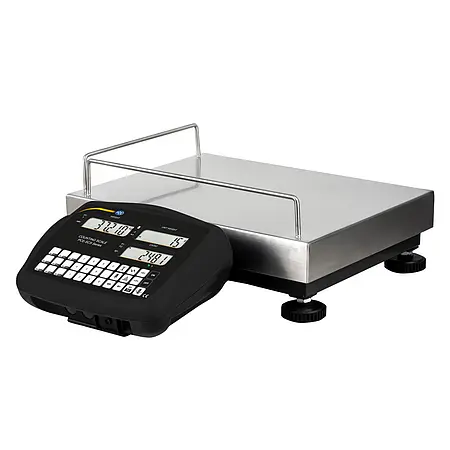

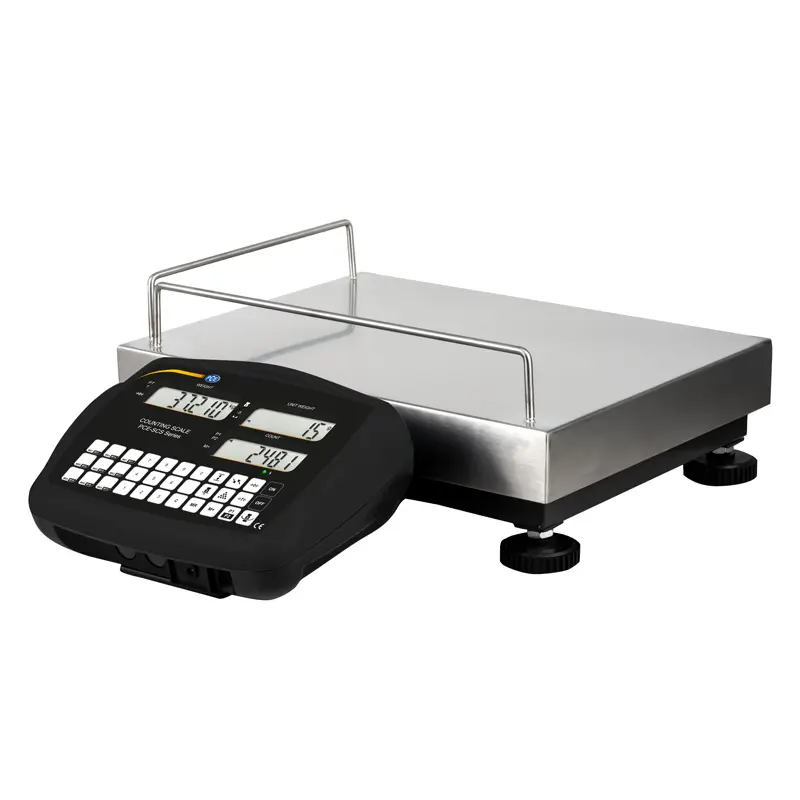

Weighing Platform PCE-SCS 60-ICA incl. ISO Calibration Certificate

ISO Calibration
£ 252.00
£ 302.40
:
4250348723437
PCE-SCS 60-ICA
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

Description

Low-cost weighing platform up to 60 kg, Readability 5 g, Mains and battery operation,
Large 20 mm LC display, Removable stainless steel platform, Zero and tare function

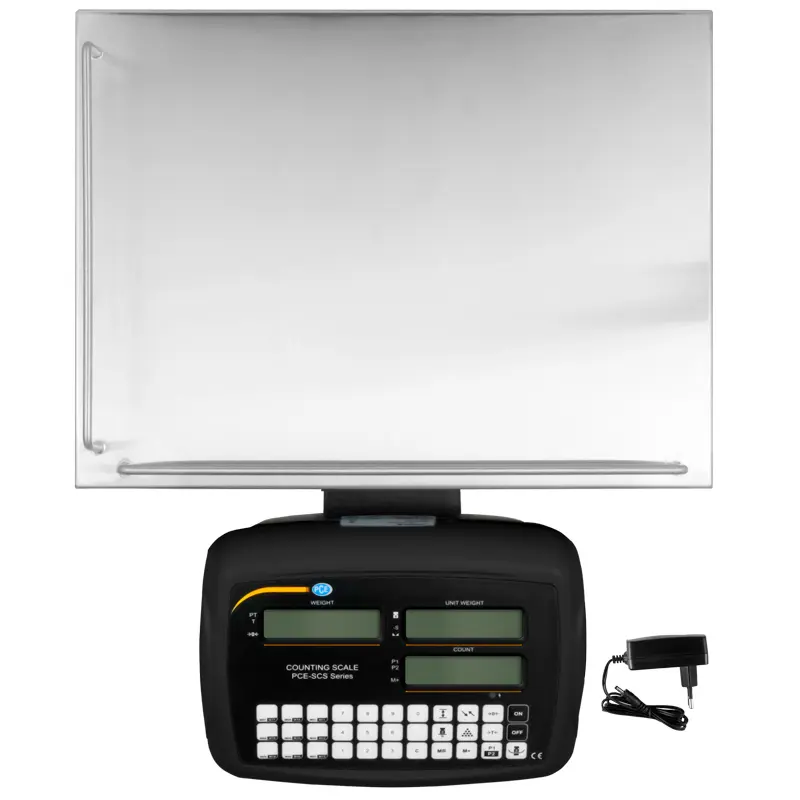

The weighing platform has a 300 x 400 mm stainless steel platform that can be removed for cleaning. Flexible use of the mobile weighing platform is made possible not only by the light weight and compact dimensions, but also by the independent power supply, which is possible with the 6V4Ah rechargeable battery.

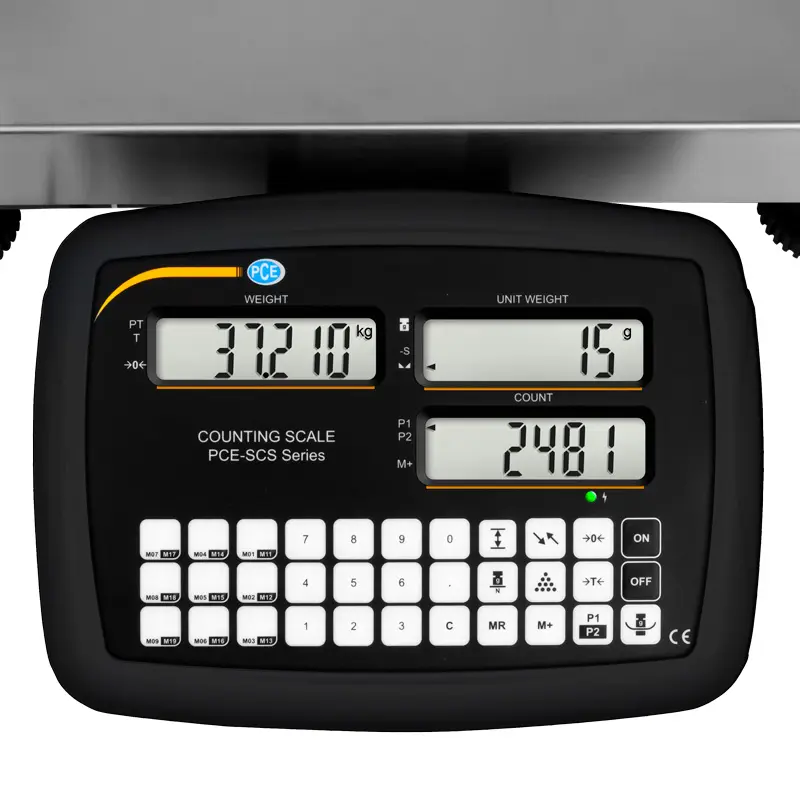

If the 4 load cells of the weighing platform with a weighing capacity of 60 kg and a resolution of only 5 g require an adjustment, this can be done quickly and easily using external weights (optional) in the calibration function of the weighing platform. Thanks to the key operation, the fast response time of the weighing platform and the easy-to-read 20 mm LCD display, this weighing platform is ideally suited for mobile and fast weighing applications.

Highlights

- Platform size 300 x 400 mm / 11.8 x 15.7"
- Shockproof plastic housing
- 20 mm LCD display
- Battery operation
- Automatic energy saving mode
- Tare function
- Weighing units kg and lb.
- Flat and light construction

Specification

Weighing range 60 kg / 132 lb
Readability 5 g / 0.17 oz
Taring range over the full range
Settling time adjustable
Weighing units kg / lb
Display 20 mm  / 0.78" LCD backlit
Platform size 300 x 400 mm / 11.8 x 15.7" (stainless steel)
Calibration by external adjustment weight (optional)
Operating temperature   -10 °C ... 40 °C / 14 °F ... 104 °F
Interface RS232
Memory 18 values
Power supply 100-240V 50 / 60Hz - 12V adapter
  Rechargeable battery: 6V4Ah
Battery life 130 hours
Input signal analog 10.6 mV / V - 3 mV / V
Linearity ≤ 0.01% F.S.
Dimensions 480 x 560 x 150 mm / 18.9 x 22 x 5.9"
Weight 8 kg / 17.6 lb

Delivery Scope

1 x Weighing Platform PCE-SCS 60
1 x Mains power adapter
1 x Instruction manual

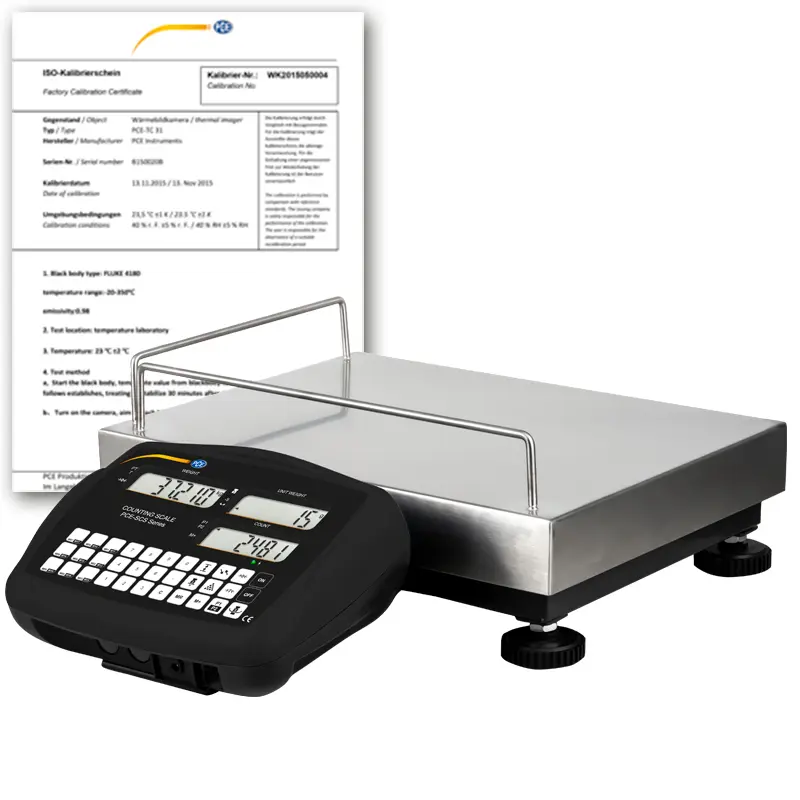

1 x ISO Calibration Certificate


N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.


Downloads
