Order no.: PCE-SW 5000N

Weighbridge PCE-SW 5000N

£ 1,235.00
£ 1,482.00
PCE-SW 5000N
price ex. (VAT / delivery)
Delivery time: Coming soon


Weighbridge PCE-SW 5000N
5.5 ton capacity industrial weigh bar beam pallet scale

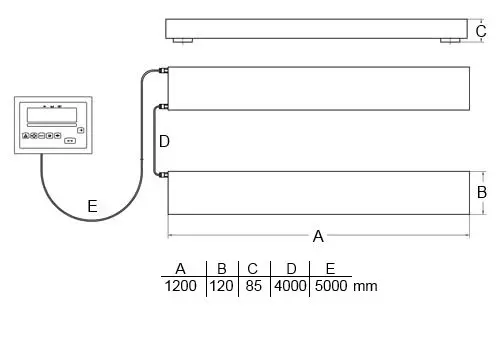

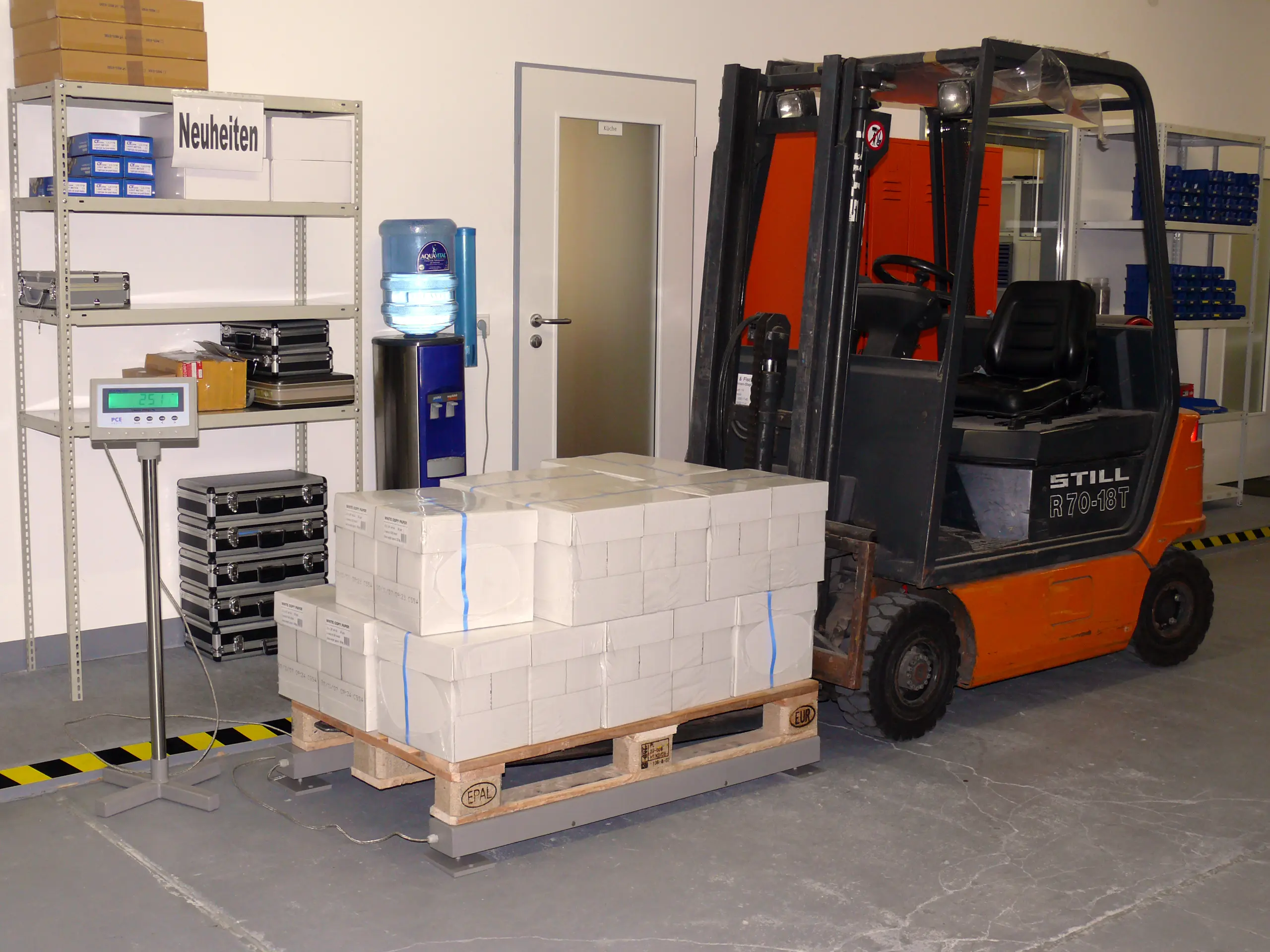

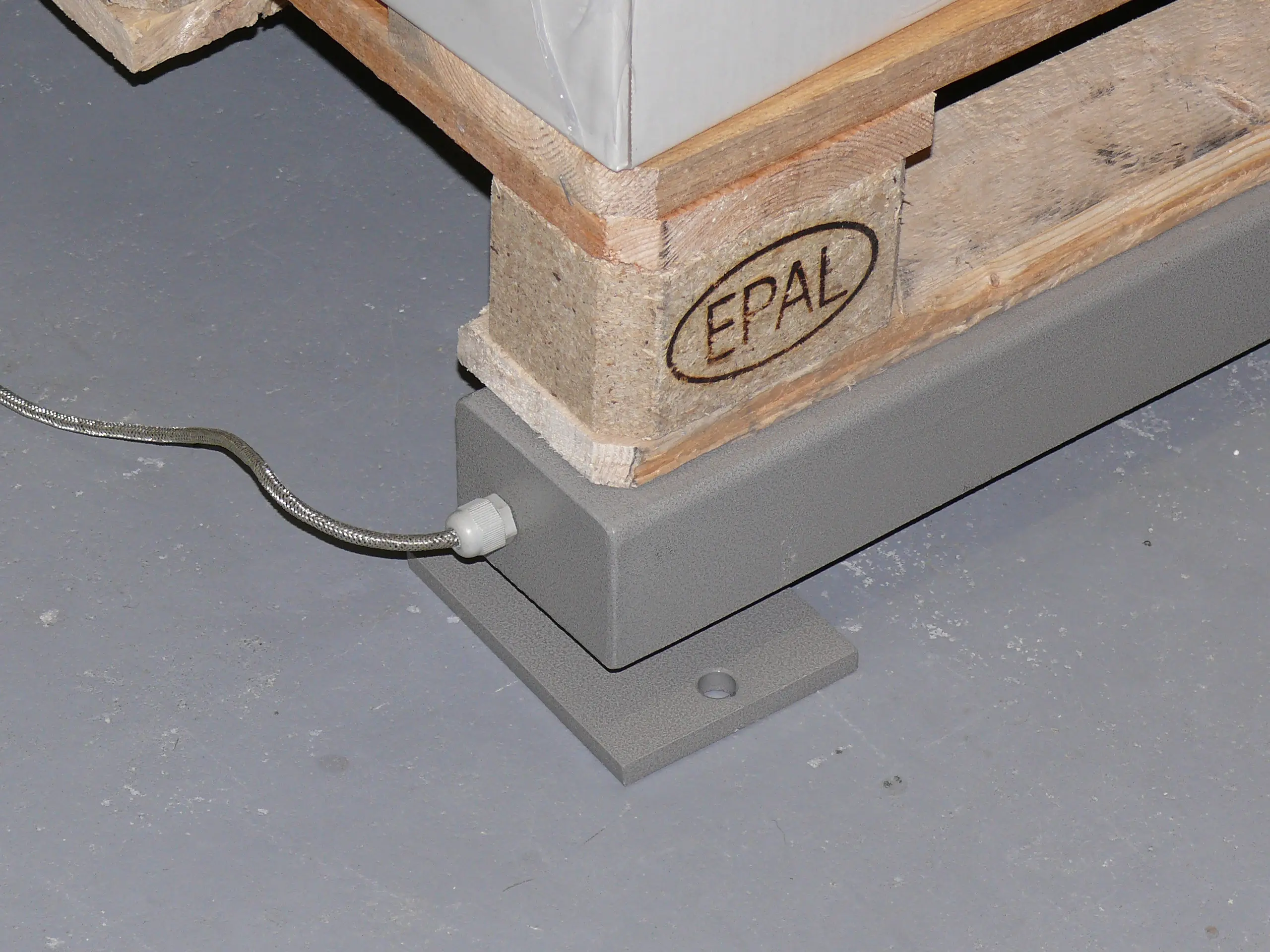

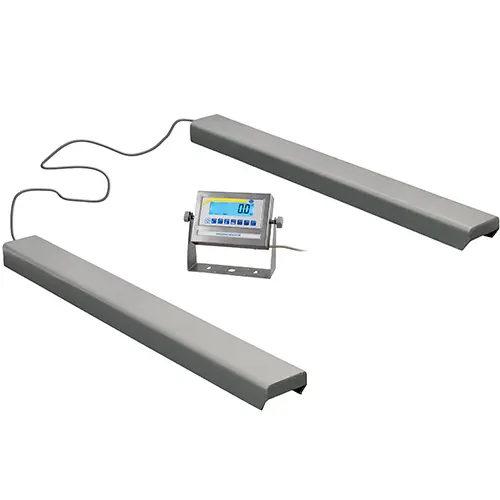

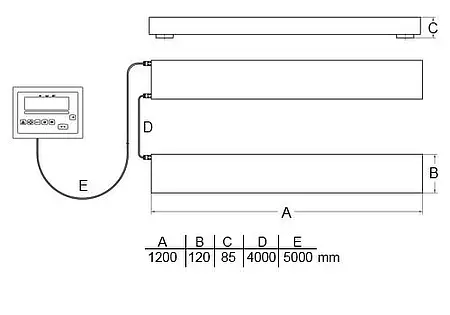

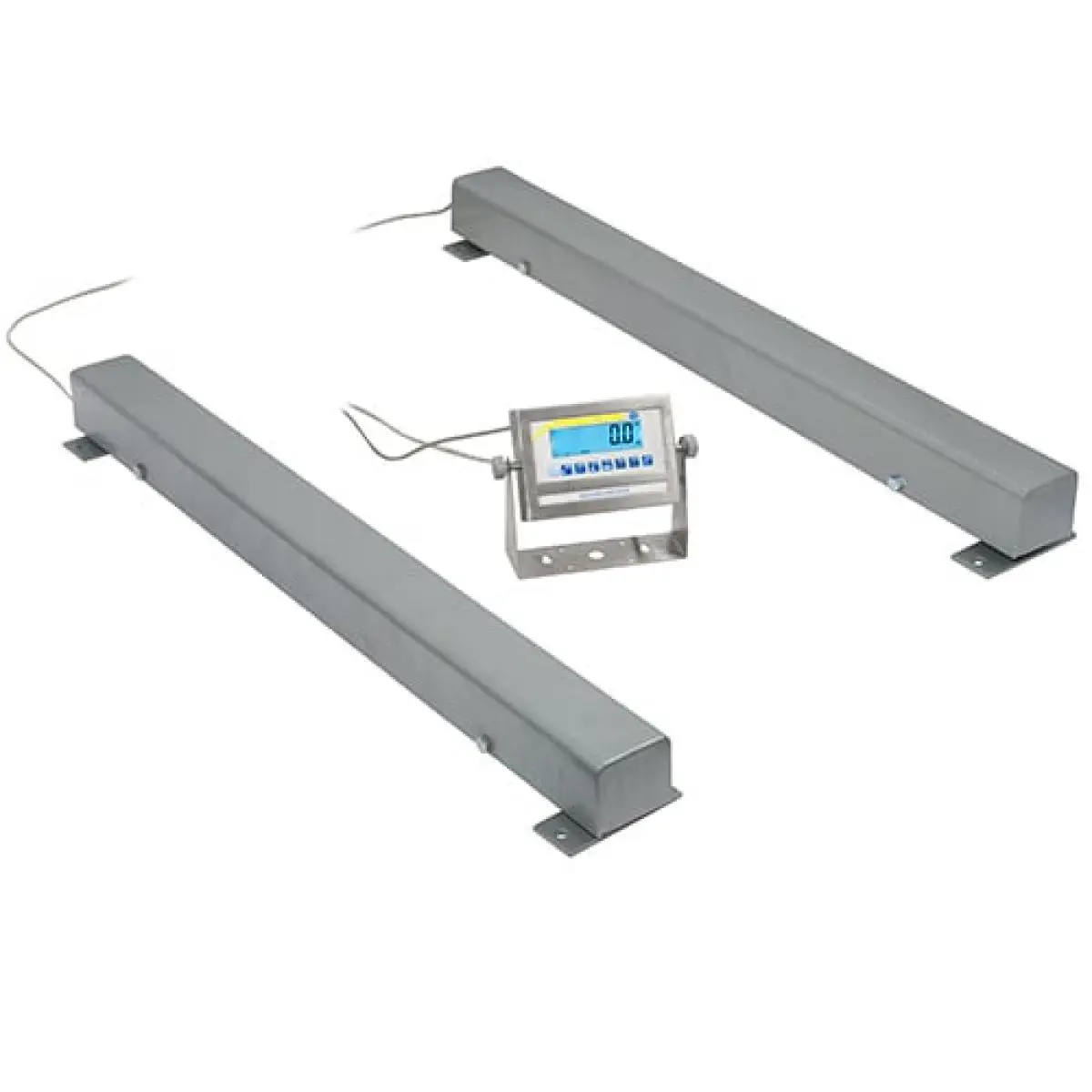

PCE-SW 5000N is a weighbridge or pallet scale featuring two heavy-duty parallel weighing beams made of lacquered steel that can be positioned up to 4 m / 13 ft apart. Thus, the adjustable width accommodates multiple pallet, box and container sizes. In addition, the weighbridge's stainless-steel-encased display can be placed up to 4 m / 13 ft away from the weighing beams, allowing for wall mounting.


- Bi-directional RS-232 interface for PC or printer connection
- Multiple TARE for whole weighing range
- Threshold, sum-up and counting functions
- 6V rechargeable battery inside display
- Ingress protection rating: IP 54
- Ideal for use in warehouse, storage facility, shipping, receiving, loading dock, logistical, supply chain, retail, inventory and stock room applications
- Software, USB to RS-232 adapter and ISO calibration certificate sold separately - see accessories for details


Weighing range 5000 kg / 11023 lb (=5.5 T)
Resolution 2 kg
Accuracy ±8 kg
Tare range Multiple tare across entire weighing range
Display LCD with 25 mm / 1" digit height
Cable length to display ca. 4 m / 13 ft
Interface Bi-directional RS-232
Calibration Multi-point calibration possible
Power supply 6V battery installed in the display (BAT-6V-4.5Ah)
Housing Scale: painted steel / Display: stainless steel
Protection IP 54
Environment 0 ... +40 °C / +32 ... +104 °F / 10 ... 80% r.H.
Weight ca. 80 kg / 176 lb

Delivery Scope

1 x Weighbridge PCE-SW 5000N (includes 2 x weighing beams and 1 x display)
1 x battery charger
1 x user manual
