Calibrated Weighbridge up to 6 t / Resolution from 0.1 kg
/ Flexible use /
Large range of functions / IP68 - 65 protection / Optionally with control interfaces

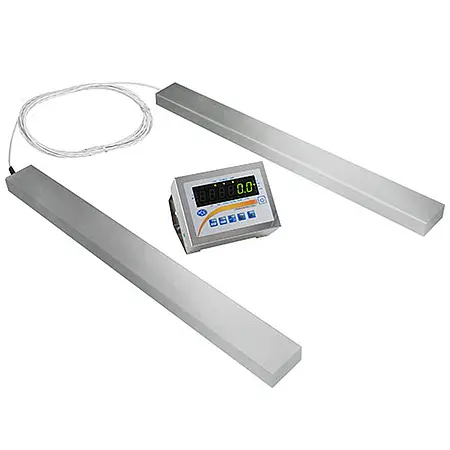

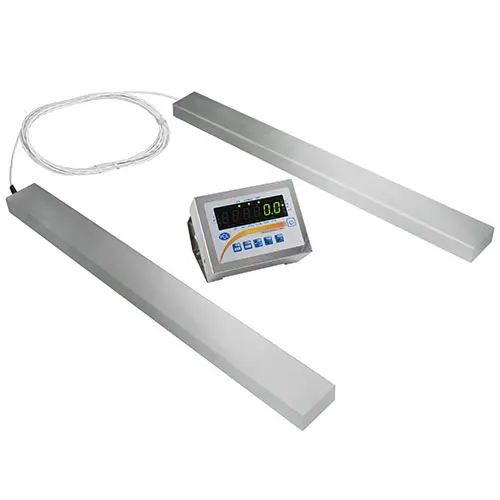

The weighbridge is made entirely of high quality stainless steel and supplied in calibrated form. For special industrial applications, we can tailor weighbridge to customer requirements. This does not only refer to the dimensions of the weighbridge but also to special functions and other customer requirements. The dimensions of the weighbridge are actually tailored to an EU range. However, these are used for a wide range of applications because the two weighbridges can be placed up to 3 meters apart, making them ideal for the weighing of machines and other non-standard objects.
The IP68 protected cells and the IP65 protected stainless steel display are also suitable for rough industrial use. Due to the high degree of protection, the standard stainless steel weighbridge have no interfaces. Depending on the requirements, we can, for example, supply Bi-directional RS-232, USB, LAN, analog interface 4-20 mA or 0-10 V as well as a switching output with up to three switching contacts in the stainless steel weighbridge. These help to monitor and control production processes.
* The minimum load is the load from which the calibration authority checks the accuracy. The calibrated stainless steel balance bars also indicate smaller weights, but these may not be used in legal calculations.
|Calibration||Calibratable to class M III (to be calibrated)|
|Tare range||Multiple tare over the entire weighing range|
|Settling time||<3 s|
|Display||LED with 20 mm digit height|
|Weighing units||kg / piece / lb|
|Interface||optional bi-directional RS-232, USB or LAN interface, as well as analogue output 4-20 mA, 0-10 V, OC
|Operating temperature||-10 ... +40 °C|
|Protection||IP68 cells / IP65 display|
|Power supply||~230V, 50Hz, 8VA|
If other dimensions, cable lengths or tapped holes are required, we can also realize these with our calibrated load beam. Please contact us.
