Suspended Scale incl. ISO calibration certificate
Max. capacity up to 5 tons / Peak hold, sum and tare functions / Includes shackles, protective carrying case and two-year warranty against manufacturer defects

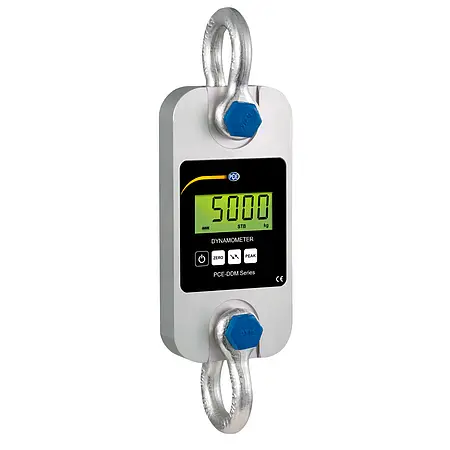

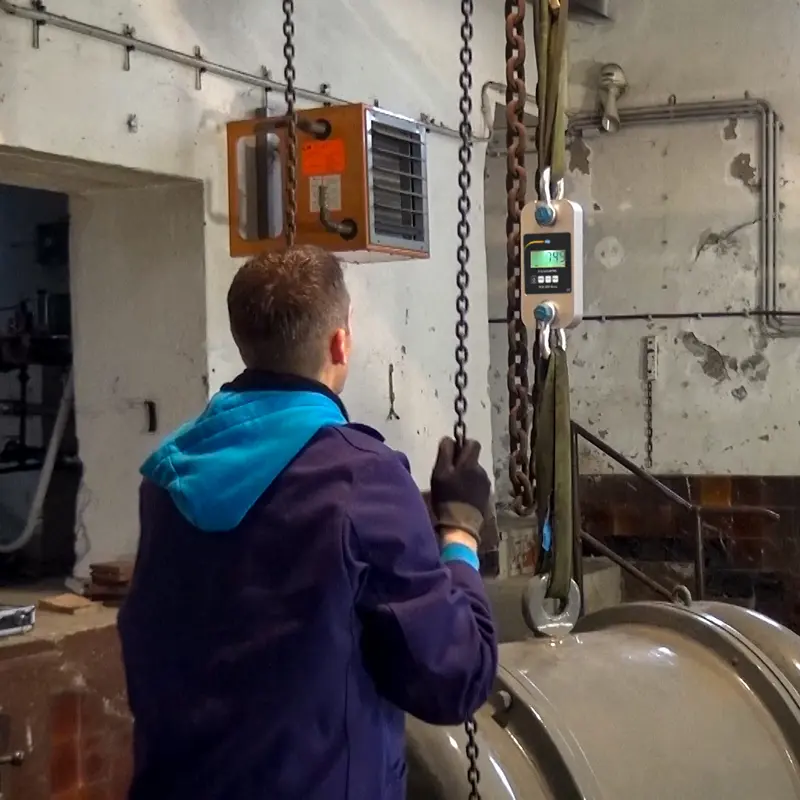

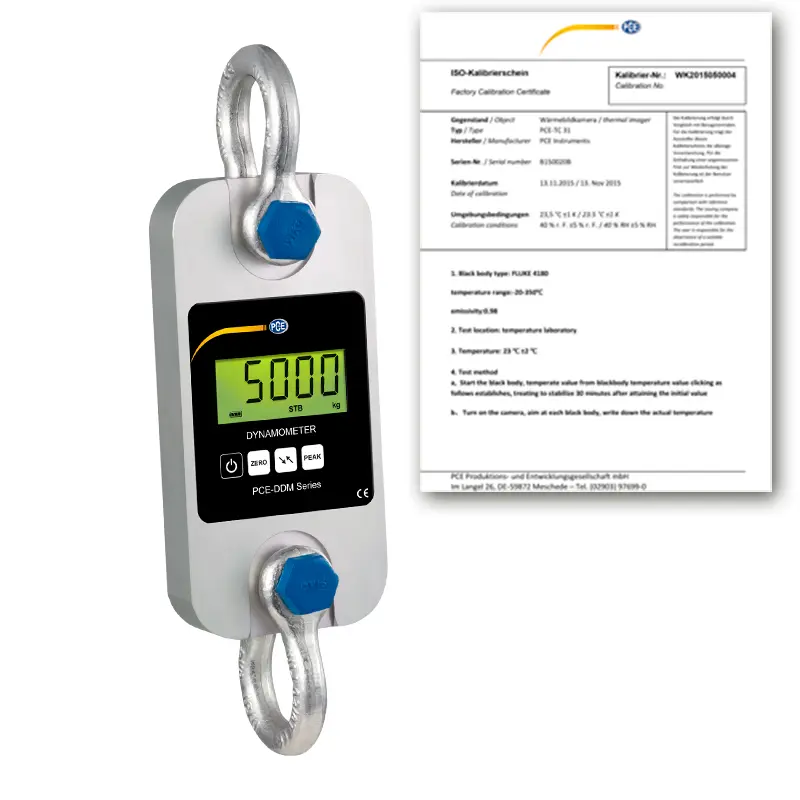

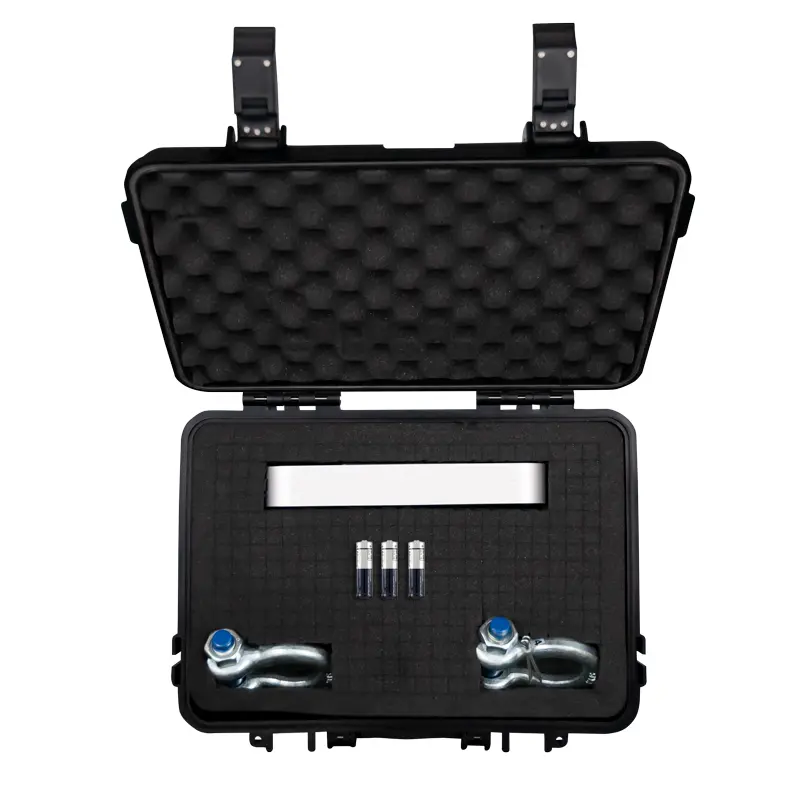

The PCE-DDM 5WI is a suspended scale designed to weigh large hanging loads. The PCE-DDM 5WI is also a durable digital dynamometer specially crafted to measure strong tensile forces. This high-capacity device is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. Each suspended scale is manufacturer calibrated, but can be certified to ISO standards for an additional fee (see accessories for details).
Despite its high capacity and rugged durability, the suspended scale is a compact and portable device with a low net weight. The suspended scale has many useful practical features including peak hold, tare, sum and the ability to select different units of measurement such as kg / t / lbs / N / kN.
Please note that this device is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FM series force gauges (visit similar items tab for details).
|Maximum capacity||5 t / 11023 lbs / 5000 kg / 50 kN|
|Resolution||4 lbs / 2 kg / 20 N|
|Minimum capacity||88 lbs / 40 kg|
|Device weight (with shackles)||
6.6 lbs / 3 kg /
(13 lbs / 6 kg)
|Accuracy||± 0.1 % of measurement range|
|Tare range||Max. 20 % of measurement range|
|Display||LCD with 0.9" / 22 mm digit height|
|Units of measurement||kg / t / lb / N / kN|
|Sampling rate||2.5 Hz|
|Operating temperature range||-10° C ... +40° C / +14° F ... +104° F|
|Power supply||3 x 1.5 V AA batteries|
|Battery life||Approx. 50 hours of continuous use at full charge|
