Pellet Moisture Analyzer PCE-PEL 20

Order no.: PCE-PEL 20
£ 654.00
£ 784.80
price ex. (VAT / delivery)
Delivery time: 1-2 working days

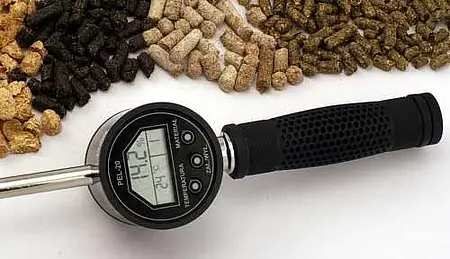

PCE-PEL 20 Pellet Moisture Analyzer
1000 mm / 39.37"long acid-proof steel measuring probe

PCE-PEL 20 is a portable handheld digital moisture analyzer used to measure the moisture or water content of pellets and biomass such as sawdust, wood chips, straw, hay, sunflower shells, buckwheat, corn and soy. Designed in collaboration with biomass power plant operators, this pellet moisture analyzer features automatic temperature compensation.

The PCE-PEL 20 pellet moisture meter uses the resistance measuring method to determine a material's moisture or water content. Therefore, it is of great importance to select the appropriate characteristic curve and temperature when taking measurements with the pellet moisture meter. Simply plunge the measuring sensor probe into a pile of pellets and, once the value is stabilized, the moisture or water content percentage can be read. The pellet moisture tester only measures at the tip of its sensor probe. Thus, it is advised to perform several measurements at different points to achieve an adequate overview of the moisture or water content of a pile.

- Measuring range: 10 ... 20 % moisture content
- Resolution: 0.1 % moisture content
- 1000 mm / 39.97" long acid-proof steel measuring probe
- Easy to use
- LCD display
- Battery-powered
Measuring range10 ... 20 % moisture or water content
Resolution0.1 %
Temperature compensation range0 ... +50 °C (32 ... 122 °F)
Response timeApprox. 3 sec.
Measuring sensor probeØ 10 mm x 1000 mm / Ø 0.4" x 39.37", acid-proof steel
Power supply12 V battery type 23A
Battery lifeApprox. 10,000 measurements
Automatic power offAfter approx. 10 min. inactivity
Dimensions of carrying caseØ 80 mm x 12500 mm / Ø 3.15" x 492.13"
Weight Approx. 900 g / 2 lb

1 x PCE-PEL 20 pellet moisture analyzer
1 x battery
1 x user manual
1 x carrying case
