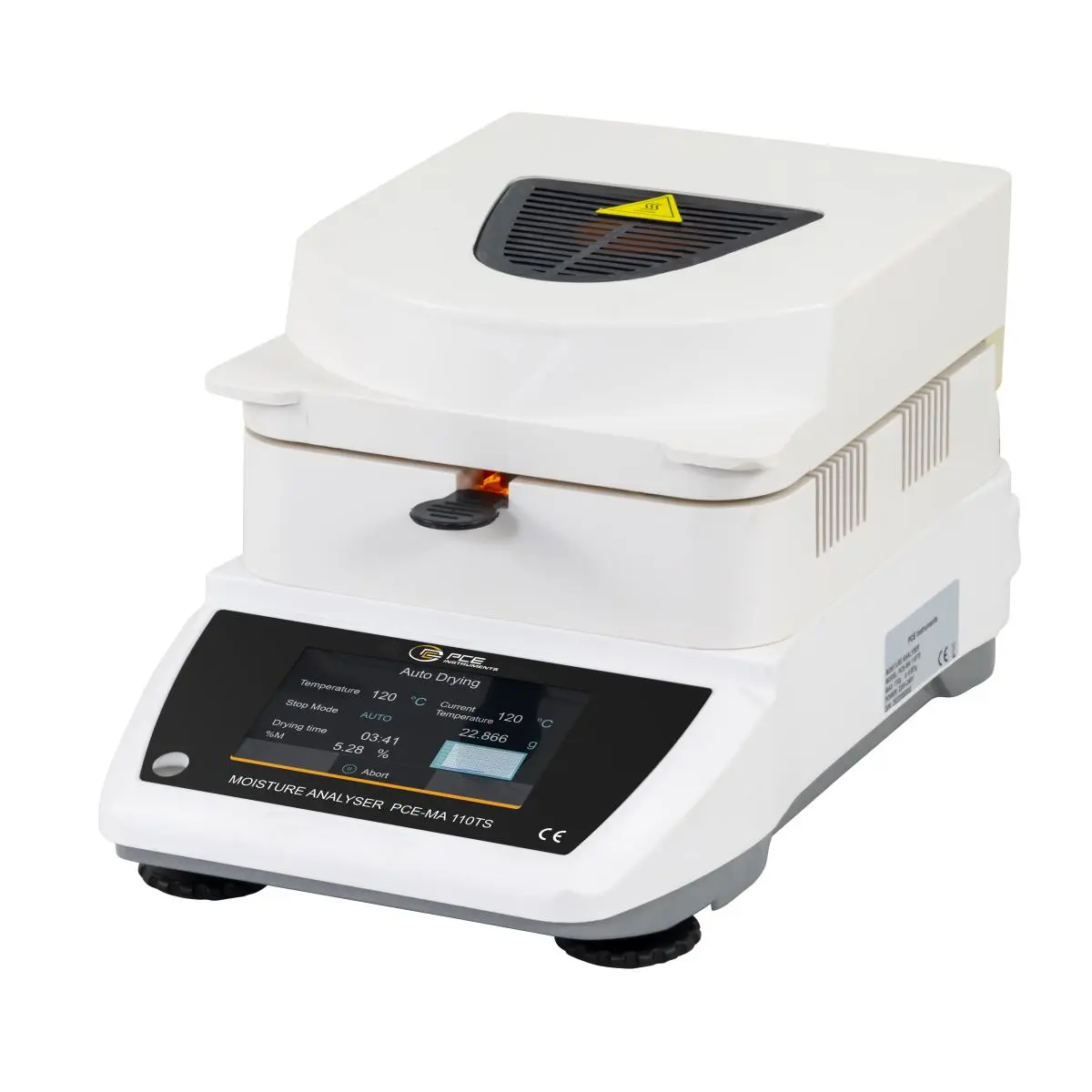

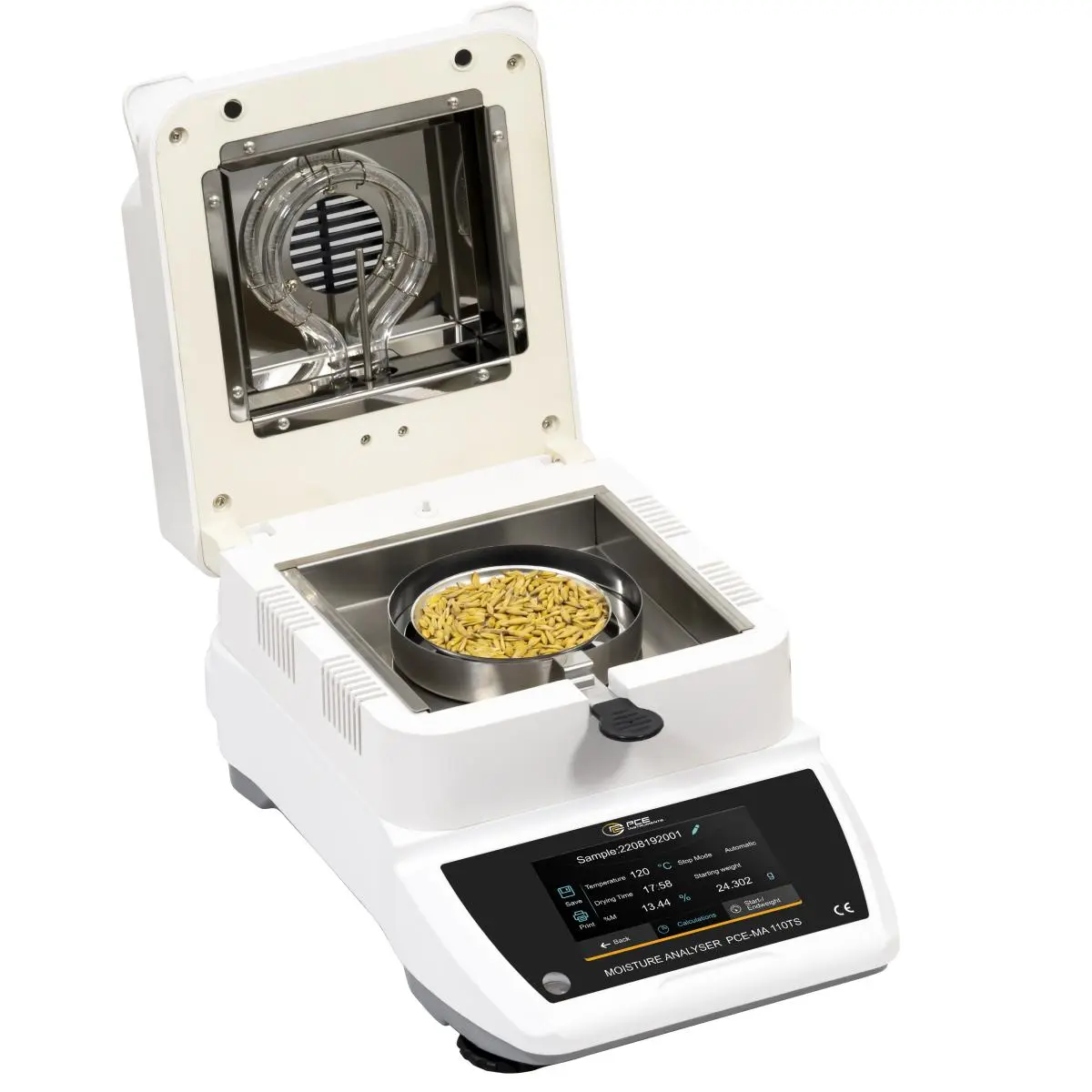

Moisture Analyzer PCE-MA 110TS

Order no.: PCE-MA 110TS
£ 930.00
£ 1,116.00
price ex. (VAT / delivery)
Delivery time: Available soon!
Moisture analyzer with 5" touchscreen for easy operation / Lamp Ø90 mm /
Temperature range 40 ... 165 °C / Modbus interface / Measuring range 0 ... 110 g /
Memory for 32 drying parameters / Optionally with ISO calibration certificate

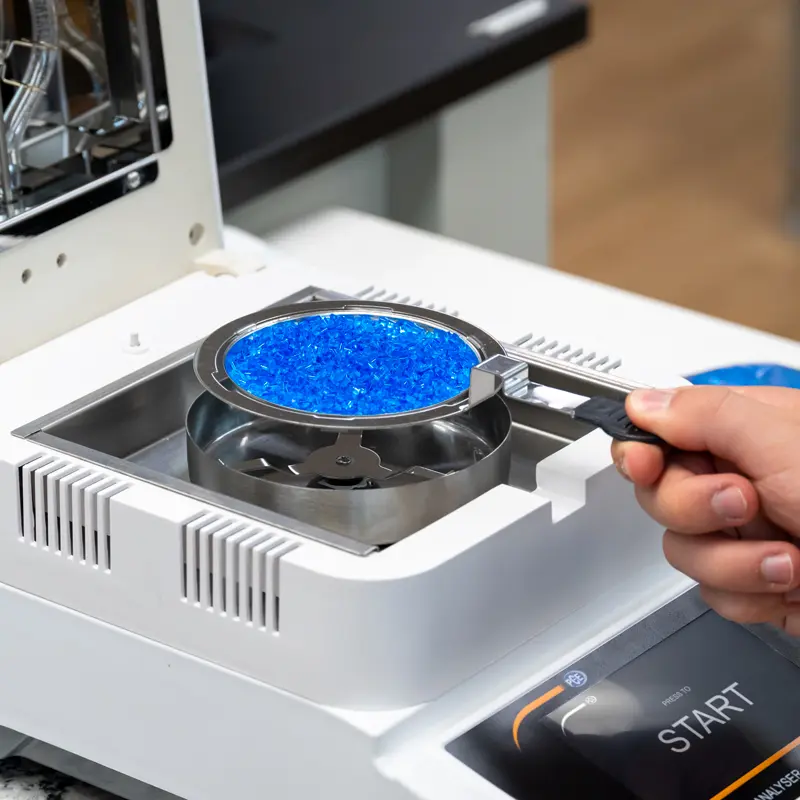

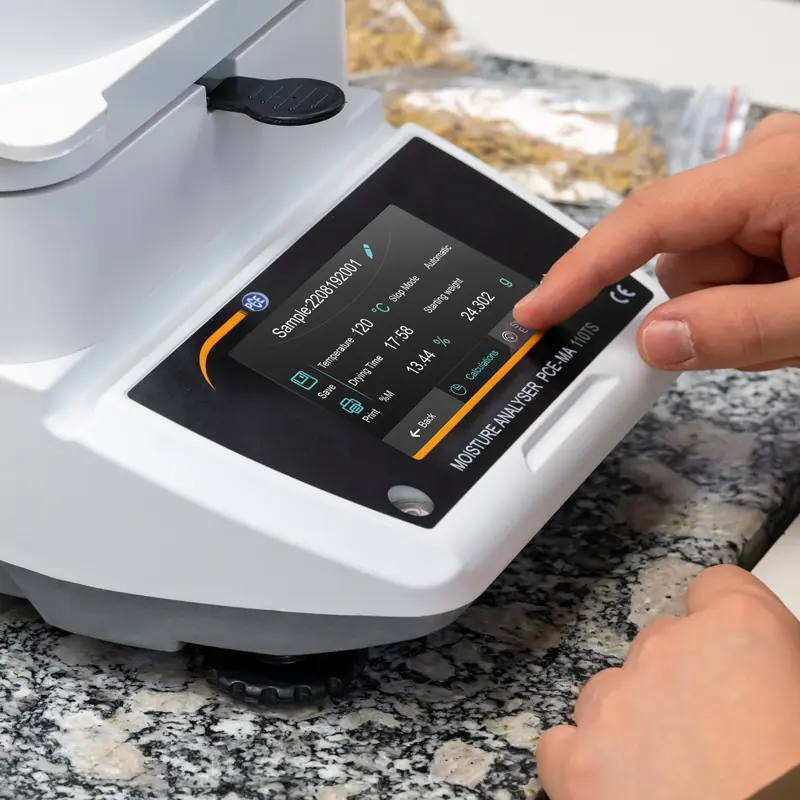

The moisture analyzer has a moisture measuring range of 0 … 100%. The moisture balance is operated via the 5" touchscreen. To determine the moisture content with the moisture balance, a sample is evenly distributed on the sample pan. The sample pan is then placed in the moisture balance and sealed. After setting all parameters, the moisture balance starts the measurement. The accuracy of the moisture scale is ±0.003 g. The moisture balance is therefore a precise measuring device.

The moisture analyzer determines the moisture content via the measured weight difference, based on the weight before and after drying the sample. The adjustable temperature range for the moisture balance is between 40 ... 165 °C / 104 ... 329 °F . A specific drying temperature can thus be selected for the sample in the moisture balance. The drying temperature is generated by means of a built-in halogen lamp with a diameter of 90 mm / 3.5".

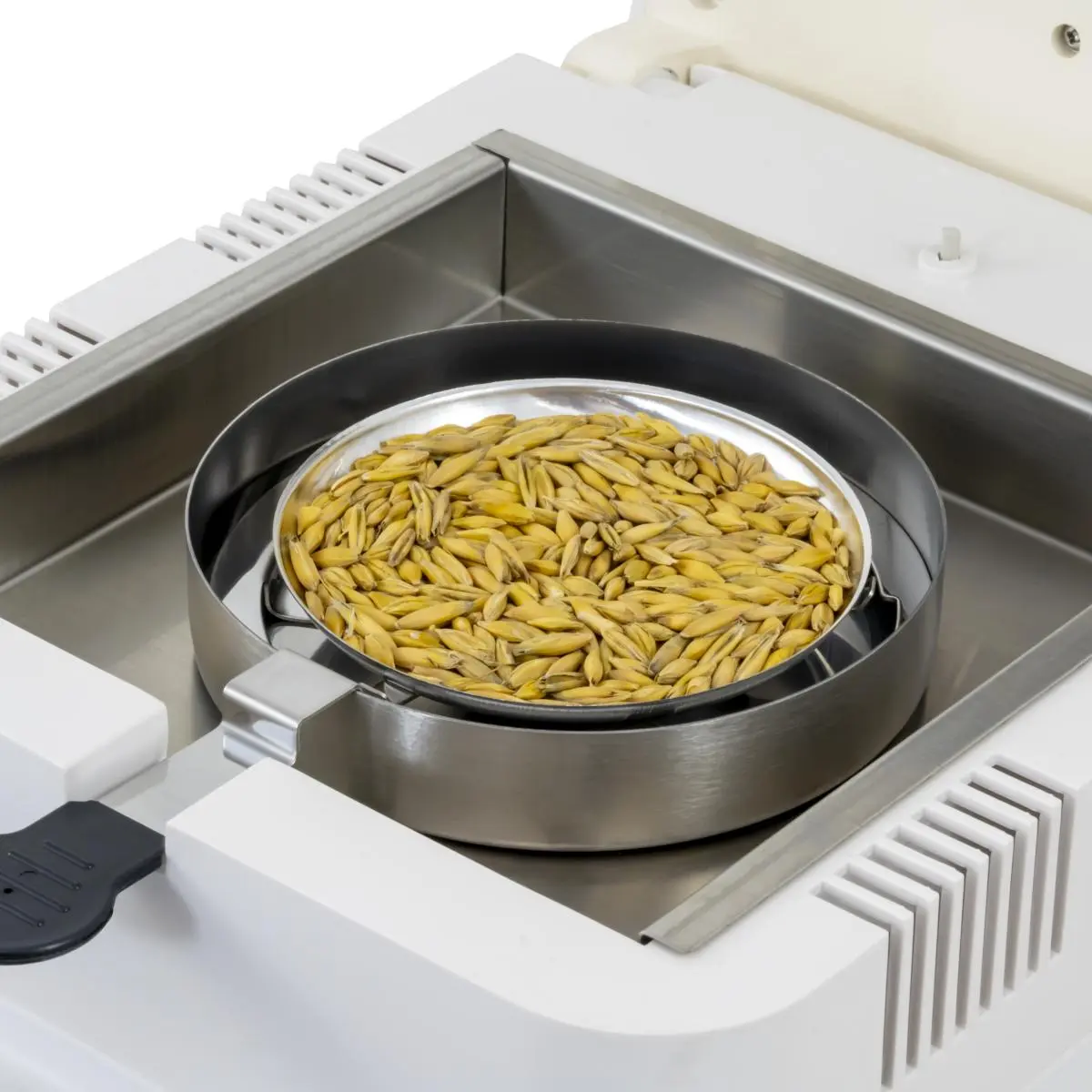

Due to the drying process of the sample, the moisture analyzer can be used in many areas. Thus, the moisture balance is used in laboratories, for example, to measure the moisture of different powders, in final quality control to determine the moisture of granules or in agriculture or the agricultural sector to determine the moisture content of oats, grain or wheat.

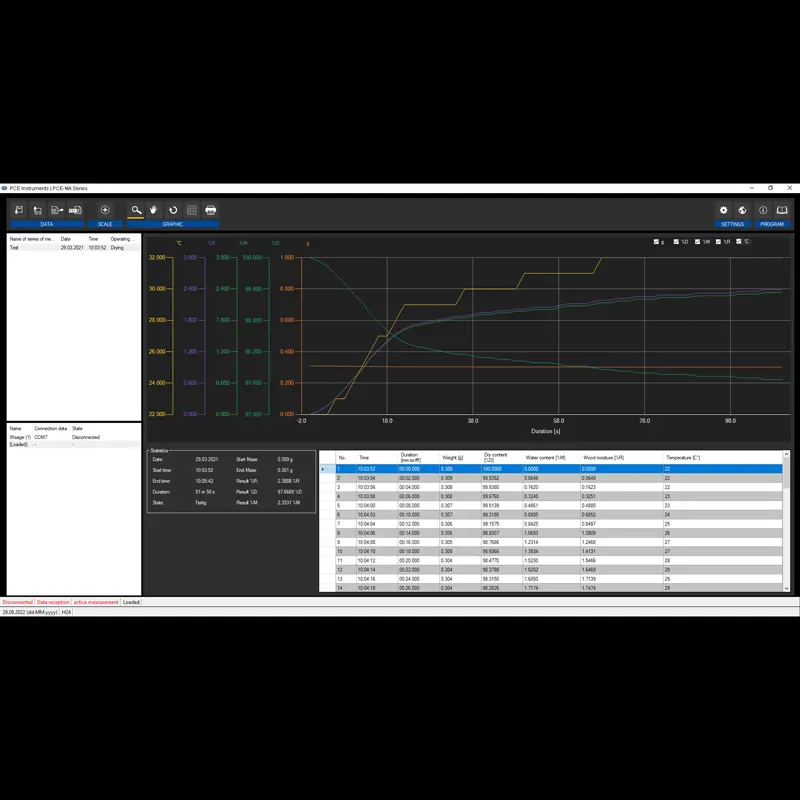

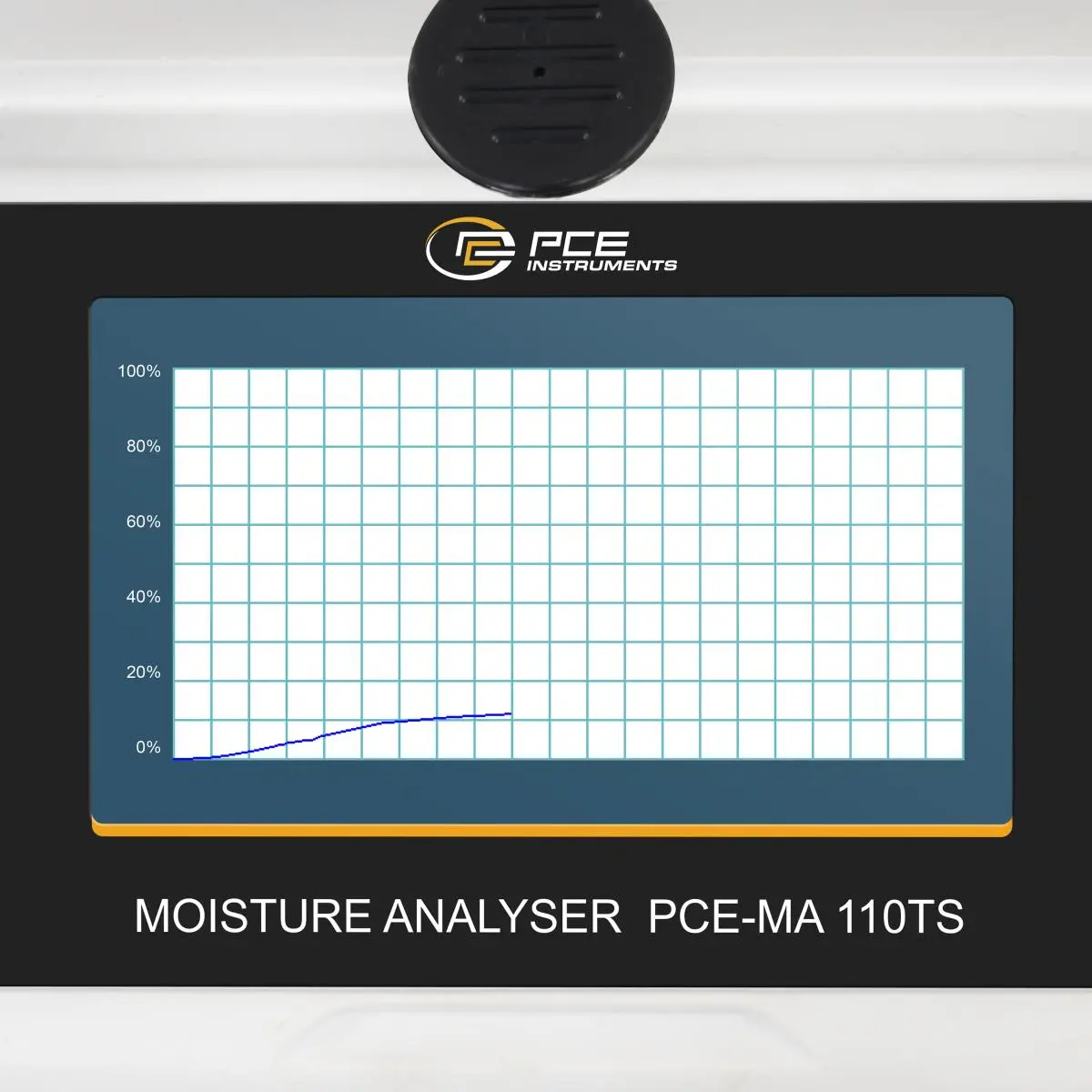

The measured values ​​can be transferred to a PC and analyzed via the RS-232 Modbus interface on the moisture analyzer. Suitable software is optionally available for the moisture balance. A measurement curve is created in the software for the moisture balance. After a measurement, the measured values ​​can be saved and forwarded by the moisture balance. If required, the moisture balance can be equipped with an optional ISO calibration certificate.

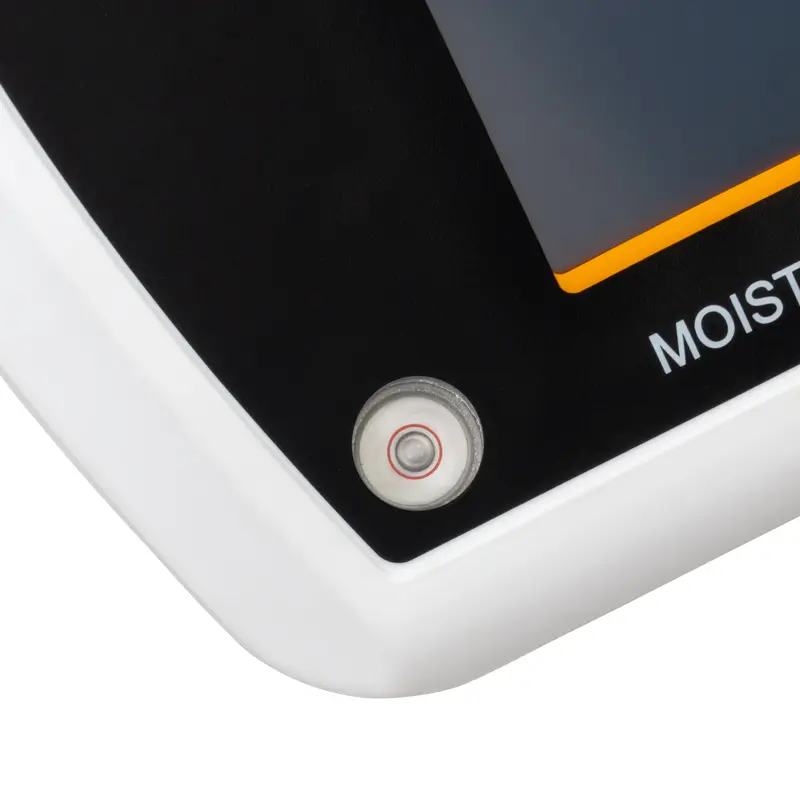

- Spirit level for leveling the moisture balance
- Memory for 32 drying parameters

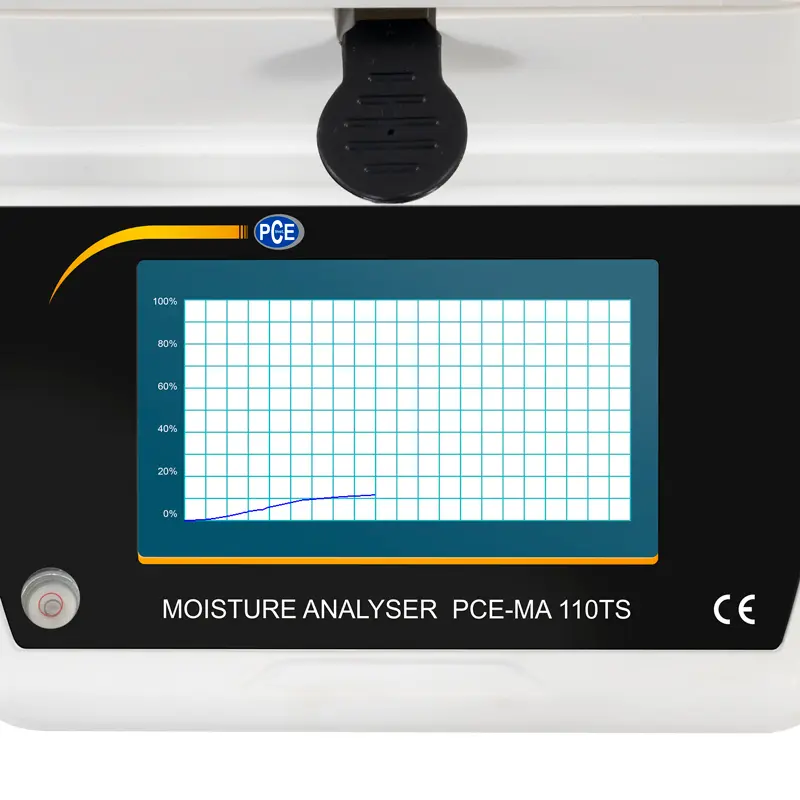

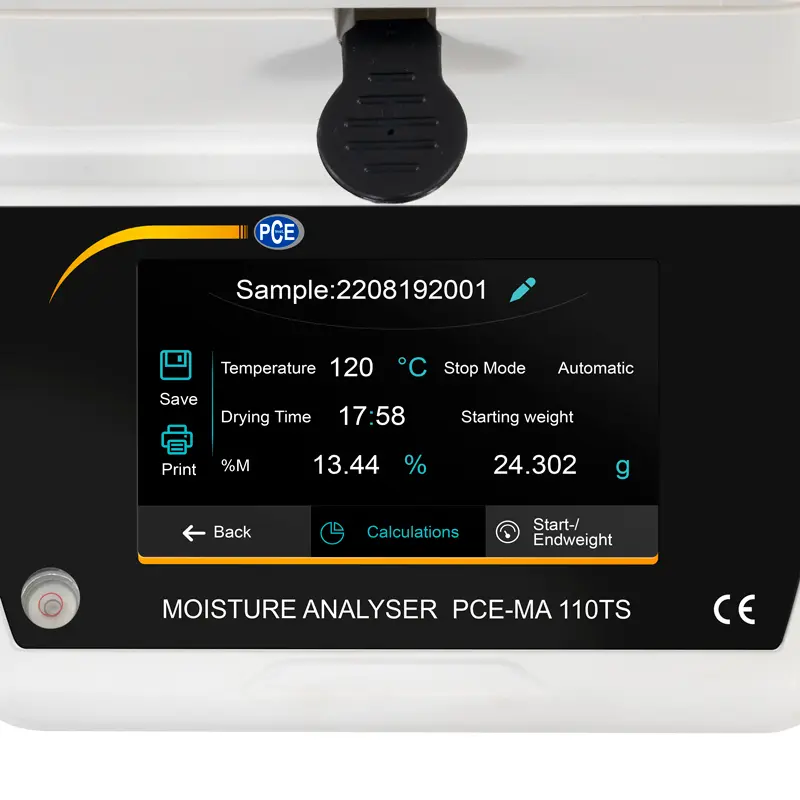

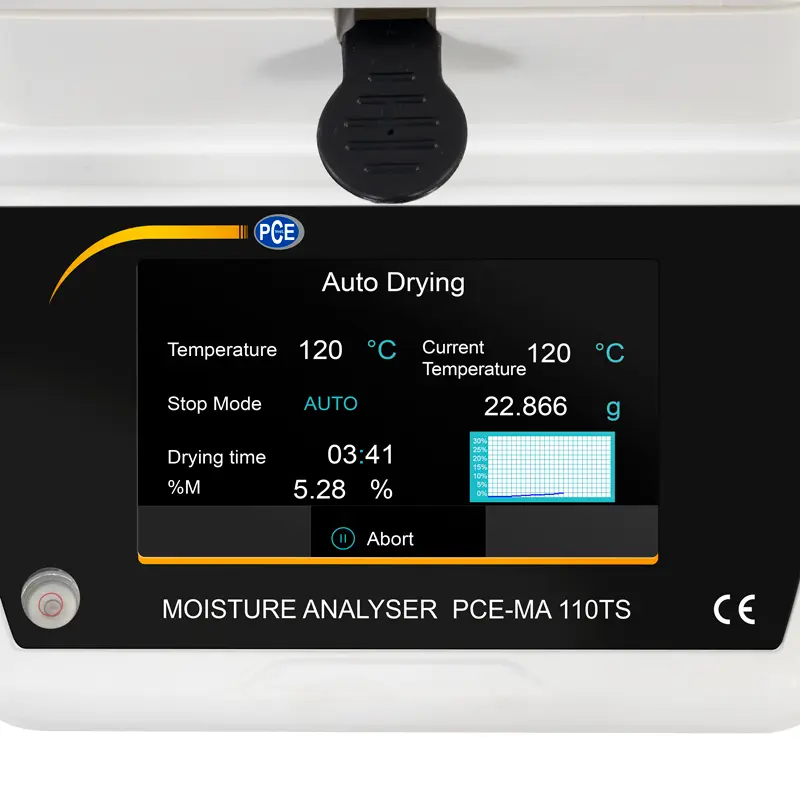

- 5" touch screen for easy operation

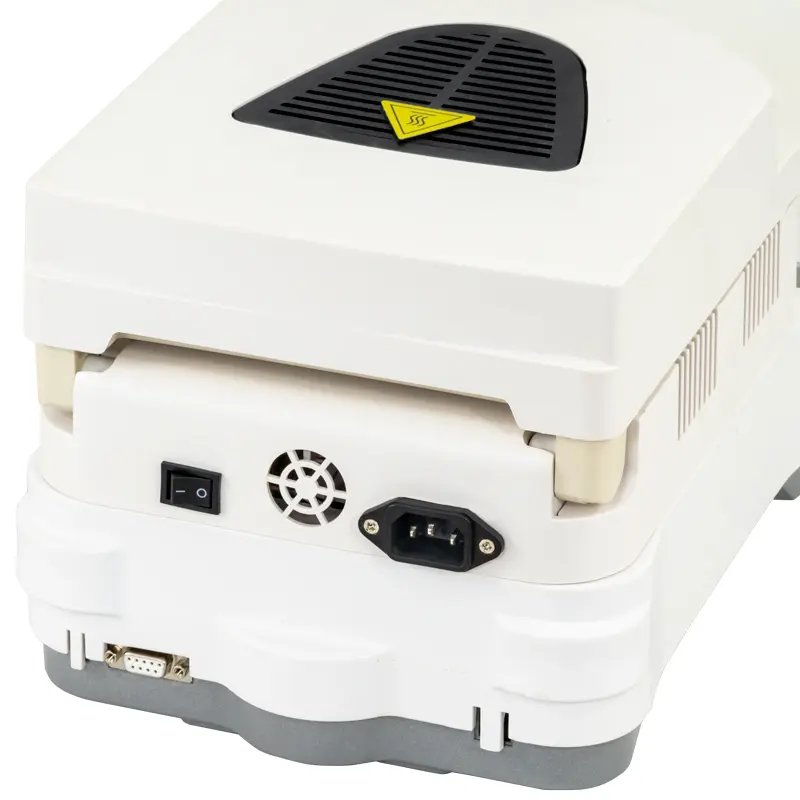

- RS-232 interface for connection to a PC

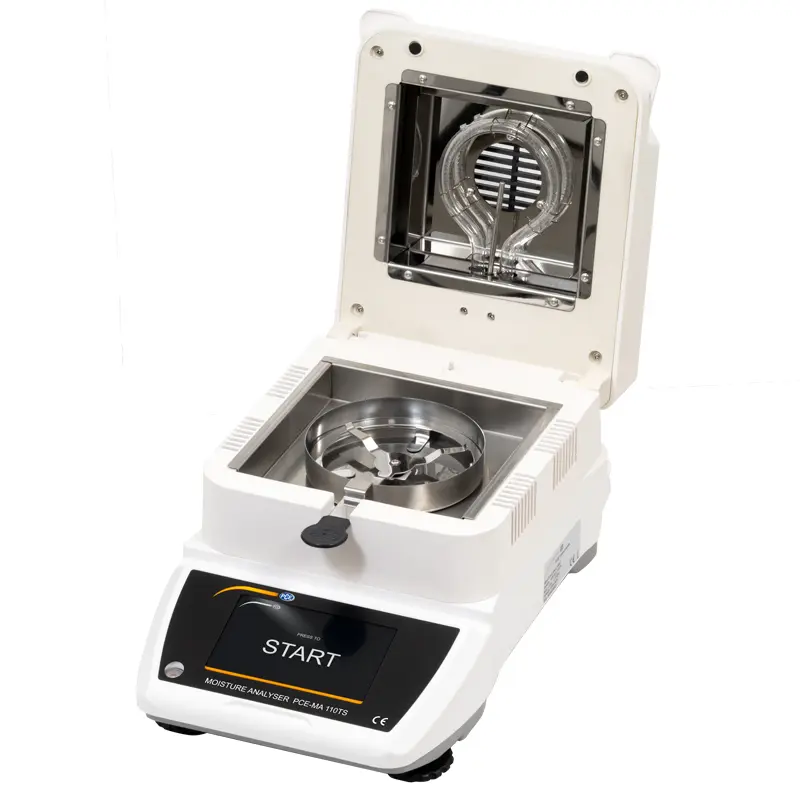

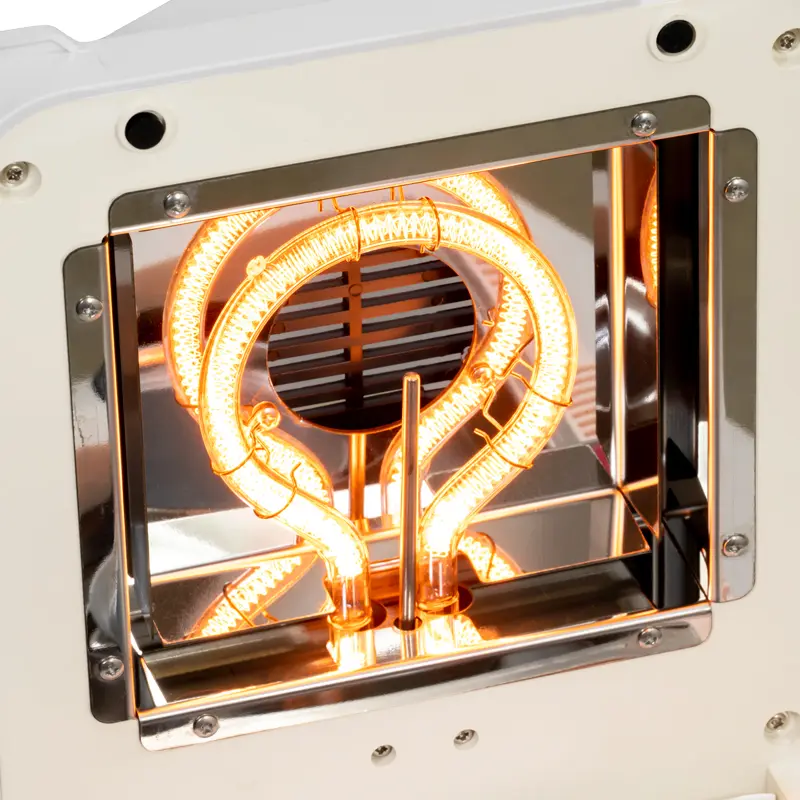

- Halogen lamp as heating element Ø90 mm / 3.5"
- Optionally with ISO calibration certificate
- Optionally with PC software
Measuring range 0 ... 110 g / 0 ... 3.88 oz
Resolution 0.001 g

Heating element round halogen lamp, Ø 90 mm / 3.5"
Temperature range 40 ... 165 °C / 104 ... 329 °F
Moisture display 0 ... 100 %
Moisture resolution 0.01 %
Memory 32 drying parameters
Interface RS-232
Display 5" touchscreen
Power supply 220 ... 240 V AC, 50 / 60 Hz
Power consumption   300 W
Dimensions 370 x 215 x 195 mm / 14.5 x 8.4 x 7.6"
Weight 4.5 kg / 9.9 lb

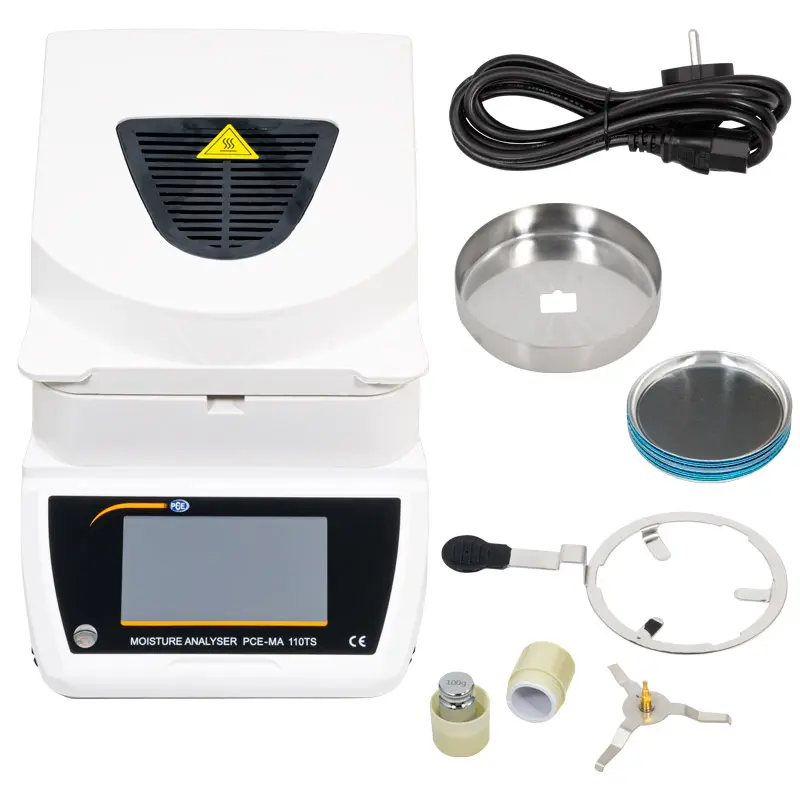

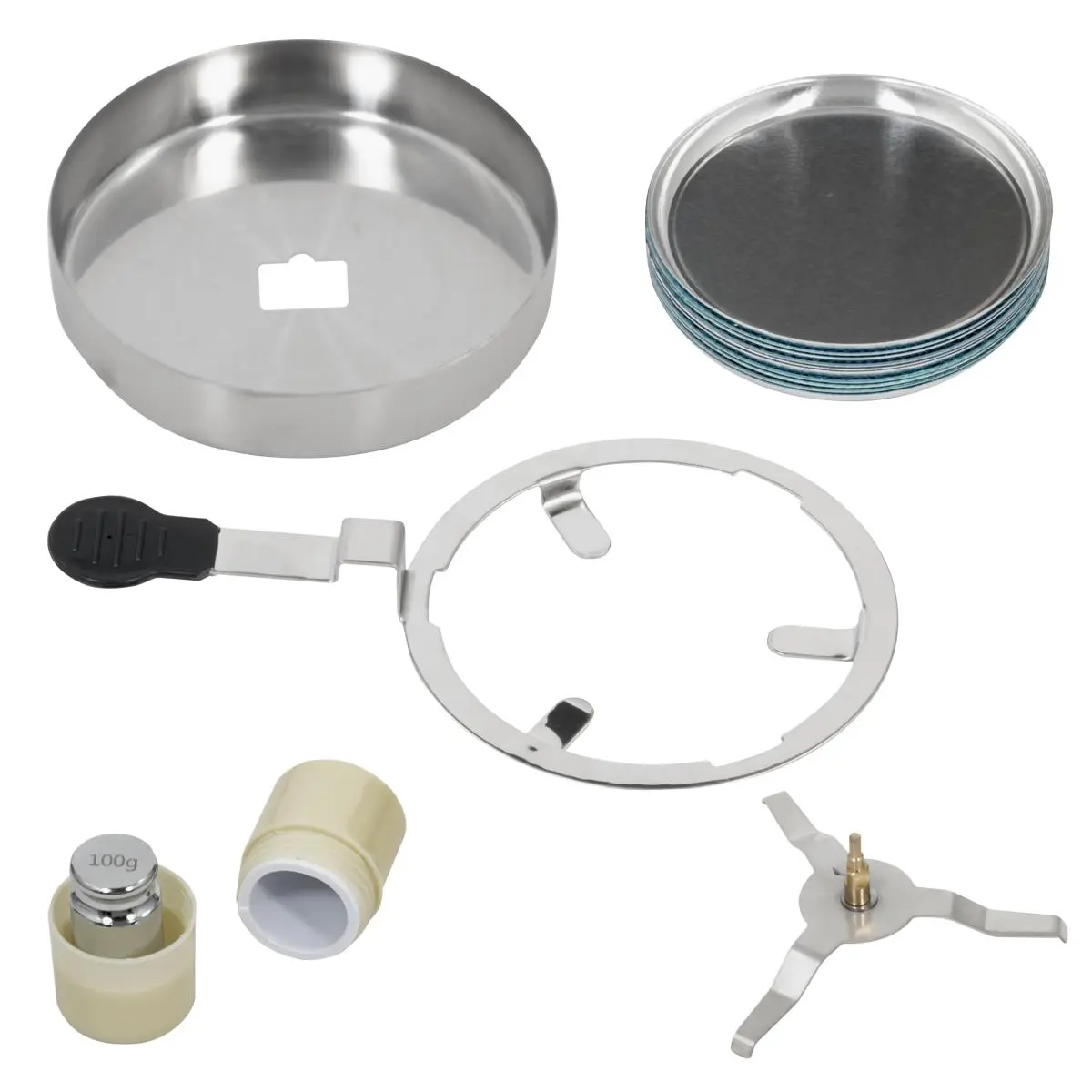

1 x Moisture analyzer PCE-MA 110TS
10 x Sample pan
1 x Sample pan holder

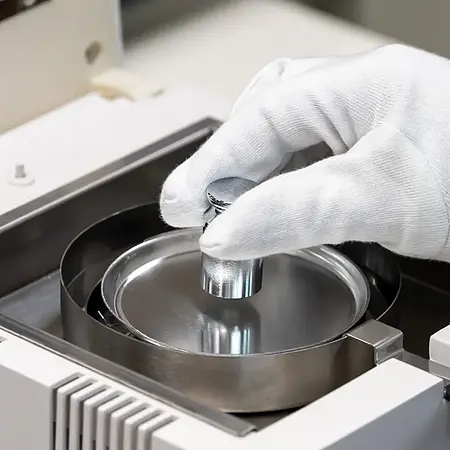

1 x 100 g test weight
1 x Sample pan handle
1 x Mains power cable
1 x Instruction manual
