Heavy Duty Scale PCE-SW 5000N
5.5 ton capacity industrial weigh bar beam pallet scale

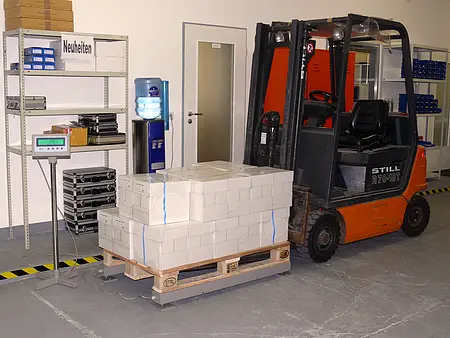

PCE-SW 5000N is a portable battery-powered heavy duty scale or pallet scale featuring two heavy-duty parallel weighing beams made of lacquered steel that can be positioned up to 4 m / 13 ft apart. Thus, the adjustable width accommodates multiple pallet, box and container sizes. In addition, the scale's stainless-steel-encased display can be placed up to 4 m / 13 ft away from the weighing beams, allowing for wall mounting.
| Weighing range | |
| Measurement range up to [Max] | 5000 kg |
| Resolution [d] | 2 kg |
| Accuracy | ±8 kg |
| General technical data | |
| Cable length | 5 m |
| Measuring functions | HOLD |
| Measuring functions (additional information) | Limit value weighing function, counting function, totalising function |
| Units | kg, lb |
| Display type | LCD |
| Digit size [WxH] | Height: 25 mm |
| Material evaluation device | Stainless steel |
| Interface | bidirectional RS232 |
| Automatic power-off from...to | 10 ... 60 min. |
| Housing | Painted steel |
| Tare range | Multiple tare over the entire weighing range |
| Calibration | Multi-point calibration possible |
| Menu language | English, English (GB) |
| Protection class (device) | IP54 |
| Power supply | Power supply unit: 9V / 1.2 A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 6 V internal , Lead gel battery |
| Capacity | 4500 mAh |
| Operating conditions | 0 ... 40 °C , 10 ... 80 % RH |
| Storage conditions | 0 ... 40 °C , 10 ... 80 % RH |
| Dimensions ( L x W x H ) | 2000 x 120 x 110 mm |
| Weight | 80000 g |
