Heavy Duty Scale PCE-RS 2000

Order no.: PCE-RS 2000
£ 798.00
£ 957.60
PCE-RS 2000
price ex. (VAT / delivery)
Delivery time: 1-2 working days

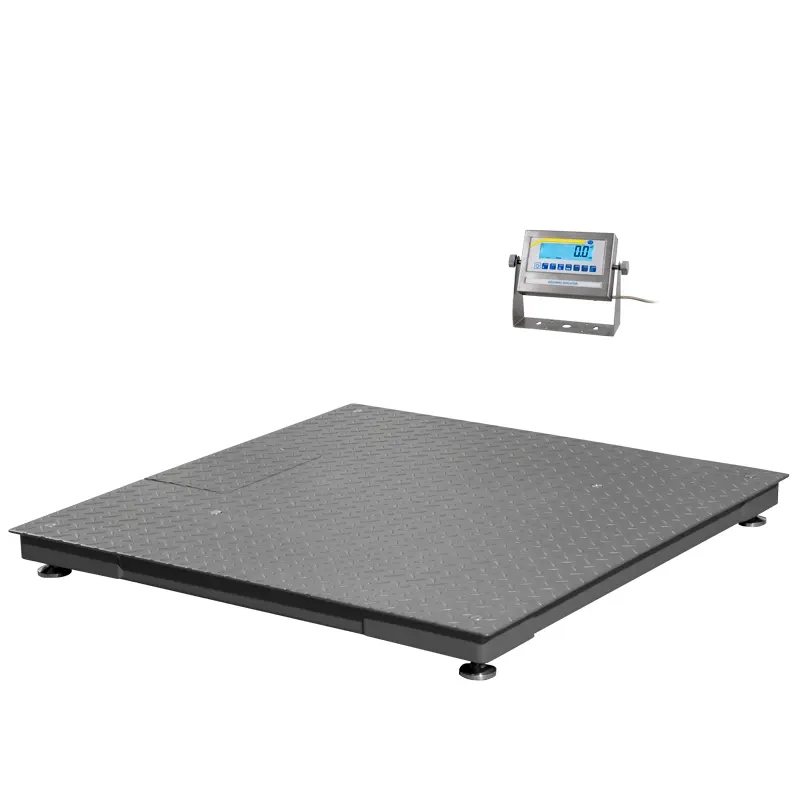

Heavy Duty Scale painted steel / Platform size 1200 x 1200 mm / up to 2,000 kg /
4 switching outputs / 4 ... 20 mA analog output / table or panel mounting

The heavy duty scale is designed for stationary use. The robust construction makes this heavy duty scale particularly well suited for weighing large objects. The heavy duty scale is made of painted steel. Weighing data can be easily read thanks to its external display (with 4 m length cable). Functions of the heavy duty scale are a summing function, a piece counting and check weighing. The heavy duty scale is delivered with a bi-directional RS-232 interface and with optional PC software can show the measured valuesin Excel. The indicator of the heavy duty scale can be placed on a table or an optional tripod.

- Weighing range: 2,000 kg
- Resolution: 0.5 kg
- Bidirectional RS-232 interface

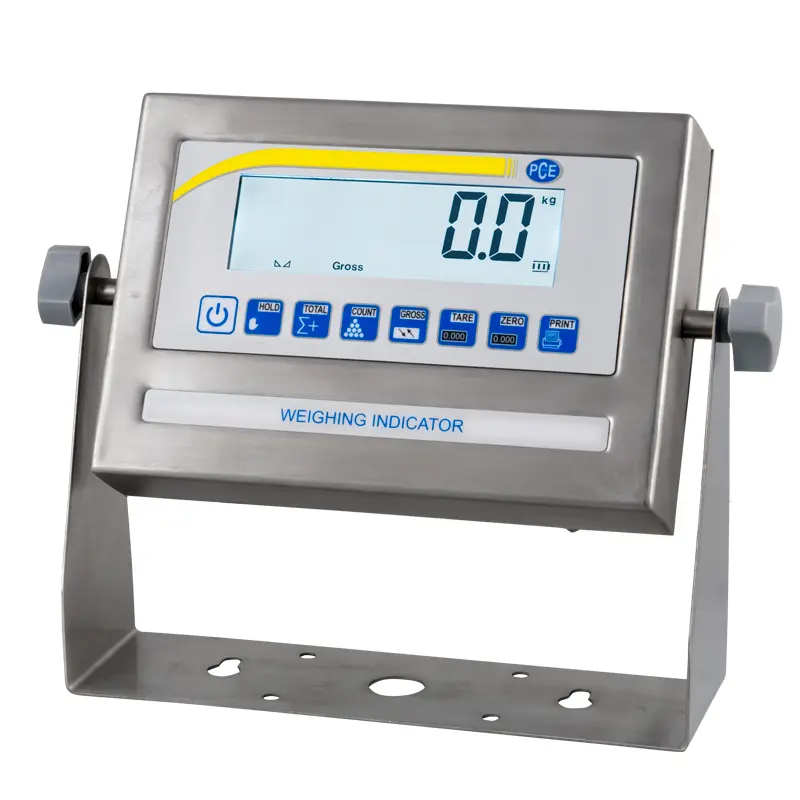

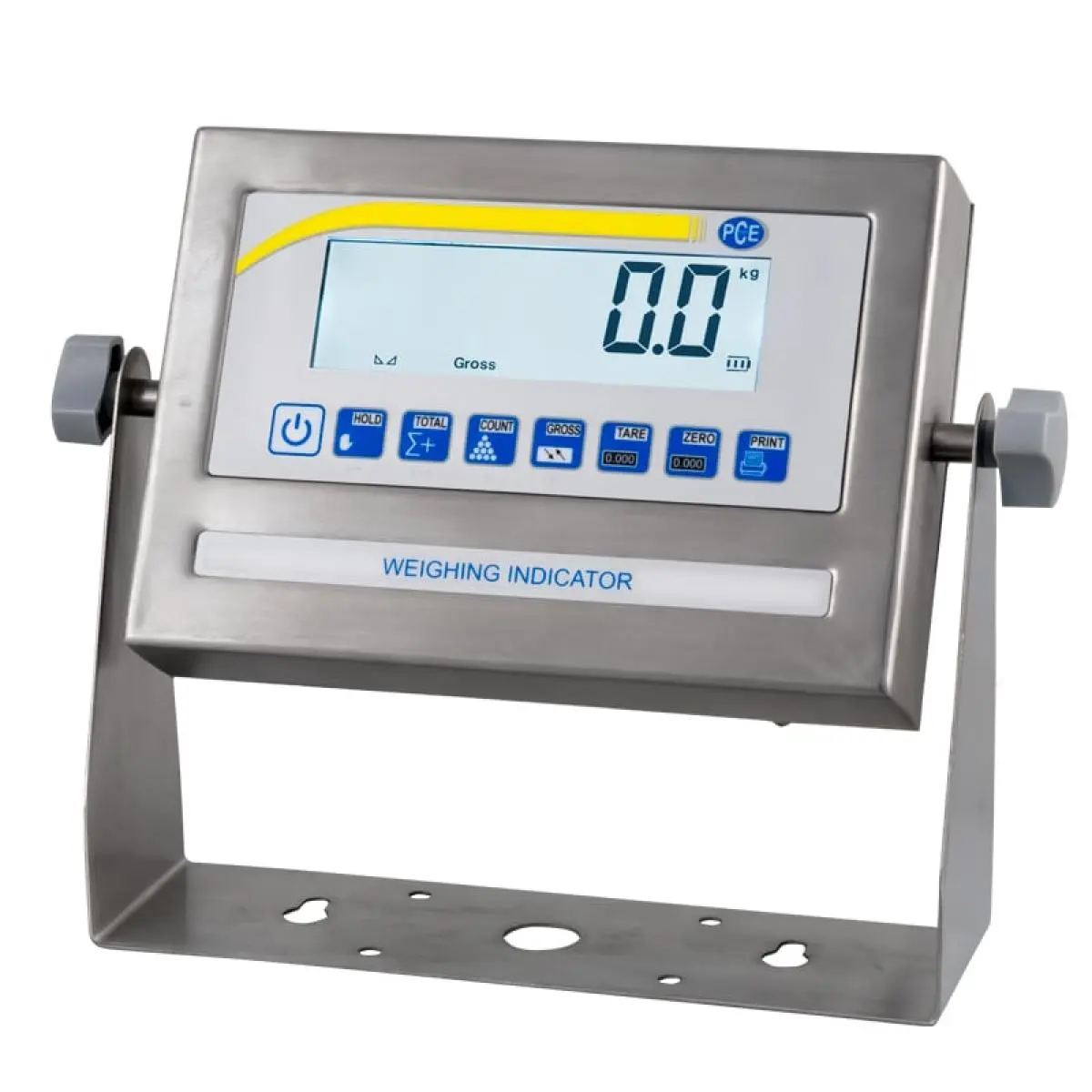

- Indicator in stainless steel IP 54
- LC Display with 25 mm digit height
- Cable tothe display about 5 m (connector)
- Summing function
- Parts counting function
- Checkweighing functionMIN / OK / MAX
- Analog Output 4...20 mA optional

Weighing range2,000 kg
Resolution0.5 kg
Measurement uncertainty± 2 kg
Tare ranover the entire weighing range
DisplayLCD, height 25 mm,backlit

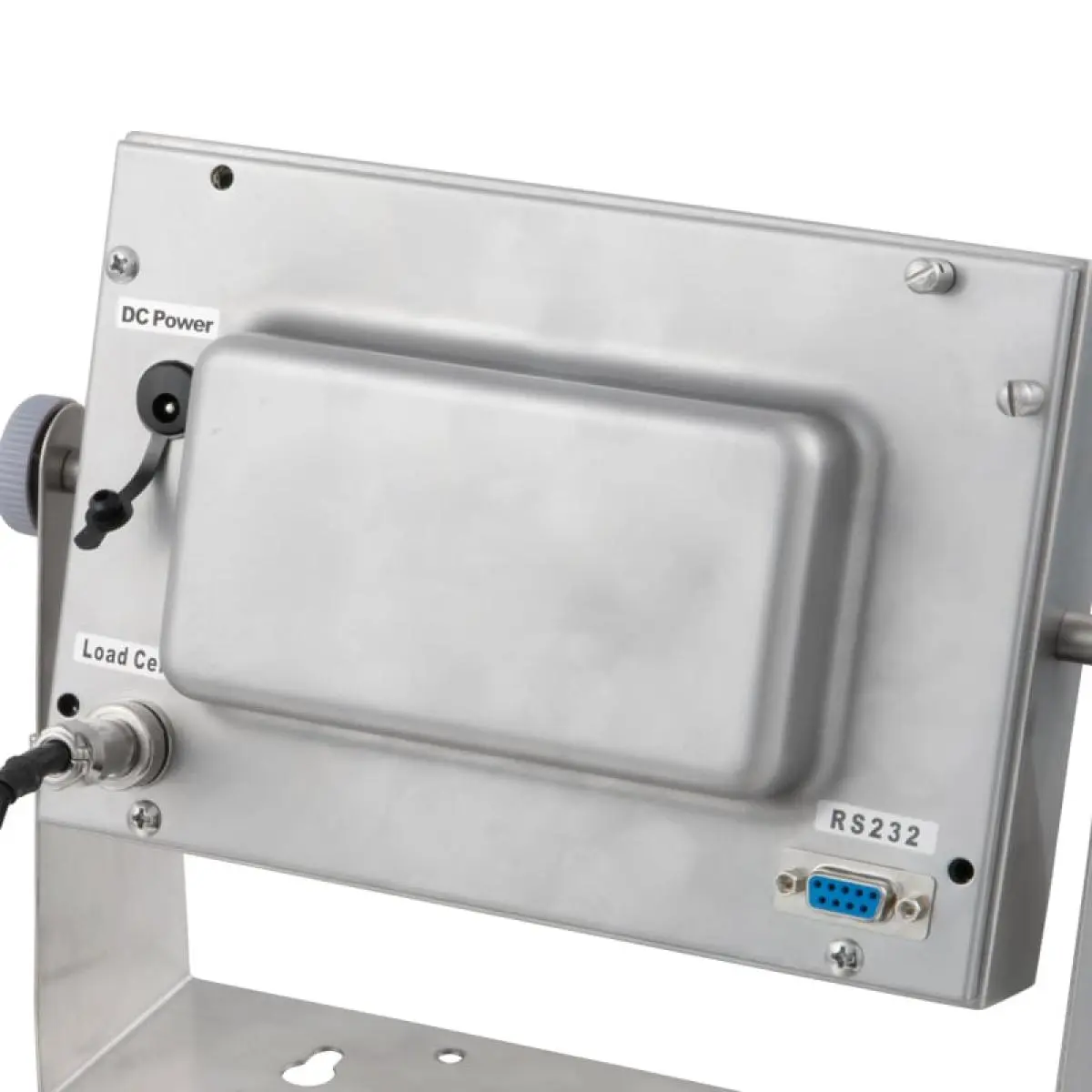

Interfaces1x bidirectional RS-232 interface
1x analog output 4...20 mA optional
CalibrationInput / multi-point adjustment possible
Operating temperature-10 ... +40 °C / max. 85 % RH
Power supply12 V / 1000 mA AC adapter (battery not possible)
Dimensions weighing platform1200 x 1200 x 100 mm
Weightca. 85 kg

1 x Heavy Duty Scale PCE-RS 2000
1 x Display
1 x 230 V AC (110 V AC for USA) adapter
1 x User manual
