GSM Balance

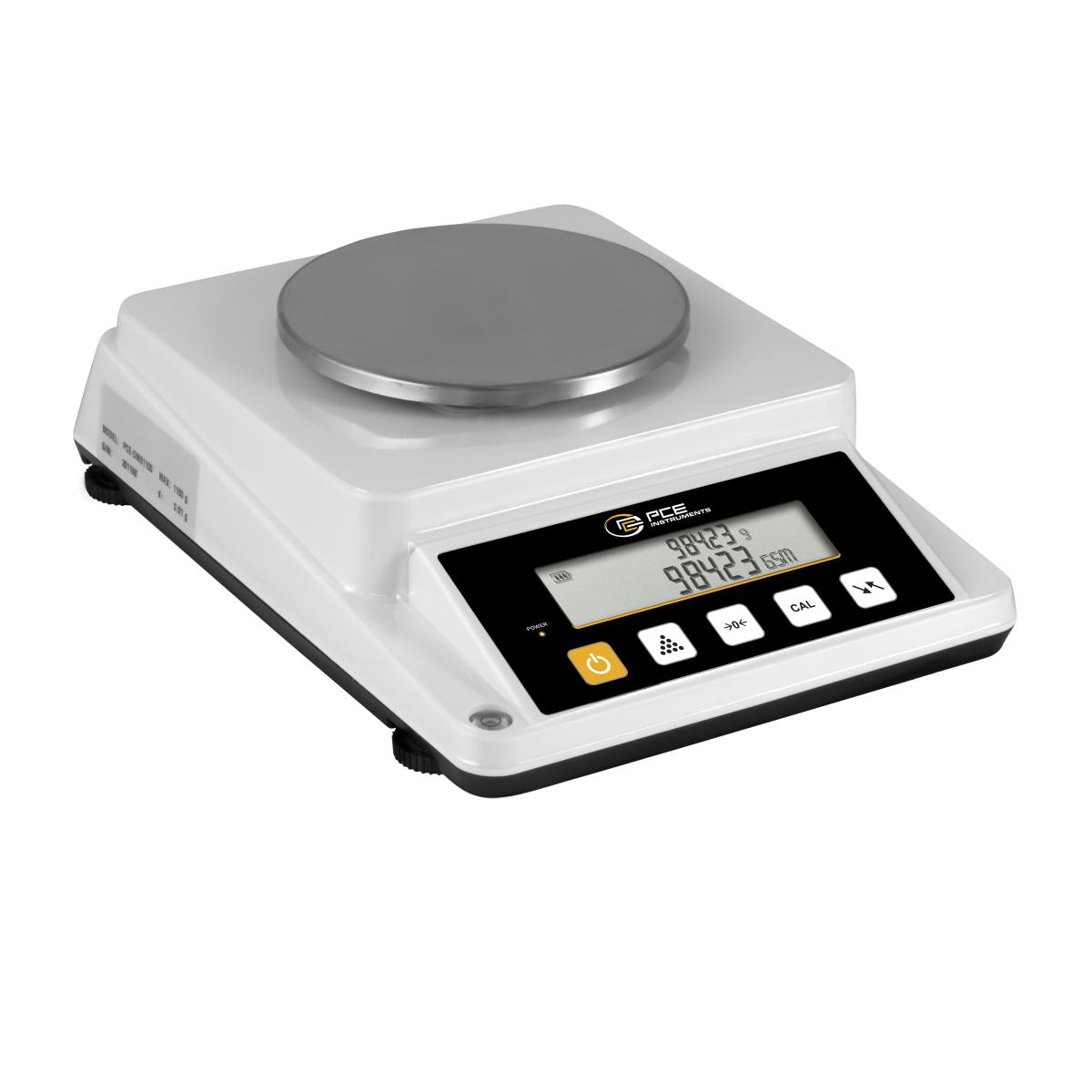

Order no.: PCE-DMS 200

PCE-DMS 200 is a paper basis weight balance or scale used to accurately determine the GSM basis weight (in relation to a square meter of material) of paper, cardboard, fabric, textiles and more directly in g, g/m², oz or oz/yd².

- Weighing ranges: 0 ... 200 g, 0 ... 20,000 g/m², 0 ... 7.05 oz or 0 ... 589.87
- Weighing units can be changed with just the push of a button
- 10 cm round pan for weighing 11 cm circle cut samples

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-LSZ 200C

The basis weight Grammage Scale directly shows the result in g/m² with high resolution (0.1 g/m²) / the weighing unit can be changed to grams by pushing one button only.

- Weighing capacity: 0 ... 20000 g/m² / 0 ... 200 g
- Readability: 0.1 g/m²   o  0.001 g
- External calibration
- Units changeable (g/m² to g)


Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: MPS-M

MPS-M is a mechanical grammage scale used to determine the basis weight of paper or textiles in grams per square meter. Featuring a neutral- or zero-positioning screw, heavy duty steel frame and cast iron feet, this mechanical basis weight scale for paper or textiles:

- Offers a weighing range up to 900 g/m²
- Includes a test weight and 2 stencils (for sampling thin paper)
- Provides years of maintenance-free use

**Requires sample cutter listed under accessories**


Manufacturer: Jakob Maul GmbH
Test Instruments manufacturer
Order no.: MPC-3

This round sample cutter features four internal blades for quick, easy and clean cutting of paper, leather, cotton, textiles, cork and more by hand.

- Maximum sample thickness: 3 mm / 0.12"
- Sample cut: 11.3 cm diameter / 100 cm² / 30 in²
- Stainless steel blades housed in cast steel casing

Manufacturer: PCE Instruments
Test Instruments manufacturer
