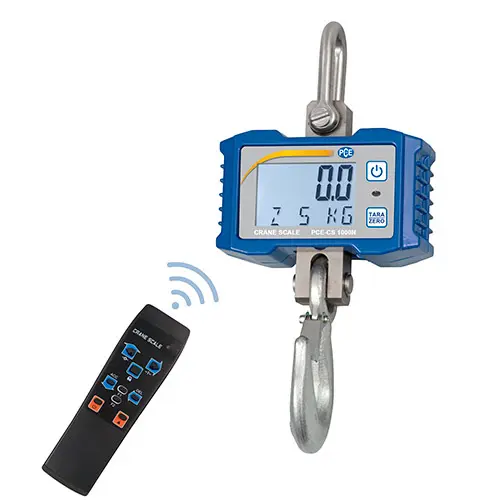

PCE-CS 1000N-ICA is a digital, electronic, battery-powered crane scale that displays measurement values in kilograms (kg), pounds (lbs) and freely adjustable units. The scale includes a hook / shackle, remote control and ISO calibration certificate.
The robust aluminum housing of this crane scale allows weighing in even the harshest indoor industrial environments. The crane scale is operated with three commercially available 1.5 V AA batteries, allowing for a continuous operating time of approx. 65 hours. The display of the crane scale is a backlit LCD screen featuring large, easy-to-read digits. The timing of the backlight of the crane scale's display can be adjusted to extend the operating time.
Other functions of the crane scale are: gross / net weighing, sum function, data hold function, zero function, power-saving automatic shutdown and the possibility to display a measuring unit that is freely adjustable by the user. This means that the user can store a conversion factor in the crane scale, so that the weighed product is not in kg or lbs, but in another measurement such as meters (e.g., 1 kg = 1.25 m). In addition, the crane scale features a linear calibration to ensure high accuracy.
|Maximum weighing||1000 kg / 2200 lbs ≈ 1 Ton|
|Resolution||0.2 kg / 0.4 l|
|Tare range||100% full scale|
|Accuracy||± 1% of the measuring range|
|Minimum load||10 kg / 23 lbs|
|Measuring units||kg / lb|
|Response time||Less than 1 second|
|Safety load||150% (do not exceed)|
|Functions||Zero, tare, data hold, power-saving|
|automatic shutdown and timed backlighting|
|Display||LCD with backlight, 20 mm /|
|0.79 in. digit height|
|Power supply||3 x 1.5 V AA batteries (operating time up to 65 hours),|
|2 x AA batteries (remote)|
|Operating conditions||-10° C ... +40° C / +14° F ... +104° F|

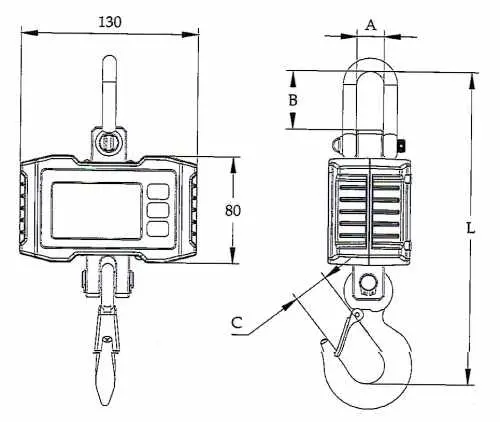

|Overall dimensions||See table above|
|L||230 mm / 9.1 in|
|A||20 mm / 0.8 in|
|B||43 mm / 1.7 in|
|C||27 mm / 1.1 in|
|Approx. weight||1.4 kg / 3.1 lbs|
1 x PCE-CS 1000N-ICA crane scale
1 x hook
1 x shackle
1 x remote control with batteries
3 x 1.5 V AA batteries for scale

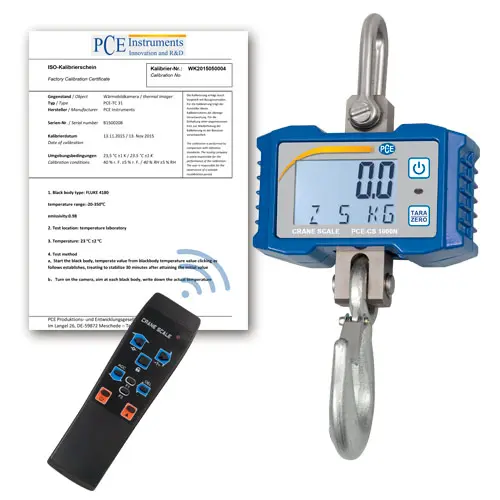

1 x ISO calibration certificate
1 x user manual
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
