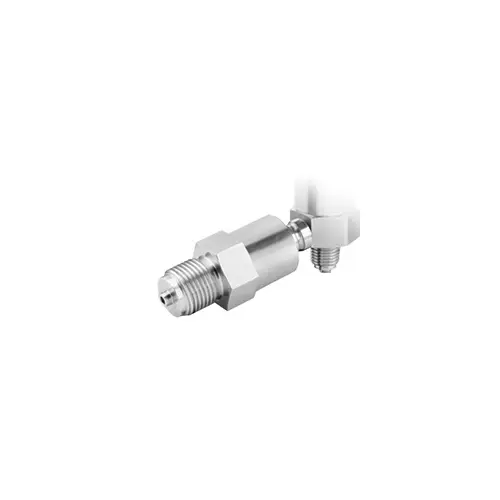

Single Pressure Sensor PCE-DMM 70-SENS

Order no.: PCE-DMM 70-SENS
£ 178.00
£ 213.60
PCE-DMM 70-SENS
price ex. (VAT / delivery)
Nominal relative pressure in Bar0.10.160.250.400.6011.62.546
Nominal absolute pressure in bar


0.400.6011.62.546
Overpressure in bar0.51125510102040
Burst pressure in bar1.51.51.537.97.515152550
Nominal relative / absolute pressure in bar1016254060100160250400
Overpressure in bar40808010821021060010501050
Burst pressure in bar50120120210420420100012501250
Negative pressure-1 ... 0 bar; Overload: 5 bar; Burst pressure: 7.5 bar
Vacuum resistance P ≥ 1 bar: unrestricted
General Specifications
Accuracy≥ 0.4 Bar: ≤ ± 0.05% FSO
< 0.4 Bar: ≤ ± 0.125% FSO
Measuring rate1/s or 2/s (adjustable)
Long term stability< ± 0.1% FSO
MediaGases
Water
Temperature rangesFluid: -10 ... 55°C / 14 ... 131°F
Operating: -10 ... 55°C / 14 ... 131°F
Storage: -20 ... 70°C / -4 ... 158°F
Pressure port / housingStainless steel 1.4404
SealFKM
DiaphragmStainless steel 4.4435
Parts exposed to waterPressure port, seals, diaphragm
DisplayGraphic LCD
Digit height 5.5 mm (gauge)
Reading: max. 7 points, depending on the pressure range
Temperature display, time, 100-segment bar graph,
Adjustable backlighting
MemoryStorage of printing units and sensor temperature (min, hrs., Daily for a set time) max. 8,500 values, modes: cyclical, linear measurement interval adjustable
Power supply3 x 1.5V Duracell Plus Batteries, AA
Battery life1.5 years standby
ProtectionIP67
Weightca. 680 g / 1.5 lbs
