Condition Monitoring Industrial Borescope PCE-VE 270HR

Order no.: PCE-VE 270HR

GTIN (EAN): 4250348722621

Accessory

Replacement Borescope Cable PCE-VE 270HR-SV-PROBE with side camera

£ 2,555.00

Spare Borescope Cable PCE-VE 270HR-PROBE

Replacement Borescope Cable PCE-VE 270HR-PROBE

£ 2,225.00

Replacement Borescope Cable PCE-VE 270HR-2,1-PROBE extra thin

£ 3,435.00

Description

Condition Monitoring Industrial Borescope
Battery-operated inspection camera with 2.8 mm (0.11 in) diameter / For inspecting motors and machine parts / Memory / HDMI output / Various camera cables

The condition monitoring industrial borescope gives you new, visual insights into the interior of motors and systems. The condition monitoring industrial borescope is the ideal tool for maintenance and repair in workshops or industrial companies. Optical analysis with a condition monitoring industrial borescope has never been so easy. Guide the flexible cable through a hole or a cavity near the point to be inspected and look at everything on the display from the condition monitoring industrial borescope. Thanks to the flexible guidance, the low weight and the excellent optics, you can use this condition monitoring industrial borescope to identify weak spots and problem areas very easily and early and thus take preventive measures without having to carry out complex disassembly first.

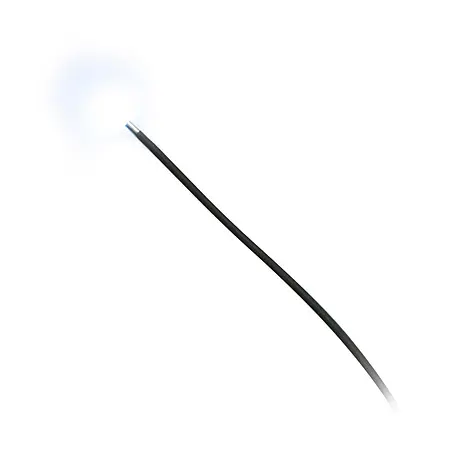

This condition monitoring industrial borescope is extremely versatile, particularly due to the length of the flexible part (2000 mm) and the small diameter of 2.8 mm / 0.11 in. LEDs on the condition monitoring industrial borescope illuminate the cavities. The waterproof lens and camera can also be used in liquids without hesitation. Make your daily work easier and use the condition monitoring industrial borescope for the maintenance and inspection of your operational systems and machines. The condition monitoring industrial borescope can be used to save images and videos for documentation on a memory card. The condition monitoring industrial borescope can be connected to a monitor via the HDMI interface.

Highlights

- 2 m / 6.56 ft cable length

- 2.8 mm / 0.11 in cable diameter

- Storage function on micro SD card

- LED light

- 0° viewing angle

- Miniature probe cable with 90° viewing angle option

Specification

General technical data
Resolution	Image: JPEG 400 x 400 px Video: MP4 400 x 400 px
Cable length	2 m

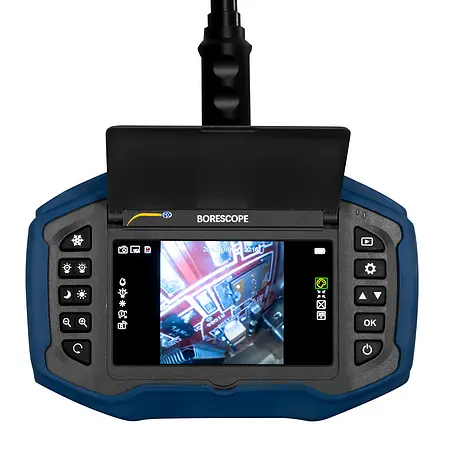

Display type	TFT colour display
Display size	5 Inch
Display resolution	854 x 480 pixels
Storage medium	Micro SD card
Storage capacity	32 GB
Memory capacity (additional information)	SD card up to 32 GB (not included), memory options: image and video
Interface	Micro-USB, HDMI, Micro SD card
Sensor	CMOS
Camera resolution	400 x 400 pixels
Camera orientation	frontal 0°
Operating time	6 h
Camera head diameter	2,8 mm
Camera probe movement	flexible
Protection class camera probe	IP67
Field of vision	120 °
Depth of field of vision	5 ... 50 mm
Luminous intensity	4 LEDs
Menu language	German, English, French, Chinese, Spanish, Japanese, Russian, Portuguese, Korean
Protection class (device)	IP52
Power supply	AC 100 ... 240 V \| Hz 50 /60
Connector type	Device-europlug
(Rechargeable) battery	1 x 3,7 V 18650 , Lithium-ion battery
Capacity	5200 mAh
Operating conditions	-10 ... 50 °C , 20 ... 90 % RH
Storage conditions	-10 ... 50 °C , 20 ... 90 % RH
Dimensions ( L x W x H )	200 x 130 x 58 mm
Weight	600 g
