Wood Moisture Meter FMC

Order no.: FMC

Question / Callback

Delivery time: 1-2 working days

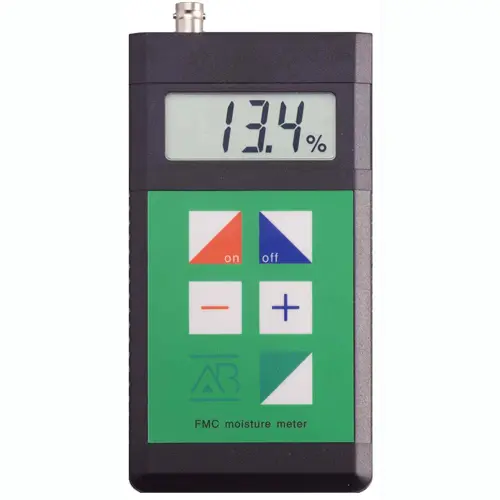

FMC Wood Moisture Meter for building materials
to measure absolute humidity

The FMC Wood Moisture Meter can accurately measure absolute humidity in diverse building materials. To detect humidity, the FMC Wood Moisture Meter has a connection for external sensors which can either be inserted into the building material or placed on it. This detector corrects the measured humidity value in real percentages in relation to the selected material and the temperature (according to dry / absolute humidity). The humidity detector can be used both in input controls and to measure on site: concrete, asbestos, cement, plaster, lime-stone, pavement, bricks, etc. The FMC Wood Moisture Meter has some characteristic curves stored to measure different materials. These curves can be displayed by accessing them through the keyboard.
It is important to choose a humidity probe that best suits the material which is going to be measured. There are different models for different applications and materials.

- High accuracy
- High robustness
- Characteristic curves AS / NZS 1080.1
- Adjustable characteristic values of wood
- Adjustable characteristic values of any material
- Adjustable characteristic paper values
- Temperature correction (manually)
- Detector of resistance humidity
- Adjustable auto shut-off
- Diverse humidity probes can be adapted to the detector
- Additional calibration block

Softwood
- Fir
- Canadian Fir (east, west)
- Agathis (heavy, light)
- Alcere
- Alerce (European, Japanese, Russian)
- Alerce (American, East, West)
- Red Cedar
- Douglasie (heavy, light)
- Mañio
- Pine (European, Nordic)
- Pine (light, heavy, Caribbean, American)
- Pine (European, Nordic, Kern, Spint)
- Pine (French)
- Pine Parana
- Pine Radiata
- Pine Sitka
- Pine Sugar
- Pine Weymouth
- Yellowwood
- Redwood (Californian, heavy, light)
- Sugi
Building materials
- Papier-mâché
- Concrete (200 kg/m³)
- Concrete (350 kg/m³)
- Concrete (500 kg/m³)
- Gas concrete
- Bricks
- Lime mortar
- MDF
- Floor (anhydrite)
- Floor of cement (Arduparid)
- Floor of cement mortar (1 : 3)
- Floor (Elastizell)
- Floor gypsum
- Lime-stone
- Asbestos - cement
- Asphalt fiber
- Gypsum
- Gypsum (synthetic)
Paper / cardboard / carton
- Assi
- Bilerud
- Paper (in general)
- Kraft paper (150 g/m²)
- Kraft paper (440 g/m²)
- SC paper (150 g/m²)
- PWA ...
To take into account:
Measuring values will be higher in chips or knots. On the contrary, if measurements are taken on breaks, the humidity value will be lower in relation to the real humidity value (absolute humidity).
In both cases, you should measure near the area that is going to be measured and use the mean value.
Measurement accuracy:
Due to the inhomogeneous composition of wood, oscillations in gross density can appear while measuring the same wood type so you will have to take diverse humidity measurements. The overall result will be the mean value calculated by the detector.
Humidity probes / measurement sensors:
Here you will see a wide range of probes which can be adapted to different measuring instruments. You will be able to choose the probe that best suits your needs.

Deciduous wood
- Abachi
- Abarco
- Birch (European)
- Abura
- Afrormosia
- Poplar
- Alone
- Amburana
- Avodire
- Baboen
- Balsa
- Bilinga
- Bodo
- Bomanga
- Bonkonko
- Bosse
- Mahogany (Bassam, Honduras, sapeli, sipo, tiama)
- Chestnut (noble)
- Cherry-tree (European, American)
- Cedar
- Poplar
- Keruing (light, heavy)
- Dabema
- Danta
- Dibetou
- Durian
- Essessang
- Framire
- Freijo
- Ash (European)
- Fuma
- Beech (European, vapourised, non-vapourised)
- Igaganga
- Ilomba
- Iroko
- Jelutong
- Kapur
- Kosipo
- Krappa
- Kwarie
- Lauan (red)
- Limba
- Makore
- Mansonia
- Matakki
- Matoa
- Mengkulang
- Meranti (dark red, light red)
- Movingui
- Muninga
- Niangon
- Walnut (European, American)
- Satin walnut
- Oega
- Elm
- Okoume
- Padouk (African)
- Pear tree
- Peroba
- Peroba (pink)
- Banana tree
- Possentrie
- Ramin
- Oak (European, light, heavy, American,
white, red, Japanese)
- Tasmanian Oak
- Willow
- Sapupira
- Sen
- Sepetir
- Seraya (red, white)
- Soemaroepa
- Tabaca
- Tchitola
- Teca
- Lime tree
- White Tola
- Wane
- Yang

Technical specifications
Measurement ranges	5 ... 99 % H₂O for wood 0 ... 99 % H₂O for building materials
Resolution	0.1 %
Accuracy	0.3 %
Measurement depth	depends on the selected sensor
Measuring principle	measurement of resistance humidity
Temperature range	0 ... 50 °C / 32 ... 122 °F
Power	1 x 9 V battery selectable Auto Power Off to protect the battery
Dimensions	160 x 80 x 30 mm / 6.2 x 3.1 x 1.1 in
Weight	260 g / 9.1 oz with the battery included

Delivery contents

1 x FMC Wood Moisture Meter for building materials
1 x Battery
1 x Protective housing
1 x User's manual and some information about measuring humidity (corresponding electrodes must be required separately)

Accessories

Order no.: BFS

Concrete Sensor Probe Set BFS

Concrete sensor probe set consists of a drill, a cable, 6 x measuring pins, 2 x probe extensions, and graphite.

£ 147.00

Price excl. VAT &. delivery
2 year Warranty

Replacement Measuring Pins (30 mm, Non-Insulated, 10-Pack) ENS-30

Order no.: ENS-30

Replacement Measuring Pins (30 mm, Non-Insulated, 10-Pack) ENS-30

Replacement measuring pins

- Length: 30 mm
- Non-insulated
- Pack of 10

£ 3.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: NF4-17

Four-Pin Sensor Probe (17 mm) NF4-17

Four-pin sensor probe with 4 x 17 mm long pins ideal for taking moisture measurements of soft woods, gypsum and similar materials. Requires use of the universal holder.

£ 65.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: NF2-100

Dual-Pin Sensor Probe (100 mm) NF2-100

Dual-pin sensor probe with 2 x 100 mm long pins ideal for taking moisture measurements of thick timber, beams, planks, insulation, paper stacks, fabric piles, foam and bulk goods. Requires use of the universal holder.

£ 56.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: BH-OFF

Surface Sensor Probe BH-OFF

Surface sensor probe requires use of universal holder. Non-destructive contact sensor probe works without causing any damages to the material. This probe is ideal for taking moisture measurements on smooth surfaces (e.g., fine wood, veneer, leather, cardboard).

£ 61.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: UFH

Universal Holder for Sensor Probes UFH

Universal holder for use with the 2- and 4-pin sensor probes as well as with the surface, roller and chamber sensor probes. Includes a 1 m long cable.

£ 111.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: REHB

Ram Sensor Probe REHB

REHB is a ram sensor probe, also referred to a hammer or pile driver sensor probe, ideal for taking moisture measurements of hard materials. This sensor probe includes a 1 m long cable, 2 x 30 mm insulated measuring pins, and 2 x 60 mm insulated measuring pins. Replacement pins are available separately - see accessories.

£ 302.00

Price excl. VAT &. delivery
2 year Warranty

Chamber Sensor Probe Connection Cable BH-Kf-K

Order no.: BH-Kf-K

Chamber Sensor Probe Connection Cable BH-Kf-K

Required connection cable for use with the chamber sensor probe.

£ 58.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: BH-KF

Chamber Sensor Probe BH-KF

Chamber sensor probe requires use of universal holder (UFH) and chamber sensor probe connection cable (BH-Kf-K). Chamber sensor probe is ideal for taking moisture measurements of grains, seeds and granules.

£ 320.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: BH-RF

Roller Sensor Probe BH-RF

Roller sensor probe to be used in the universal holder. The roller sensor probe is ideal for taking moisture measurements on moving surfaces (e.g., rolls of paper and textiles).

£ 78.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: SNF-175

Dual-Pin Sensor Probe (175 mm) SNF-175

Dual-pin sensor probe to be used in the universal holder. The total pin length is 250 mm. The pins are insulated up to the first 175 mm. This dual-pin sensor probe is ideal for taking moisture measurements of materials in bags, sacks or anywhere deep penetration is required (e.g., coffee, cocoa, cotton).

£ 121.00

Price excl. VAT &. delivery
2 year Warranty

Automatic Temperature Compensation Sensor Probe TFK

Order no.: TFK

Automatic Temperature Compensation Sensor Probe TFK

Sensor probe for automatic temperature compensation. Activated when the sensor probe is connected to the main unit.

£ 100.00

Price excl. VAT &. delivery
2 year Warranty

Replacement Measuring Pins (45 mm, Insulated, 10-Pack) ENS-45

Order no.: ENS-45

Replacement Measuring Pins (45 mm, Insulated, 10-Pack) ENS-45

Replacement measuring pins

- Length: 45 mm
- Insulated
- Pack of 10

£ 42.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: HEHB

Handheld Sensor Probe HEHB

Handheld sensor probe includes a 1 m cable and 10 x 30 mm non-insulated measuring pins. This handheld sensor probe is ideal for taking moisture measurements of wood and building materials. Non-insulated measuring pins measure the moisture over the entire 30 mm length. Replacement pins available separately - see accessories.

£ 249.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: NF4-15

Four-Pin Sensor Probe (1.5 mm) NF4-15

Four-pin sensor probe with 4 x 1.5 mm long pins ideal for taking moisture measurements of paper, cardboard and the upper layers of walls. Requires use of the universal holder.

£ 65.00

Price excl. VAT &. delivery
2 year Warranty

Replacement Measuring Pins (60 mm, Insulated, 10-Pack) ENS-60

Order no.: ENS-60

Replacement Measuring Pins (60 mm, Insulated, 10-Pack) ENS-60

Replacement measuring pins

- Length: 60 mm
- Insulated
- Pack of 10

£ 52.00

Price excl. VAT &. delivery
2 year Warranty

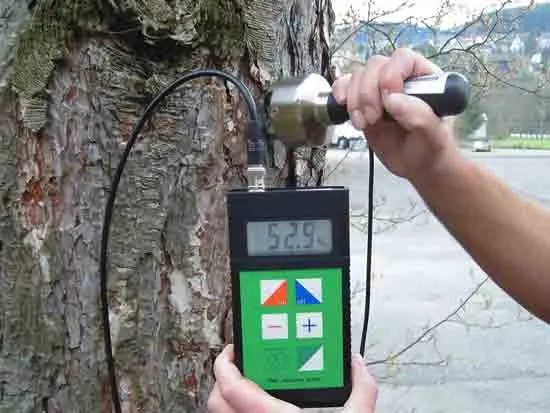

Absolute humidity meter FMC application
