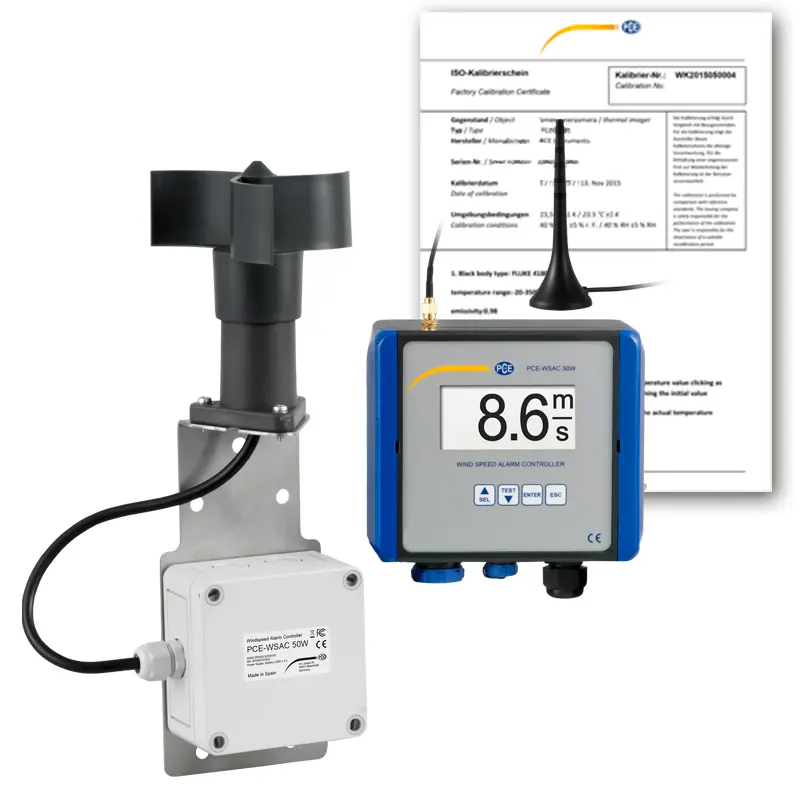

Weather Station / Air Quality Station PCE-WSAC 50W 24-ICA [zoom]

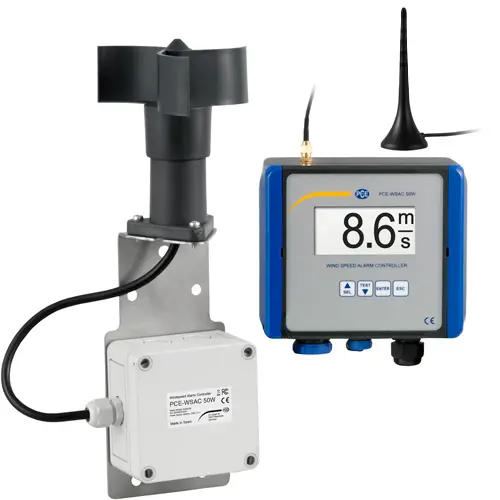

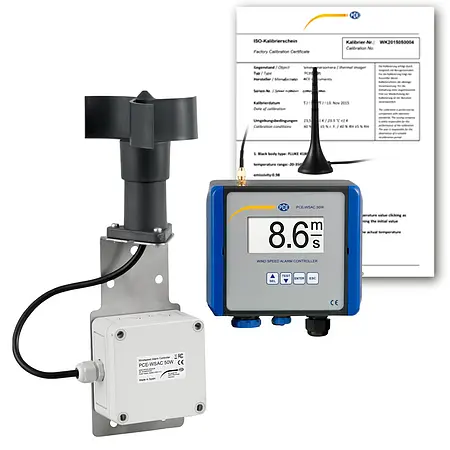

Weather Station / Air Quality Station PCE-WSAC 50W 24-ICA

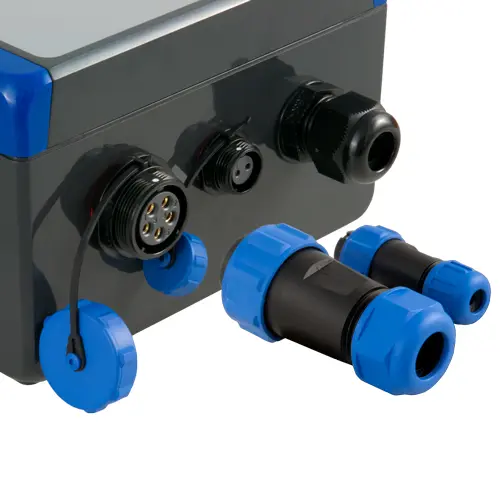

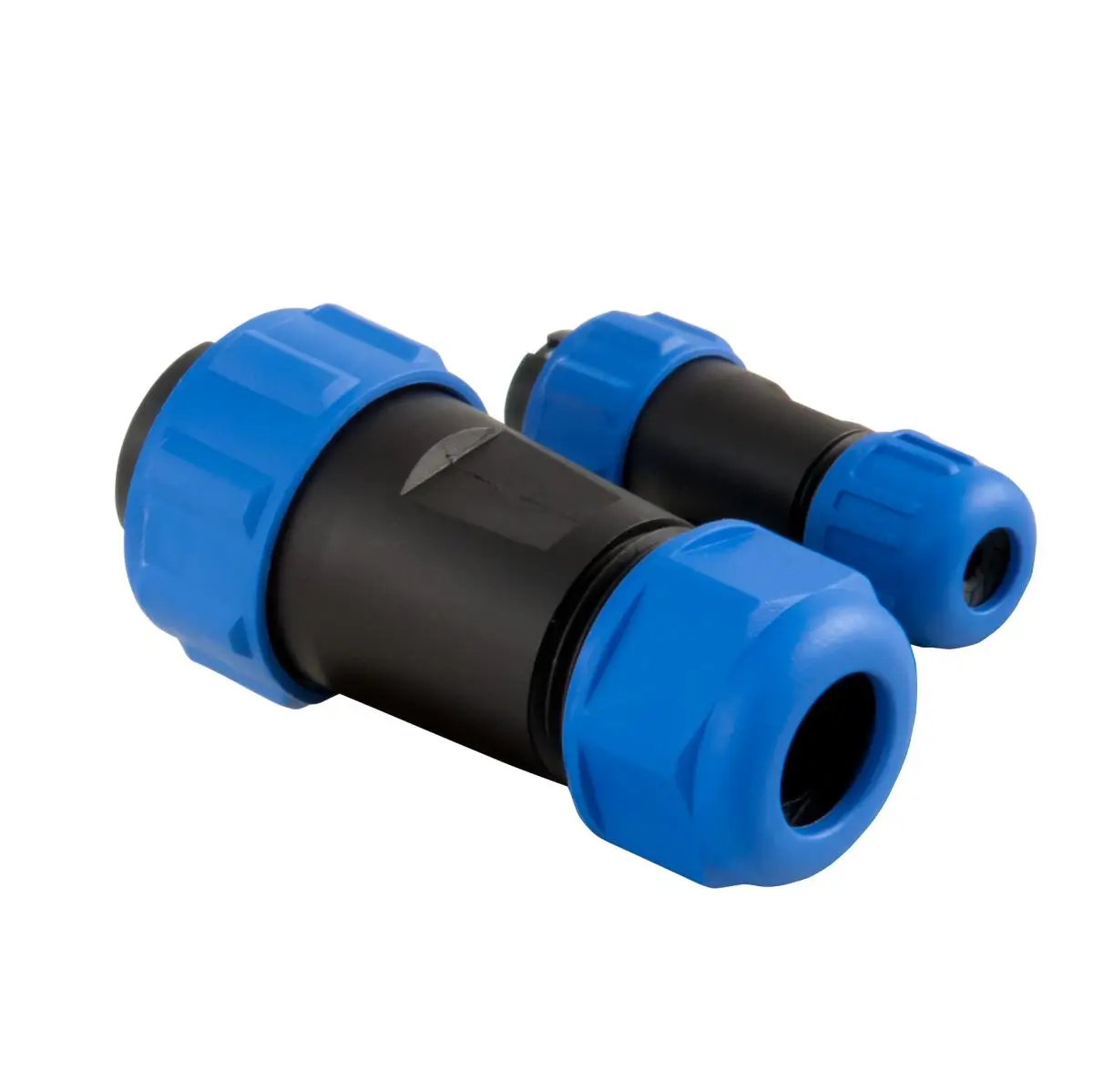

Weather Station / Air Quality Station Connections

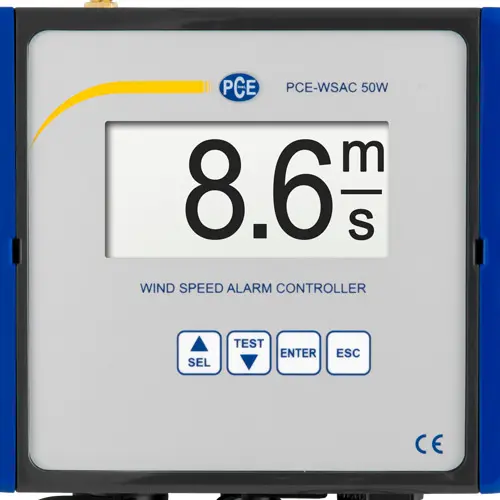

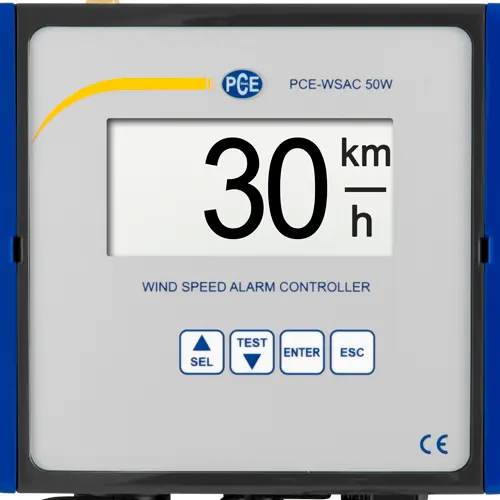

Weather Station / Air Quality Station Display

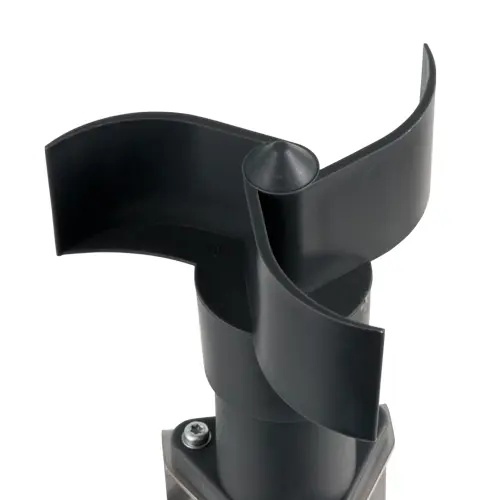

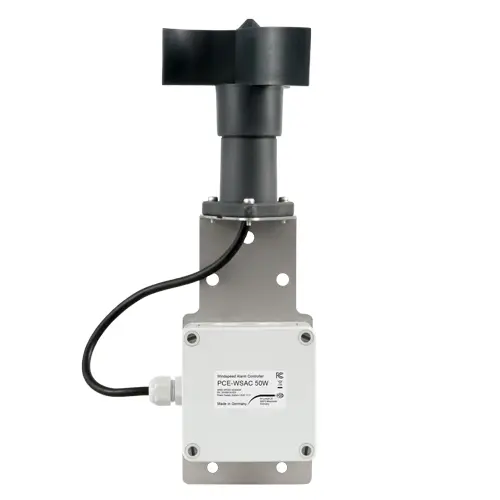

Weather Station / Air Quality Station Sensor
Weather Station / Air Quality Station Adaptor
Weather Station / Air Quality Station Sensor

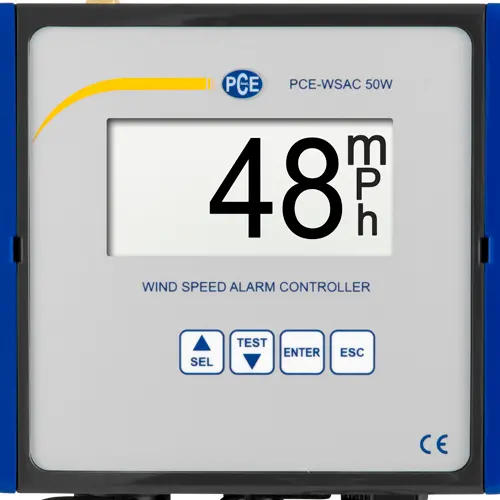

Weather Station / Air Quality Station Display
Weather Station / Air Quality Station Sensor
Weather Station / Air Quality Station Adaptor

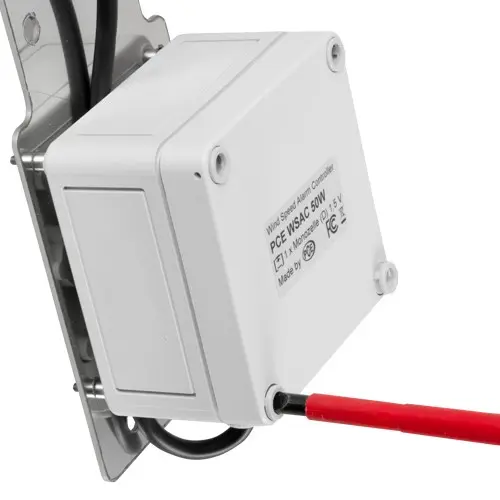

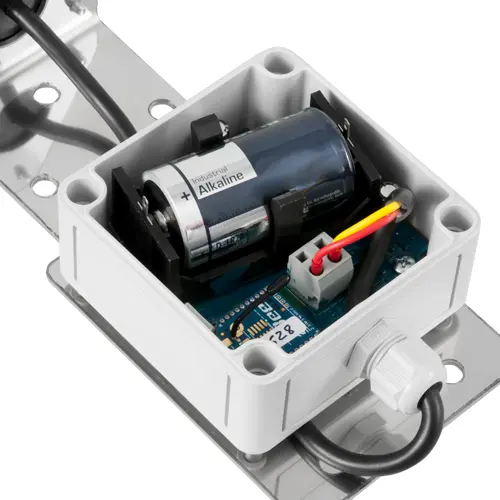

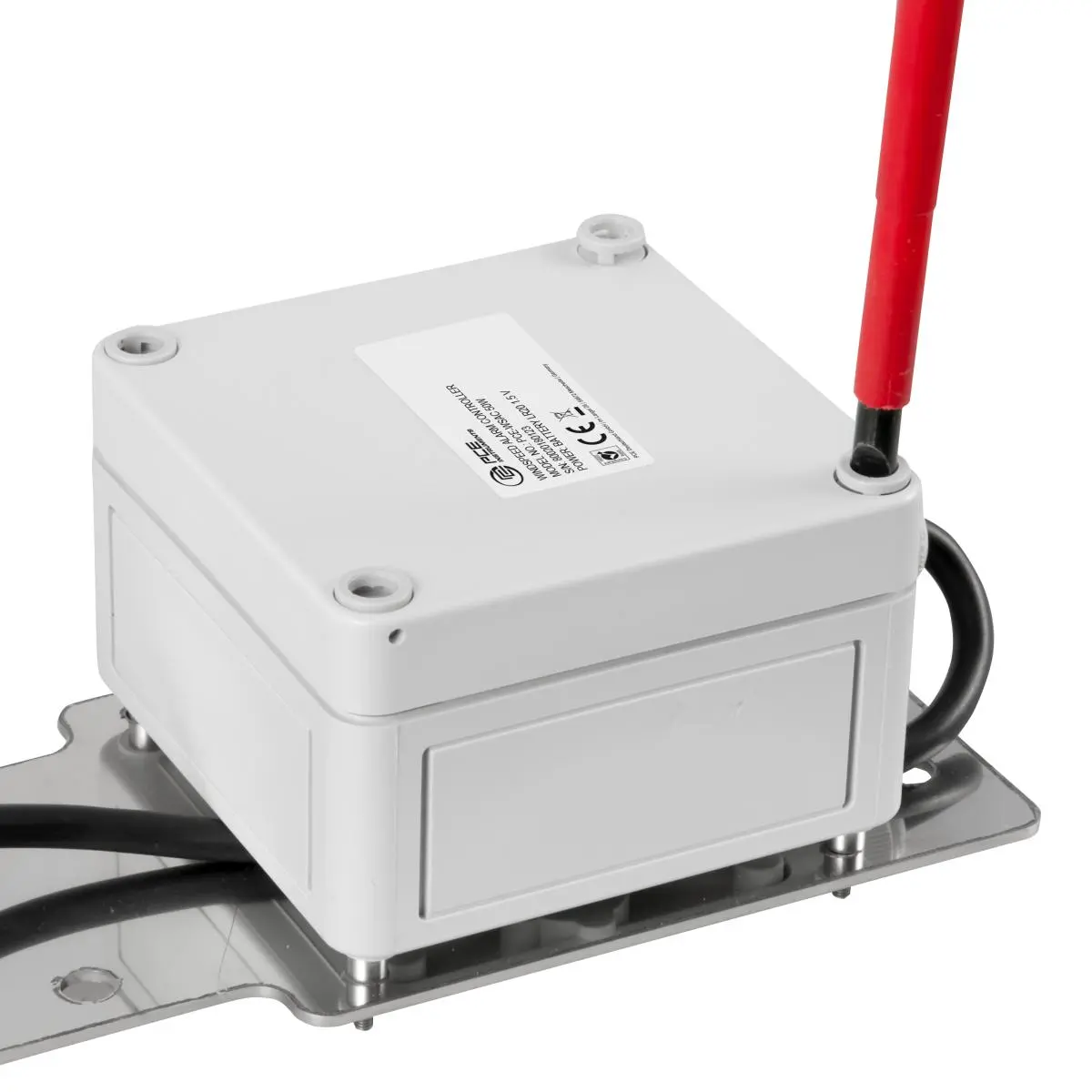

Weather Station / Air Quality Station Battery compartment
Weather Station / Air Quality Station Display

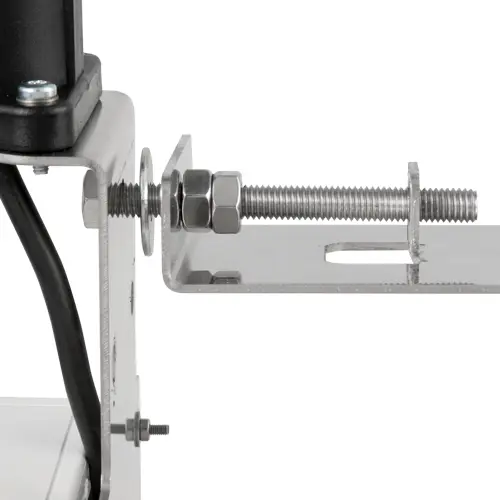

Weather Station / Air Quality Station Bracket

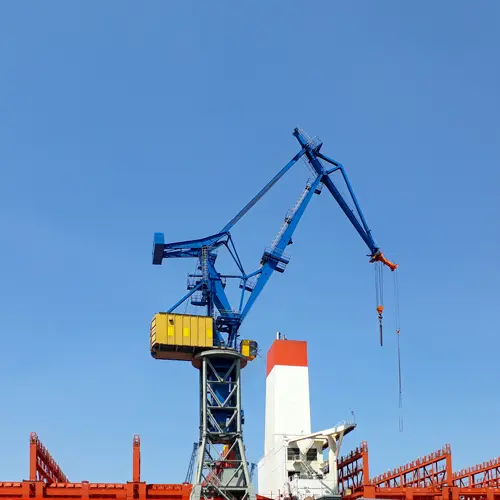

Weather Station / Air Quality Station Application picture

Weather Station PCE-WSAC 50W 24-ICA Incl. ISO Calibration Certificate

Order no.: PCE-WSAC 50W 24-ICA
GTIN (EAN): 4250348727138
£ 1,424.00
£ 1,708.80
price ex. (VAT / delivery)
:
4250348727138
PCE-WSAC 50W 24-ICA
Delivery time:5-7 working days
Agriculture, Industry, Home automation

Description

 Air Quality Meter incl. ISO calibration certificate
Radio Wind Warning System / Wind Monitoring on Construction Cranes / 4 ... 20-mA analog output / Power supply 110 ... 230V AC or +24V DC

The air quality meter is primarily used to measure and monitor the wind load on cranes or wind turbines. Furthermore, the wind situation can be measured and analyzed before commissioning a wind turbine. The air quality meter is equipped with alarm relay for a pre-alarm or main alarm.

Due to the high measuring range of up to 50 m / s of the air quality meter, stormy gusts can also be monitored. The radio range of the air quality meter is in the open field up to 750 m / 2500 ft in the free frequency band of 2.4 GHz. When installing the display of the wind alarm PCE-WSAC 50W in buildings, a range of up to 60 m / 200 ft can be achieved for the wind sensor. Due to the integrated 4 ... 20-mA analogue output of the wind alarm display, the measured data can also be transferred to other controllers for evaluation.

Highlights

- Robust plastic housing
- Units: km / h, mph, m / s
- 4 ... 20-mA analog output
- 128 x 64 pixel LC display
- Alarm relay
- Measuring range up to 180 km / h
- Durable stainless steel ball bearings
- Ambient temperature -20 ... 70°C / -4 ... 158°F
- Radio transmission
- incl. ISO-Calibration Certificate

Specification

Speed
Measuring range  4 ... 180 km/h
Resolution  1 km/h
Accuracy  ±1 km/h within the range 4 ... 15 km/h, ±3 % within the range 16 ... 180 km/h

Speed
Measuring range  1,11 ... 50 m/s
Resolution  0.1 m/s
Accuracy  0.28 m/s in the range 1.11 ... 4.17 m/s, ±3 % in the range 4.44 ... 50 m/s

Sensor
Temperature range  -20 ... 70 °C
Housing  PA + FG
Additional description  Energy consumption: approx. 0.3 W at 1.5 V DC power supply
Protection class  IP65
Dimension  L 145 x Ø 128 mm

General technical data
Inputs  4 ... 20 mA, Pulse, Radio IEEE 802.15.4 ISM 2.4 GHz
Outputs  max. 250 V AC, 8 A, 4 ... 20 mA
Cable length  3 m
Units  m/s, km/h, mph
Display type  LCD
Display resolution  128 x 64 pixels
Housing  PC (polycarbonate)
Sensor supply  Battery monocell D 1.5 V DC
max. input impedance  500 Ω
Protection class (device)  IP65
Power supply  Display: 24 V DC
(Rechargeable) battery  1 x 1,5 V D Mono , Alkali-manganese
Capacity  5478 mAh
Performance  8,217 Wh
Operating conditions  -20 ... 70 °C , 0 ... 95 % RH
Storage conditions  -35 ... 70 °C , 0 ... 95 % RH
Dimensions ( L x W x H )  150 x 160 x 93 mm
Weight  570 g
Other weights  Sensor 680 g (with standard bracket), 900 g (with self-levelling bracket)

Delivery Scope

1 x Display of Weather Station / Air Quality Station PCE-WSAC 50W 24-ICA
1 x Wind sensor of the Weather Station / Air Quality Station
1 x Self-leveling additional bracket

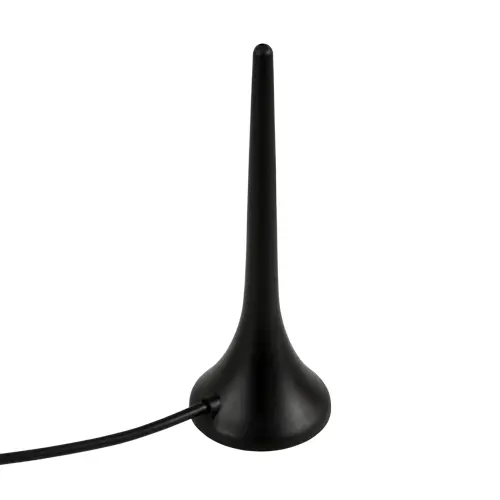

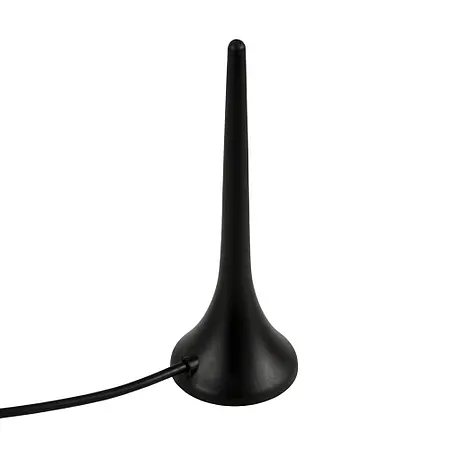

1 x Radio antenna
1 x Battery Monocell D 1.5V DC
1 x User manual
1 x ISO-Calibration Certificate
