Air Quality Meter
Radio Wind Warning System / Wind Monitoring on Construction Cranes /
4 ... 20-mA analog output / Power supply 110 ... 230V AC or +24V DC

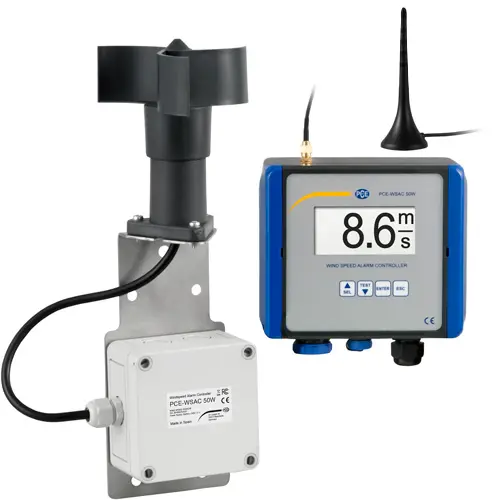

The air quality meter is primarily used to measure and monitor the wind load on cranes or wind turbines. Furthermore, the wind situation can be measured and analyzed before commissioning a wind turbine. The air quality meter is equipped with alarm relay for a pre-alarm or main alarm.

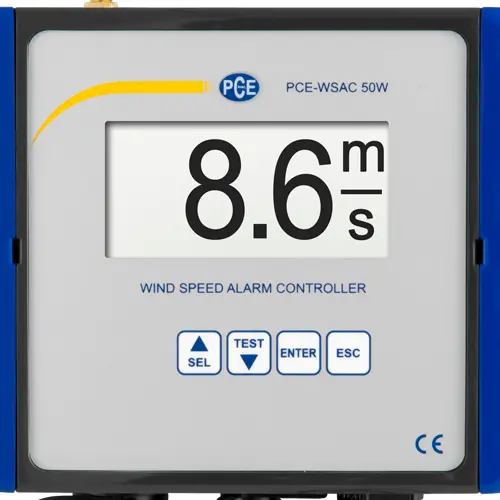

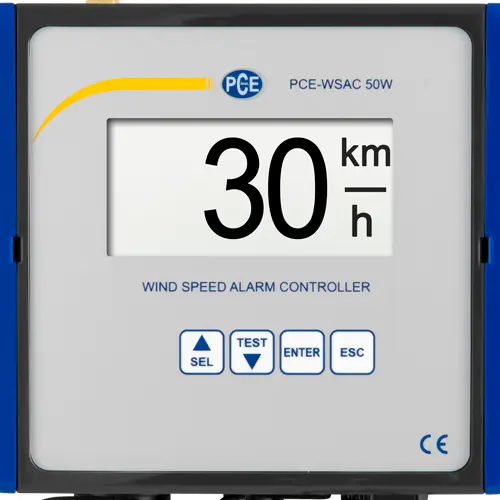

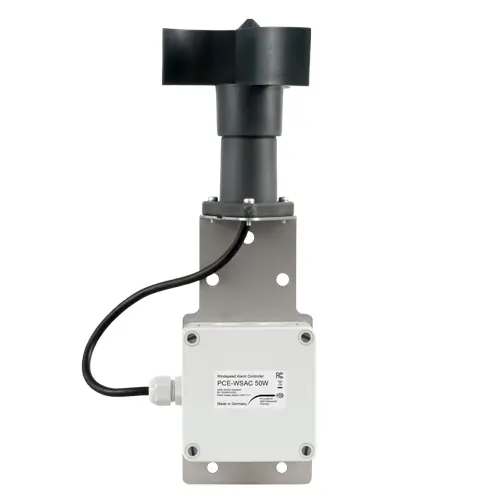

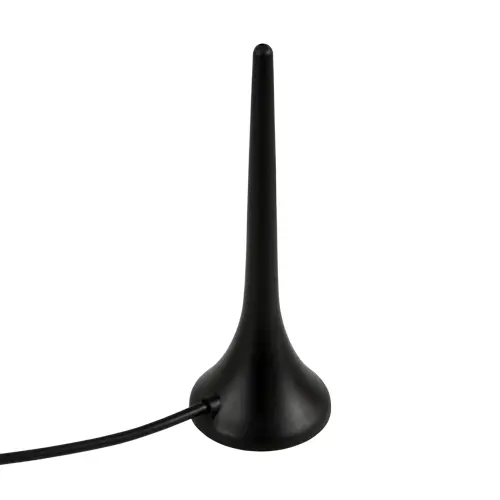

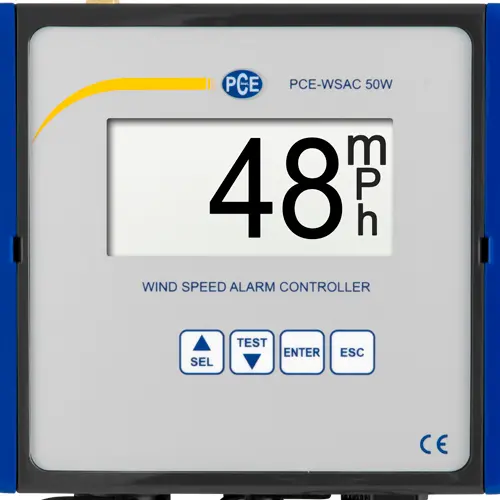

Due to the high measuring range of up to 50 m / s of the air quality meter, stormy gusts can also be monitored. The radio range of the air quality meter is in the open field up to 750 m / 2500 ft in the free frequency band of 2.4 GHz. When installing the display of the wind alarm PCE-WSAC 50W in buildings, a range of up to 60 m / 200 ft can be achieved for the wind sensor. Due to the integrated 4 ... 20-mA analogue output of the wind alarm display, the measured data can also be transferred to other controllers for evaluation.
