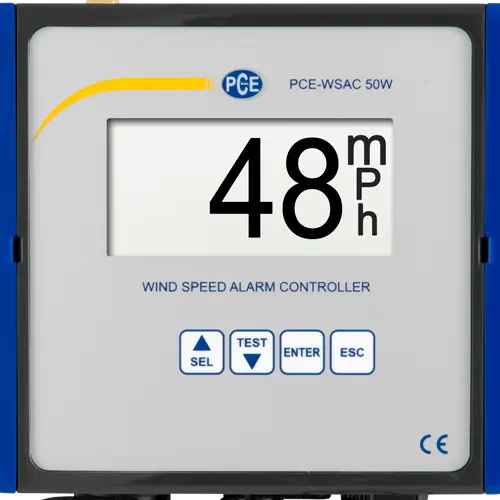

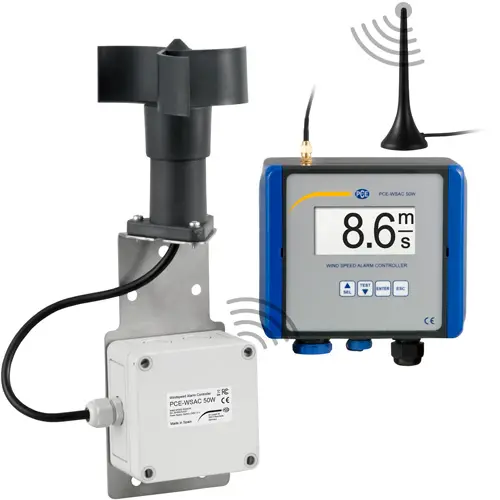

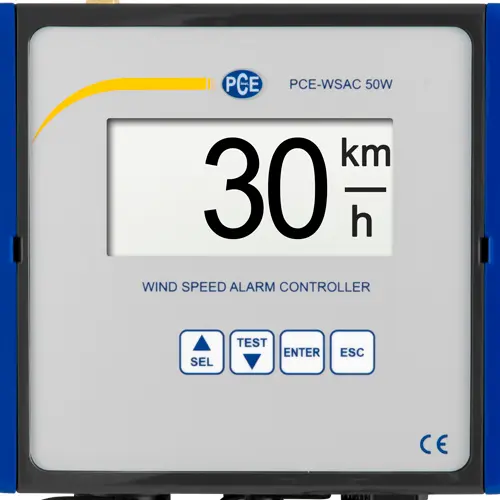

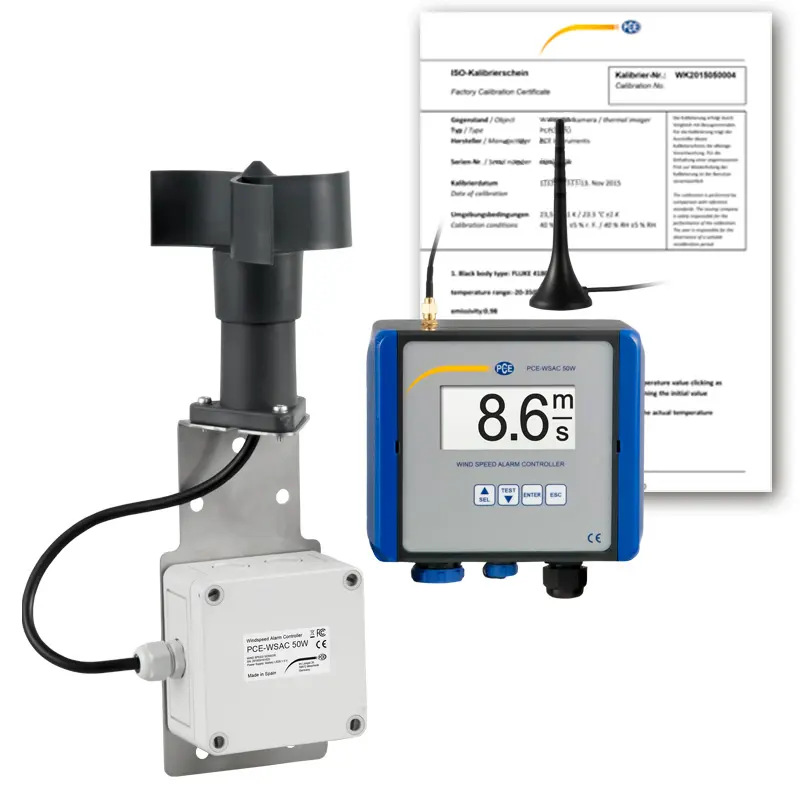

		| Display of the Air Flow Meter PCE-WSAC 50W 230 | |
| Input | Pulse, analog (4 ... 20-mA) or radio |

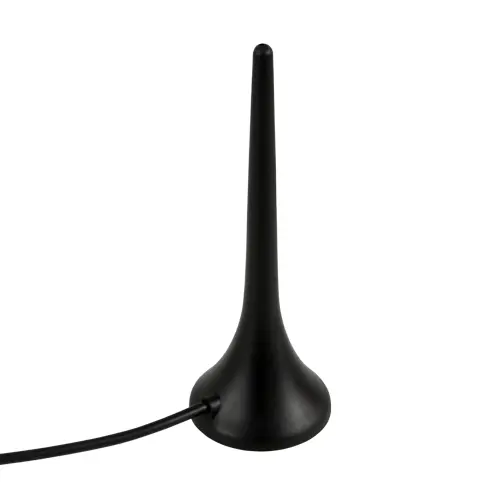

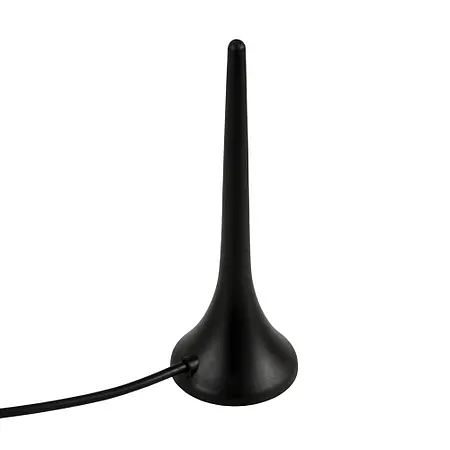

| Radio | IEEE 802.15.4 ISM 2.4 GHz |
| Units | km / h, mph, m / s |
| Power supply for sensors | +15V DC |
| Analog output | 4 ... 20-mA |
| Maximum input impedance | 500 Ω |
| Resolution of the analog output | 10 bits |
| Accuracy of the analog output | ± 1.5% |
| Alarm relay | Max. 250V AC, 8 A |
| Display | Backlit 128 x 64 pixel LC display |

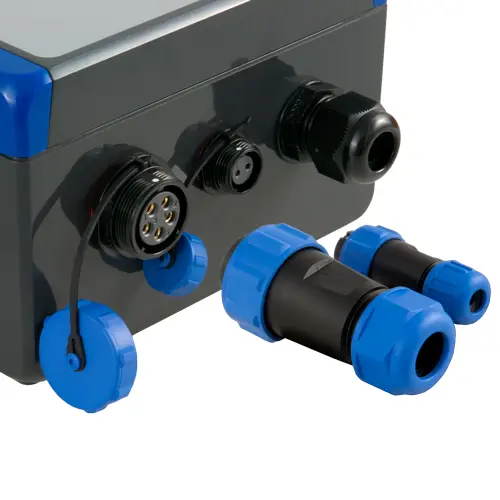

| Casing | Robust plastic housing |
| Protection class | IP65 |
| Dimensions | 145 x 95 x 125 mm / 5.7 x 3.7 x 4.9 in |
| Weight | 650 g / 1.4 lbs |

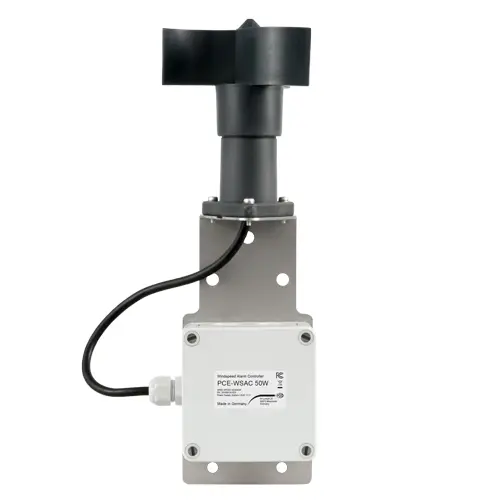

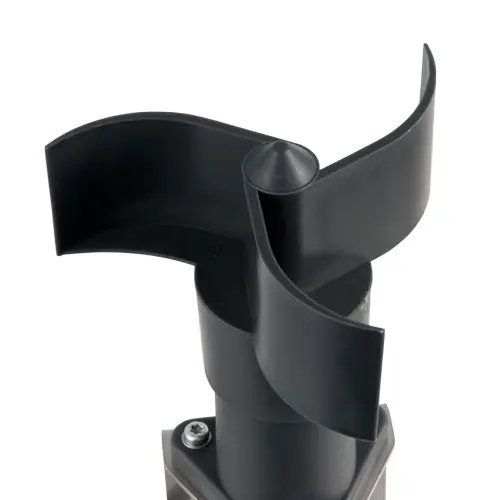

| Sensor of the Wind Speed Meter PCE-WSAC 50W 230
 | |
| Measuring range | 4 ... 180 km / h |
| Minimum start speed | 8 km / h |
| Accuracy | ± 1 km / h in the range 4 ... 15 km / h |
| ± 3% in the range 16 ... 180 km / h | |

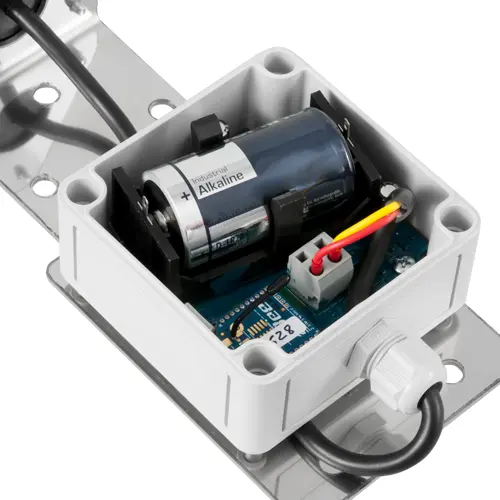

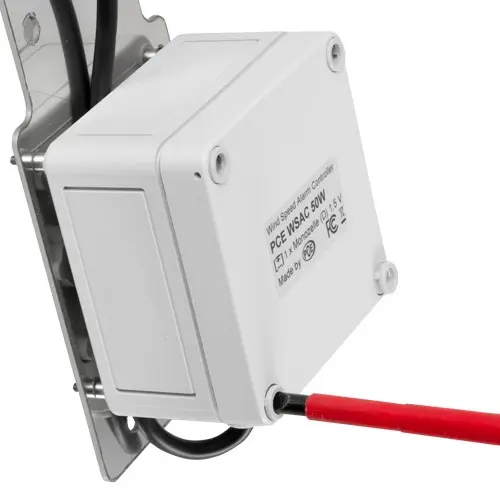

| Power supply | Battery mono cell D 1.5V DC |
| Power consumption | approx. 0.3 W with 1.5V DC power supply |
| Housing material | PA + FG |
| Ball-bearing | Stainless steel X65Cr13 |

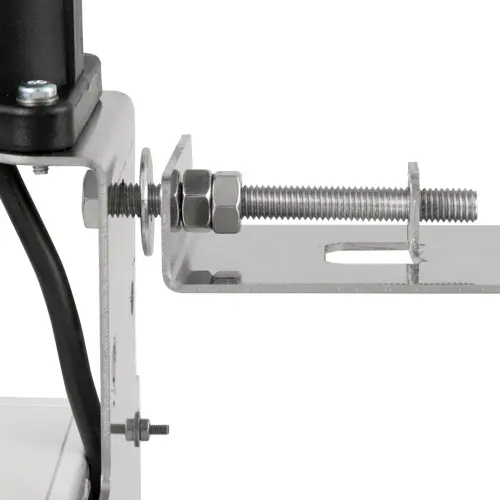

| Holder | Stainless steel AISI 304 |
| Weight (with standard bracket) | about 680 g / 1.5 lbs |
| Geicht with self-leveling bracket | about 900 g / 2 lbs |
| Dimensions | 320 x 110 x 100 mm / 12.6 x 4.3 x 3.9 in |
| Storage temperature | -35 ... 70°C / -31 ...158°F |
| Ambient temperature | -20 ... 70°C / -4 ... 158°F |
| Protection | IP65 |
