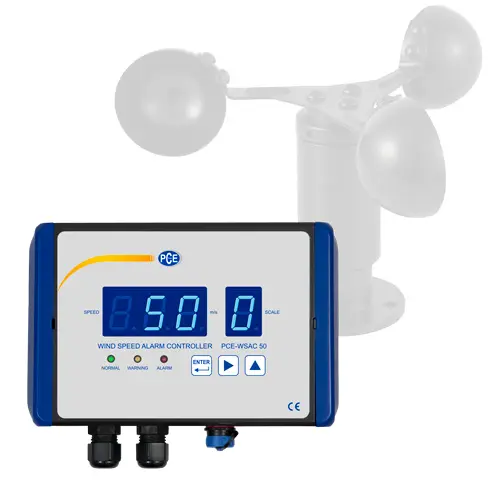

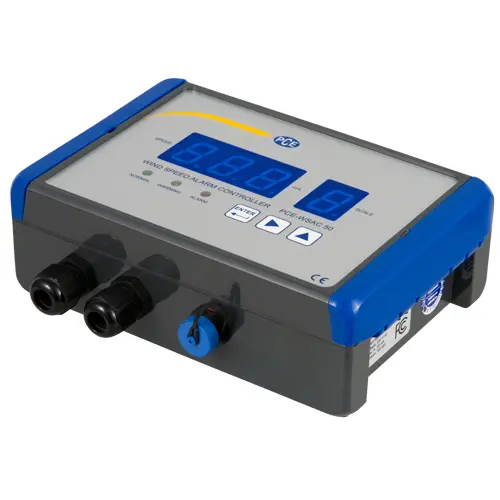

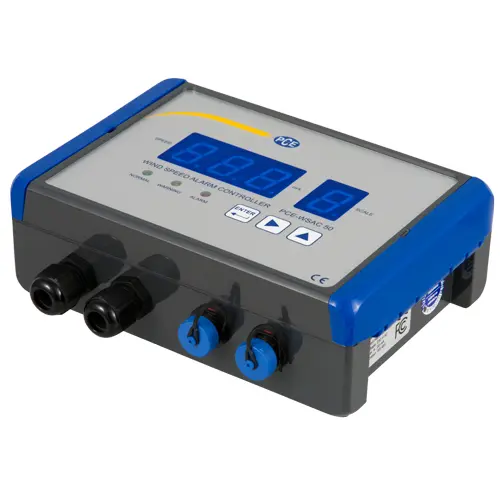

Air Quality Station PCE-WSAC 50-321

Order no.: PCE-WSAC 50-321
ISO Calibration

£ 440.00
£ 528.00
PCE-WSAC 50-321
price ex. (VAT / delivery)
Agriculture, Industry, Home automation
Delivery time: 5-7 working days

Air Air Meter / Wind Warning Device
Anemometer with pre-alarm and alarm / RS485 interface / display of wind speed / easy operation / display of the average speed of the last 2 and 5 minutes

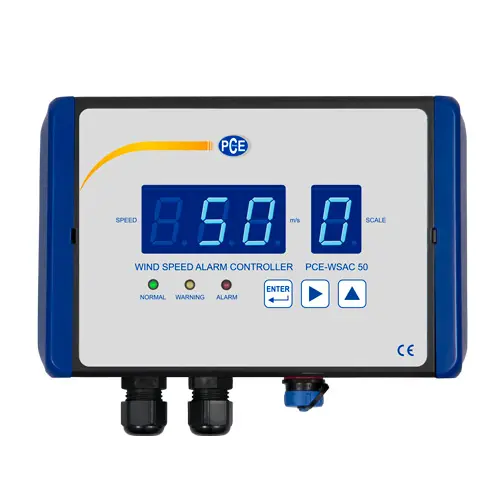

The Air Quality Station can be used in different fields of application. In use, the Air Quality Station carries out measurements from the smallest wind movements. The Air Quality Station can be used on the one hand to monitor the current wind speed. On the other hand, it is also possible to use the Air Quality Station to measure the average value of the last two or five minutes. If the wind speed values ​​are higher than the preset values, a pre-alarm is first activated before the alarm is output. Both alarms are given visually and acoustically on the Air Quality Station. If the pre-alarm takes effect, a yellow LED will flash on the front of the device and a beeper will emit a periodic warning tone. When the normal alarm needs to be activated, the red LED will flash and the beep will be played continuously by the device.

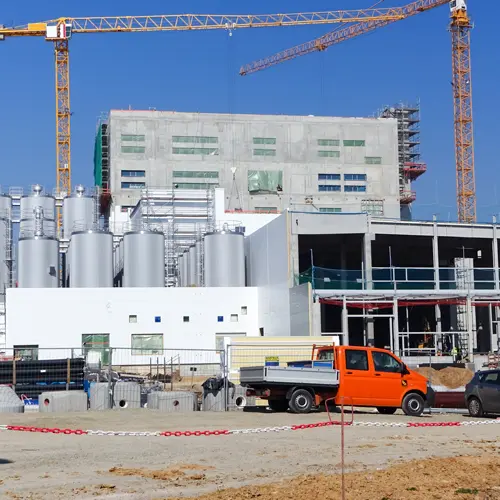

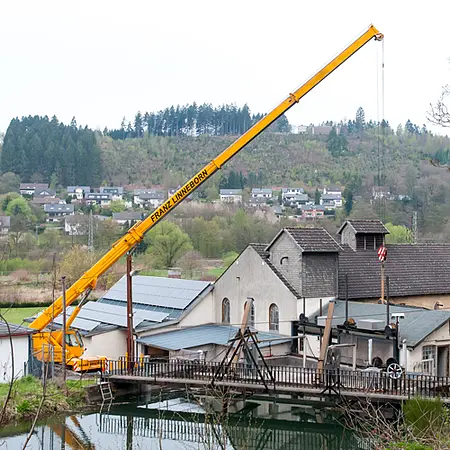

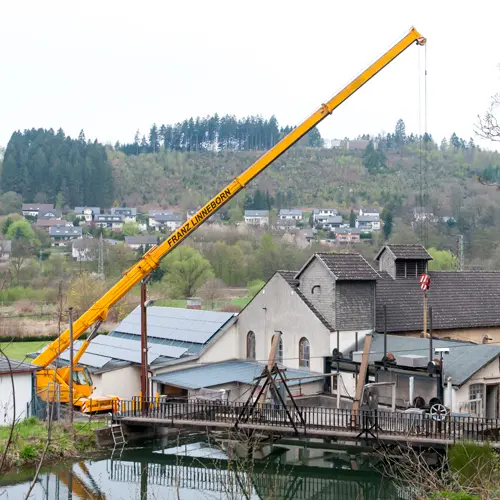

In general, the Air Quality Station is used wherever wind monitoring has to be carried out. This is often the case in factories, mines, wind turbines and similar. If necessary, a relay can also be connected to the Air Quality Station. In addition to the low wind speeds, the wind measuring device is characterized by its high reliability and high accuracy.

***Sensors sold separately***

- Wind warning device with adjustable alarms
- 2 alarm types
- Supply voltage: 24 V DC
- Input signal: 0 ... 10 V
- Communication: RS485
- 2 alarm relays installed
- Built-in beeper to alert
- Sensor supply via evaluation device

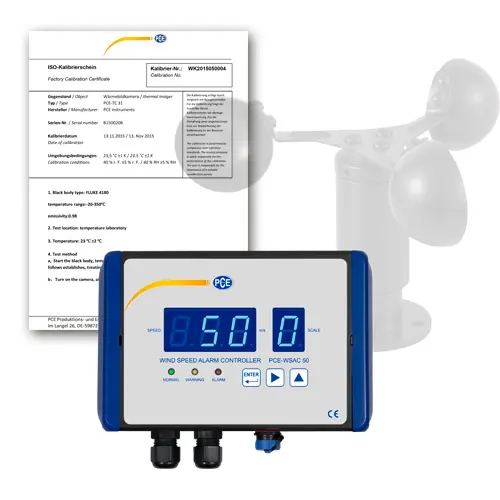

- Incl. ISO Calibration Certificate

***Sensors sold separately***
Power supply24 V DC
Supply voltage for sensors (output) 12V DC
24V DC
Measuring range 0 ... 50 m/s
Measuring accuracy ± 3% of measuring range
Signal input  0 ... 10 V

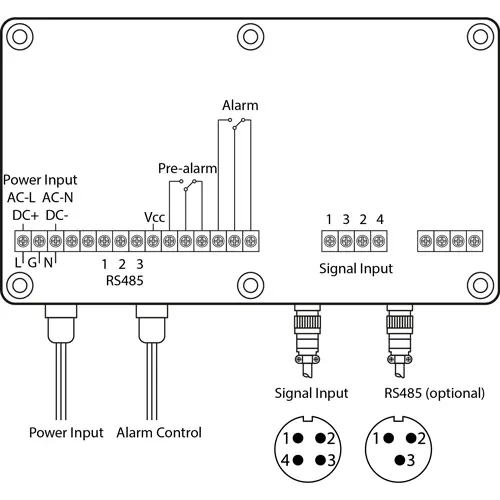

Alarm relay
2 NO/NC relays with max. load of 220V AC / 10 A

Interface RS485
Operating temperature -20 ... 60°C / -4 ... 140°F
Protection class IP66
Dimensions 197.5 x 90 x 45 mm / 7.7 x 3.5 x 1.7 in

***Sensors sold separately***

1 x Air Quality Station PCE-WSAC 50-321
1 x User manual
1 x Sensor connector

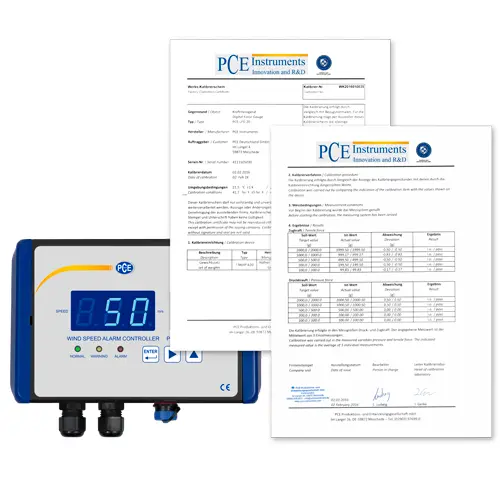

1 x ISO Calibration certificate

Note: Wind sensor not included. This must be ordered separately.
