Order no.: PCE-COG 10

Air Quality Station PCE-COG 10

Topseller
£ 256.00
£ 307.20
:
4250348723659
PCE-COG 10
price ex. (VAT / delivery)
Home area
Delivery time: 1-2 working days

Description

Air quality station with data memory for 5000 measuring points / Temperature, humidity /
Export of the saved measurement data in CSV format / Battery and mains operation /
1/4 inch tripod mount / Measuring range (CO²) 0 ... 9999 ppm, (CO) 0 ... 1000 ppm

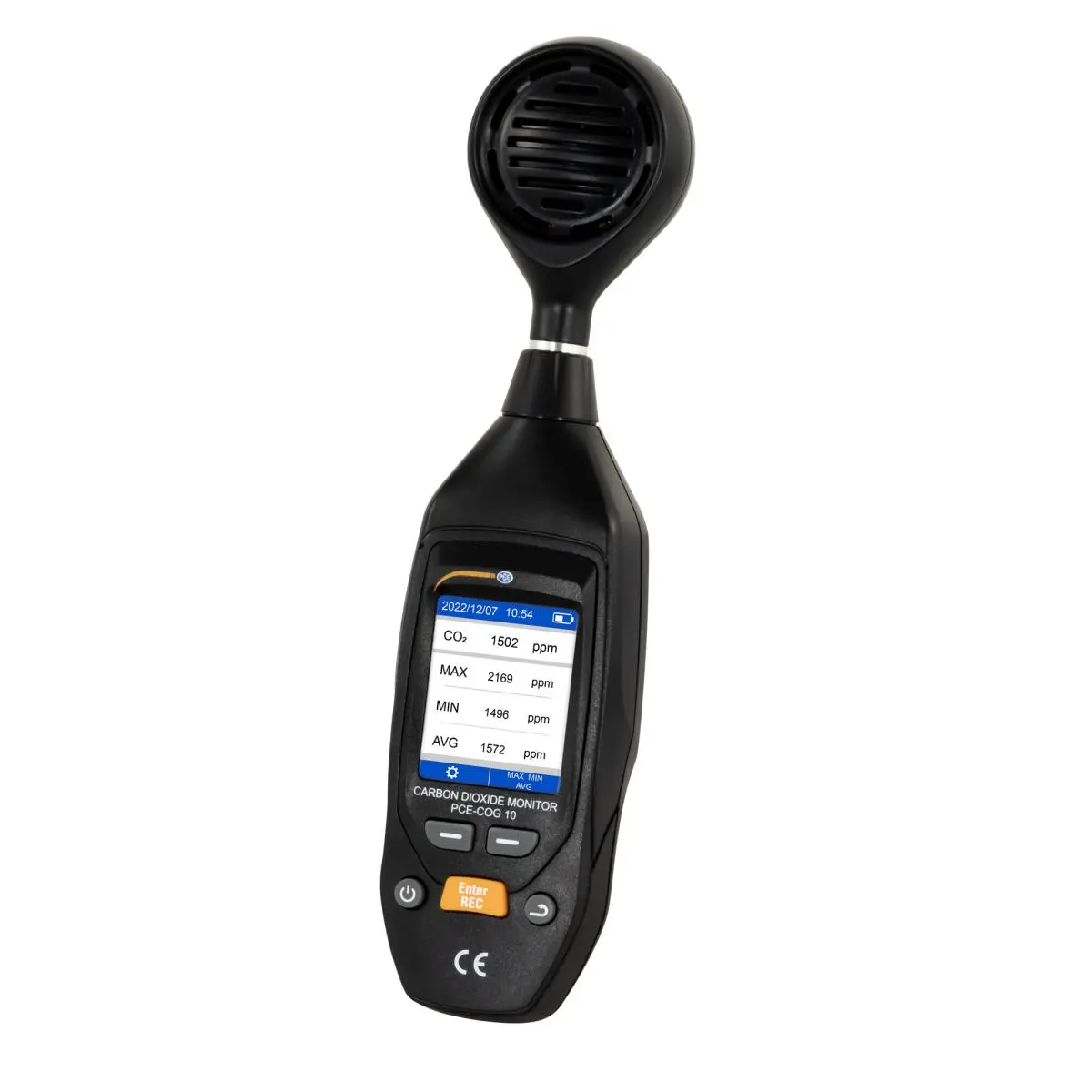

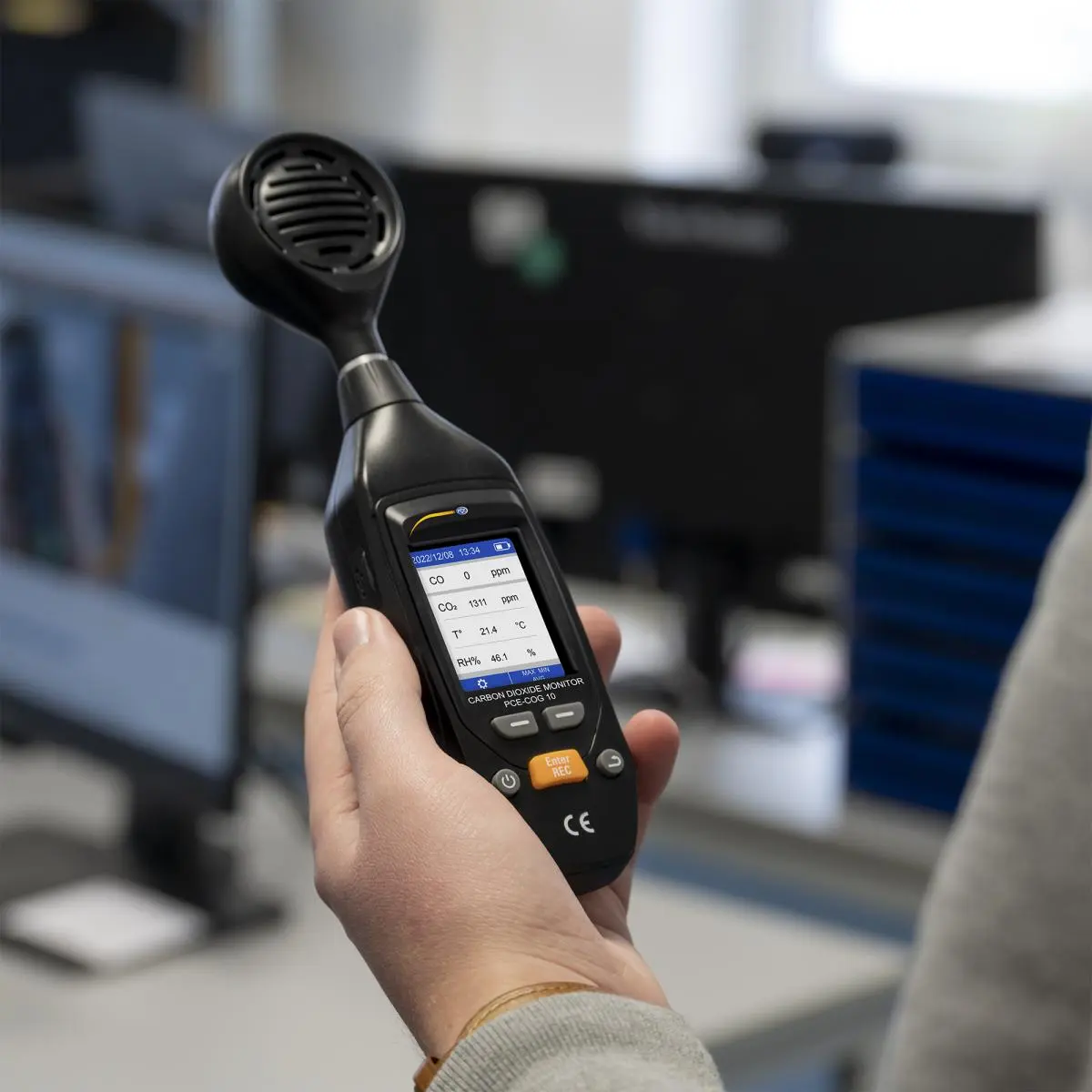

The air quality station has a measuring range of 0 ... 9999 ppm. In addition to the carbon dioxide measurement, the air quality detector also has a carbon monoxide (CO) sensor with a measuring range of 0 ... 1000 ppm and a temperature and humidity sensor. The air quality detector already covers a large range of measuring tasks. The air quality detector is therefore used, for example, in occupational safety to check the climatic conditions in office workplaces.

During the measurement, the readings are stored on the air quality station. Up to 5000 measuring points can be saved on the air quality detector. The CO² and CO content, as well as the temperature and humidity are saved by the air quality detector for each storage point. After a measurement run, the stored measurement values can be viewed directly on the air quality detector.

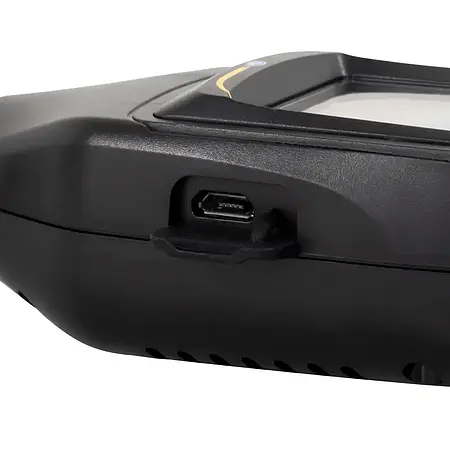

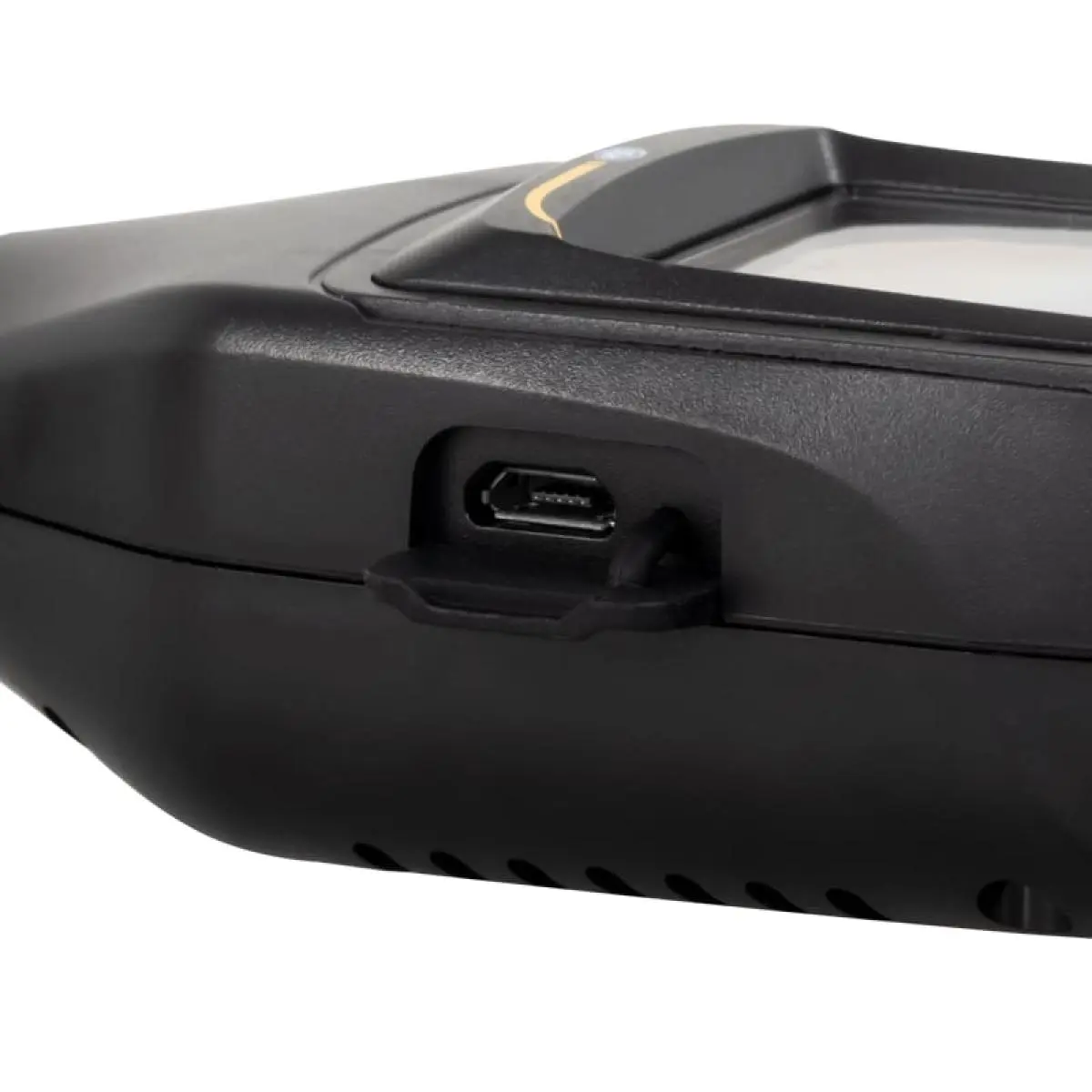

For further processing, the readings recorded by the air quality station can be transferred to a computer. The transfer takes place via the Micro-USB interface of the air quality detector. When connecting the CO and CO² meter to a computer, it is recognized as a mass data storage device. The saved measured values are saved by the air quality detector in CSV file format and can therefore be processed directly.

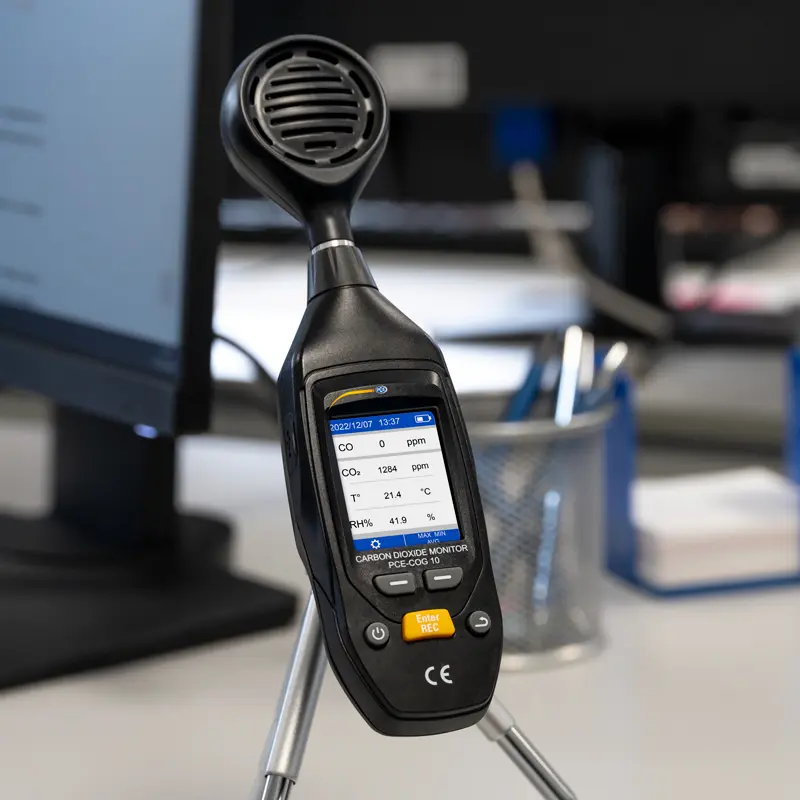

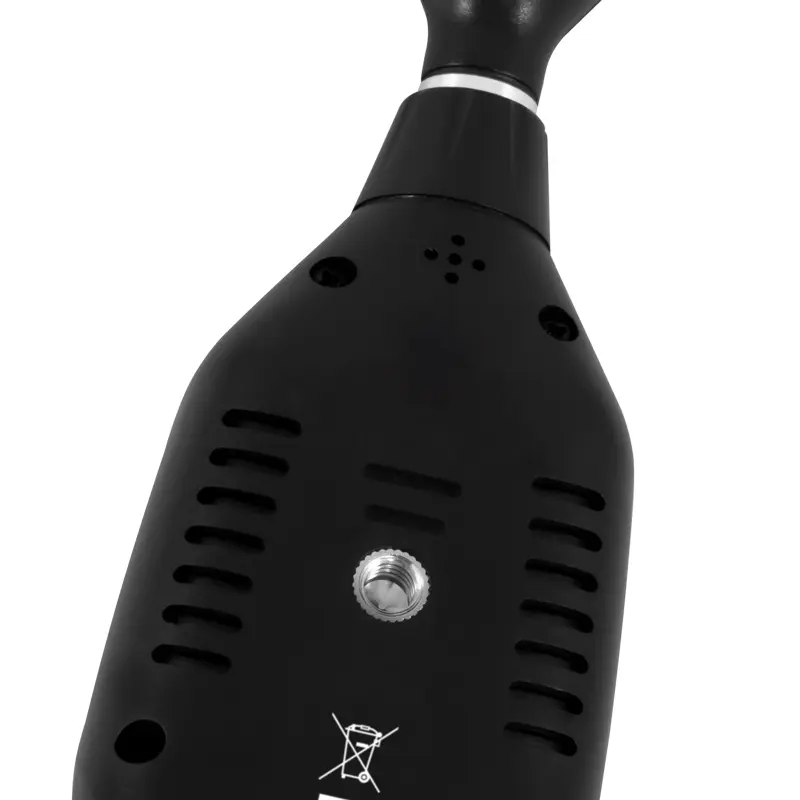

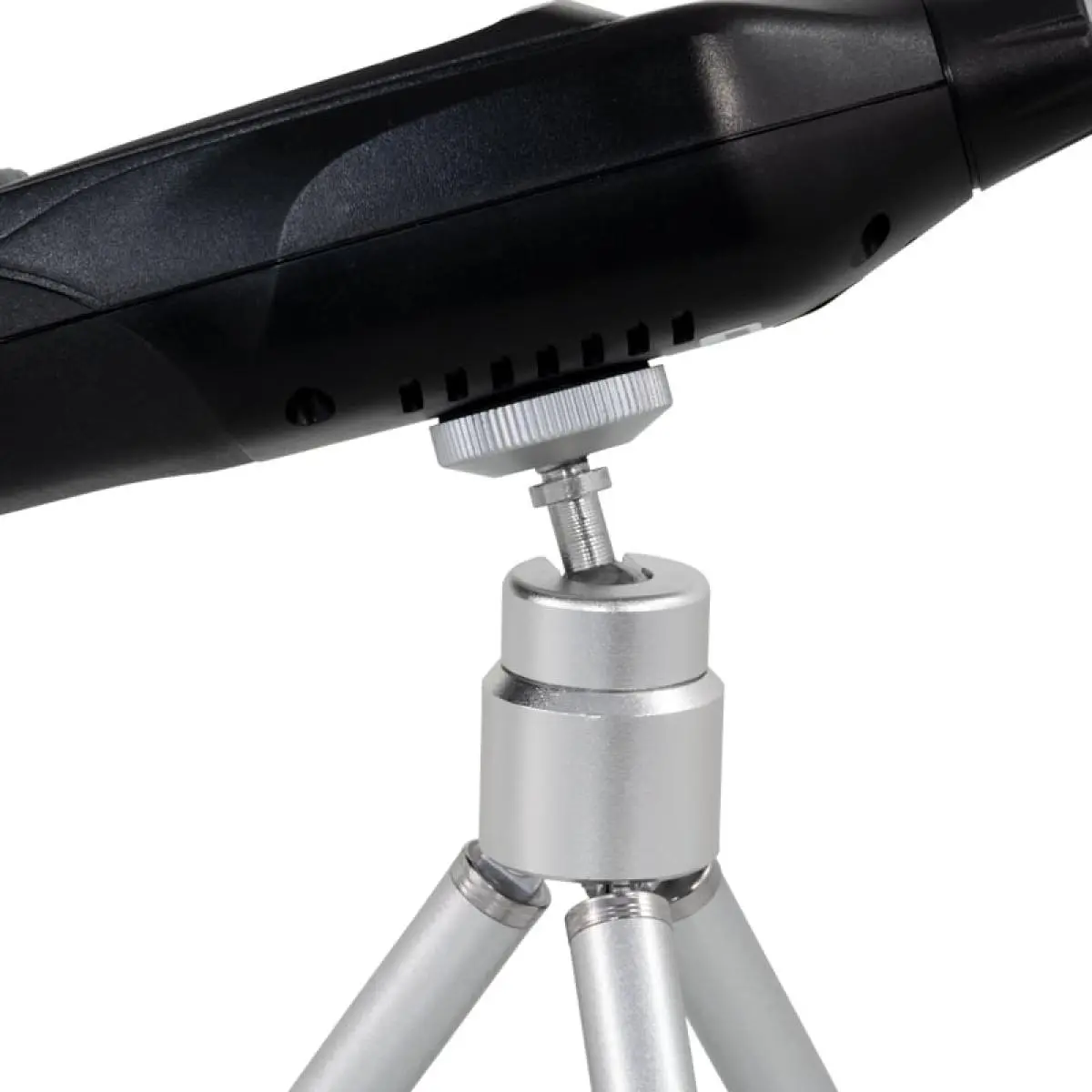

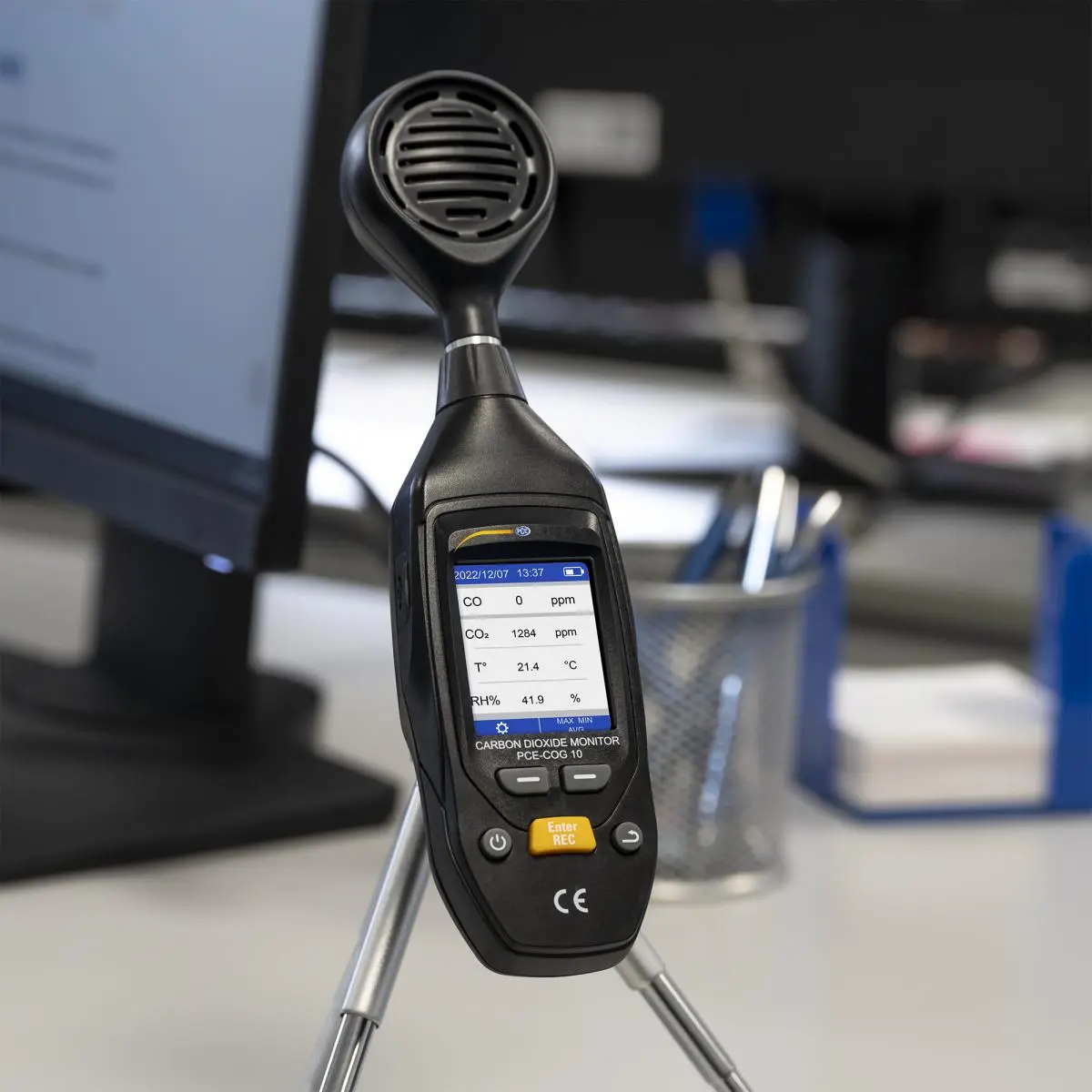

The built-in 1500 mAh battery in the air quality station enables mobile use. To charge the battery, the air quality detector can be connected to a 5 VDC power supply via the micro-USB interface. The air quality detector can continue to be used during the charging process to take measurements. For an optimal and longer-lasting measurement of the air quality detector there is a 1/4 inch connection on the back. With this connection, the air quality detector can be attached to a tripod and aligned.

Highlights

- Data memory for 5000 measuring points
- Measuring range (CO²) 0 ... 9999 ppm
- Export of measurement data in CSV format
- Temperature and humidity measurement
- Additionally with carbon monoxide sensor
- Easy to read 2" LC display

Specification

Carbon monoxide (CO)
Measuring range* 0 … 1000 ppm
Resolution 1 ppm
Accuracy ±5 % of measuring range

*The CO measurement refers to an ambient condition of
0 … 40 °C / 32 … 104 °F, 15 … 95 % RH, non-condensing

Carbon dioxide (CO²)
Measuring range* 0 … 9999 ppm
Resolution 1 ppm
Accuracy ±3 % of measured value ± 75 ppm

*The CO² measurement refers to an ambient condition of
0 … 50 °C / 32 … 122 °F, 0 … 85 % RH, non-condensing

Temperature
Measuring range 0 … 50 °C, 32 … 122 °F
Resolution 0.1 °C / °F
Accuracy ±2 °C / ±4 °F

Humidity
Measuring range 0 … 100 % RH
Resolution 0.1 % RH
Accuracy ±5 % between 0 … 20 % RH
  ±3.5 % between 20 … 80 % RH
  ±5 % between 80 … 100 % RH

The humidity is based on a wind speed of 1 m/s.
The accuracy is maintained after 30 minutes of acclimatization.

Further specifications

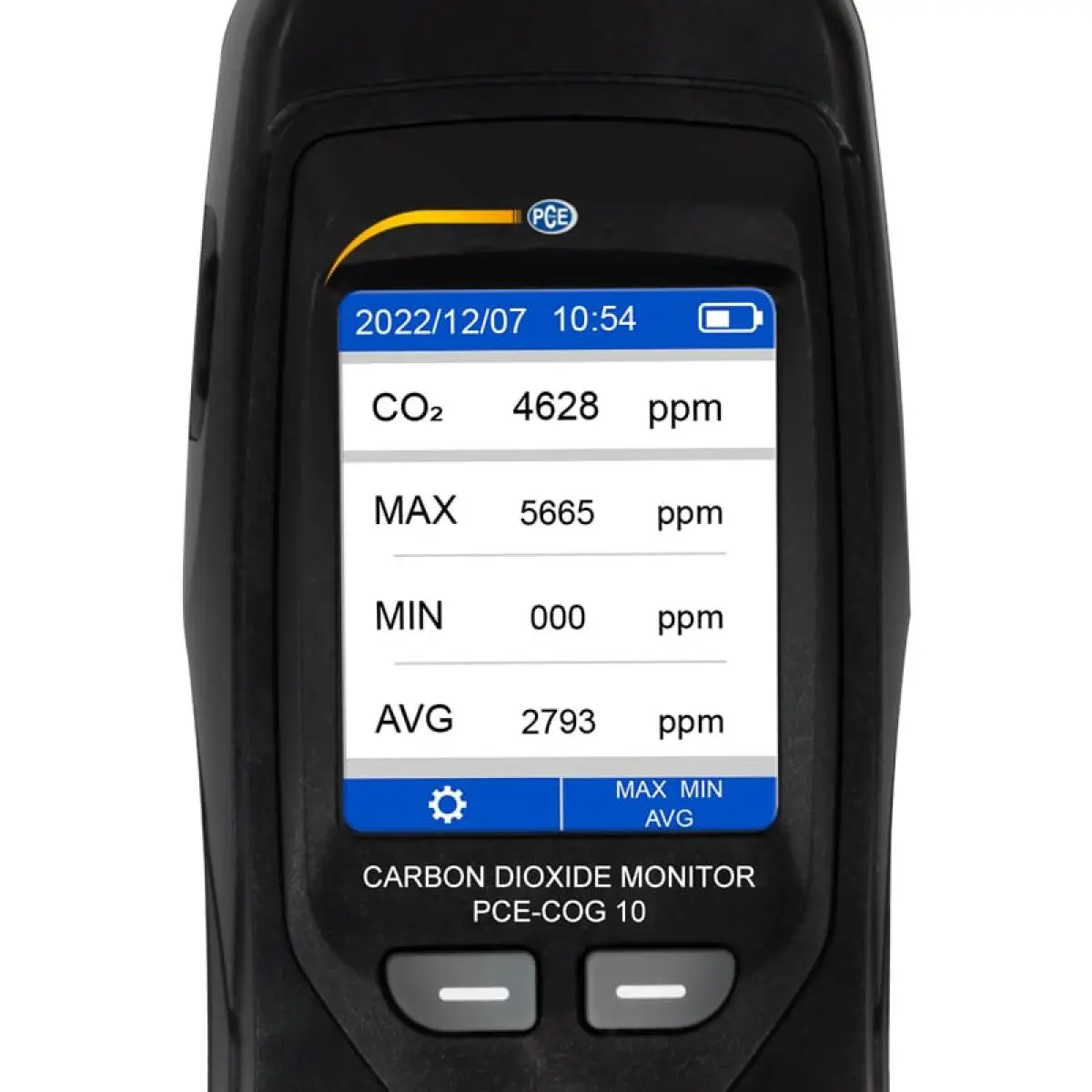

Display 2" LC display
Measuring rate 1 Hz
Memory for 5000 measuring points
Storage rate 1 minute, 15 minutes, 1 hour
Units temperature: °C, °F, CO / CO²: ppm
Alarm when limit values are exceeded      visually and acoustically
Data export CSV
Connection 1/4“ tripod connection
Interface Micro-USB for charging the battery
   and for data transmission
Power supply (battery) 3.7 V, 1500 mAh
Power supply (power adapter) primary: 100 … 240 VAC, 50 / 60 Hz, 0.25 A
  secondary: 5 VDC, 1 A
Operating conditions 0 … 45 °C, 32 … 113 °F, <95 % RH, non-condensing
Storage conditions -10 … 55 °C, 14 … 131 °F, <95 % RH, non-condensing
Dimensions 54 x 215 x 34 mm / 2.1 x 8.4 x 1.3"
Weight 154 g / 5.4 oz

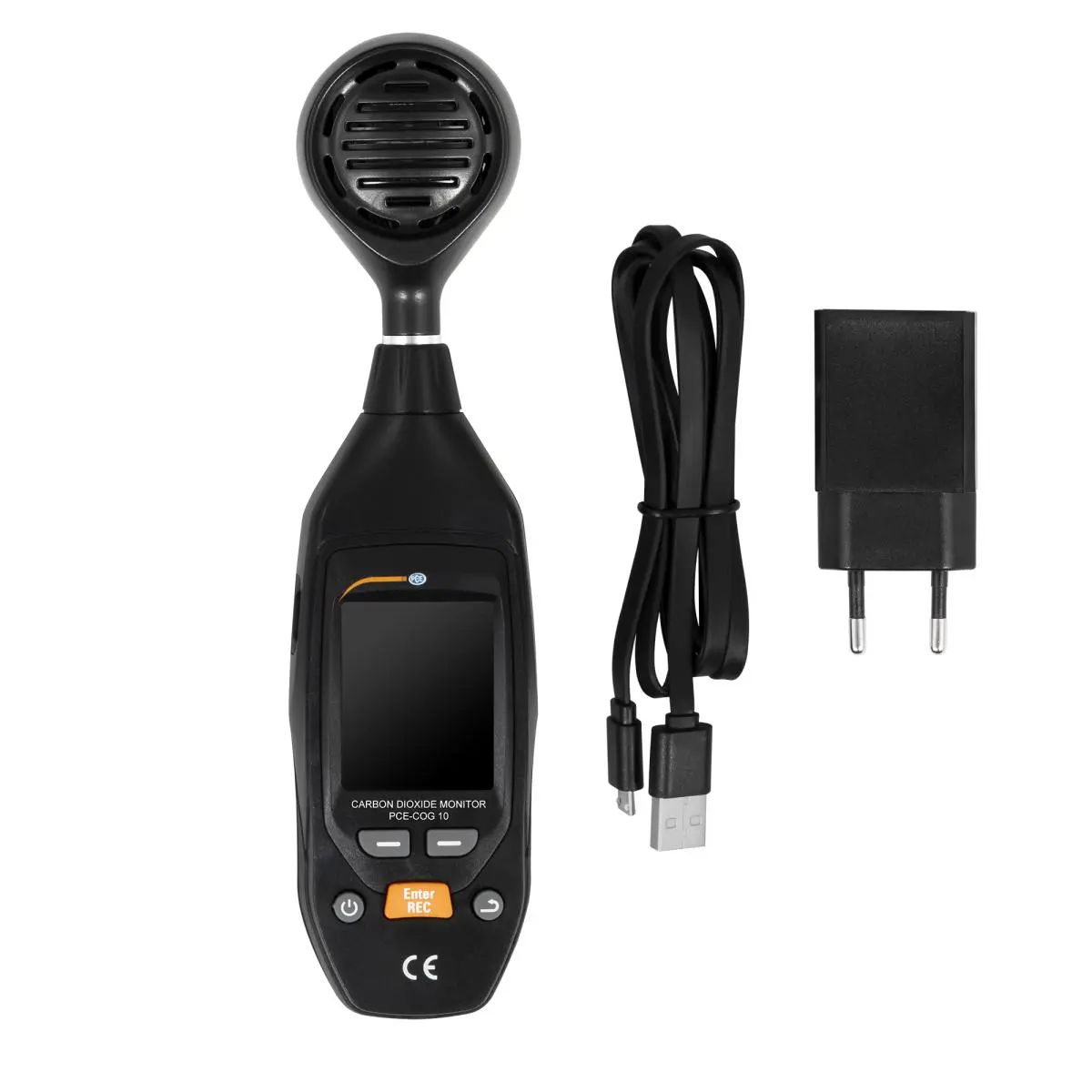

Delivery Scope

1 x Air quality station PCE-COG 10
1 x Micro USB cable
1 x 5V DC power supply
1 x Instruction manual
