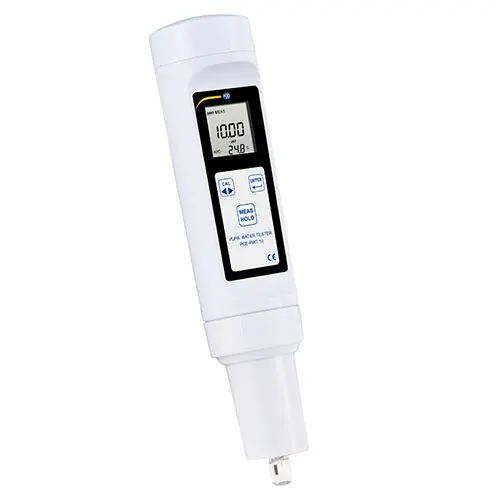

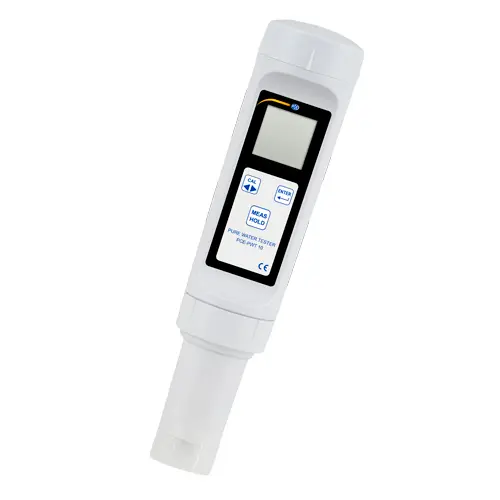

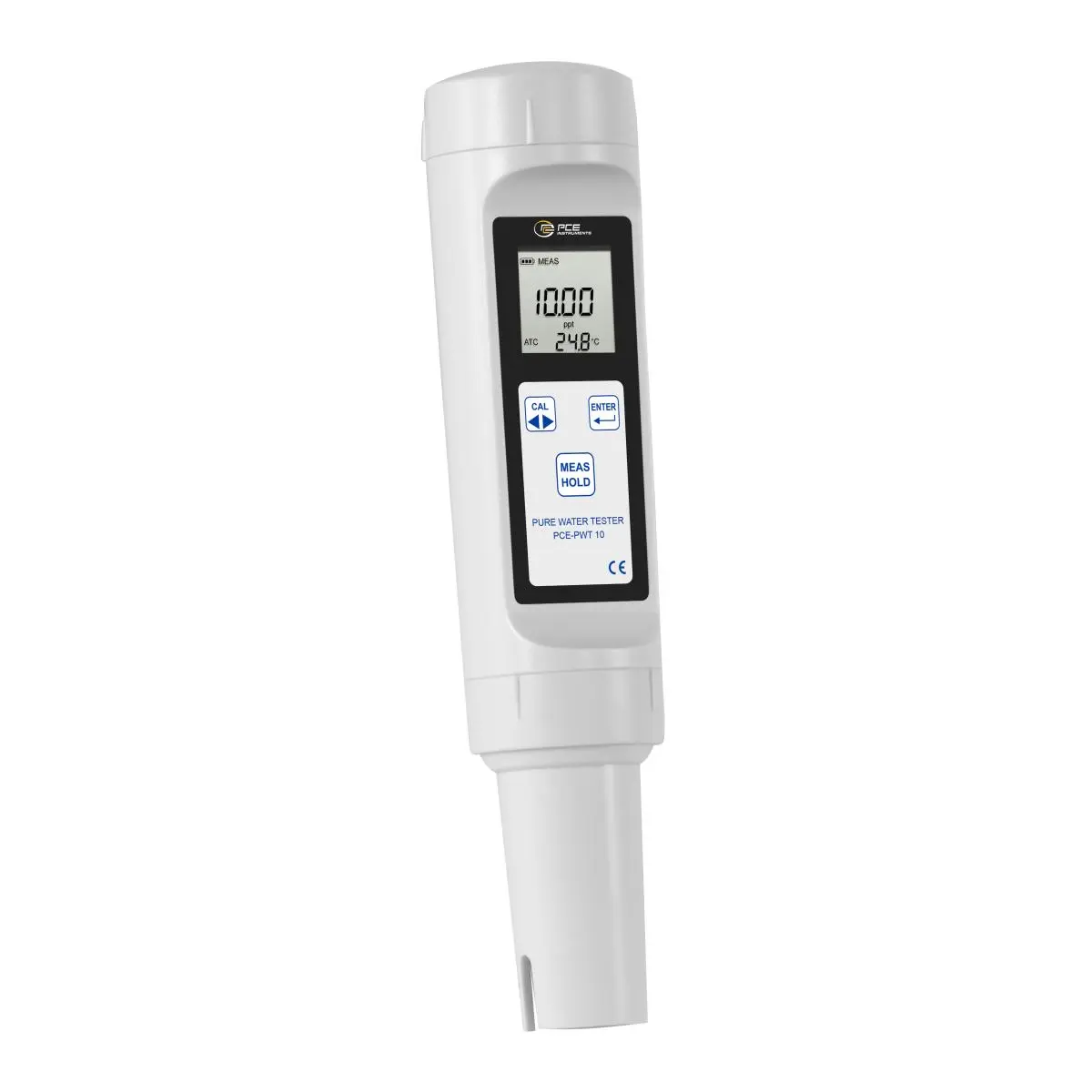

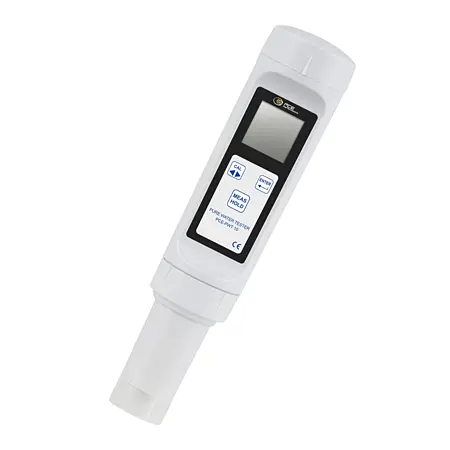

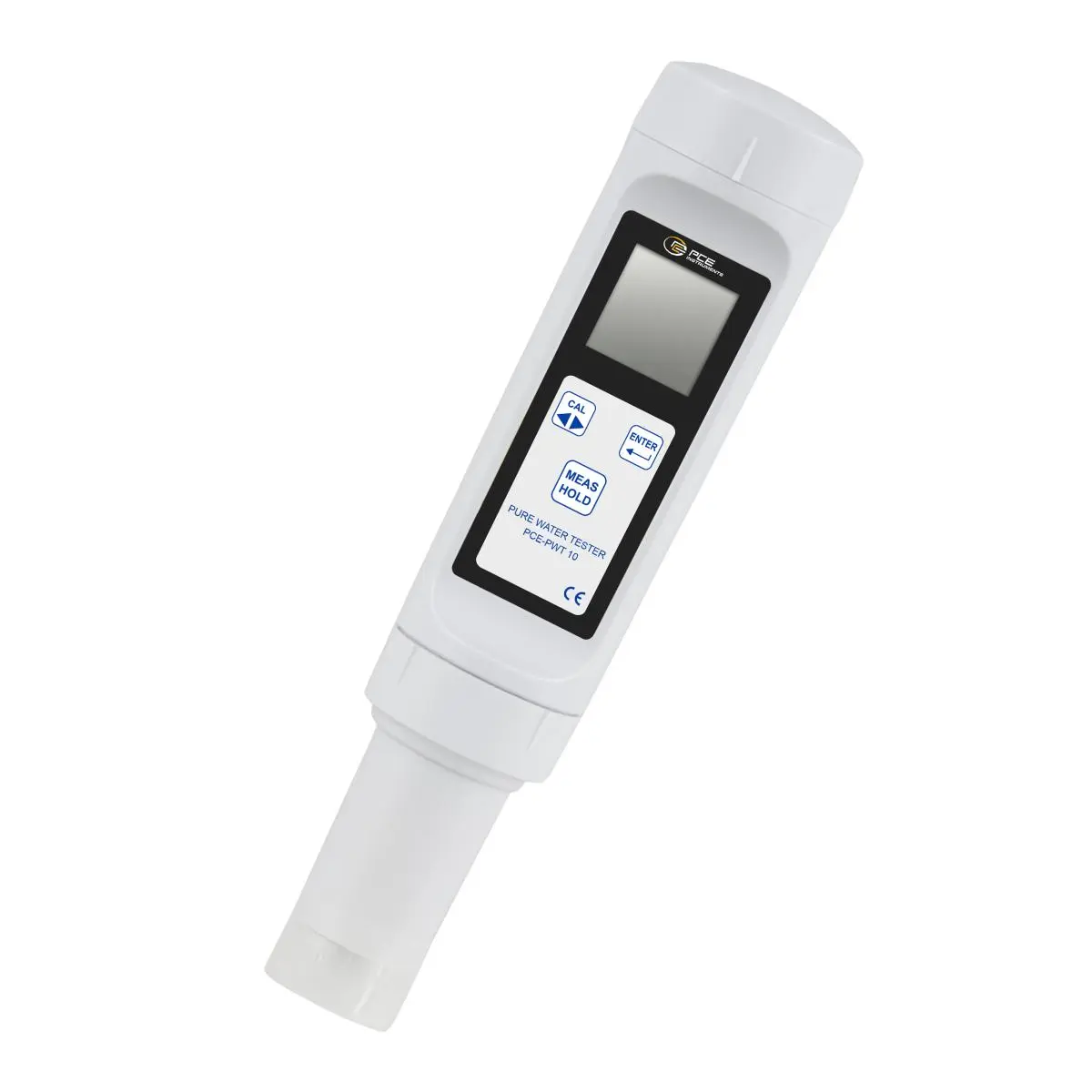

The water analysis meter is a good solution for anyone who wants to check the conductivity of ultrapure water. This water analysis meter is a compact device with an integrated temperature sensor for optimum temperature compensation. Among other things, the water analysis meter has a very low measuring range of only 0 ... 20 μS / cm.
Furthermore, the water analysis meter is able to accurately determine the salinity of liquids. The water analysis meter has an automatic temperature compensation in the range of 0 ... 60 ° C. The calibration of the water analysis meter is carried out via a three-point calibration.
| Conductivity measuring range | 0 ... 20 µS/cm 0 ... 200 µS/cm 0 ... 2000 µS/cm 0 ... 20.00 mS/cm |
| Resolution | 0.01 / 0.1 / 1 |
| Accuracy | ± 1 % of measuring range |

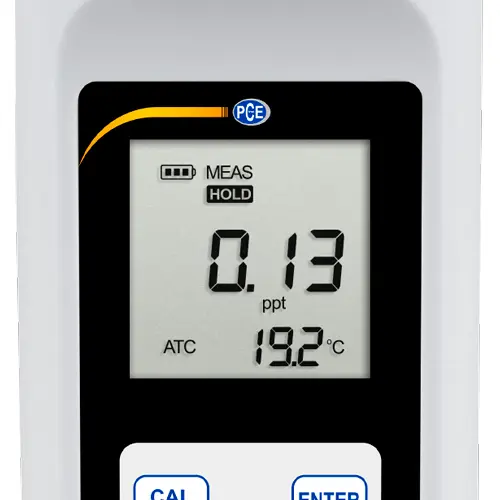

| Salinity measuring range | 0.00 ... 10.00 ppt |
| Resolution | 0.01 ppt |
| Accuracy | ± 1 % of measuring range |
| Temperature measuring range | 0 ... 60 °C / 32 ... 140 °F |
| Resolution | 0.1 °C |
| Accuracy | ± 1 °C |
| Temperature compensation range | 0 ... 60 °C / 32 ... 140 °F |
| Temperature coefficient | 2 % / °C |
| Number of calibration points | 1 ... 3 |
| Calibration points | 84 µS/cm 1413 µS/cm 12.88 mS/cm |

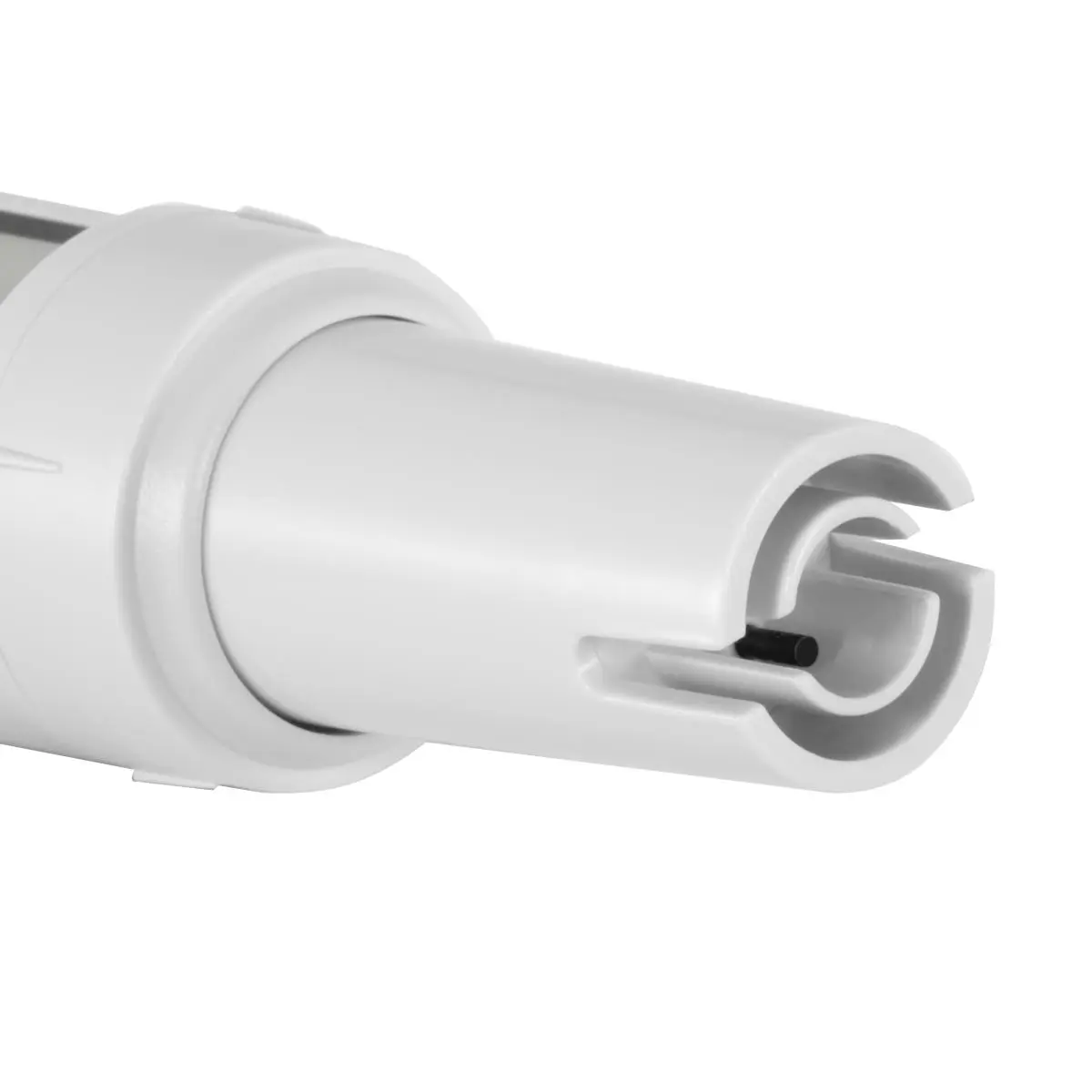

| Cell constant | K=1 |
| Normal media temperature | 25 °C / 77 °F |

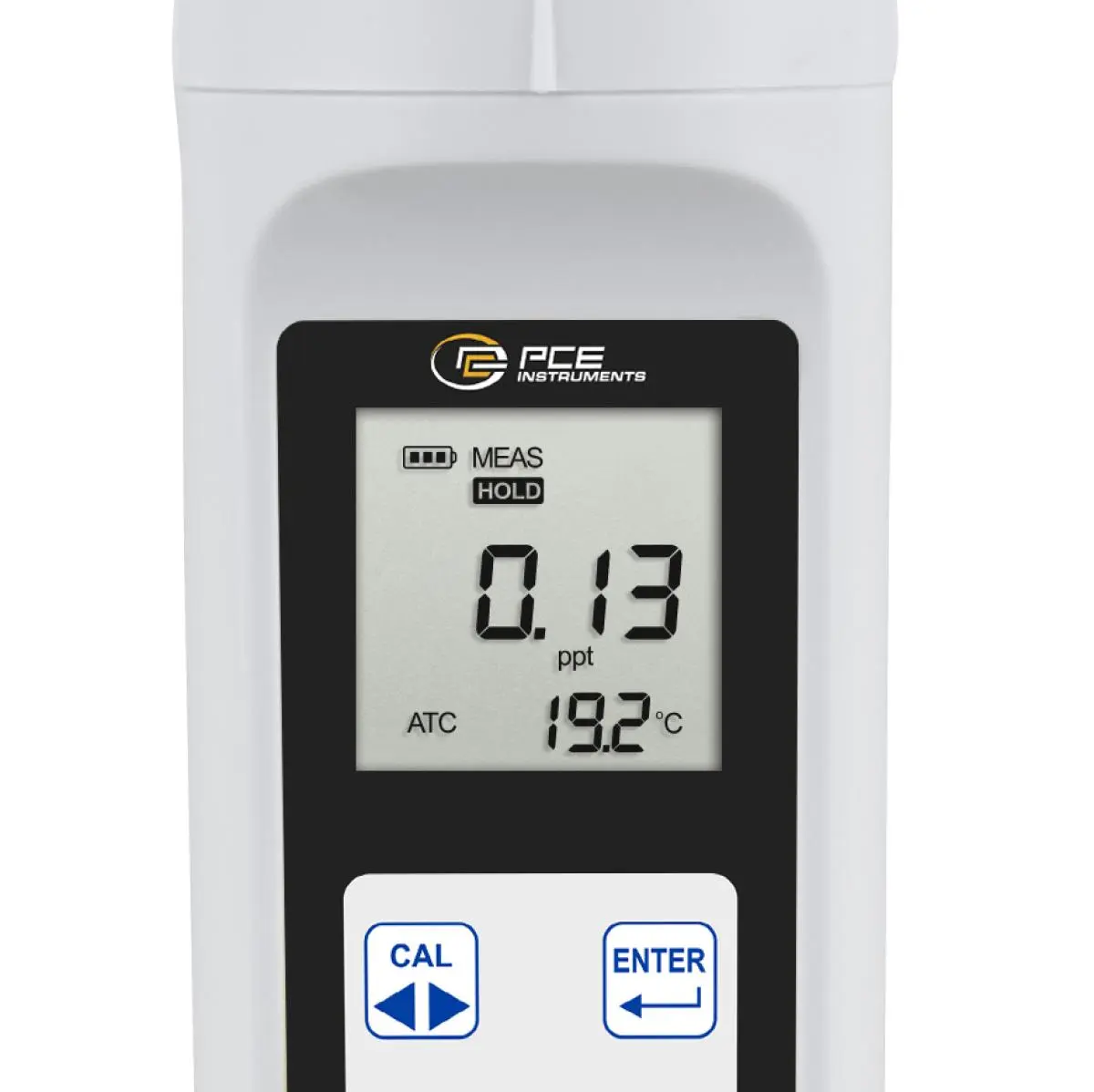

| Hold function | By pressing a button |
| Automatic shutdown | 8 minutes after the last key press |
| Pause | Reset to factory setting possible |

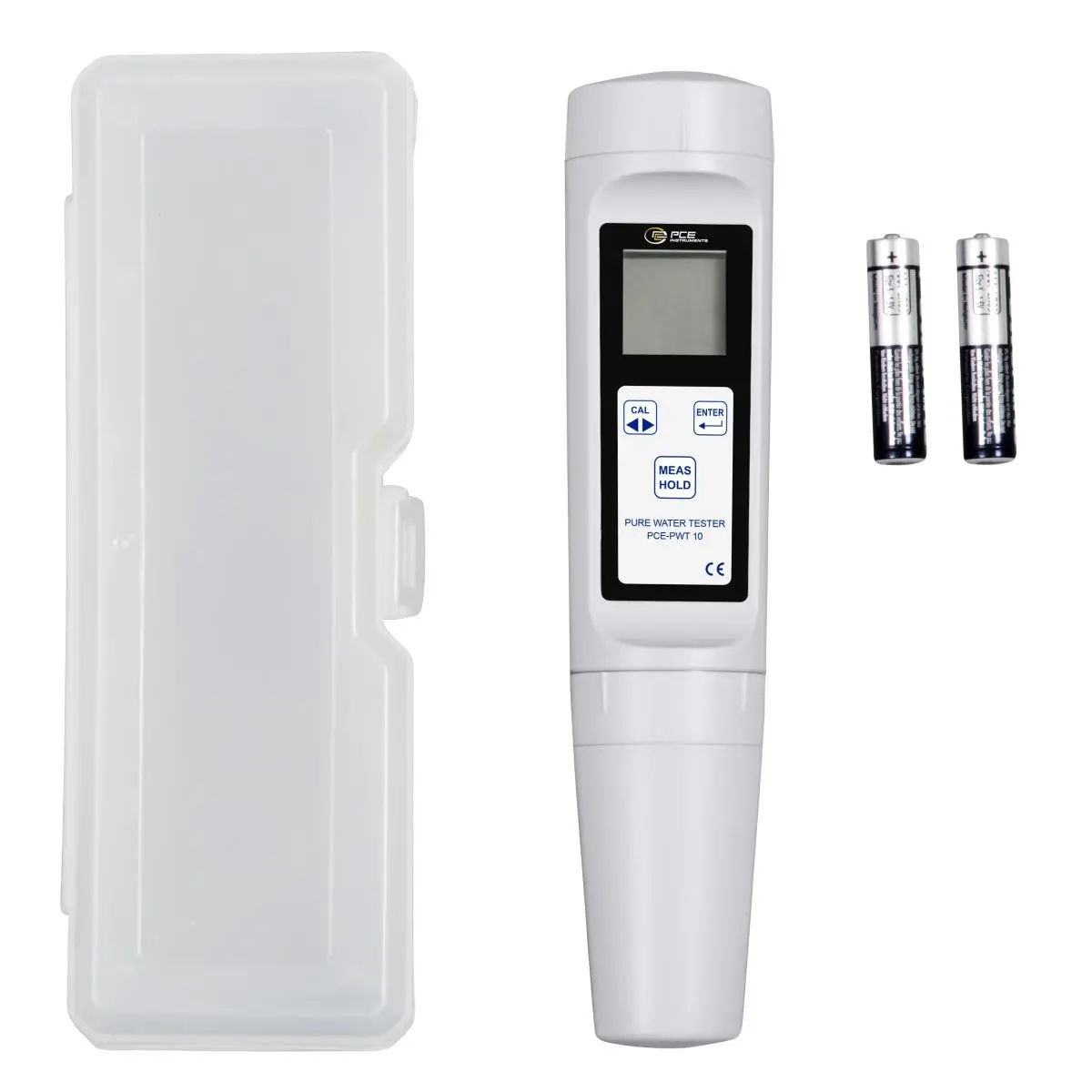

| Power supply | 2 x 1.5 V AAA batteries |
| Operating time | ca. 200 hours |
| Dimensions | 185 x 40 mm / 7.2 x 1.5" |
| Weight | ca. 100 g / 3.5 oz |
