Water Analysis Meter PCE-PH20WINE

Water Analysis Meter PCE-PH20WINE

Order no.: PCE-PH20WINE
GTIN (EAN): 4250348728609

£ 374.00
£ 448.80
price ex. (VAT / delivery)
:
4250348728609
PCE-PH20WINE
Delivery time:1-2 working days
Handheld
0 ... 60 °C / 32 ... 140 °F
0 ... 14 pH

Description

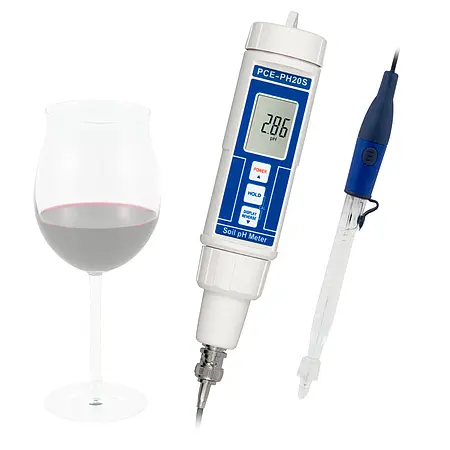

Water Analysis Meter for wine
easy to use pH meter for the determination of the pH value /
external pH electrode / can be recalibrated / waterproof (IP 67)


The water analysis meter was developed to directly determine the pH value in aqueous media such as wine or beer. Furthermore, the pH meter can also be used for other media with a low conductivity. The waterproof pH tester is used for the fast and accurate measurement of pH. The practical display makes the pH value on the pH meter easy to read. Due to the waterproof and robust housing (IP 67), the pH tester can also be used under difficult conditions. Recalibration always guarantees optimum accuracy and is very easy to perform using the optionally available calibration kits (automatic calibration function without calibration screws - only to be performed via the keyboard).

Highlights

- Waterproof (IP 67)
- Special external measuring electrode for wine and beer
- High accuracy
- Auto-power-off for battery saver
- Supplied with calibration solutions
- Data hold function
- Easy-to-read digital display
- Easy to use

Specification

pH
Measuring range  0 ... 14 pH
Resolution  0,01 pH
Accuracy  ±0.07 pH (within range 5 ... 9 pH) / ±0.1 pH (within ranges 4 ... 4.9 and 9.1 ... 10 pH) / ±0.2 pH (within ranges 1 ... 3.9 and 10 ... 13 pH)

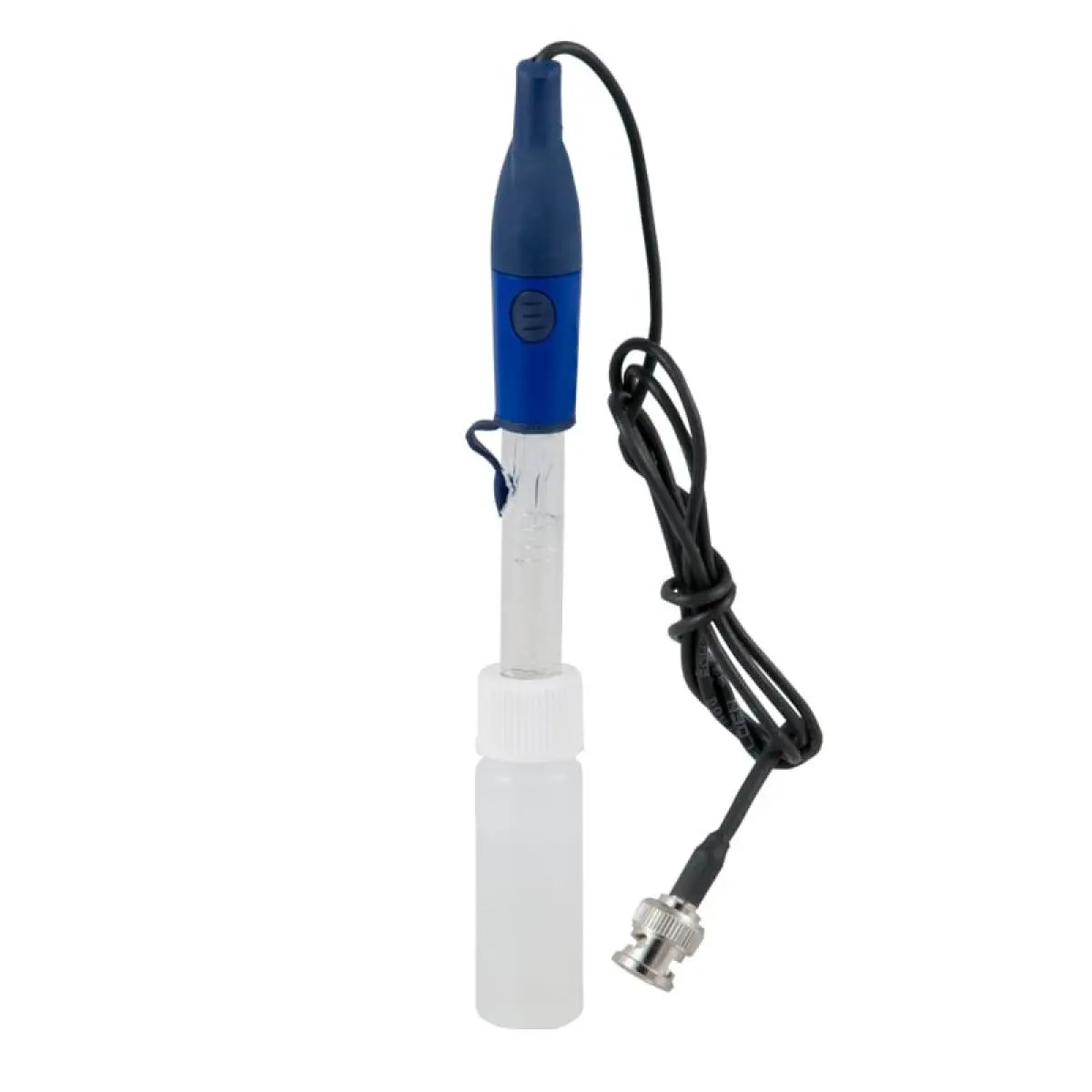

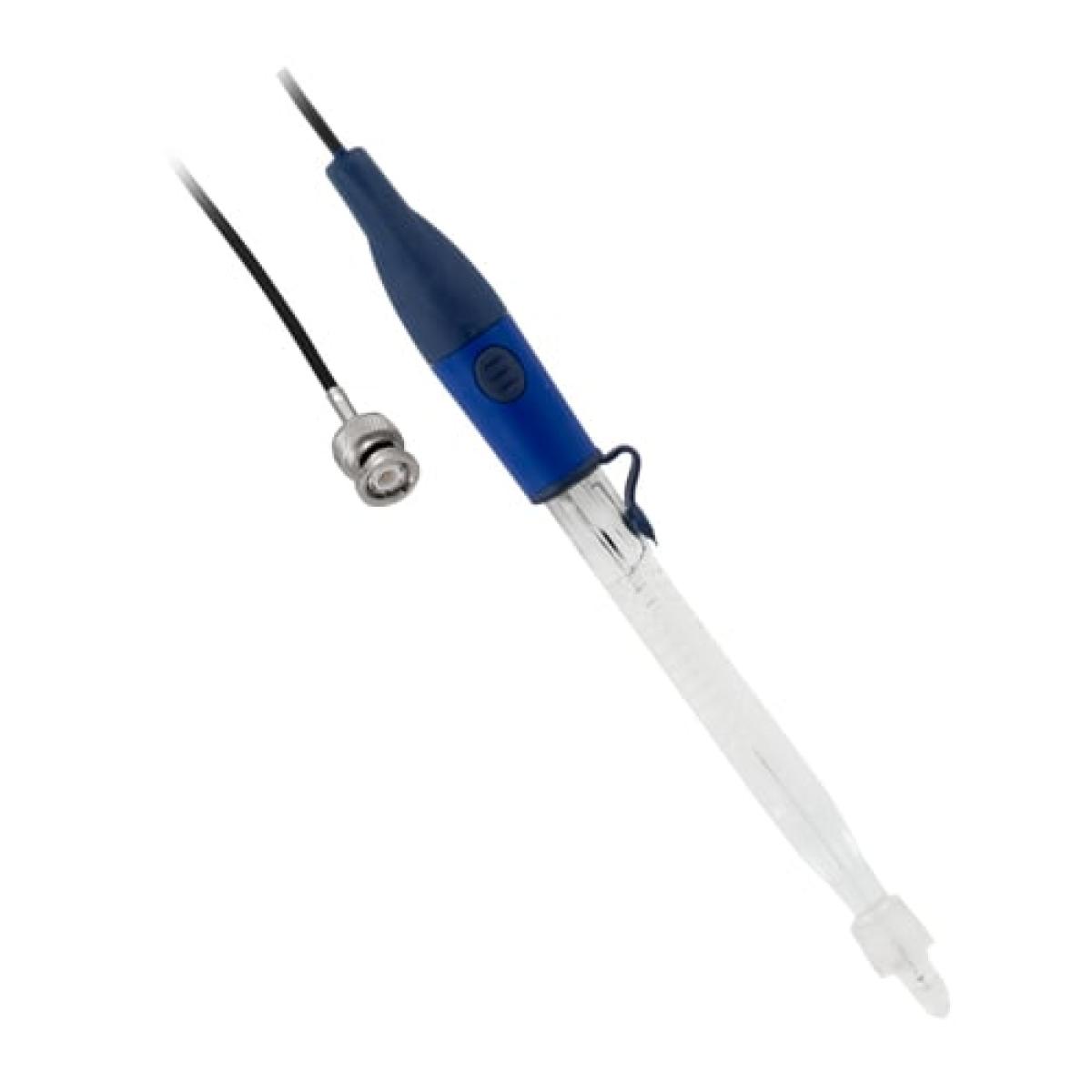

Electrode
Designation  PCE-PH-WINE
Measuring range  0 ... 14 pH
Temperature range  0 ... 100 °C
Application  pH electrode especially for wine, beer and other liquids with low conductivity
reference system  AgCl (silver chloride)
Reference electrolyte  Potassium chloride
Shank material  Glass
Shank length  120 mm
Shank diameter  12 mm
Cable length  1 m
Connection  BNC

General technical data
Measuring functions  HOLD
Display type  LCD
Display size  1,35 Inch
Automatic power-off  10 min
Number of calibration points  3
Calibration  Automatically, at pH 4, pH 7, pH 10 using calibration solutions
Protection class (device)  IP67
(Rechargeable) battery  4 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  0 ... 60 °C , 0 ... 80 % RH
Storage conditions  0 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  180 x 40 x 32 mm
Weight  220 g

Delivery Scope

1 x Water Analysis Meter PCE-PH20WINE
1 x pH electrode PCE-PH-WINE
4 x Batteries
1 x Calibration kit with solutions pH4 + 7 (75 ml bottle each)
1 x Operating instructions
