Water Analysis Meter PCE-PH20S

Water Analysis Meter PCE-PH20S

Order no.: PCE-PH20S
GTIN (EAN): 4250348701213
£ 138.00
price ex. (VAT / delivery)
:
4250348701213
PCE-PH20S
Delivery time:1-2 working days

Description

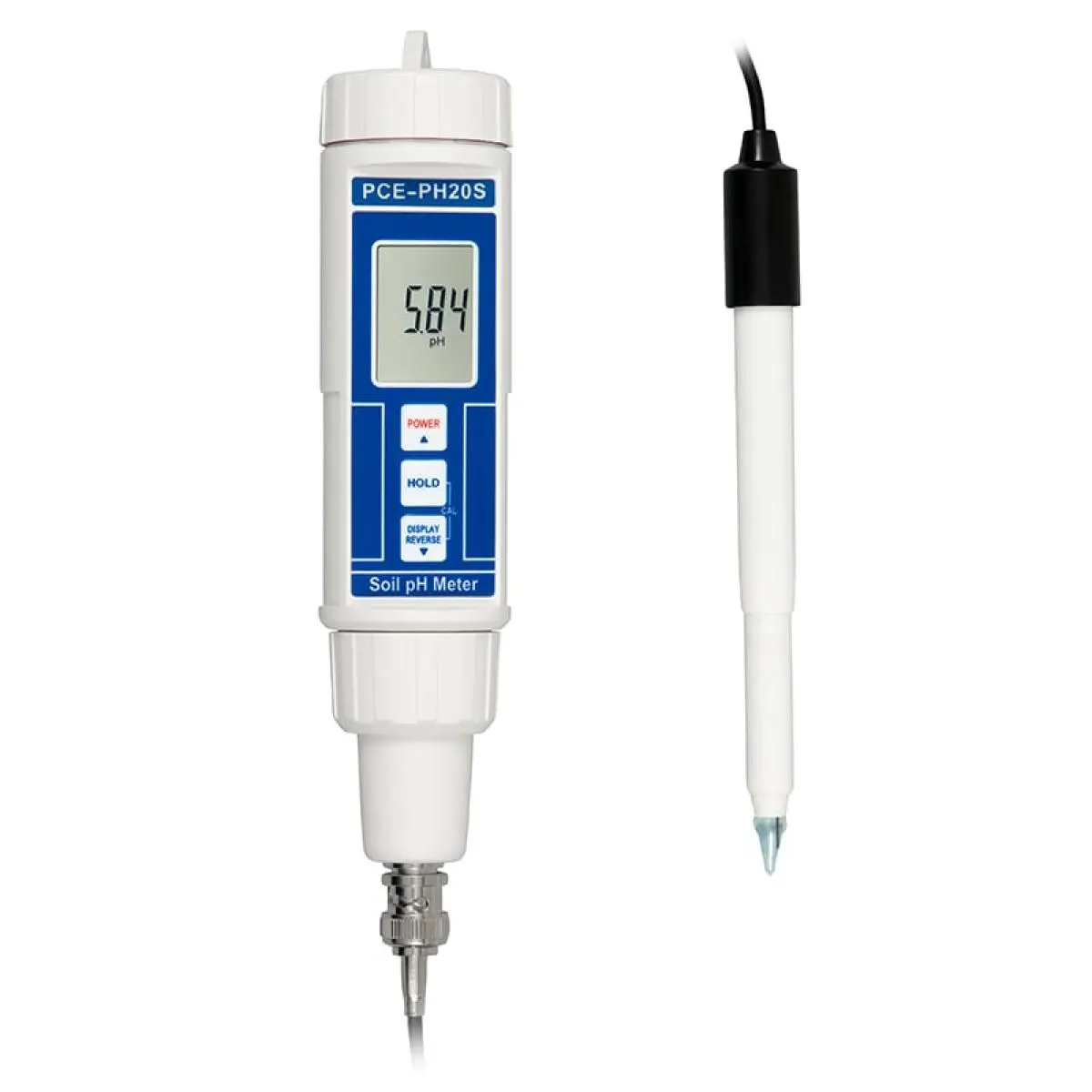

PCE-PH20S Water Analysis Meter for soil
easy to use, for determining the pH value of soil, with external pH electrode, can be recalibrated and is water resistant (IP 67)

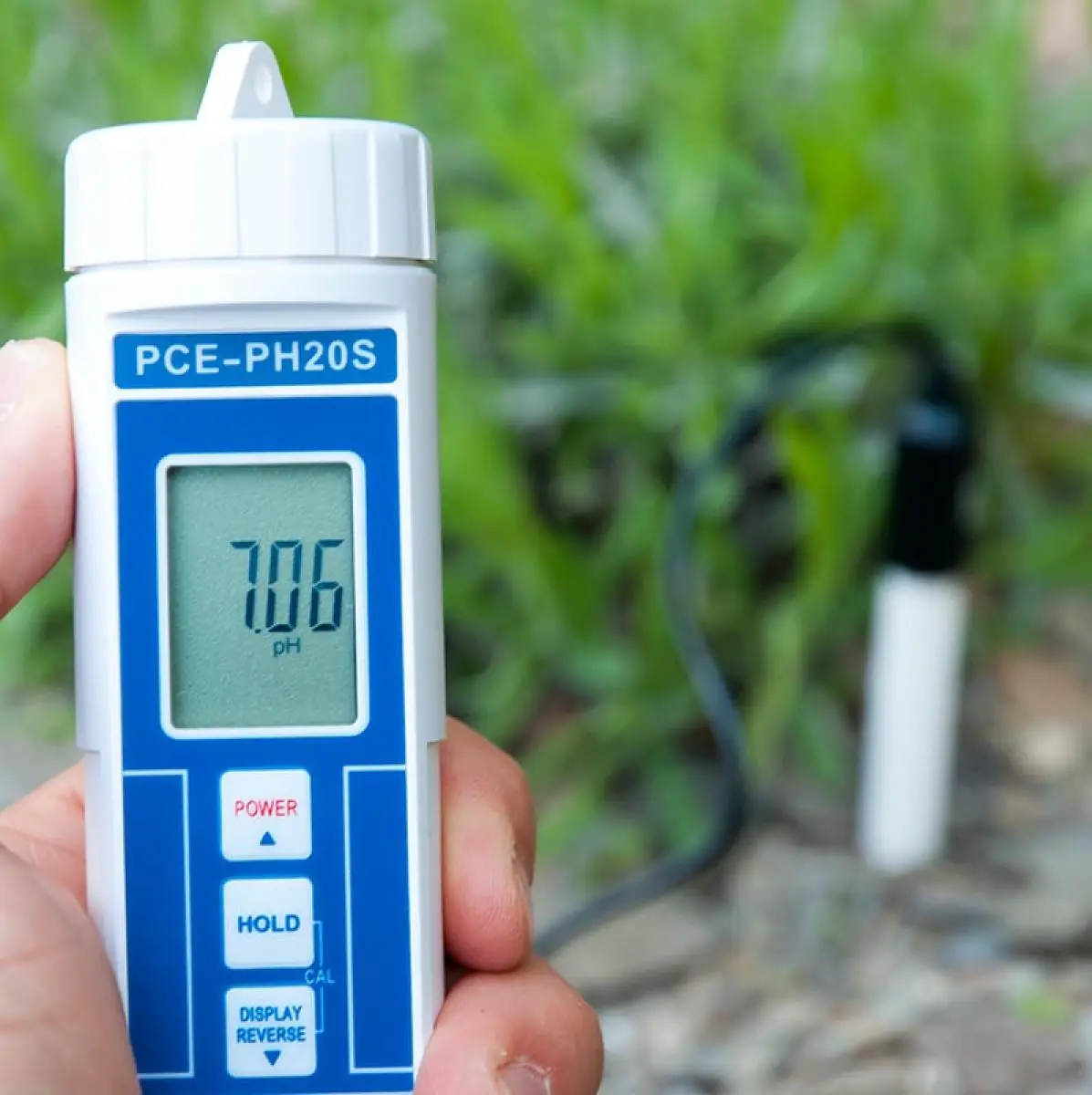

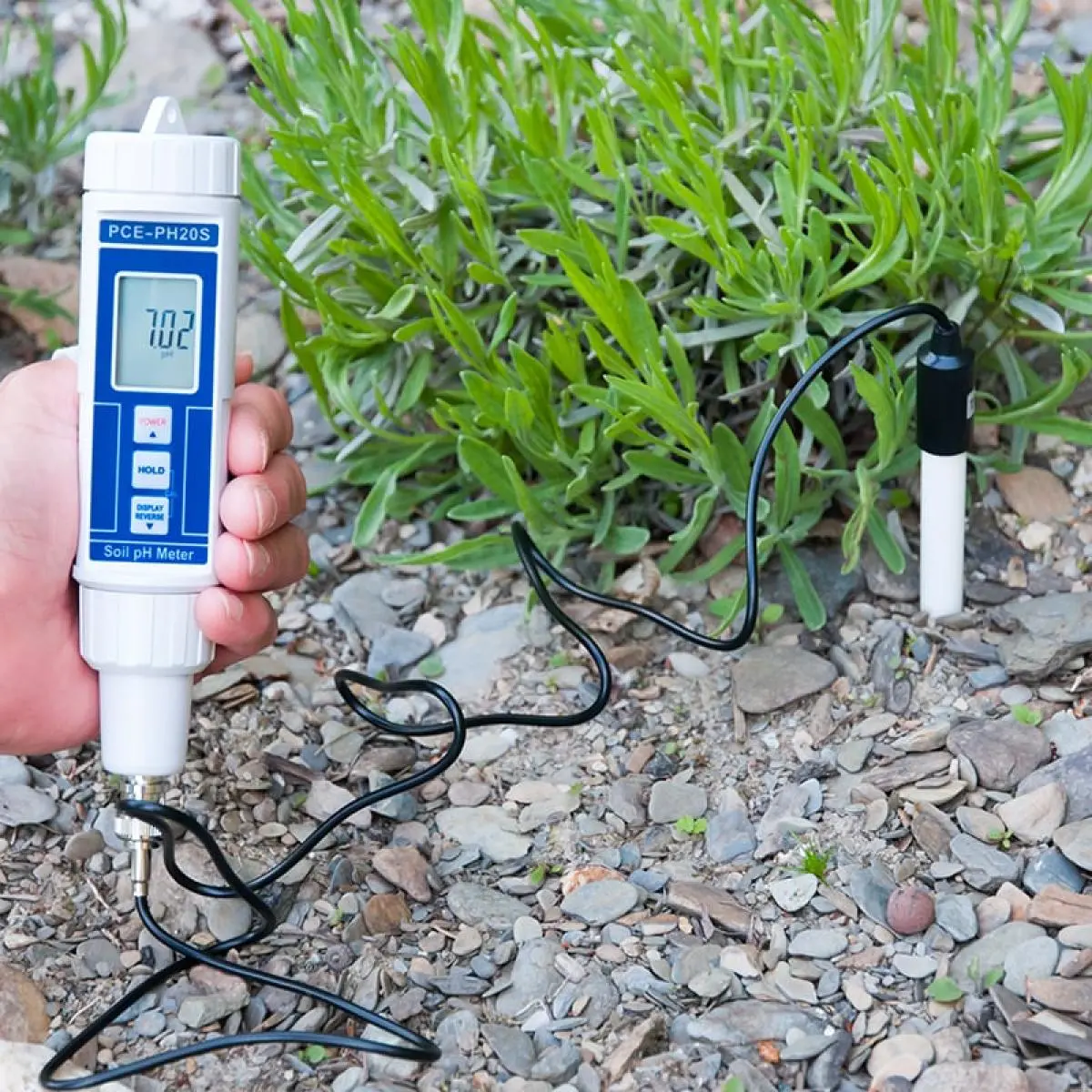

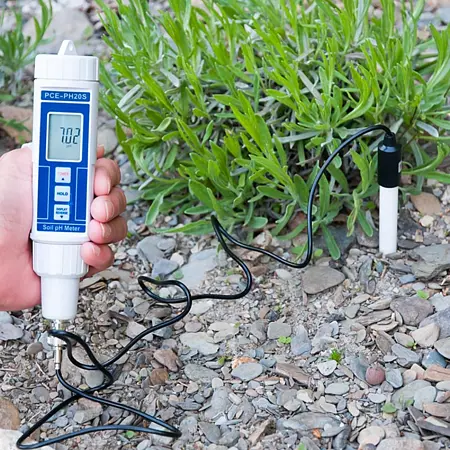

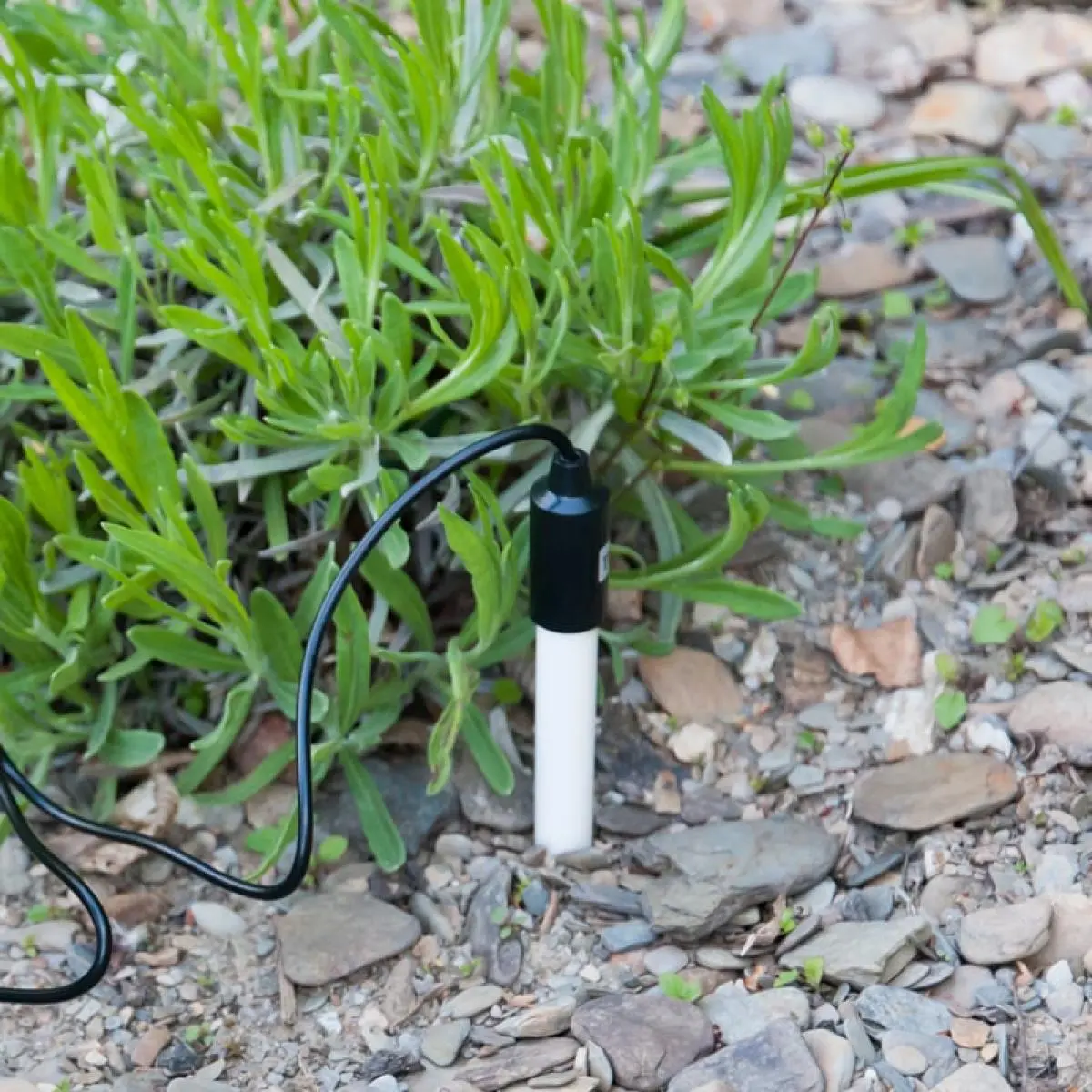

The PCE-PH20S Water Analysis Meter for soil has been developed with the purpose of finding an effective method for directly determining the pH value of soil. With the help of this Water Analysis Meter, it is possible to quickly and accurately measure the pH value of soil or a sample taken from the soil. To do this, simply insert the electrode into loose soil and read the pH value on the digital display. Please, take into account that the first measurement requires that there is humidity in the soil. The device is always pre-calibrated by the manufacturer. The Water Analysis Meter can be constantly recalibrated using the calibration solutions that come with the device. Calibration data remains stored in the device even when the batteries have been changed.

Highlights

- Waterproof (IP 67)
- External electrode with cable
- Highly accurate
- Auto shut-off to protect battery life
- Calibration solutions are included

Specification

pH
Measuring range  0 ... 14 pH
Resolution  0,01 pH
Accuracy  ±0.07 pH (within range 5 ... 9 pH) / ±0.1 pH (within ranges 4 ... 4.9 and 9.1 ... 10 pH) / ±0.2 pH (within ranges 1 ... 3.9 and 10 ... 13 pH)

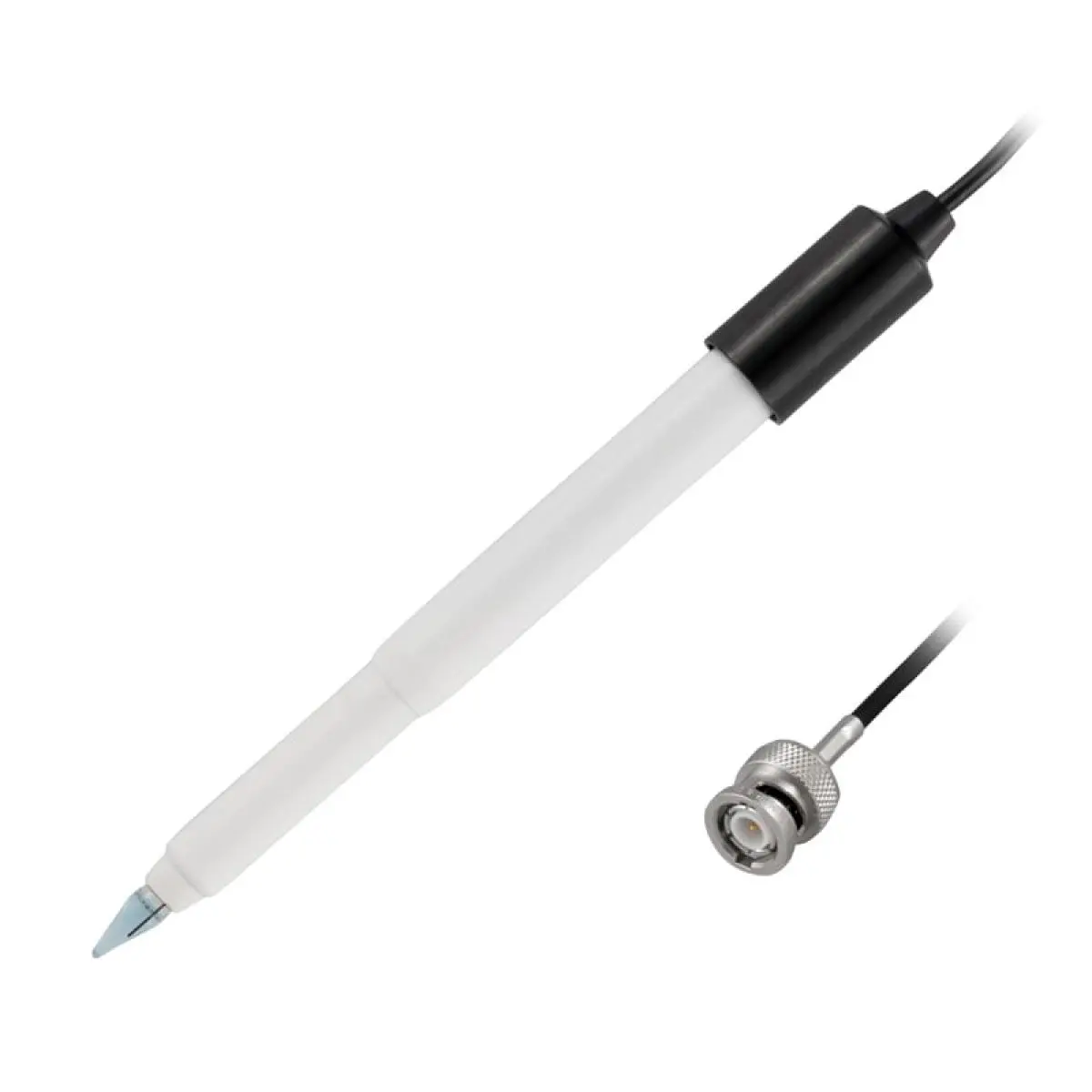

Electrode
Designation  PE-06HDA
Measuring range  1 ... 13 pH
Temperature range  5 ... 60 °C
Application  Soil
reference system  Ag/AgCl
Reference electrolyte  Saturated KCl gel
Shank material  Epoxy resin
Shank length  160 mm
Shank diameter  12 mm
Cable length  1 m
Connection  BNC

General technical data
Measuring functions  HOLD
Display type  LCD
Display size  1,35 Inch
Automatic power-off  10 min
Number of calibration points  3
Calibration  Automatically, at pH 4, pH 7, pH 10 using calibration solutions
Protection class (device)  IP67
(Rechargeable) battery  4 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  0 ... 60 °C , 0 ... 80 % RH
Storage conditions  0 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  180 x 40 x 32 mm
Weight  220 g

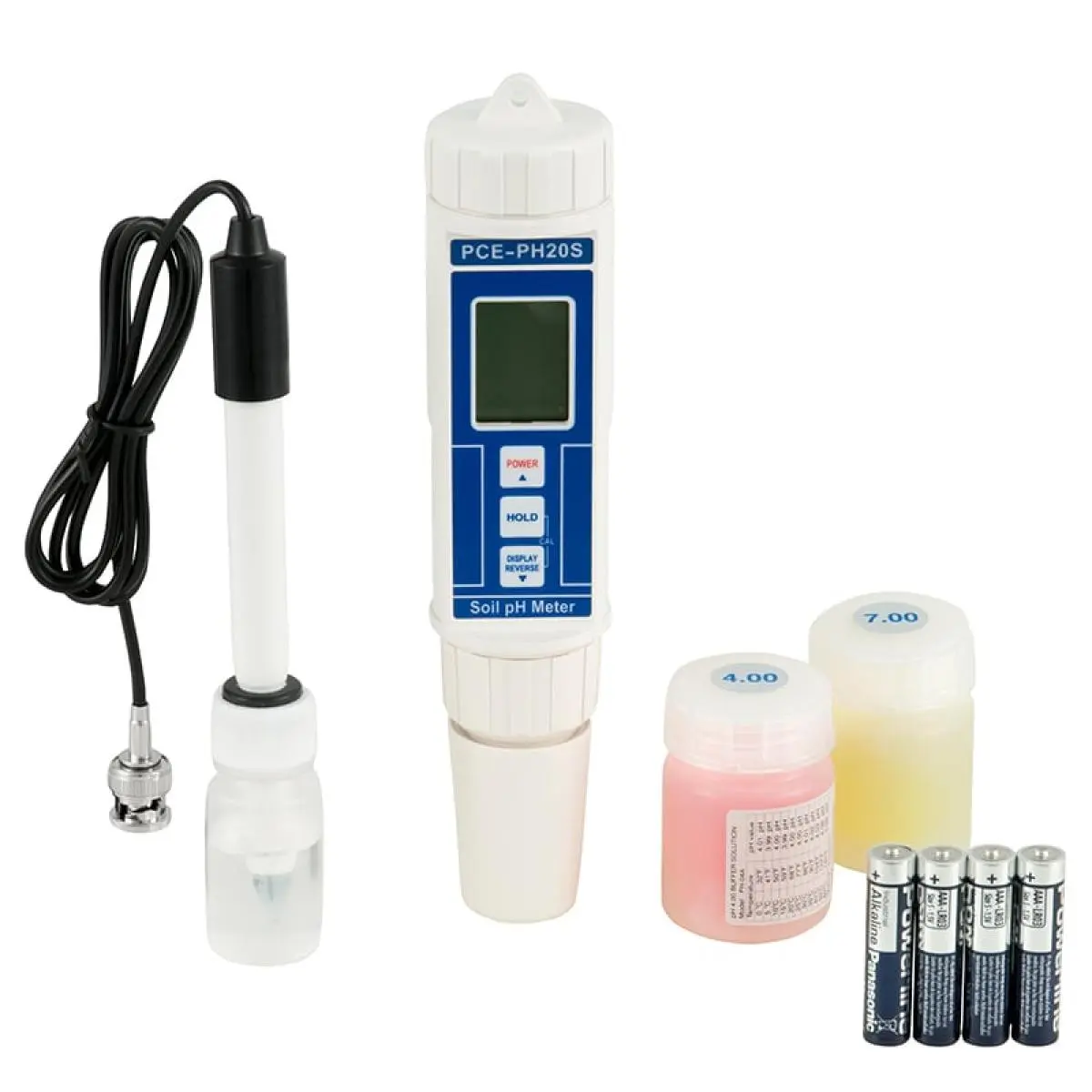

Delivery Scope

1 x PCE-PH20S Water Analysis Meter
1 x pH electrode
4 x batteries
1 x set of calibration solutions for pH 4 and 7 (in 75 ml containers)
1 x user manual
