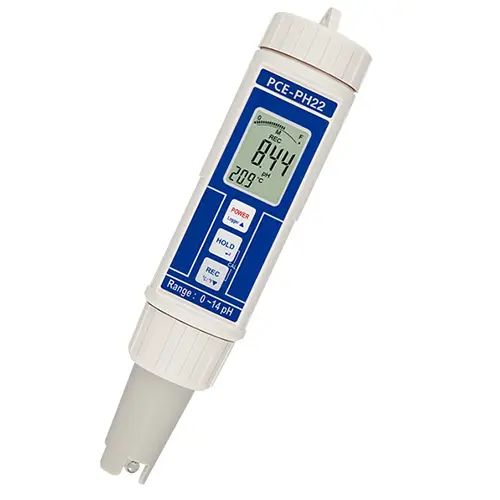

Water Analysis Meter PCE-PH 22

[zoom]

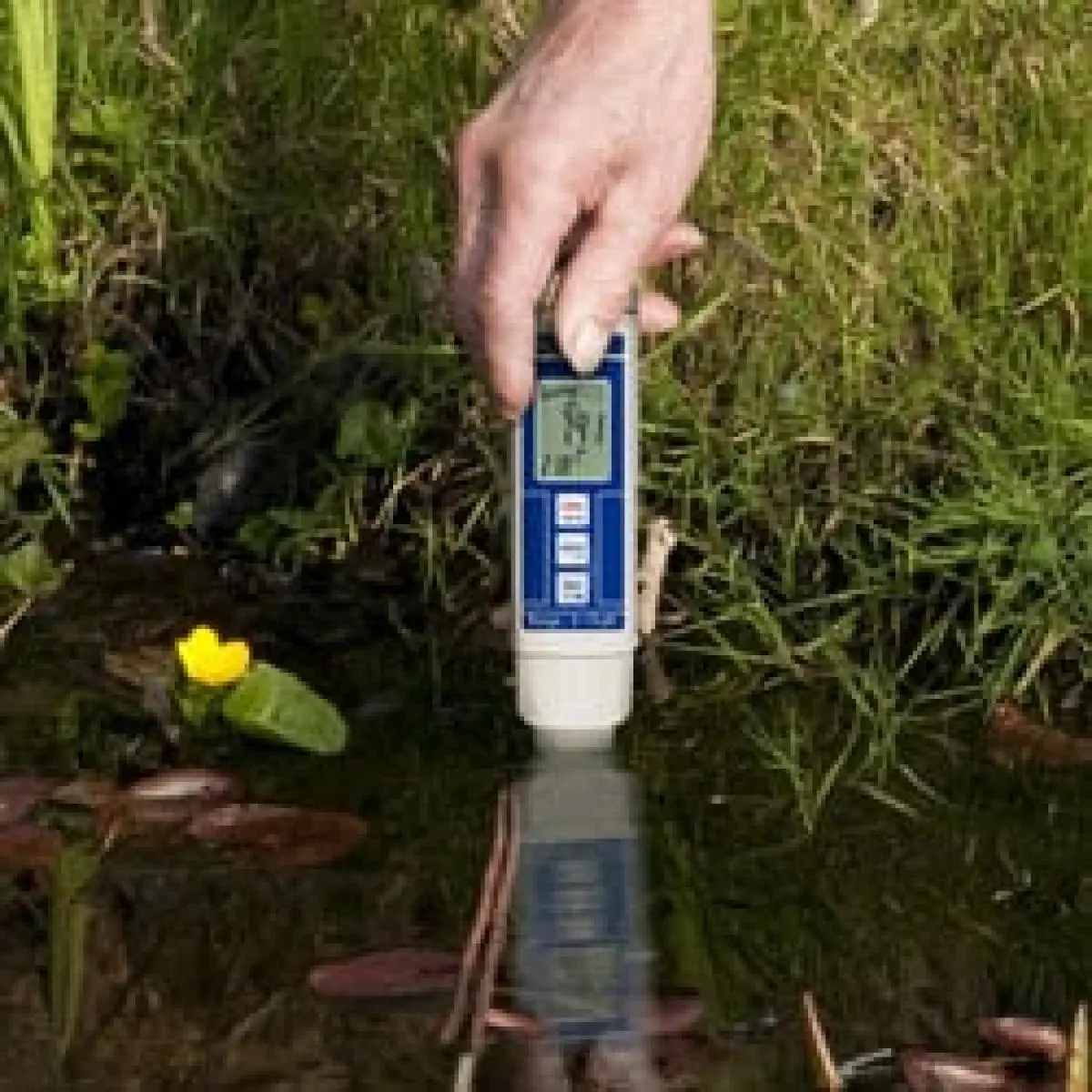

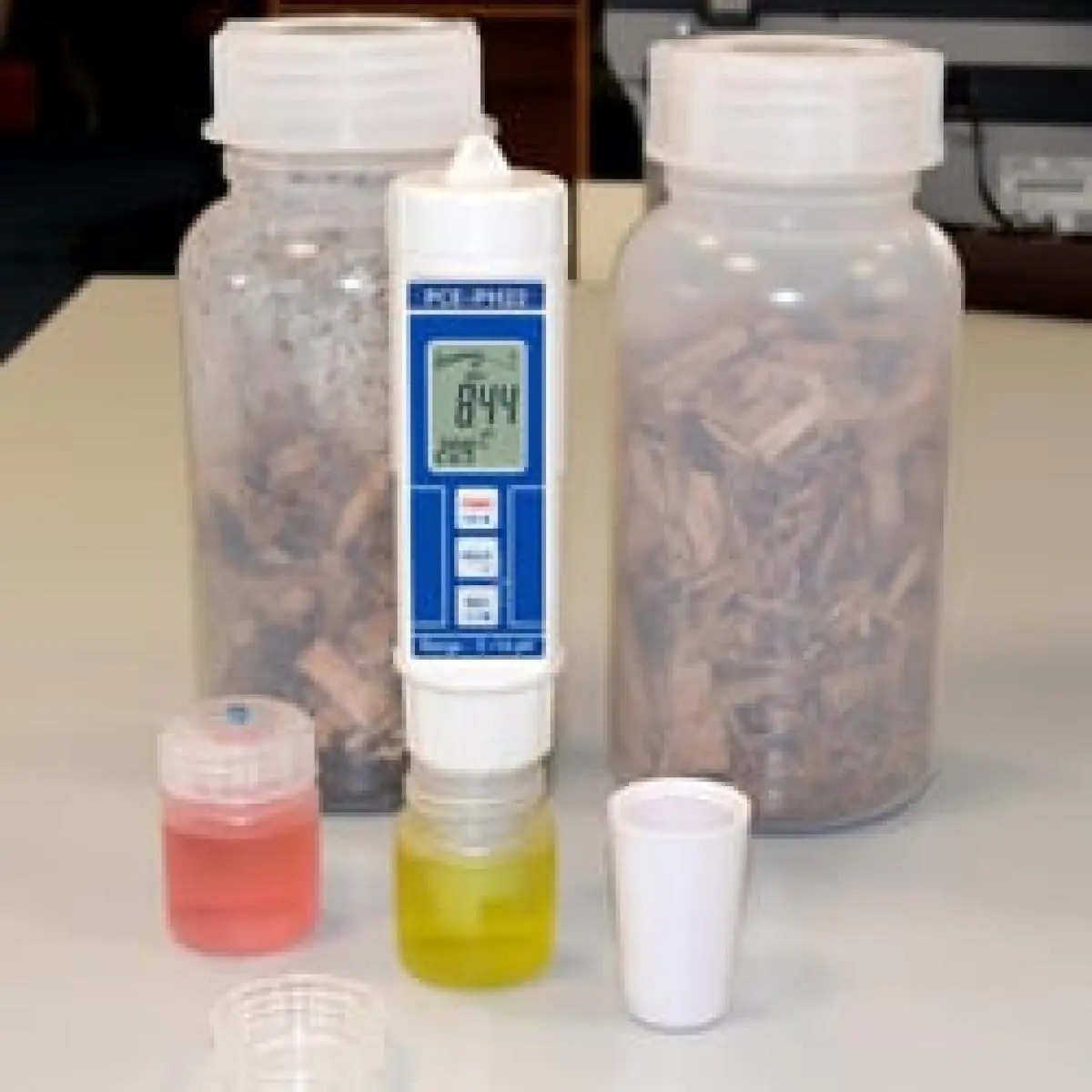

Water Analysis Meter Application picture

Water Analysis Meter PCE-PH 22

Order no.: PCE-PH 22

GTIN (EAN): 4250348701206

Accessory

ISO certificate CAL-PCE-PH for pH meters

£ 64.00

Replacement electrode for PCE-PH 22

£ 35.00

Carrying Case with hard foam insert

£ 23.00

Calibration Solution pH4 and pH7

£ 19.00

Cleaning solution pepsin / hydrochloric acid PCE-GCS-500

£ 19.00

Electrode Storage Solution 3mol / l

£ 14.00

Calibration Solution pH7

£ 10.00

Calibration Solution pH4 and pH7 and pH10

£ 24.00

Calibration Solution pH4

£ 10.00

Calibration Solution pH10

£ 12.00

Description

PCE-PH 22 Water analysis meter
Test device for the simultaneous measurement of pH and temperature

The waterproof water analysis meter is used for fast and accurate detection of pH and temperature. Due to the practical double display, both values can be read simultaneously on the water analysis meter. Due to the waterproof and robust housing (IP 67), the pH value tester can also be used under difficult conditions.

A recalibration always guarantees optimum accuracy and is very easy to perform using the optionally available calibration kits (automatic calibration function without calibration screws - to be performed only via the keyboard). With this water analysis meter, the electrode is integrated in the housing, the measured values are automatically temperature-compensated.

Highlights

- Double display pH and temperature: no separate thermometer is required

- Automatic temperature compensation

- (ATC) in the range 0 ... 80°C / 32 ... 176°F

- Temperature display (° C, ° F)

- Min / max-hold function (Data -Hold)

- 100 points datalogger (at the push of a button available in the display)

- Waterproof to IP 67

- Fully automatic calibration: Saves time and brings high accuracy

- Automatic shutdown

- Including batteries and manual

- Calibration solutions available optionally

Specification

pH
Measuring range	0 ... 14 pH
Resolution	0,01 pH
Accuracy	±0.02 pH

Temperature
Measuring range	-5 ... +80 °C
Resolution	0,1 °C
Accuracy	±0.8 °C

Temperature
Measuring range	23 ... 176 °F
Resolution	0,18 °F
Accuracy	±1.44°F

Electrode
Application	Only suitable for liquids
Shank material	Plastic
Shank length	40 mm
Shank diameter	25 mm

General technical data
Measuring functions	MIN, MAX, HOLD
Temperature compensation	-5 ... 80°C / 23 … 176°F, automatic
Display type	LCD
Display size	1,35 Inch
Storage capacity	100 Data records
Automatic power-off	10 min
Number of calibration points	3
Calibration	Automatically, at pH 4, pH 7, pH 10 using calibration solutions
Menu language	English, English (GB)
Protection class (device)	IP67
(Rechargeable) battery	4 x 1,5 V AAA battery , Alkali-manganese
Capacity	1200 mAh
Operating conditions	0 ... 60 °C , 0 ... 80 % RH
Storage conditions	0 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	186 x 40 x 32 mm
Weight	130 g
