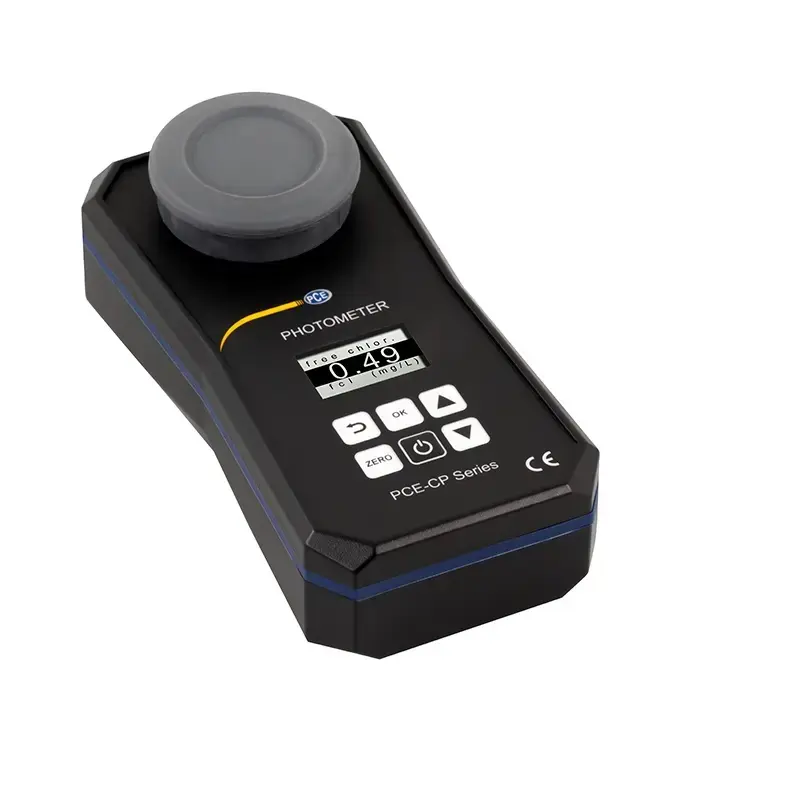

Water Analysis Meter PCE-CP 10

Water Analysis Meter PCE-CP 10 [zoom]
Water Analysis Meter PCE-CP 10

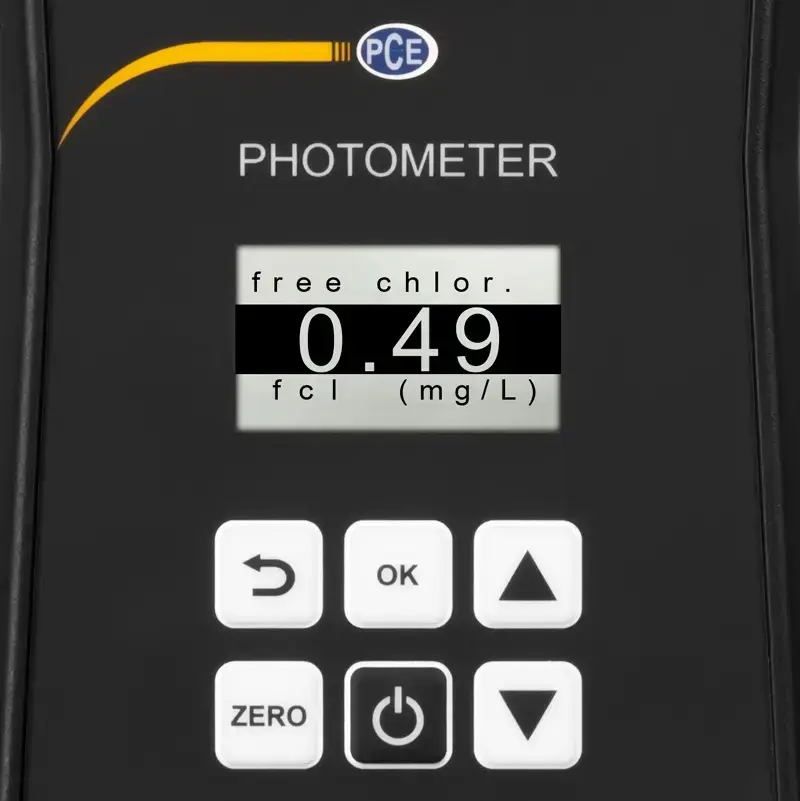

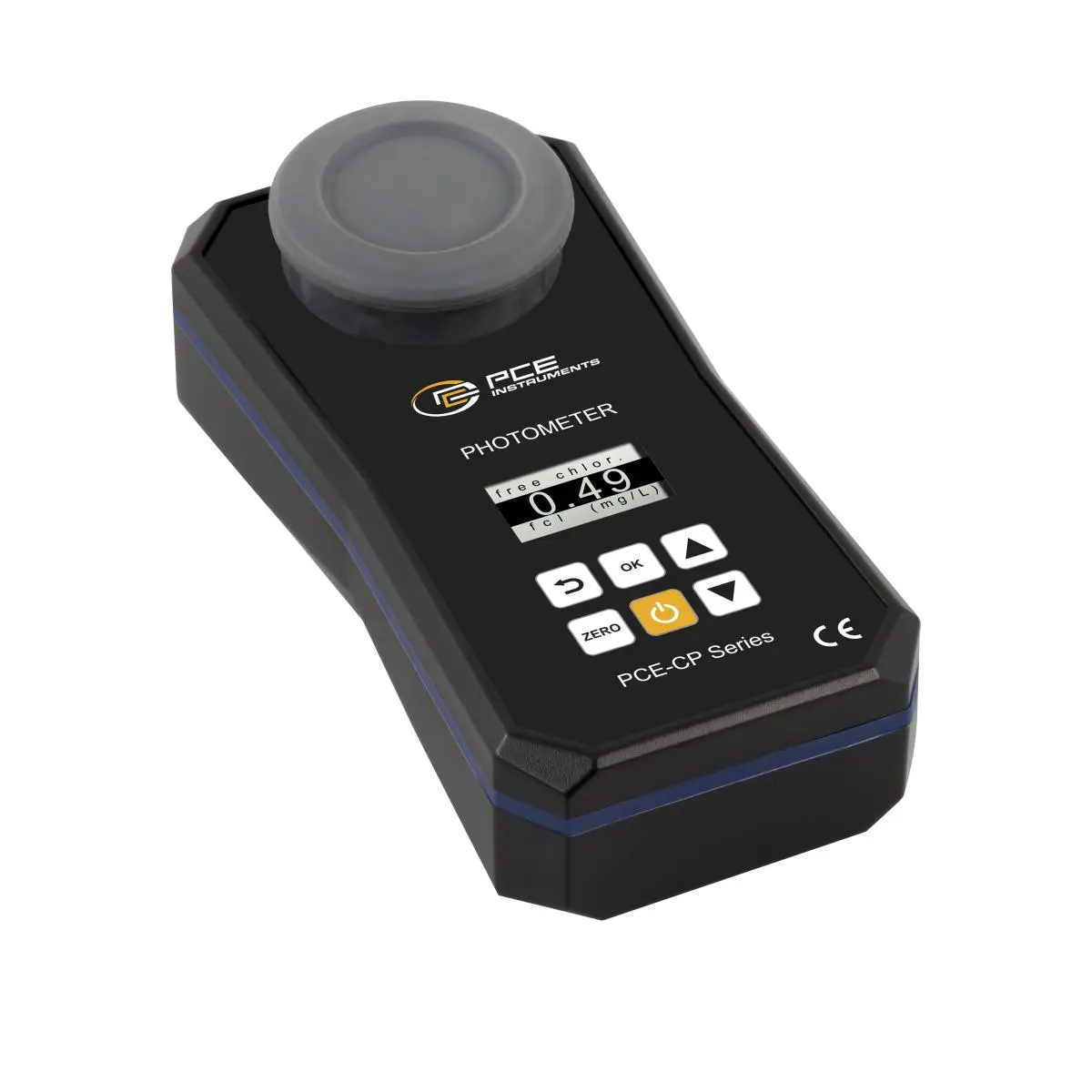

Water Analysis Meter PCE-CP 10 display

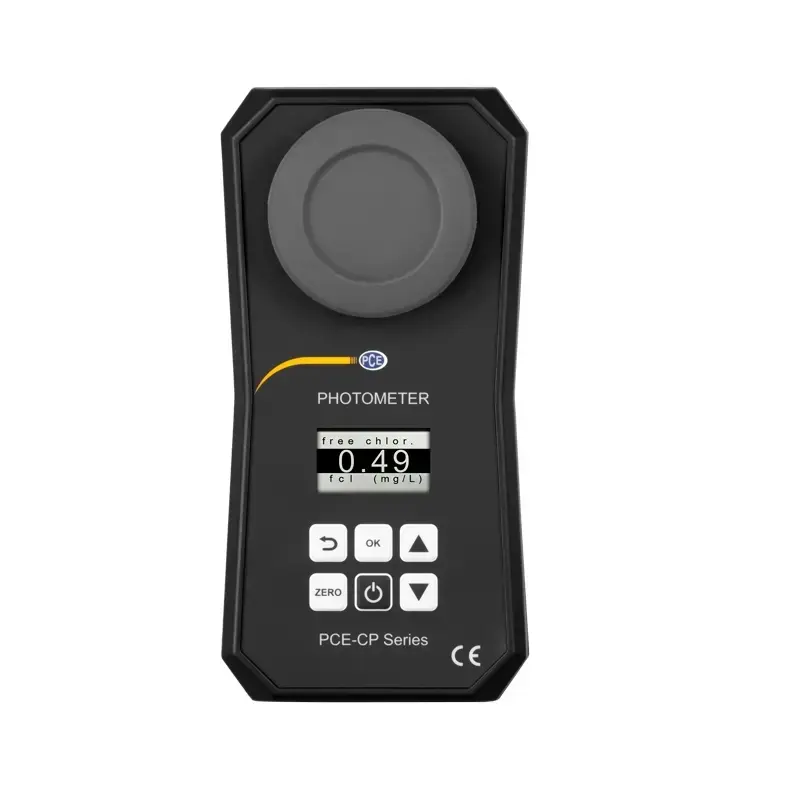

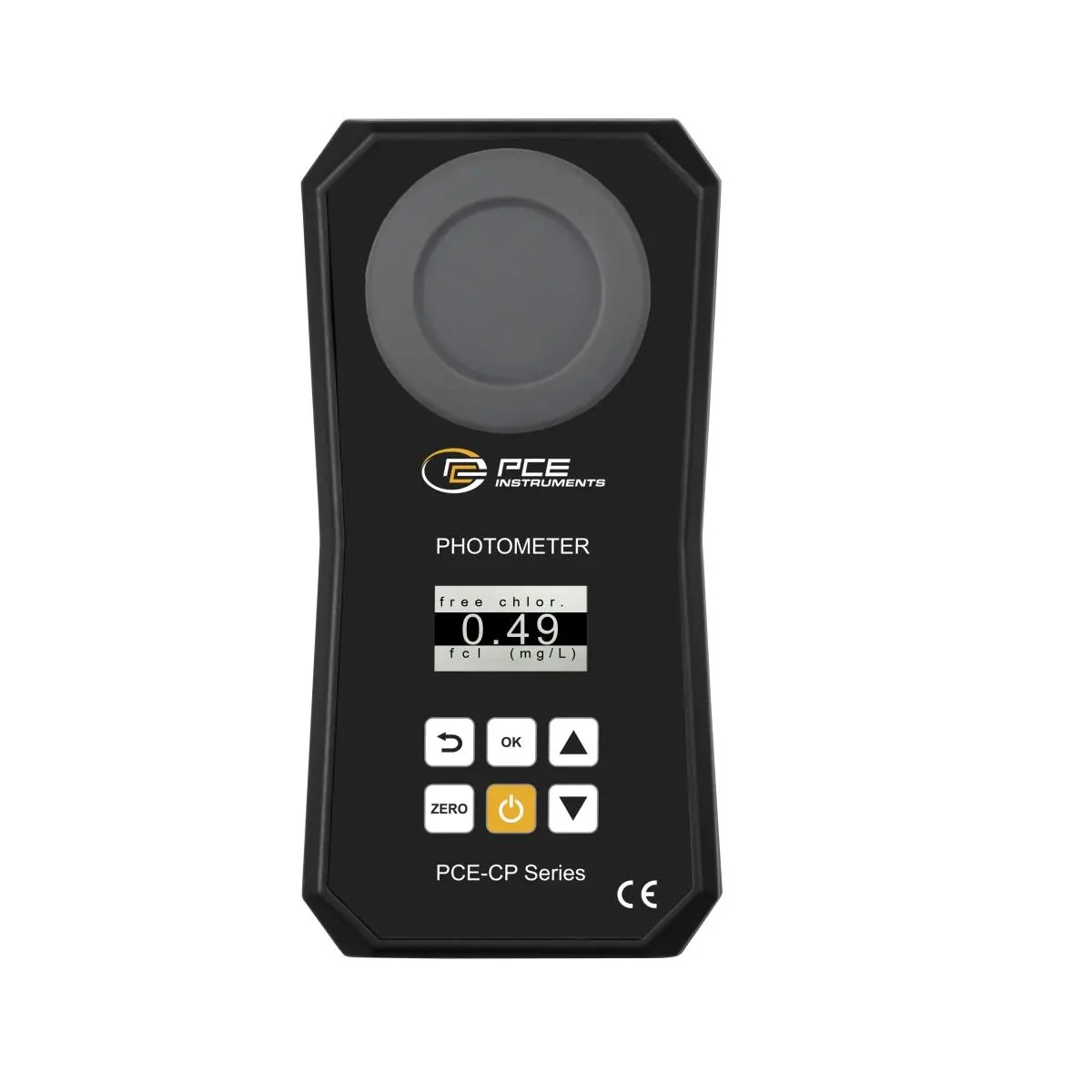

Water Analysis Meter PCE-CP 10 front

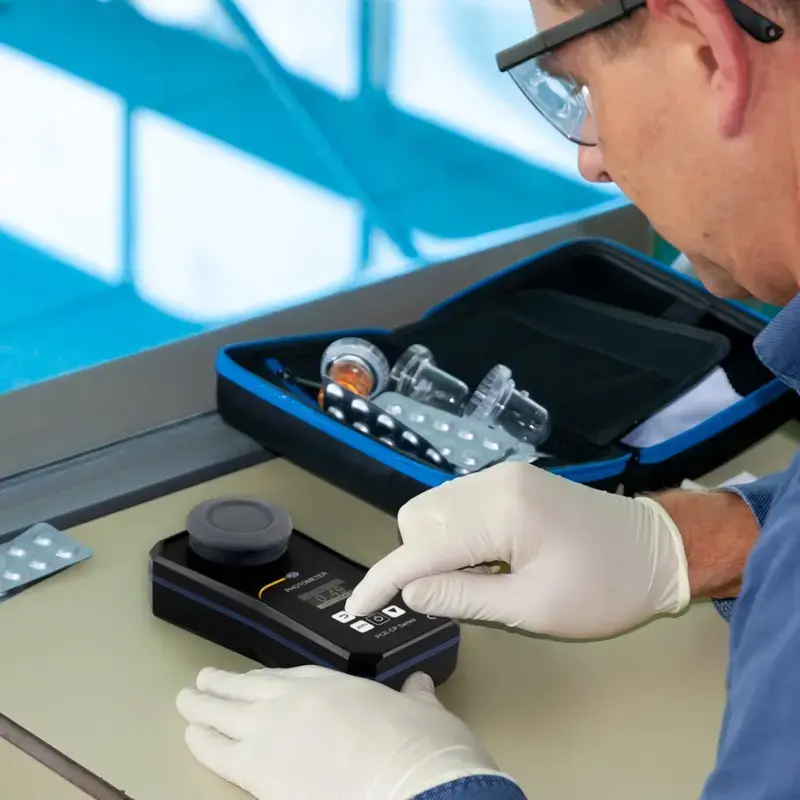

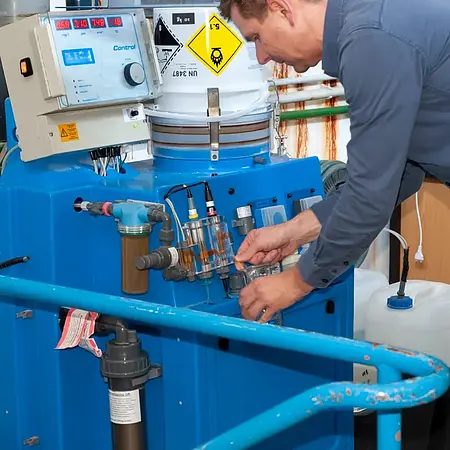

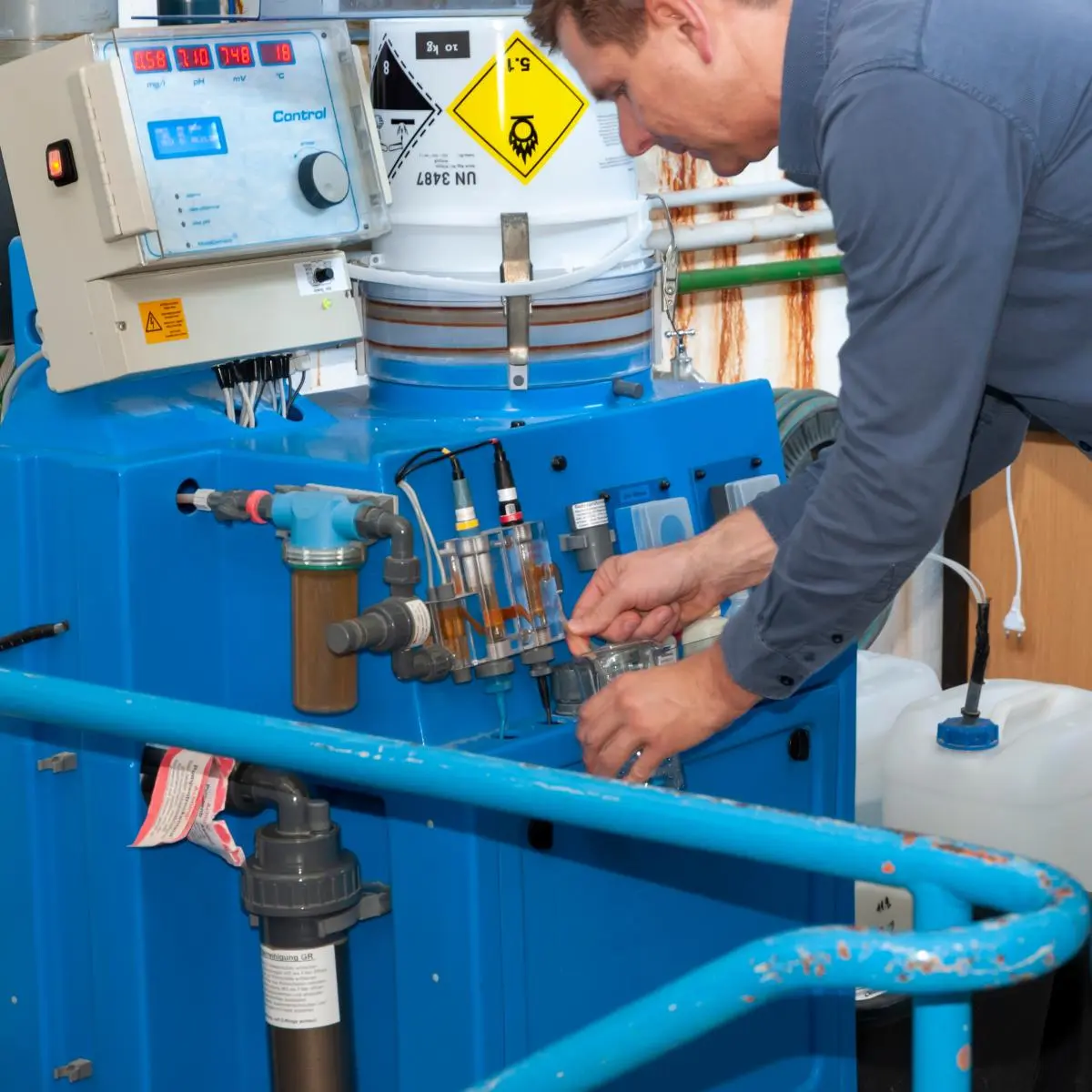

Water Analysis Meter PCE-CP 10 application
Water Analysis Meter PCE-CP 10 application
Water Analysis Meter PCE-CP 10 application
Water Analysis Meter PCE-CP 10 application
Water Analysis Meter PCE-CP 10 application
Water Analysis Meter PCE-CP 10 delivery

Water Analysis Meter PCE-CP 10

Order no.: PCE-CP 10
GTIN (EAN): 4250348722980
£ 295.00
£ 354.00
Wireless
price ex. (VAT / delivery)
:
4250348722980
PCE-CP 10
Delivery time:1-2 working days

Accessory

Description

Water analysis meter PCE-CP 10
Multi-parameter photometer with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values ​​/ Up to 5 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / storage of measured values

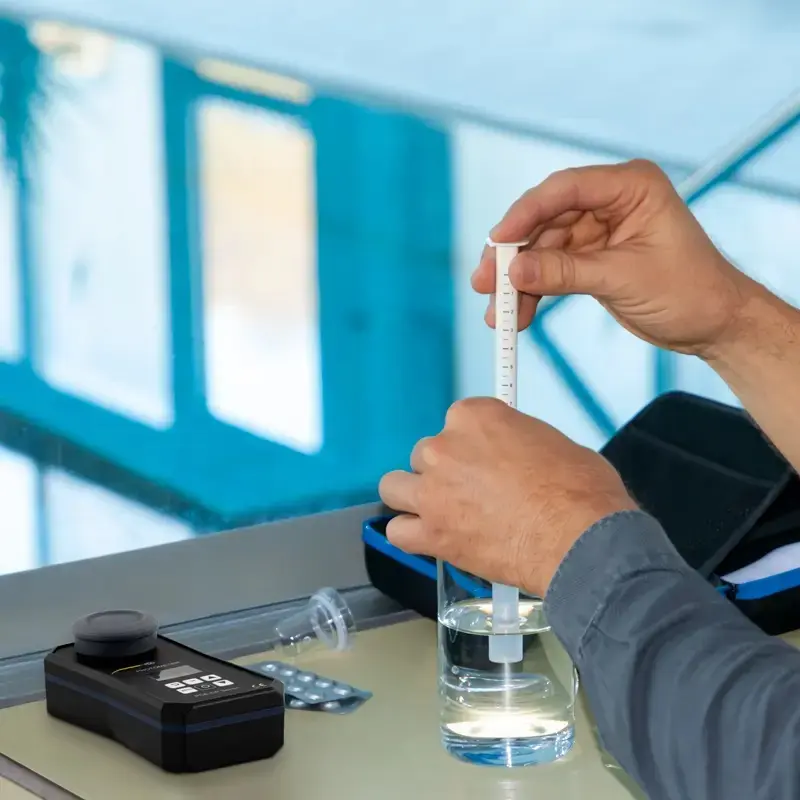

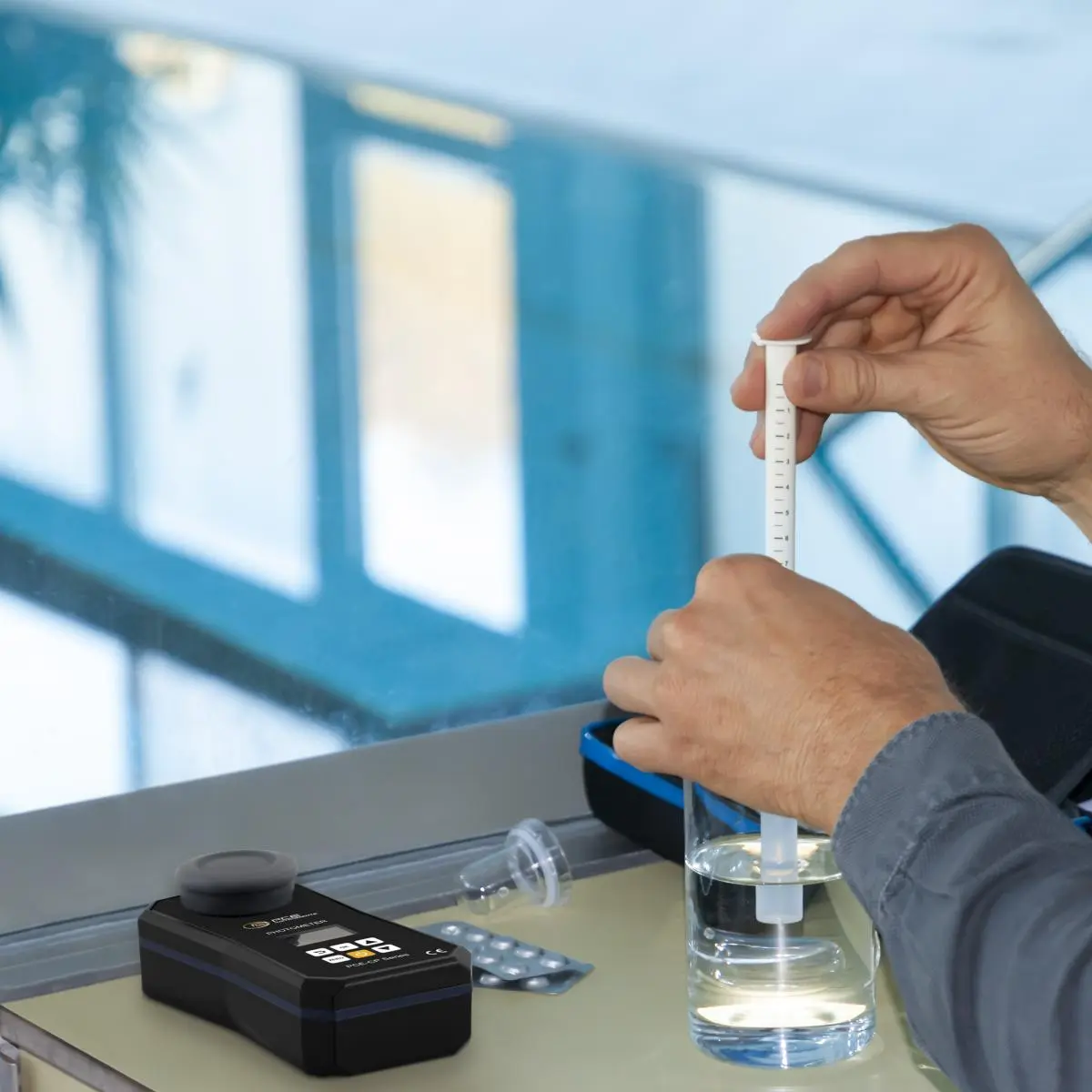

The multi-parameter water analysis meter is a mobile measuring device for liquid analysis. This means that the most varied of measurements can be carried out with the multi-parameter water analysis meter. With this multi-parameter water analysis meter it is possible, for example, to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the multi-parameter water analysis meter, a water sample of 10 ml must be placed in a cuvette. The LED built into the multi-parameter water analysis meter generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.>

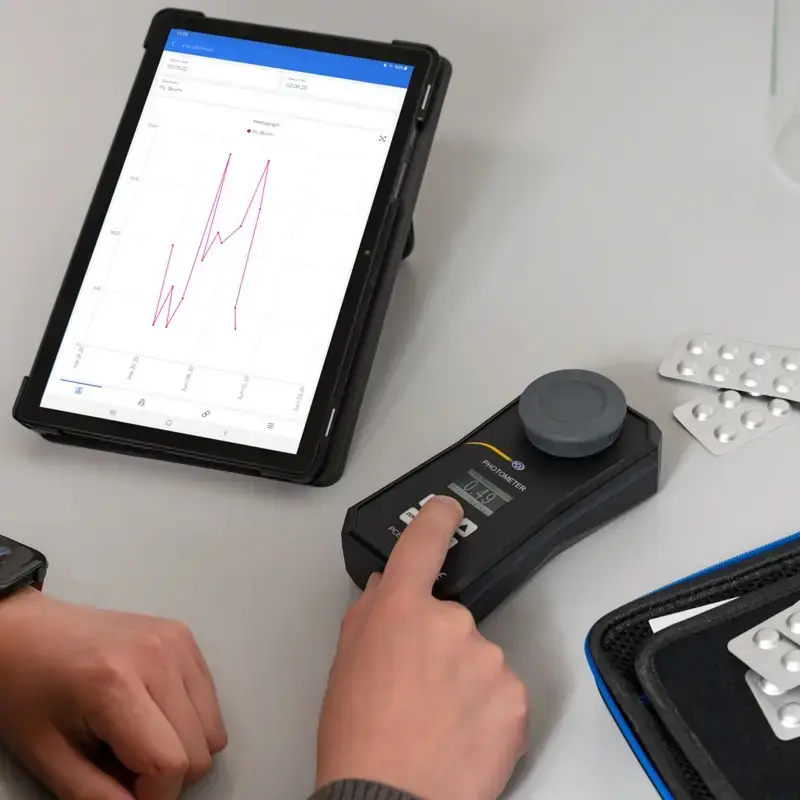

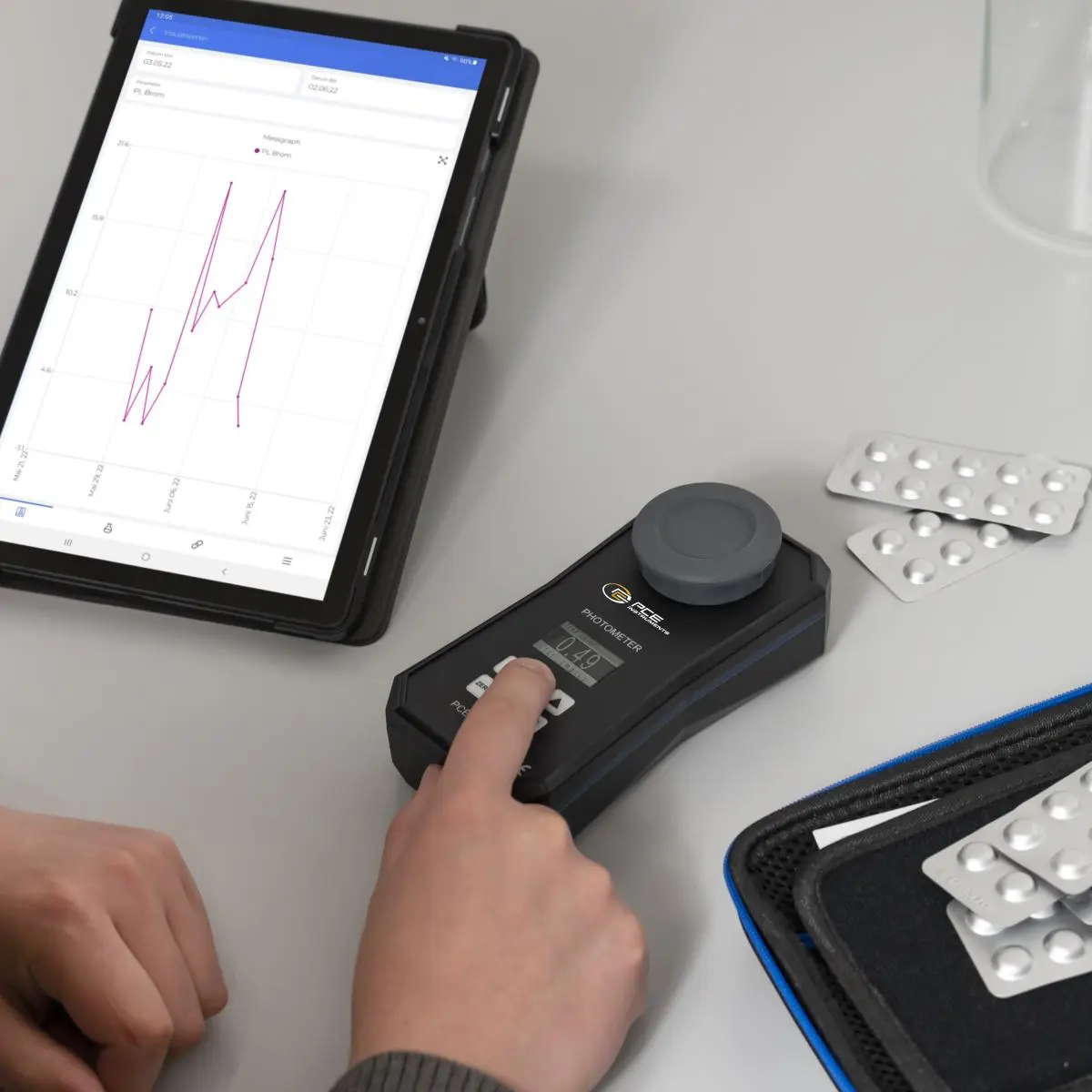

Each measurement is automatically saved by the multi-parameter water analysis meter. The stored measured values ​​can then be read out, for example, via a mobile device via the Bluetooth interface built into the multi-parameter water analysis meter. A free app is available to analyze the measured values ​​from the multi-parameter water analysis meter. It is also possible to establish a Bluetooth connection between the multi-parameter water analysis meter and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the multi-parameter water analysis meter, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the multi-parameter water analysis meter is also free of charge.

Highlights


- Up to 5 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)

Specification

Alkalinity
Measuring range     0… 30 mg / l
    30… 60 mg / l
    60… 100 mg / l
  100… 200 mg / l

Accuracy   3 mg / l
    7 mg / l
  12 mg / l
  18 mg / l

Resolution   1 mg / l

Chlorine
Measuring range 0.00 ... 2.00 mg / l
  2.00 ... 3.00 mg / l
  3.00 ... 4.00 mg / l
  4.00 ... 8.00 mg / l

Accuracy 0.10 mg / l
  0.23 mg / l
  0.75 mg / l
  1.00 mg / l

Resolution 0.01 mg / l

Cyanuric acid
Measuring range     0… 15 mg / l
    15… 50 mg / l
    50… 120 mg / l
  120… 160 mg / l

Accuracy   1 mg / l
    5 mg / l
  13 mg / l
  19 mg / l

Resolution   1 mg / l

pH
Measuring range 6.50 ... 8.40 pH
Accuracy 0.11 pH
Resolution 0.01 pH

Further specification

Calibration Zero point calibration
Light source
 503 nm / 570 nm / 620 nm LED
Light detector Photodiode
Power supply
 4 x 1.5V AA batteries
Dimensions of the cuvette               36 x ø 21 mm / 3.6 x ø 2.1 cm (10ml)
Menu languages English, German, French, Spanish and Italian
Storage Automatic storage of measured values ​​and readout
Storage space 256 values
interface Bluetooth connection with app and PC software
Automatic shutdown After 300 seconds of inactivity
Operating conditions 5 … 45°C / 41 ... 113°F, 20 ... 90% RH non-condensing
Storage conditions 5 … 45°C / 41 ... 113°F, 20 ... 90% RH non-condensing
Dimensions 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in
Weight 230 g / < 1 lb

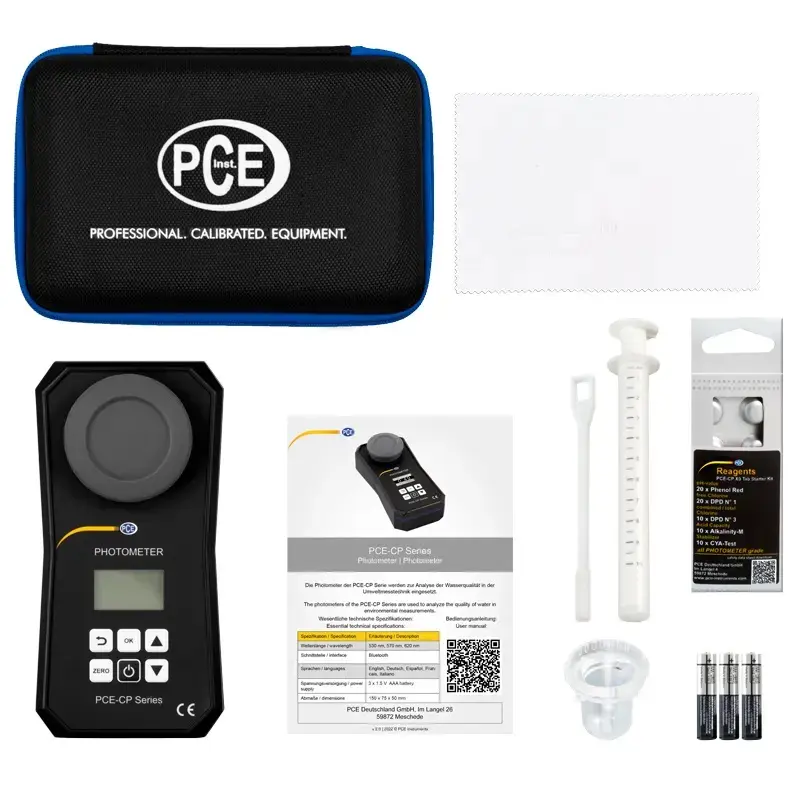

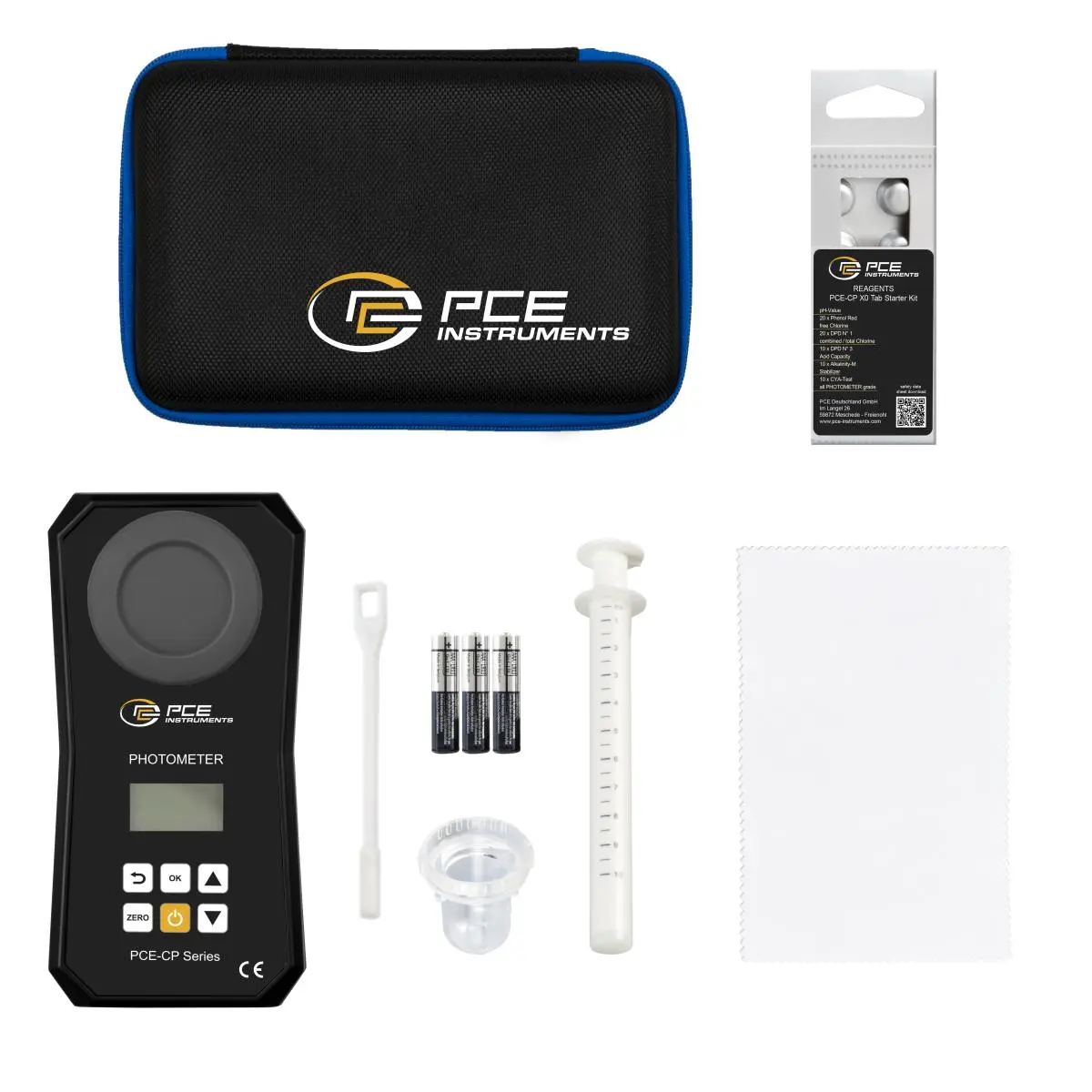

Delivery Scope

1 x Multi-parameter water analysis meter PCE-CP 10 incl. Cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
1 x Reagent starter kit (20 x pH, 20 x free chlorine, 10 x combined / total chlorine, 10 x alkalinity, 10 x cyanuric acid)
