Water Analysis Meter PCE-228SLUR-ICA incl. ISO calibration certificate

Order no.: PCE-228SLUR-ICA
ISO Calibration
£ 382.00
£ 458.40
4250348724830
PCE-228SLUR-ICA
price ex. (VAT / delivery)
pH, Redox/ORP, Temperature
Yes (SD card)
Yes (RS-232)
Delivery time: 10 - 14 days

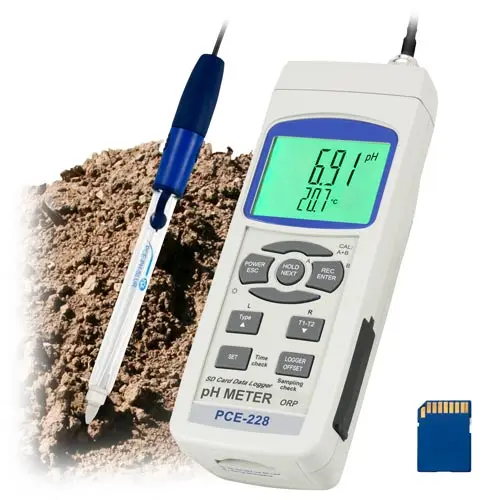

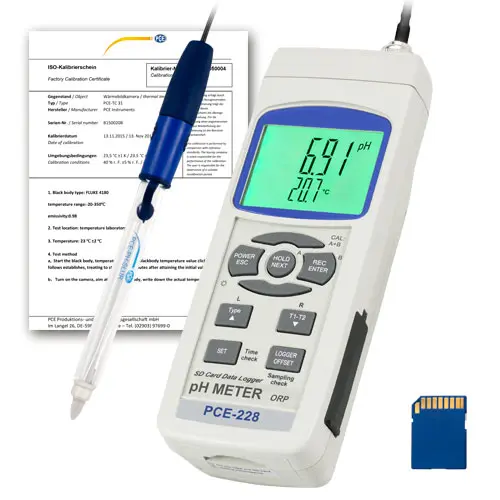

PCE-228SLUR-ICA Water analysis meter incl. ISO calibration certificate
For pH value, redox and temperature / Large, easy-to-read display / SD card memory (1 ... 16 GB), stored data is saved as an Excel file / RS-232 interface and optional software for direct transfer to the PC

The water analysis meter PCE-228SLUR-ICA is a very easy-to-use pH / mV / °C / °F handheld instrument. The pH value and the temperature can be stored directly on the SD card (Excel file) or transferred directly from the water analysis meter to a PC via the RS-232 interface. For this we optionally offer a software and the suitable RS-232 interface cable as an accessory. Temperature compensation is either manual or automatic via the supplied temperature sensor.

All this allows a fast and reliable pH measurement. The water analysis meter has a three-point calibration, which is performed automatically. It can be determined with the combination meter, the pH, the temperature or the REDOX potential (ORP). For the latter measurement parameters, however, a REDOX electrode must also be ordered. Here we recommend the ORP electrode ORP-14. The pH meter is battery operated (6 x 1.5V batteries are included).

- Optimum price / performance ratio
- SD card memory (1 ... 16 GB) - the stored data are saved directly as an Excel file on the SD card (no software needed for evaluation)
- RS-232 interface for online Data Transfer
- Measures pH, ORP & pH. Temperature
- High accuracy
- Large LCD display
- Robust housing
- Incl. PH electrode PE-03 and stainless steel temperature probe
- Automatic calibration
- Manual or automatic temperature compensation
- BNC connector
- Suitable for laboratory and on-site pH mea surement
- Additional REDOX electrode
- Adjustable measuring rate
- Easy to operate
- Incl. ISO calibration certificate
Measuring range pH

0.00 ... 14.00 pH
Resolution 0.01 pH
Accuracy ± (0.02 pH + 2d)

Measuring range redox -1999 ... 0 ... 1999 mV
(only possible with optional REDOX electrode)
Resolution 1 mV
Accuracy ± (0.5% + 2d)

Measuring range temperature 0 ... 65°C / 32 ... 149°F (only temp. Sensor)
Resolution 0.1°C / 0.18°F
Accuracy (@ 20°C) ± 0.5°C / 0.9°F

Calibration Automatic three-point calibration
Temperature Compensation Automatically from 0 ... 65°C / 32 ... 149°F or manually between 0 ... 100°C / 32 ... 212°F with the temperature sensor removed
Electrode pH electrode PCE-PH-SLUR for sludge and earth / BNC plug
Temperature range 0 ... 60°C / 32 ... 140°F
Measuring rate Adjustable from 1 second to 8 hours 59 minutes 59 seconds
Display LC display 52 x 38 mm / 2 x 1.5 in
Data storage Flexible via SD card memory 1 ... 16 GB
Interface RS-232
Software Optional
Power supply 6 x 1.5V AA batteries / 9V power adapter (optional)
Environmental conditions 0 ... 50°C / 32 ... 122°F max. 85% rh
Dimensions 177 x 68 x 45 mm / 7 x 2.7 x 1.8 in
Weight 490 g / 1.1 lbs



1 x Water analysis meter PCE-228SLUR-ICA
1 x pH electrode PCE-PH-SLUR for mud and soil
1 x SD memory card (2 GB)
1 x Temperature sensor
6 x Batteries
1 x User manual
1 x ISO calibration certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.


Accessories

Order no.: RS232-USB
Adaptor RS232 to USB
[more]
Manufacturer: USB ONLINE INT'L ELECTRONICS LIMITED
£ 29.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: SOFT-LUT-USB
USB Data Cable Incl. Software SOFT-LUT-USB
USB data cable incl. PC software for many different PCE instruments. This USB data cable connects the instrument via USB to the PC and allows a live visualisation on the PC using the software.
Manufacturer: PCE Instruments
£ 76.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: NET-LUT
Power Supply 9 V / 1 A (UK / European)

Input voltage: 220 / 110 V AC, 50 / 60 Hz
Output voltage: DC 9 V
Output current: 1 A
Connector: Approx. Ø 2.5 mm, UK / European style plug

Manufacturer: PCE Instruments
£ 22.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: BOX-LT1
Carrying Case with hard foam insert
The BOX-LT1 carrying case offers protection when transporting and storing measuring devices and their accessories.

- Inlay partly pre-punched
- Foam in the lid
- Material: plastic
- Colour: black
- Exterior dimensions: 275x245x65mm / 10.8 x 9.6 x 2.5"
Manufacturer: PCE Instruments
£ 23.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: IJ-44A
pH Electrode IJ-44A

Special pH probe:

- pH range: 0.00 ... 14.00 pH
- Zero point: 7.0 ± 0.5 pH
- Temperature range: 0 ... 60 ° C (32 ... 140 ° C)
- Electrode type: Ag / AgCL / KCL
- Length: 150 mm (6")
- Diameter: 12 mm (0.5")
- Connection: BNC

Applications:

- Cosmetics
- Paint
- Wastewater
- And more

Manufacturer: ELMETRON SP. J.
£ 132.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SSO
Electrode Storage Solution 3mol / l
Storage solution for pH electrodes 250ml or 500ml (selectable)

Potassium chloride 3 mol/l
Incl. certificate
Manufacturer: PCE Instruments
£ 12.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-DCS-250
Diaphragm Cleaner with Thiourea PCE-DCS-250
Diaphragm cleaner made of thiourea with a volume of 250 ml. For cleaning the diaphragm of a pH electrode. The diaphragm cleaner for pH meters is particularly suitable if the pH meter measures oily and greasy media.
Catalogue: Measuring Instruments / Test Meters / pH Meter / pH Tester
Manufacturer: PCE Instruments
£ 26.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-RTS-468
Redox Solution +468 mV PCE-RTS-468
Redox solution  468 mV  (500ml)
Against Pt-Ag / AgCl in 3 mol KCl
Manufacturer: PCE Instruments
£ 28.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-RTS-220
Redox Solution +240 mV PCE-RTS-220
Redox solution  240 mV  (250ml)
Against Pt-Ag / AgCl in 3 mol KCl
Manufacturer: PCE Instruments
£ 28.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: ORP-14
REDOX-Electrode ORP-14
Electrode for measuring the redox potential (ORP) - Range: ±2000 mV - Electrode structure is silver-silver/chloride gel - Measuring temp from 0 to 100 °C (32 to 212 °F) - Body length 150 mm
Manufacturer: PCE Instruments
£ 71.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-PH7
Calibration Solution pH7

Calibration Solution pH7. pH electrodes drift over time, causing measurement errors. To ensure high accuracy, we recommend regular calibration of pH meters.

- pH 7.01
- Dosing with certificate
- Various sizes can be selected!

Manufacturer: PCE Instruments
£ 10.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-PH4710
Calibration Solution pH4 and pH7 and pH10

Calibration Solution pH4, pH7 and pH10. pH electrodes drift over time, causing measurement errors. To ensure high accuracy, we recommend regular calibration of pH meters.

- pH 4, pH 7 and pH 10
- Dosing with certificate
- Various sizes can be selected!

Manufacturer: PCE Instruments
£ 24.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-PH47
Calibration Solution pH4 and pH7
Calibration Solution pH4 and pH7. pH electrodes drift over time, causing measurement errors. To ensure high accuracy, we recommend regular calibration of pH meters.

- 50ml pH 4.01 and pH 7.01
- Dosing with certificate
- Various sizes can be selected!
Manufacturer: PCE Instruments
£ 15.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-PH4
Calibration Solution pH4

Calibration Solution pH4. pH electrodes drift over time, causing measurement errors. To ensure high accuracy, we recommend regular calibration of pH meters.

- pH 4.01
- Dosing with certificate
- Various sizes can be selected!

Manufacturer: PCE Instruments
£ 10.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-PH10
Calibration Solution pH10

Calibration Solution pH10. pH electrodes drift over time, causing measurement errors. To ensure high accuracy, we recommend regular calibration of pH meters.

- pH 10.00
- Dosing with certificate
- Various sizes can be selected!

Manufacturer: PCE Instruments
£ 12.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-PH-WINE
pH Electrode for Wine PCE-PH-WINE
pH electrode especially for wine, beer and other liquids with low conductivity

- pH measuring range: 0 ... 14 pH
- Temperature range: 0 ... 80 °C / 32 ... 176 °F
- Material measuring body: glass
Catalogue: Measuring Instruments / Test Meters / pH Meter / pH Tester
Manufacturer: PCE Instruments
£ 333.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-PH-LIQ
pH Electrode PCE-PH-LIQ
pH electrode especially for beer, blood and milk products

- pH measuring range: 0 ... 14 pH
- Temperature measuring range: 0 ... 80 °C / 32 ... 176 °F
- Material of measuring body: Glass
- Suitable for small liquid volumes
Manufacturer: Sentek Ltd
£ 128.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-PH-HTE
pH Electrode PCE-PH-HTE
- Special pH electrode for higher temperatures up to 100°C / 212°F
- With BNC connection
Catalogue: Measuring Instruments / Test Meters / pH Meter / pH Tester
Manufacturer: PCE Instruments
£ 82.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PE-03
pH-Electrode PE-03
Replacement pH-electrode (BNC-connector).
Manufacturer: PCE Instruments
£ 45.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: CPC-OSH-12-01
Food pH-electrode CPC-OSH-12-01
Manufacturer: ELMETRON SP. J.
£ 160.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: TP-07
Temperature sensor TP-07
Manufacturer: PCE Instruments
£ 30.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: CAL-PCE-PH
ISO certificate CAL-PCE-PH for pH meters
ISO certificate for pH meters
Catalogue: Measuring Instruments / Test Meters / pH Meter / pH Tester
Manufacturer: PCE Instruments
£ 58.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-GCS-500
Cleaning solution pepsin / hydrochloric acid PCE-GCS-500
Cleaning solution pepsin / hydrochloric acid 500 ml
Catalogue: Measuring Instruments / Test Meters / pH Meter / pH Tester
Manufacturer: PCE Instruments
£ 19.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-PH-SLUR
pH Electrode PCE-PH-SLUR
pH electrode especially for soil, mud and slurry
- pH measuring range: 0 ... 14 pH
- Temperature measuring range: 0 ... 80 °C / 32 ... 176 °F
- Material of measuring body: Glass
Manufacturer: Sentek Ltd
£ 128.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
