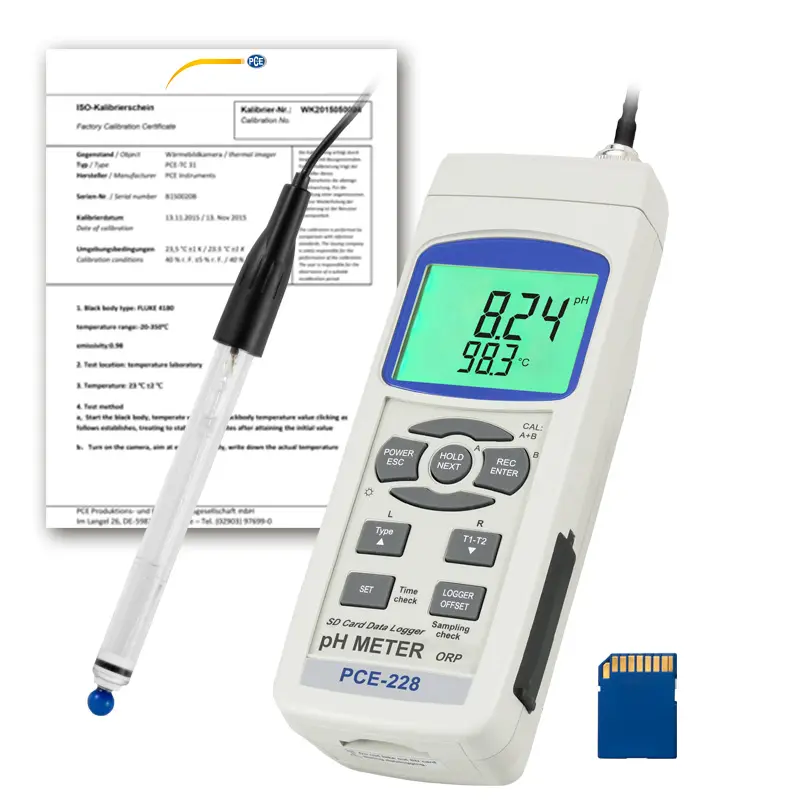

Water Analysis Meter PCE-228HTE-ICA incl. ISO Calibration Certificate

Order no.: PCE-228HTE-ICA
ISO Calibration
£ 245.00
£ 294.00
PCE-228HTE-ICA
price ex. (VAT / delivery)
Handheld
0 ... 100 °C / 32 ... 212 °F
0 ... 14 pH
Delivery time: 10 - 14 days

Water Analysis Meter PCE-228HTE-ICA incl. ISO Calibration Certificate
The
water analysis meter measures for pH, Redox and temperature /
SD memory card (1 ... 16 GB), measured values are stored in an Excel file /
Large display / RS-232 interface and optional software for the PC

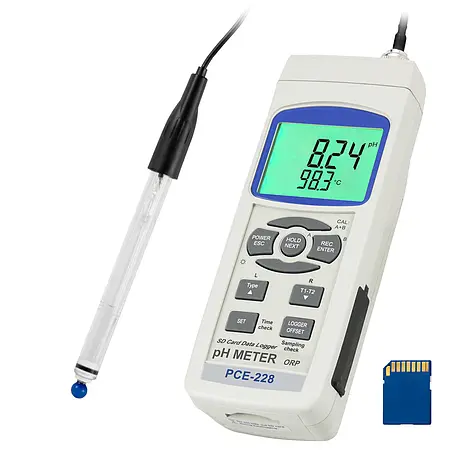

The PCE-228 water analysis meter is an easy-to-use handheld device for measuring pH, mV, °C and °F. With the PCE-228 water analysis meter, both temperature and pH values can be directly stored onto a SD card (in Excel format), or transferred to a PC through an RS-232 interface. An optional software and data cable for the PCE-228 water analysis meter are available as optional accessories to transfer data to a computer. Temperature compensation in the PCE-228 water analysis meter can be done manually or automatically by way of the temperature sensor which is included.

The water analysis meter has two calibration points. The calibration can be done with the trimmer on the side of the device which is protected under a cover. With this combined device, the user can determine pH value, temperature or Redox potency (ORP). For the latter measurement parameter, a Redox electrode must be ordered separately from the PCE-228 water analysis meter. We recommend the ORP-14 electrode. The water analysis meter is powered by a 9V battery which is included.


- Good price-performance ratio
- SD memory card (up to16 GB)
- Measured values are directly saved in the SDcard as an Excel file
- RS-232 interface for real time data transference
- Measures pH values, Redox, conductivity, salt content, oxygen and temperature
- High accuracy
- Low battery indication
- Large LCD display
- Adjustment of the measurement rate
- Easy-to-use
- Solid enclosure
- Includes pH PCE-PH-HTE electrode and a stainless steel temperature sensor
- Automatic calibration
- Manual or automatic temperature compensation
- BNC connector
- Suitable for measurements in laboratories and on site
- Optional Redox electrode
- Incl. ISO Calibration Certificate

Measurement range

0.00 to 14.00 pH
-1999 to 0 to 1999 mV (only with the optional Redox electrode)
0 ... 65°C or 32 ... 149°F (only the temperature sensor)
Resolution

0.01 pH
1 mV
0.1°C / 0.18ºF
Accuracy (at 20°C / 68ºF)



± (0.02 pH + 2 digits)
± (0.5 % + 2 digits)
±0.5°C / 0.9ºF



CalibrationAutomatic three-point calibration
Temperature compensation                    Automatic from 0 to 65°C / 32 ... 149ºF or manual between 0 and 100°C / 32 and 212ºF, Removing the temperature sensor
ElectrodepH PCE-PH-HTE electrode,
1 meter cable and BNC plug
Temperature range: 0 ... 60ºC / 32 ... 140ºF
Measurement rateAdjustable from 1 second up to
8 hours 59 min 59 sec
Display LCD display: 52 x 38 mm / 2 x 1.5 in
Memory SD card from 1 ... 16 GB
(2 GB memory card included)
InterfaceRS-232
SoftwareOptional
Power supply6 x 1.5V AA batteries /Mains adapter / AC power adapter 9V (optional)
Operating conditions0 ... 50°C / 32 ... 155°F, max. 80% r.h.
Dimensions177 x 68 x 45 mm / 7 x 2.7 x 1.8 in
Weight490 g / 1.1 lb

1 x PCE-228HTE water analysis meter
1 x PCE-PH-HTE electrode
1 x SD memory card (2 GB)
1 x Temperature sensor
6 x Batteries
1 x Manual
1 x ISO Calibration Certificate
