Voltmeter PCE-DC3

Voltmeter PCE-DC3

Order no.: PCE-DC3
GTIN (EAN): 4250348700698
£ 113.00
£ 135.60
price ex. (VAT / delivery)
:
4250348700698
PCE-DC3
Delivery time:1-2 working days

Description

Voltmeter
DCA zero point function / AC/DC current measurement up to 80 A /
Automatic range selection / Clamp opening: 18 mm / 0.7"

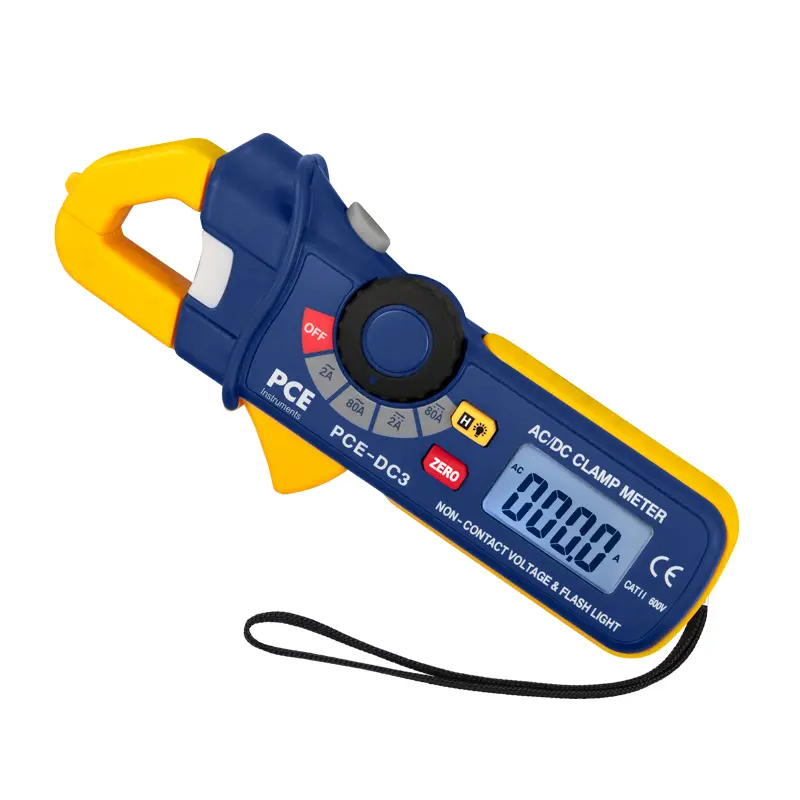

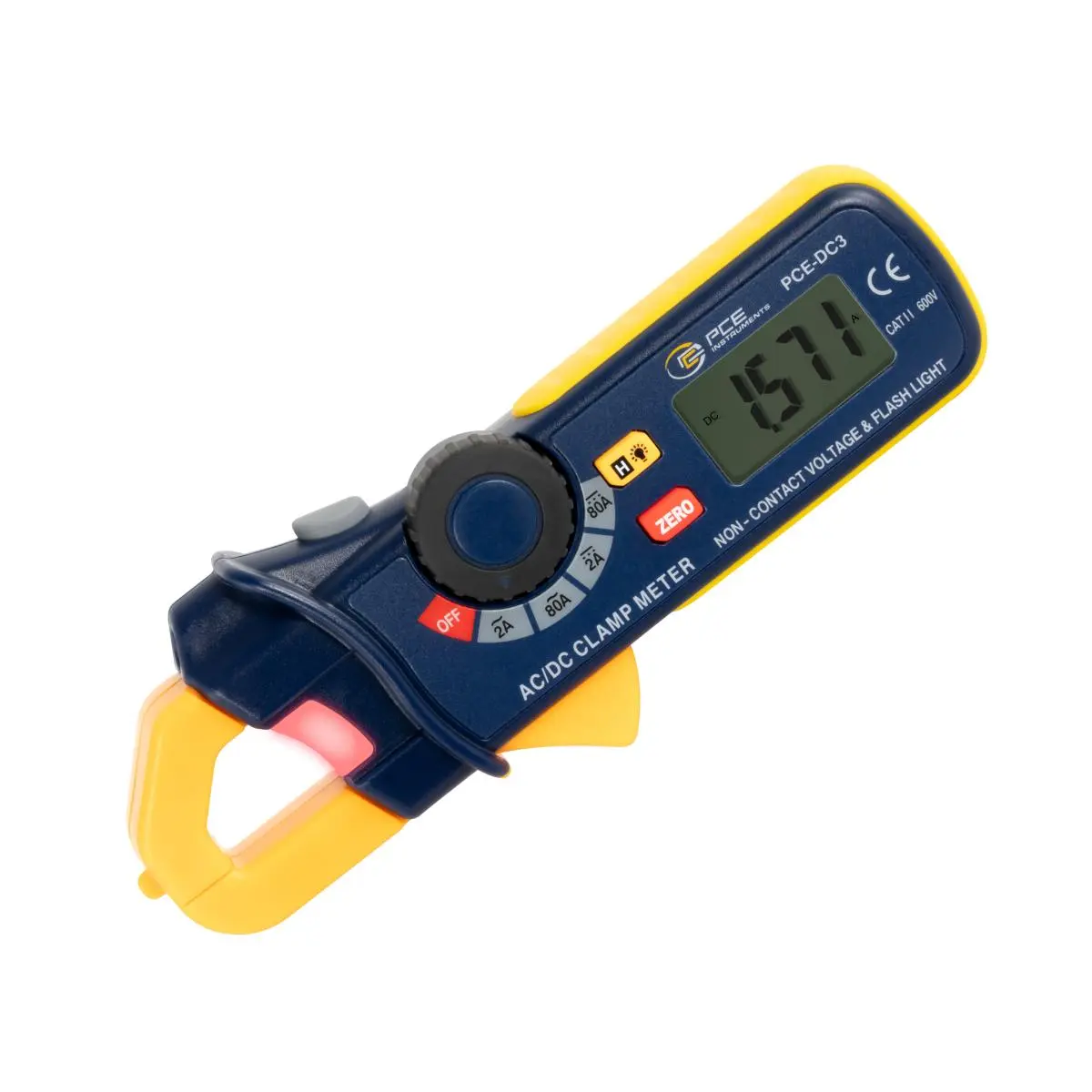

This voltmeter was developed for the indirect measurement of AC/DC currents with high resolution. A non-contact voltage tester function and a torch/flashlight for illuminating the measuring point have also been integrated into this clamp meter. The small dimensions of this amperage clamp enable it to be used in places that are difficult to access.

The large, illuminated display of these measuring clamps ensures very good readability even in dark locations, such as in switch cabinets and cable ducts. The non-contact voltage tester function not only supports you in the detection of dangerous voltage potentials, but also gives you a precise tool for determining cable break positions in cable reels, extension cables and appliance connection cables.

Highlights

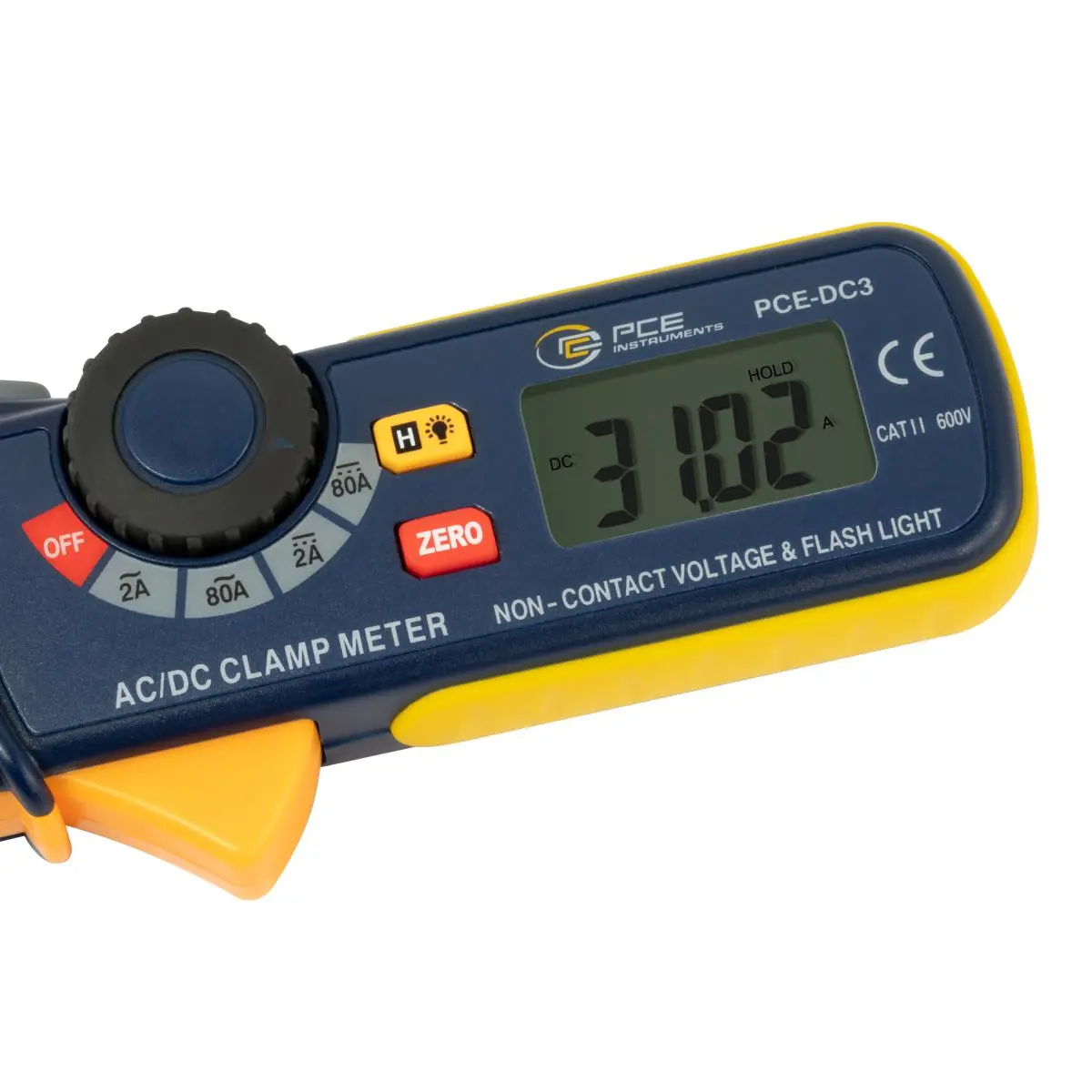

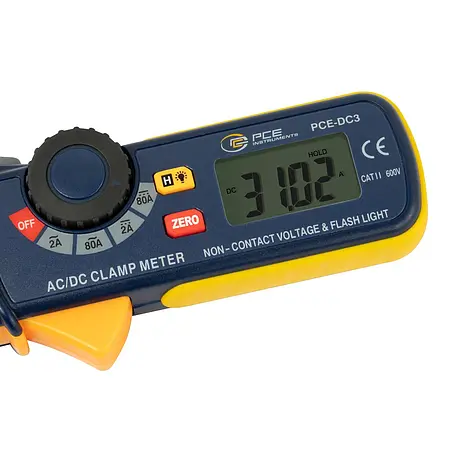

- 4-digit LCD display with backlight
- AC/DC current measurement up to 80 amps
- Save function
- DCA zero adjustment
- Current tester

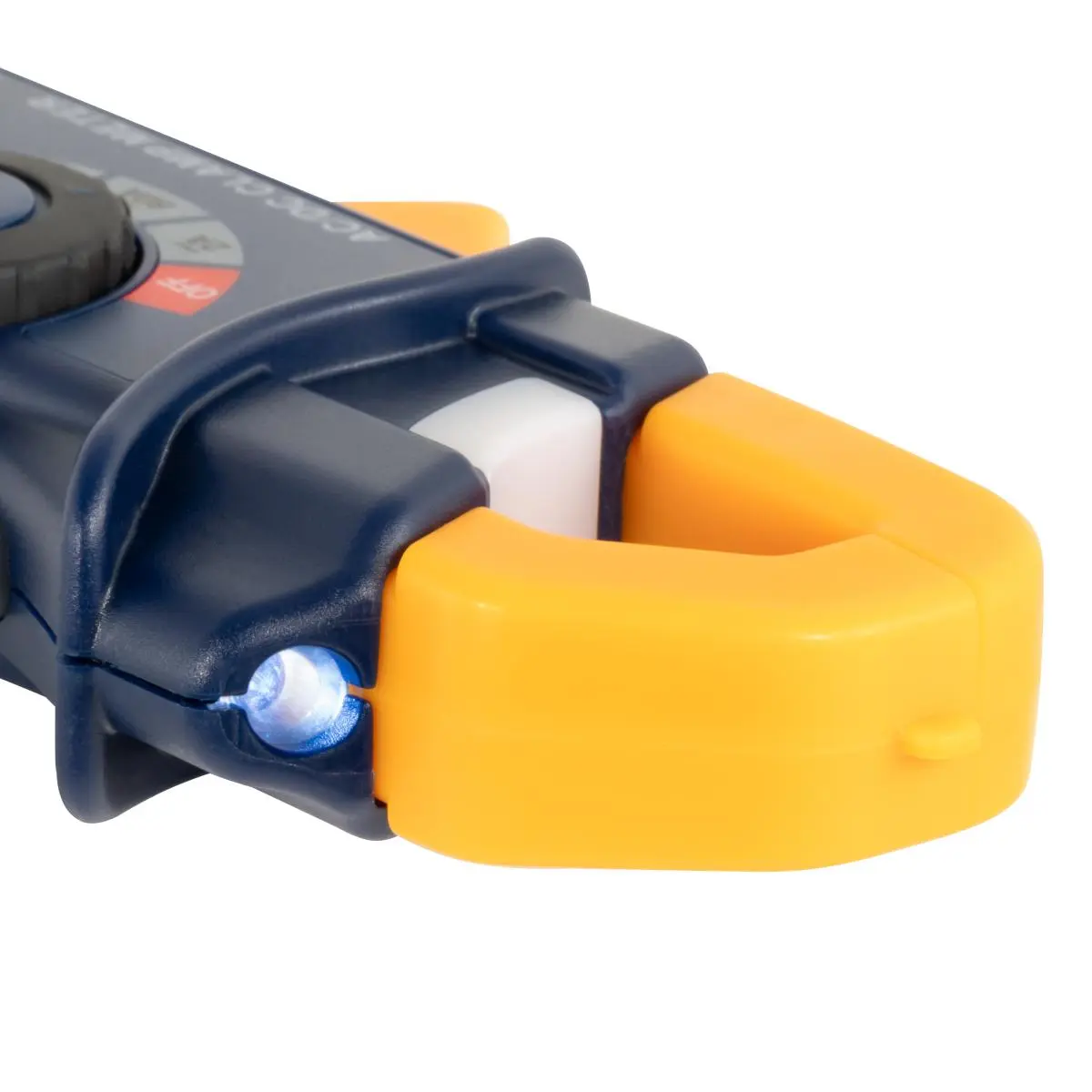

- Integrated flashlight
- Automatic range selection

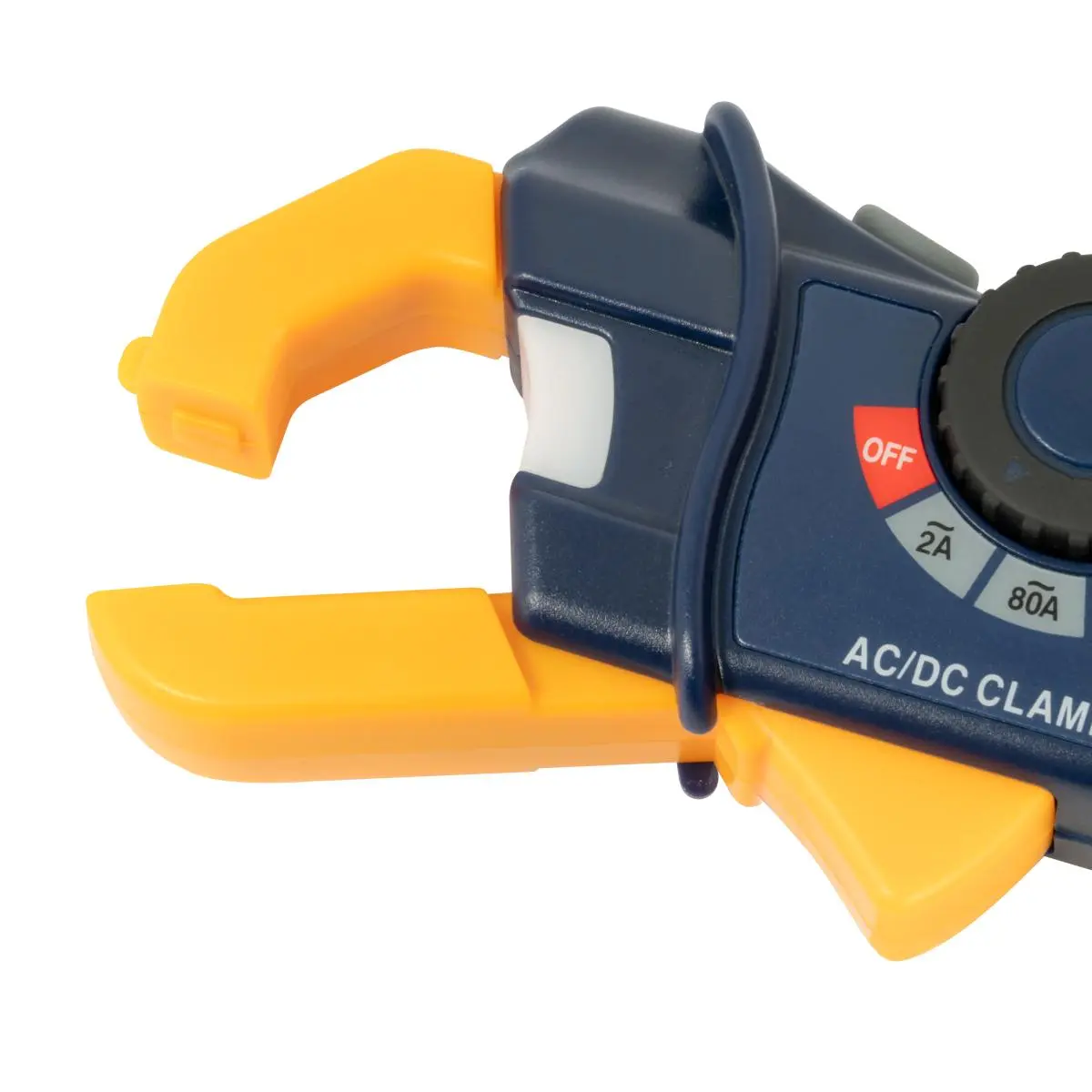

- Jaw opening of 18 mm / 0.7 in

Specification

Direct current DC
Measuring range  0 ... 2 A
Resolution  0,001 A
Accuracy  ±(3.0% +10 digits)

Direct current DC
Measuring range  0 ... 80 A
Resolution  0,1 A
Accuracy  ±(3.0% +8 Digits)

Alternating current AC
Measuring range  0 ... 2 A
Resolution  0,001 A
Accuracy  ±(2.8% +10 digits)

Alternating current AC
Measuring range  0 ... 80 A
Resolution  0,1 A
Accuracy  ±(3.0% +8 Digits)

General technical data
Display type  LCD with backlight
Display size  1,4 in
Measuring rate  2 x per second
Standard(s)  EN 61010-1, EN 61010-2-032
Maximum cable diameter  18 mm
Automatic power-off  7 min
Safety standard  CAT II / 600V
Menu language  English, English (GB)
Protection class (device)  IP20

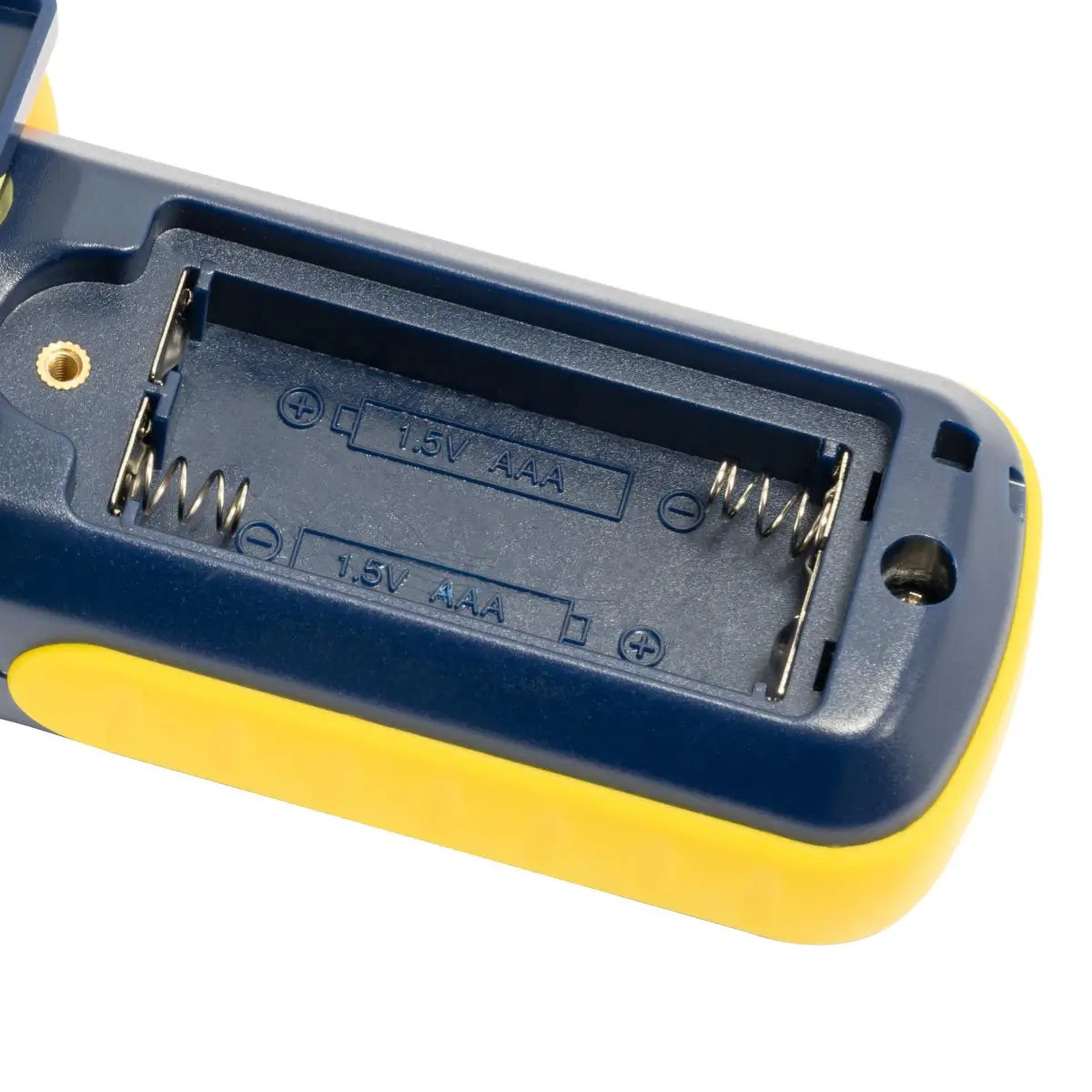

(Rechargeable) battery  2 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  0 ... 50 °C , 0 ... 90 % RH
Storage conditions  -30 ... 60 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  164 x 65 x 32 mm
Weight  175 g

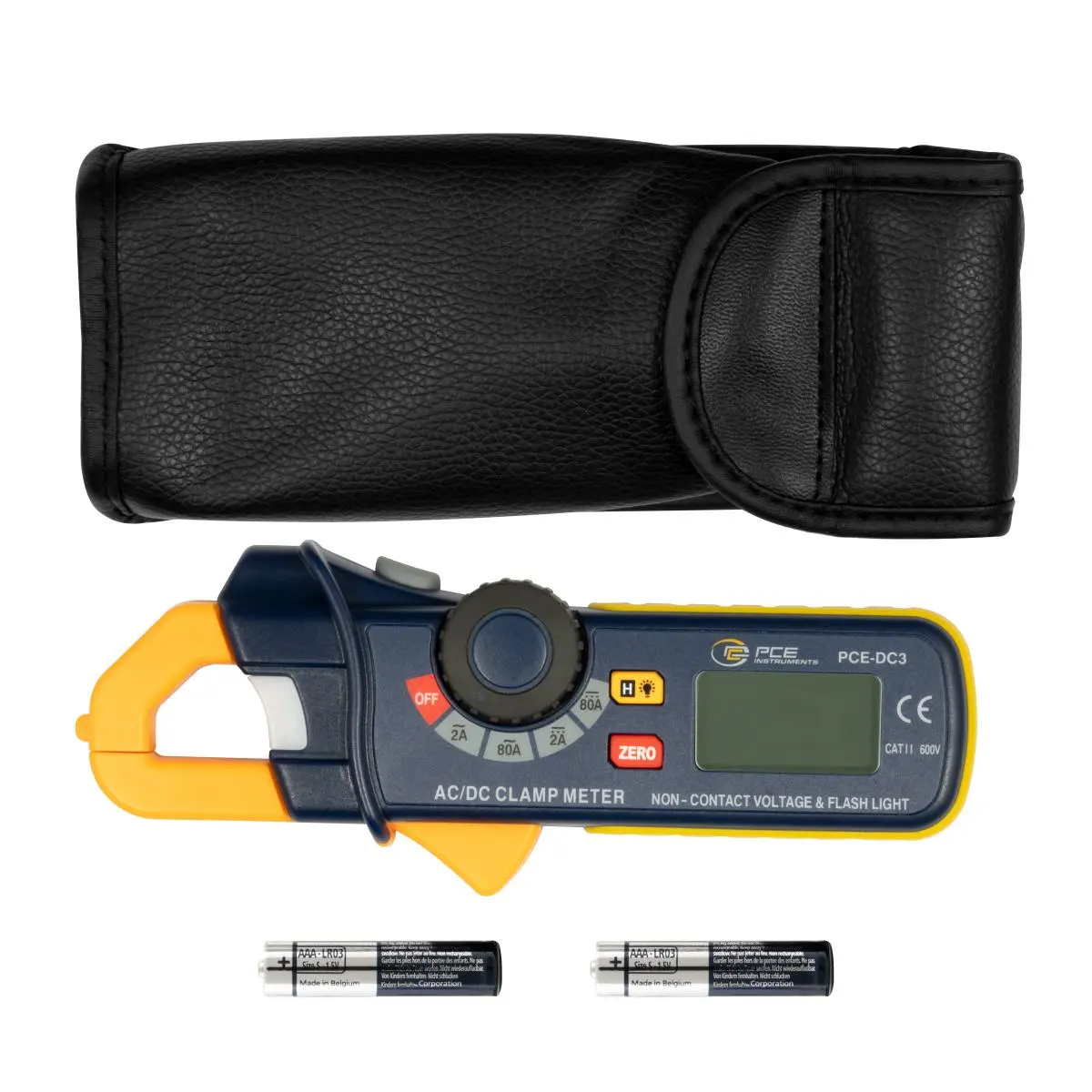

Delivery Scope

1 x PCE-DC3 Voltmeter
1 x Case
2 x Batteries
1 x User manual
