Voltmeter (DMM)

Order no.: PCE-TT 4
The voltmeter is a measuring device for fast and precise measurement. Thanks to its extensive measuring function, the voltmeter already covers a wide range of electrical measurements.

Measuring function
- Voltage measurement DC
- Voltage measurement AC
- Resistance
- Capacity
- Current measurement DC
- Temperature measurement (K-type)
- Overvoltage protection
Manufacturer: PCE Instruments
Test Instruments manufacturer

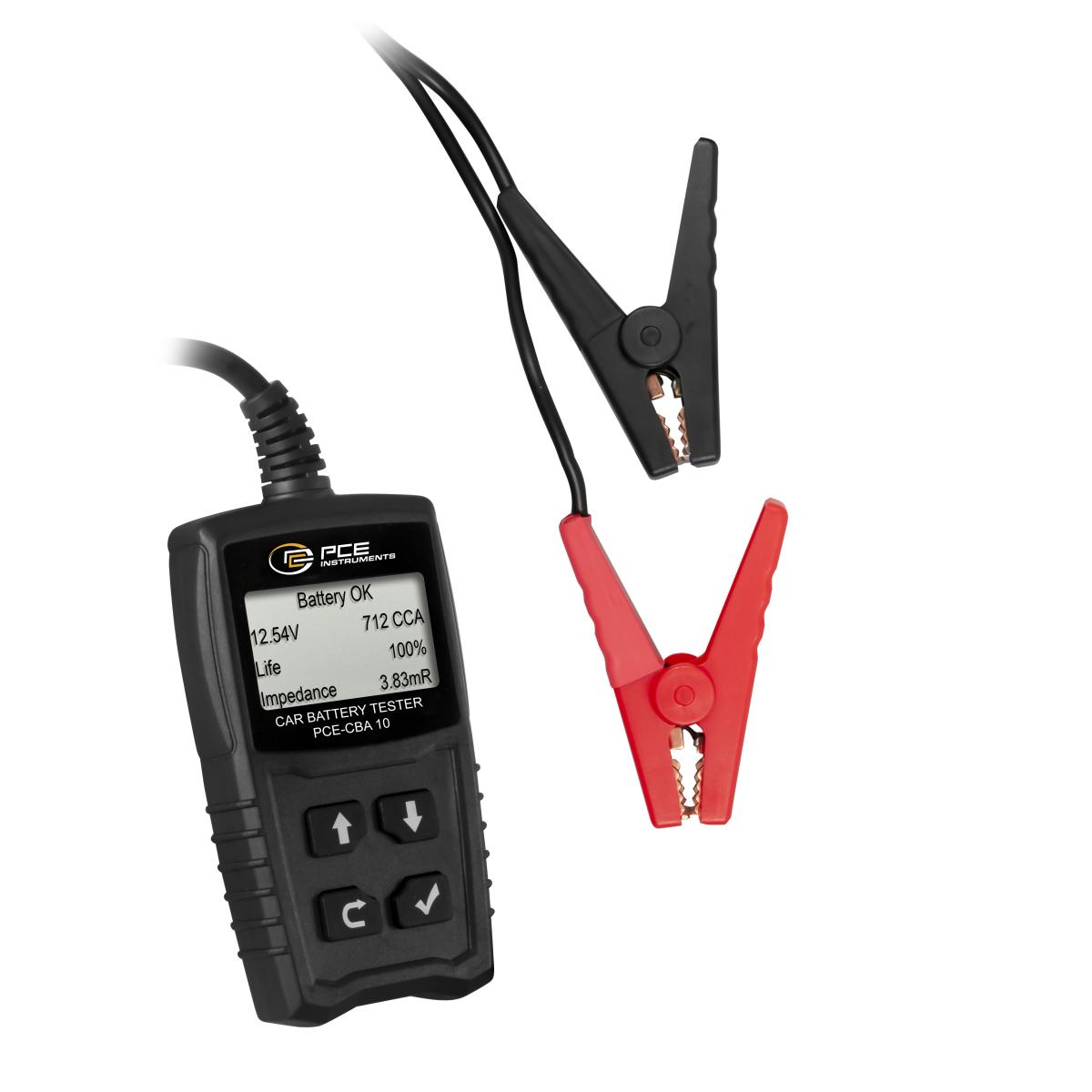

Order no.: PCE-CBA 10

The voltmeter PCE-CBA 10 can be used as a car battery tester. To test the battery, the voltmeter can measure, inter alia, the starting current to determine the capacity of the car battery in the range between 30 and 100 Ah.

- For 12V starter batteries
- Cold start current CCA:  100 ... 1700 A
- Battery capacity:  30 Ah ... 100 Ah
- Battery standards:  DIN, JIS, EN, IEC, SAE, GB & MCA

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DC 10
The voltmeter is an ideal measuring device for the fast measurement of currents and voltages. To perform current measurements, a voltmeter must be connected in series to the load.

Measuring function
- AC power
- AC voltage
- DC voltage
- Resistance
- Frequency
- Duty cycle
- Three measurements per second
- "SMART" function facilitates operation
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DC1

Mini Voltmeter for measuring AC current, AC voltage, DC current and frequency.


- AC current (50/60 Hz): 200 A / 0.1 A or 100 mA / ±3.0% + 8 digits
- DC current: 200 A / 0.1 A or 100 mA / ±2.8% + 8 digits
- AC test voltage (without contact): 100 VAC to 600 VAC 50 / 60 Hz
- Frequency: 40 to 50 Hz / 51 to 510 Hz/ 0.51 to 1 kHz



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DC2

Digital Clamp Meter for measuring AC/DC current, AC voltage and resistance. This clamp meter is designed to indirectly detect AC/DC current and ohms. The clamp has white LEDs which illuminate the point of measurement and test the voltage without contact. Small dimensions of this device allow to take measurements in places with limited access. The clamp meter comes manufacturer calibrated and can optionally be certified according to ISO or standards.


- AC / DC current, voltage and resistance measurement
- 3 2/3-digit LCD display
- Power supply: 2 x 1.5V AAA battery
- Dimensions: 164 x 65 x 32 mm / 6.4 x 2.5 x 1.2 in



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DC3

Voltmeter to determine indirectly, the AC/DC currents with high accuracy.


- AC current (50 / 60 Hz): 2 A  / 1 mA / ± 2.8 % + 10 dgt
- DC current: 2 A / 1 mA / ± 3.0 % + 10 dgt
- AC overload protection: 100 VAC up to 600 VAC 50 / 60 Hz



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DC 20
The voltmeter is a versatile measuring instrument for the determination of currents, voltages and many other electrical quantities. With a current clamp opening of 40 mm / 1.6 in, even cables with a larger diameter can be tested with the voltmeter.

Measurement functions
- DC power
- AC power
- DC voltage
- AC voltage
- Resistance
- Frequency (direct)
- Frequency (current clamp)
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-LT 12
The voltmeter is a versatile measuring instrument. In addition to the standard voltage and current measurements, the voltmeter also has a network analysis. With this network analysis, the voltmeter can be used to check, for example, LAN connections for their correct wiring and function.

Measurement function:
- AC voltage
- DC voltage
- AC
- DC
- Resistance
- Diode measurement
- Continuity test
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-LCT 1

Voltmeter to test leakage / RMS measurement / continuity and resistance test.


- Measures current up to 100 A
- Measures voltage up to 600 V
- Measures resistance up to 400 O
- Test cables are included



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-DC 41

The voltmeter PCE-DC 41 can measure voltages up to 600 V, currents up to 600 A and electrical resistance up to 1000 Ω. To perform a measurement, you can either use the measuring leads, which are included in the package of the voltmeter, or you can use the integrated clamp mechanism. By using the clamp of the voltmeter, you are able to measure the electrical parameters of an electrical conductor contact-free and without disconnecting it.


- Voltage: 600 V AC/DC
- Current: 600 A AC/DC
- Electrical Resistance: 1000 Ω
- Clamp mechanism



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-ODM 10
This PCE-ODM 10 voltmeter features both automatic and manual ranging and a dual OLED display. The measured values ​​are displayed on the OLED number display up to 6,000 digits and in the bar graph.

Measuring function
- DC DC
- AC voltage AC (TRMS)
- AC + DC TRMS voltage
- DC DC
- AC AC (TRMS)
- 4 ... 20-mA %
- AC AC / Rogowski coil
- Resistance
- Frequency
- Duty cycle
- Capacity
- Temperature / thermocouple
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-LT 15
The voltmeter PCE-LT 15 is a combination device which detects configuration errors in the network and can be used as a voltmeter at the same time. Thus, the periphery of a network can be quickly checked with the LAN tester.

Measuring function:
- AC voltage: 750V
- DC voltage: 1000V
- Resistance: 4 MΩ
- Continuity test: 400 Ω
- Electrical safety: CAT III 600V
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-ODM 12
This PCE-ODM 12 voltmeter features both automatic and manual ranging and a dual OLED display. The measured values ​​are displayed on the OLED number display up to 6,000 digits and in the bar graph.

Measuring function
- DC DC
- AC voltage AC (TRMS)
- AC + DC TRMS voltage
- DC DC
- AC AC (TRMS)
- 4 ... 20-mA %
- AC AC / Rogowski coil
- Resistance
- Frequency
- Duty cycle
- Capacity
- Temperature / thermocouple
- Interface: Bluetooth BLE
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-LCT 3
The voltmeter is the ideal measuring device to measure leakage currents. This is made possible by the extensive measuring range of the voltmeter.

Measuring function
- AC current measurement
- DC voltage
- AC voltage
- Resistance
- Continuity test
- Temperature
- Capacity
- Diode test
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-PCM 3
With the voltmeter AC currents of up to 1000 A AC can be measured easily. At the same time, voltages of up to 1000V AC / DC can be measured with the voltmeter.

Measuring function
- Current measurement AC
- Inrush current AC
- Voltage measurement DC
- Voltage measurement AC
- Frequency measurement
- Frequency measurement current measurement function
- Frequency measurement voltage measurement function
- Duty cycle
- Resistance measurement
- Continuity test
- Capacity measurement
- Diode measurement
- Single-phase power measurement
- Power factor capacitive / inductive
- Harmonics measurement
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-123

PCE-123 is a voltmeter used to test and calibrate a variety of measuring instruments. Offering a high level of accuracy for an affordable price, this easy-to-use voltmeter provides electrical (mA, mV, V and frequency in Hz) and temperature (in °C or °F) output signals, making the voltmeter useful in a wide range of applications.


- DC current: 4 - 20 mA (1 kΩ load, 24 V loop supply) with 1 μA resolution
- DC voltage: 0 - 100.00 mV, 0 - 1.000 V, 0 - 12.000 V
- K, J, E, T type thermocouples (°C or °F)
- Frequency: 1 - 62,500 Hz



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-GPA 50
The PCE-GPA 50 voltmeter is used to measure the current of 1- or 3-phase loads. This voltmeterPCE-GPA 50 is particularly characterized by its measuring range up to 2000 A. Another highlight is the graphic display of the voltmeter.

Measurement functions
- AC voltage AC V
- AC AC
- Power factor (PF)
- Phase angle
- Frequency
- Active, reactive and apparent power
- Harmonic AC V
- AC
- harmonic AC V%
- Absolute harmonic distortion
- Temperature type K thermocouple
Manufacturer: PCE Instruments
