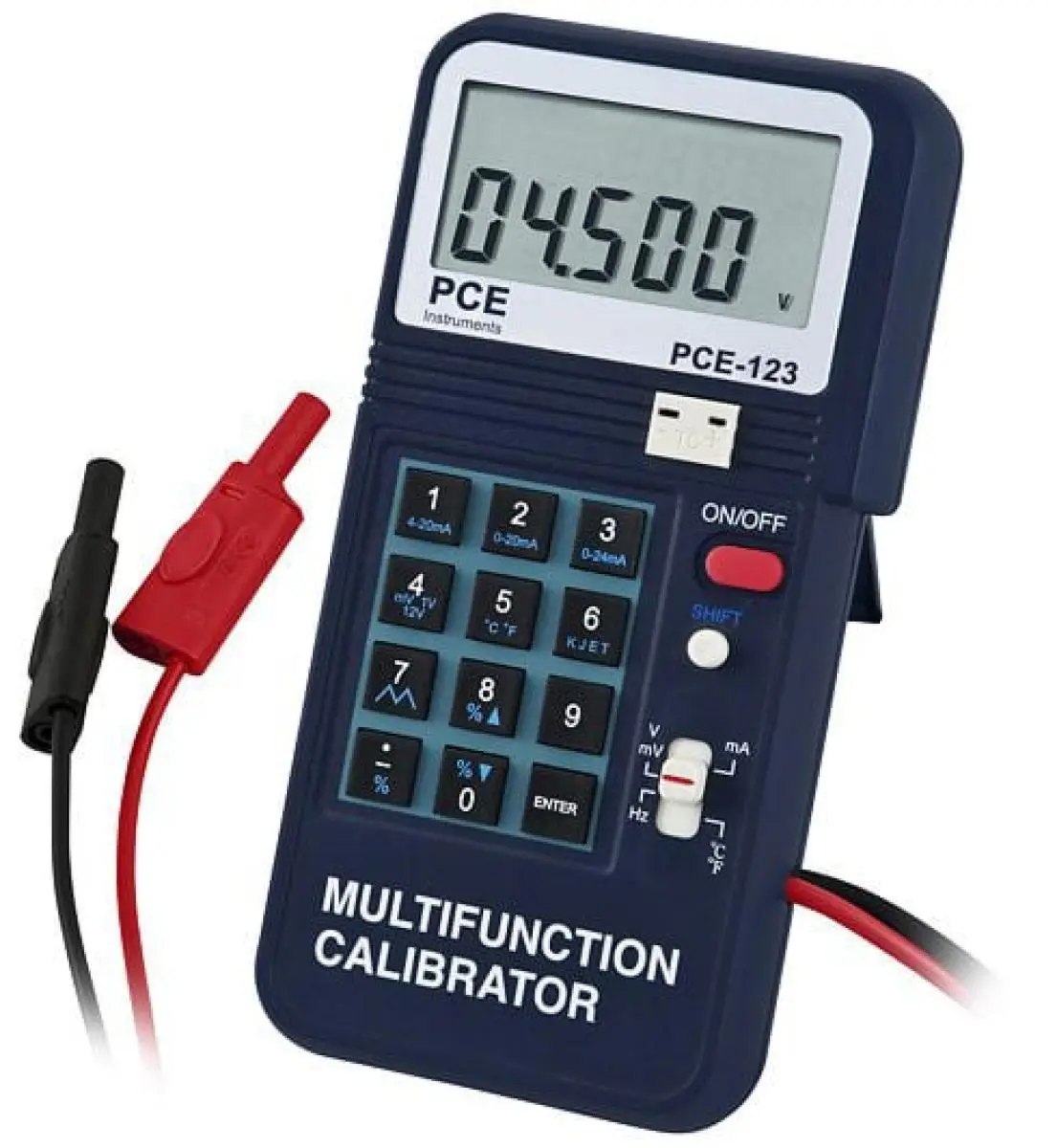

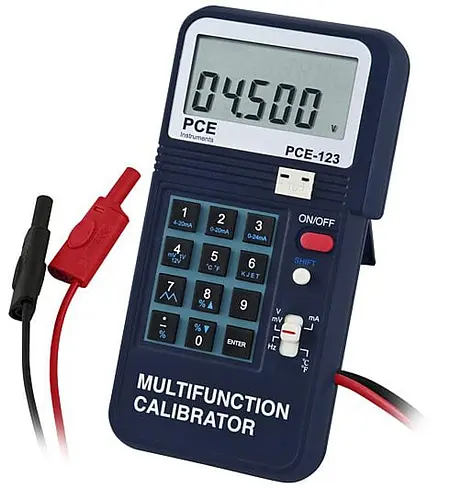

Voltmeter PCE-123

Order no.: PCE-123

GTIN (EAN): 4250348700209

Accessory

Calibration Certificate for PCE-123

£ 153.00

Description

Voltmeter indicates the nominal value for simulations and measurement of input
electrical signals such as frequency and temperature

The PCE-123 Voltmeter / nominal value indicator is a device that does need a mains connector and that is used to simulate regulation signals or units en the MSR technique with which it can test and calibrate almost any unit parameter and measuring instrument. The nominal value indicator provides an electrical output signal (mA, mV, V and frequency in Hz as well as temperature in °C or °F). The Voltmeter other automatic graduated functions, and selection of output signal jumps by percentage (0 to 100%) via the up/down keys and direct display of the output value. The device is easy to use and is operated via the keypad. THis device is attractive due to its high level of accuracy and its universal range of applications which no electrician or MSR department should go without, as well as within the industrial sector.
This device we have on offer is a high quality alternative to those which are normally found on the market.

Highlights

- 4 to 20mA (1kΩ, 24V power)

- 0 to 100.00 mV / 0 to 1,0000V / 0 to 12,000V

- Type-K, J, E, T temperature thermocouple sensors (°C or °F)

- Frequency range 1 to 62,500Hz

- Basic accuracy 0.025 %

- Easy operation via keypad

- Automatic ramp function

- Selectable between 0 to 20mA/ 0 to 24mA

- Input 0 to 100% (mA, mV, V )

- Alarm beep 'open' (mA) or 'short circuit' (mV, V)

Specification

Direct voltage DC
Measuring range	0 ... 100 mV
Resolution	0,01 mV
Accuracy	±0.05 % ±30 µV

Direct voltage DC
Measuring range	0 ... 1 V
Resolution	0,0001 V
Accuracy	±0.05 % ±300 μV

Direct voltage DC
Measuring range	0 ... 10 V
Resolution	0,001 V
Accuracy	±0.05 % ±3 mV

Direct current DC
Measuring range	4 ... 20 mA
Resolution	0,001 mA
Accuracy	±0.025 % ±0.003 mA

Direct current DC
Measuring range	0 ... 20 mA
Resolution	0,001 mA
Accuracy	±0.025 % ±0.003 mA

Direct current DC
Measuring range	0 ... 24 mA
Resolution	0,001 mA
Accuracy	±0.025 % ±0.003 mA

Temperature K-type
Measuring range	-200 ... 0 °C
Resolution	1 °C
Accuracy	±1.1 °C

Temperature K-type
Measuring range	0 ... 1370 °C
Resolution	1 °C
Accuracy	±0.8 °C

Frequency
Measuring range	1 ... 125 Hz
Resolution	1 Hz
Accuracy	±0.04 Hz

Frequency
Measuring range	126 ... 62500 Hz
Accuracy	±0.04 Hz

General technical data
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	9 ... 12 V DC
(Rechargeable) battery	6 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Operating conditions	0 ... 50 °C , 0 ... 85 % RH
Storage conditions	-20 ... 60 °C , 0 ... 85 % RH
Dimensions ( L x W x H )	168 x 88 x 26 mm
Weight	330 g
