Videoscope / Video Borescope PCE-VE 390N

Order no.: PCE-VE 390N

GTIN (EAN): 4250348718761

Description

PCE-VE 390N Videoscope / Video Borescope Includes semi-flexible / semi-rigid, 28 mm / 1.1 in diameter, 10 m / 32.8 ft long cable and SD card memory for saving pictures and videos

PCE-VE 390N is the ideal videoscope / video borescope or snake inspection camera for the analysis of buildings (walls, supports, eaves, gutters, attics, crawl spaces), plumbing (pipes, drains, sewers, wells) and heating, ventilation, air conditioning and refrigeration (HVACR) systems (ducts, furnaces, chimneys, boiler and condenser tubes). The IP68-rated cable of this inspection camera is waterproof and heavy duty, making the PCE-VE 390N well suited for use in tough environments like construction sites and industrial installations.
* Not suitable for medical use *

Highlights

- Camera cable length 10 m / 32 ft 9"

- Camera head diameter 28 mm / 1.1"

- Storage of images and videos

- 8 GB SD memory card incl.

- LED lighting

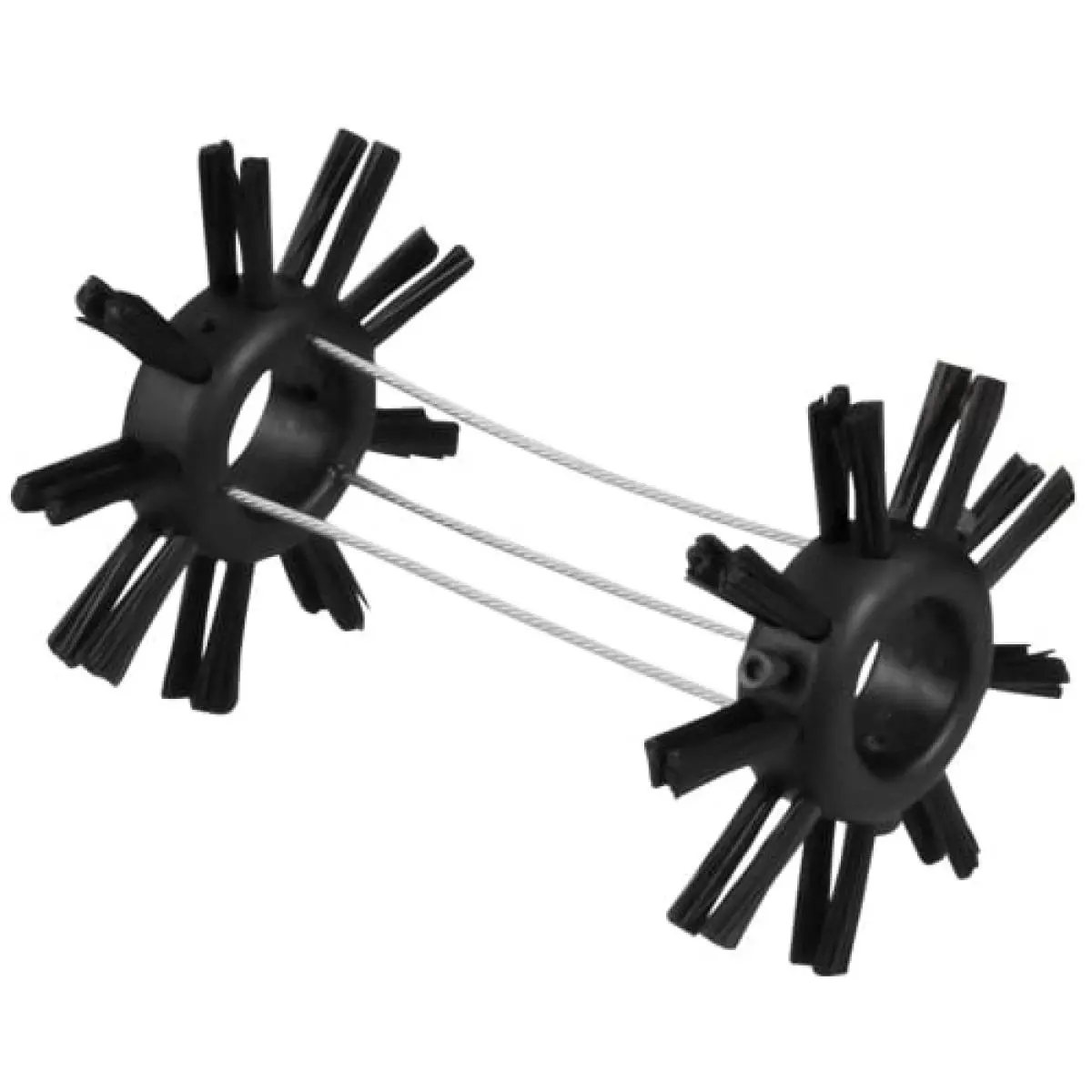

- With centering brush

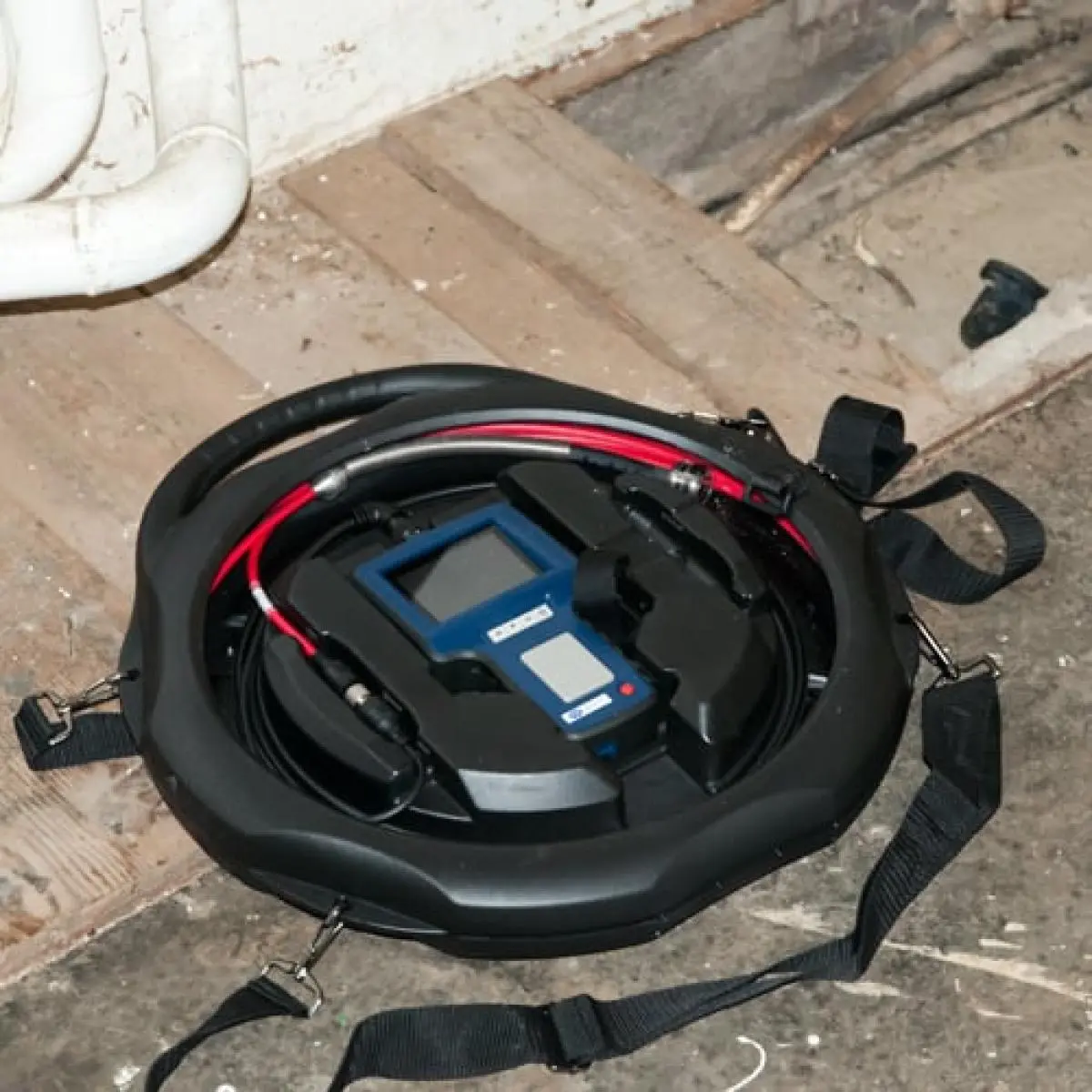

- Robust carrying case incl.

- Additional camera cables optional

Specification

General technical data
Resolution	Image format: JPEG (640 x 480) Video format: ASF (320 x 240)
Type of cable	glass fibre
Cable length	10 m
Display type	TFT colour display
Display size	3,5 Inch
Display refresh rate	30 x per second
Storage medium	SD card
Storage capacity	32 GB
Memory capacity (additional information)	Images and videos can be saved, SD card included in the delivery scope
Interface	Mini-USB, AV out, SD card
Sensor	CMOS
Camera resolution	640 x 480 Pixel
Camera orientation	frontal 0°
Operating time	4 h
Camera head length	20 mm
Camera head diameter	28 mm
Protection class camera probe	IP68
Field of vision	150 °
Depth of field of vision	10 ... 100 mm
Luminous intensity	8 LEDs
Menu language	English, German, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese, Korean, Czech, Hungarian, Romanian, Swedish, Greek, Norwegian
Protection class (device)	IP52
Power supply	AC 100 ... 240 V \| 50/60 Hz
Connector type	Device-europlug
Capacity	2300 mAh
Operating conditions	0 ... 45 °C , 0 ... 95 % RH
Storage conditions	0 ... 45 °C , 0 ... 95 % RH
Dimensions ( L x W x H )	207 x 118 x 37 mm
Other dimensions	Handset handle width 79 mm Carrying device 490 x 450 x 60 mm
Weight	390 g
Other weights	Carrying device 1222 g
