PCE-VE 180 is a rechargeable handheld pistol-grip videoscope or video borescope inspection camera with video recording and image capture functionality. Equipped with built-in LED lighting on the waterproof camera tip, the PCE-VE 180 borescope features a detachable remote control with integrated 3.5" LCD for easy viewing and navigation. The remote control communicates using radio transmission at 2.4 GHz.
- Semi-flexible gooseneck cable
- 1 m / 3.28 ft cable length
- 3.9 mm / .16 in camera cable diameter
- Includes detachable 4.5 mm / .18 in mirror, hook and magnet
PCE-VE 200 is a videoscope or inspection camera, for nondestructive evaluation (NDE) and machine diagnostics. The PCE-VE 200 videoscope provides excellent image quality at an affordable price. An ideal camera tool for diagnosing hard-to-reach places, the scope can be rotated 180 ° and offers 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.
Videoscope
- 3.5 in LCD display
- 3.28 ft cable length
- 0.18 in camera cable diameter
- 1/8 in camera head / CMOS chip image sensor
- 640 x 480 pixels AVI video resolution
- Micro SD card memory
- Micro USB 2.0 and TV outputs
Clamp Meter
This Clamp Meter has been developed to determine indirectly, the the AC/DC currents with high accuracy. A non-contact clamp meter and a torch to illuminate the area being measured, have been integrated into this device. The small size of this Clamp Meter, makes it possible to use in small spaces with limited access.
- 4 digit LCD display with backlighting
- save function
- DCA zero rest function
- current tester, non-contact
- integrated light to illuminate measured area
- automatic range selection
- automatic disconnect
- clamp diameter: 18 mm
PCE-VE 200 is an industrial inspection camera, endoscope or borescope for the non-destructive evaluation (NDE) of engines, machines and more. This industrial borescope provides excellent image quality at an affordable price. An ideal tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.
- 4.5 mm / 0.18" camera cable diameter, semi-rigid
- 1 m / 3.28' cable length
- 180° image rotation
The PCE-VE 200SV1 videoscope is a nondestructive inspection camera. Thus, the PCE-VE 200SV1 videoscope is the ideal instrument for diagnosing hard-to-reach areas. Thus, the areas of mechanical engineering, sanitary and heating construction, and the entire construction industry are among the main applications of the videoscope camera PCE-VE 200SV1.
- Camera head diameter: 9 mm / 0.4 in
- Cable length: 1 m / 3.3 ft
- Interface: Micro USB 2.0
- Memory: Micro SD card
- Front and side view camera
The videoscope PCE-VE 200SV3 is a nondestructive inspection camera. Thus, the videoscope PCE-VE 200SV3 is the ideal instrument for diagnosis in hard-to-reach places. For example, the areas of mechanical engineering, sanitary and heating engineering, and the entire construction and construction industry are among the main areas of application of the videoscope camera PCE-VE 200SV3.
- Camera head diameter 9 mm / 0.4 in
- Cable length: 3 m / 9.9 ft
- Interface: Micro USB 2.0
- Memory: Micro SD card
- Front and side view camera
The videoscope PCE-VE 300-H is the optimum for experts and development engineers. Choose between many different cables for the videoscope. This videoscope not only gives you an optical insight into the inner workings of machines and systems without first disassembling them, it also allows images and video sequences of the components to be inspected to be stored directly in the device. The optimal tool for inspection of industrial machinery and equipment.
- Various videoscope cables selectable
- Interfaces: mini-USB 1.1 and AV out
- Memory: 8 GB SD memory card (incl.)
PCE-VE 200-S is an industrial inspection camera, endoscope or borescope for the non-destructive evaluation (NDE) of engines, machines and more. This industrial borescope provides excellent image quality at an affordable price. An ideal camera tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.
- 3.7 mm / 0.14 in camera diameter
- 1 m / 3.28 ft cable length
- 180° image rotation

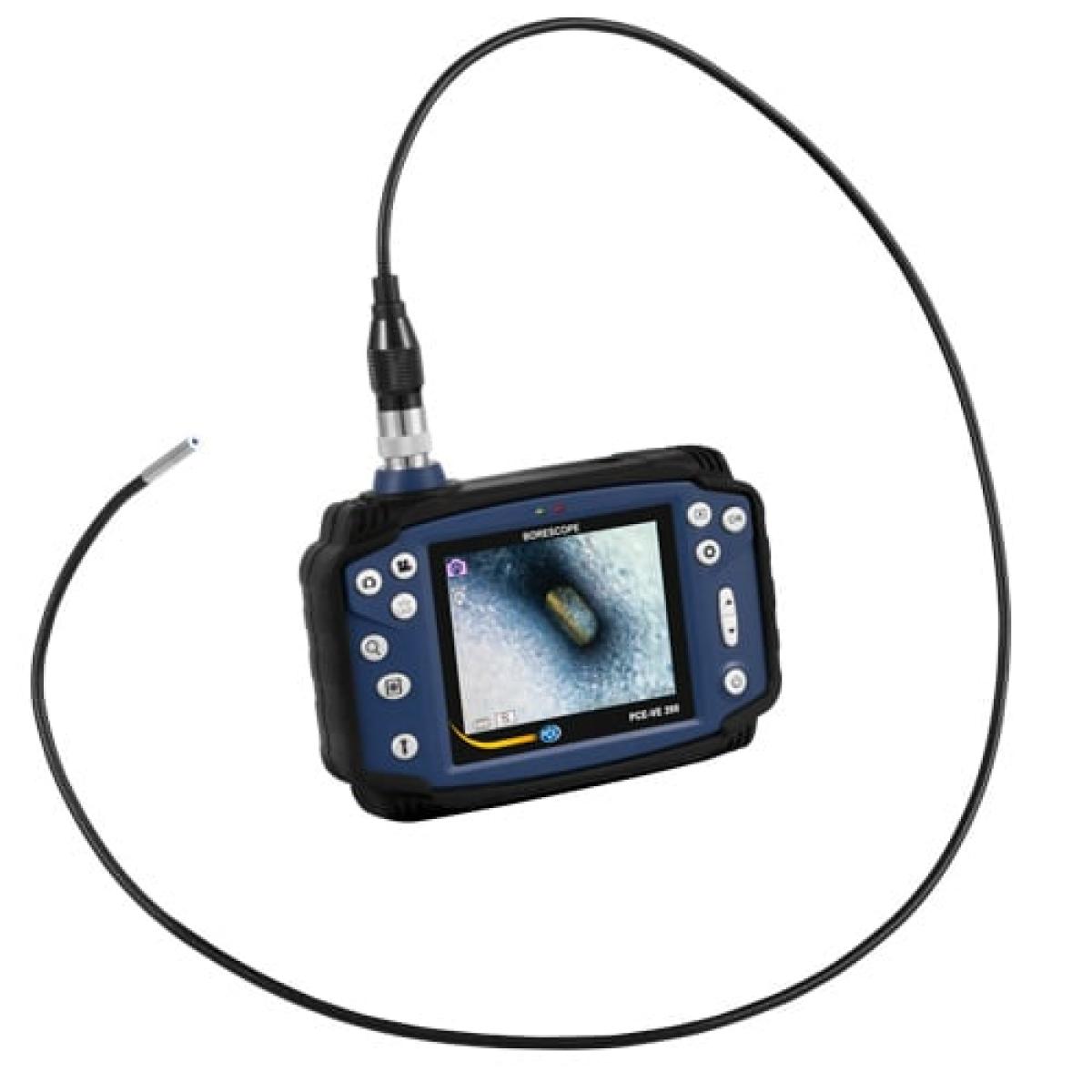

PCE-VE 200-S3 is an industrial inspection camera, endoscope or borescope for the non-destructive evaluation (NDE) of engines, machines and more. This industrial borescope provides excellent image quality at an affordable price. An ideal tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.
- 3.7 mm / 0.14 in camera diameter
- 3 m / 9.8 ft cable length
- 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video
PCE-VE 320N is a videoscope, inspection camera or borescope for the non-destructive inspection (NDI) of engines, machines and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 4 LED lights with automatic illumination. In addition, digital image magnification or zoom of up to 2 times is available.
- Diameter camera head: Ø 5.5 mm / 0.22"
- Cable length: 1 m / 3ft 3"
- Interface: mini-USB 1.1 and AV out
- Memory: 8 GB SD memory card (incl.)
PCE-VE 330N is a videoscope, borescope, inspection camera or industrial endoscope for the non-destructive inspection (NDI) of engines, machines and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 4 LED lights with automatic illumination. In addition, digital image magnification or zoom of up to 2 times is available.
- Diameter camera head: Ø 5.5mm / 0.22"
- Interface: Mini-USB 1.1 and AV out
- Memory: 8 GB SD memory card (incl.)
- Cable length: 2 m / 6ft 6"
PCE-VE 320HR is a videoscope, borescope, inspection camera or endoscope for the non-destructive inspection (NDI) of engines, machines and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 6 LED lights (4 front, 2 side) for better illumination. In addition, digital image magnification or zoom of up to 2 times is available, plus boost function for improved image quality in the dark.
- Diameter camera head: Ø 5.5mm / 0.22"
- Cable length: 1 m / 3ft 3"
- With boost function: better images in dark surroundings
- 2 additional side LEDs for better lighting
- Image rotation possible
- Interface: Mini-USB 1.1 und AV out
- Memory: 8 GB SD memory card (incl.)
PCE-VE 200 is a videoscope or inspection camera for nondestructive evaluation (NDE) and machine diagnostics. The PCE-VE 200 videoscope provides excellent image quality at an affordable price. An ideal camera tool for diagnosing hard-to-reach places, the scope can be rotated 180° and offers 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.
Videoscope
- 3.5 in LCD display
- 3.28 ft cable length
- 0.18 in camera cable diameter
- 1/8 in camera head / CMOS chip image sensor
- 640 x 480 pixels AVI video resolution
- Micro SD card memory
- Micro USB 2.0 and TV outputs
Air Flow Meter
The air flow meter PCE-VA 20-set is a measuring instrument for various wind related parameters. It has got an impeller diameter of ten centimeters. Moreover, if required, it is possible to order a set of flow hoods which provide a fast and reliable method which helps to use the 100 mm large impeller head optimally.
- incl. Flow hood
- 10 cm diameter impeller
- Backlight
- Automatic power off
- Extreme value measurement
- HOLD function
- Low battery indicator
PCE-VE 333HR is a videoscope, borescope, inspection camera or endoscope for the non-destructive inspection (NDI) of engines, machines and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 6 LED lights (4 front, 2 side) for better illumination when using the mirrors. In addition, digital image magnification or zoom of up to 2 times is available, plus boost function for improved image quality in the dark.
- With boost function: better images in dark surroundings
- 2 additional side LEDs for better lighting
- Image rotation possible
- Diameter: Ø 6 mm / 0.24", length: 3 m / 9ft 10"
- Interface: Mini-USB 1.1 and AV out
- Memory: 8 GB SD memory card (incl.)
The Videoscope PCE-VE 200UV has a dual LED illumination with UV light source and white light LED.
The wavelength of the UV LED is in the UV-A range at 365 nm. Due to the switchable light source between UV light and white light LED as well as the possibility to use both light sources combined, the UV videoscope PCE-VE 200UV can be used very flexibly.
PCE-VE 340N is a videoscope, borescope, inspection camera or industrial endoscope for the non-destructive inspection (NDI) of engines, machines and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 4 LED lights with automatic illumination. In addition, digital image magnification or zoom of up to 2 times is available.
- Diameter camera head: Ø 5.5mm / 0.22"
- Interface: Mini-USB 1.1 and AV out
- Memory: 8 GB SD memory card (incl.)
- Cable length: 10 m / 32 ft 9"
PCE-IVE 320 is a borescope, inspection camera, videoscope or industrial endoscope that comes with a rigid telescoping pole that extends up to 2.3 m (7.6 ft) in length (3 m / 9.8 ft long total with camera connection). Plus, the borescope has a 0.3 megapixel camera with a 23 mm (0.91 in) diameter flexible head with microphone and 12 white LEDs offering adjustable brightness. Includes wheel attachment for under vehicle inspection.
- Telescopic pole extends up to 2.3 m / 7.6 ft
(3 m /9.8 ft long total with camera connection)
- 12.7 cm / 5" LCD monitor with 800 x 480 pixel resolution
- Video recording capability
- Accommodates SD memory cards from 2 ... 32 GB
- Spare battery to allow all day operation
The PCE-IVE 330 videoscope or inspection camera is used to diagnose and monitor hard-to-reach areas on vehicles, containers, machinery and equipment. Thanks to the 3 m / 9.8 ft telescopic rod of the videoscope, it is also possible to view areas that are difficult to access. Visual monitoring with the videoscope is supported by the flexible camera head.
- Flexible camera head
- 8" LCD monitor
- Up to three meters long
- Diameter of the camera: 23 mm / 0.9 in
- Memory function
PCE-VE 360N is a small-diameter videoscope, video borescope, inspection camera or industrial endoscope for the non-destructive inspection (NDI) of engines, machines and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 3 LED lights with automatic illumination. In addition, digital image magnification or zoom of up to 2 times is available.
- 1 m / 3ft 3" camera cable with front camera
- 1 m / 3ft 3" camera cable with 90° side camera
- Diameter camera head: Ø 3.9 mm / 0.15"
- Interface: Mini-USB 1.1 and AV out/in
- Memory: 8 GB SD memory card (incl.)
- Cable length: 1 m / 3ft 3"
PCE Instruments' engineers and technicians will be happy to assist you in finding the right videoscope inspection camera to suit your application and desired specifications. Nevertheless, we would like to give you some useful information that will help you make the right decision when selecting your videoscope.
Important factors to bear in mind when looking for a videoscope
- Type of videoscope camera cable
- Needed length / diameter of videoscope camera cable
- Memory for images and videos
- Technical support
Type of videoscope camera cable
A rigid engine videoscope cable usually has a rather small diameter to allow the inspection of very confined spaces. Most industrial rigid videoscopes are analogue, which means that users cannot record and process images and videos without using a special adaptor.
If you still want to process your images and videos, you can purchase an adaptor for your videoscope separately.
Depending on your application, you can choose a videoscope with a rigid or flexible videoscope cable. Flexible cables are available with 2- or 4-way articulating systems. An articulation system enables you to move the videoscope camera head in different directions and angles up to 360 °. Through flexible videoscope cables, images are transferred to the handheld device via a glass fibre bundle or via the camera which is located in the cable. The latter particularly applies to the modern digital videoscopes offered by PCE Instruments. PCE’s flexible videoscope camera cables are available in many different lengths and diameters, which makes our videoscopes suitable for nearly any application.
Needed length / diameter of videoscope camera cable
As mentioned before, PCE’s flexible videoscope camera cables are available in many different lengths and diameters to suit your specific application. Generally, the needed videoscope cable diameter is determined by measuring the openings of the pipes, engines, machine components, etc. to be inspected. The cable length obviously should not be too short. You may want to use your industrial videoscope for several applications which can sometimes mean that you need several cables with different lengths and diameters.
In this case, we recommend you to buy an engine videoscope that accommodates multiple cable diameters and lengths. These have the huge benefit of relatively low follow-up costs as you will not need to buy new cables with different lengths and diameters later on.
Memory for images and videos
Before purchasing a videoscope, make sure to take into consideration if you need the function of recording and storing images and videos of your inspection. Lots of modern digital videoscopes come with a removable SD card that makes it easy to download your images and videos and view them on your computer. Some of PCE Instruments’ videoscope cameras come or are available with an analytical software to evaluate your results. For example, these softwares are very helpful when you want to document the progress of cracks or fractures in your objects of inspection.
Technical support
PCE Instruments offers technical support and qualified customer service. PCE Instruments' engineers and technicians will ask you the right questions to find the best engine videoscope or videoscope camera. For advice, call +44 (0) 2380 987 035 for PCE Instruments UK or +1 (561) 320-9162 for PCE Americas Inc.
