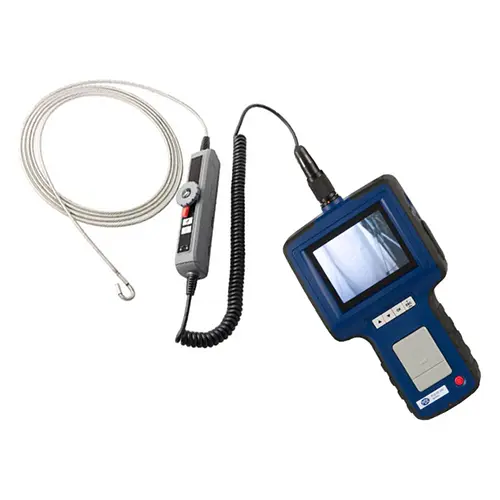

PCE-VE 355N Videoscope
Two-way articulating inspection camera, industrial endoscope or borescope with 8 GB SD card memory and small 4.5 mm / 0.18 in diameter cable
The PCE-VE 355N is a two-way articulating videoscope, borescope, inspection camera or industrial endoscope for the non-destructive inspection (NDI) of small components and hard-to-reach places. The camera head features 5 LED lights with automatic illumination. Pictures and videos are saved to the included 8 GB SD card memory, allowing easy transfer to a PC.
The 1.5 m / 4.'9 ft cable length and small 4.5 mm / 0.18 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction and heating, ventilation and air conditioning (HVAC) professionals alike find this video inspection camera useful in a variety of applications.
***Not for medical use***
- Flexible 1.5 m / 4ft 11" cable
- Diameter camera head 4.5mm / 0.18"
- Image capture / Photos and Videos
- 2-way optics
- 8 GB SD memory card (incl.)
- Robust carrying case included
Cable diameter |
4.5 mm / 0.18 in |
Cable length |
1.5 m / 4.9 ft |
Depth of field |
1.5 ... 10 cm / 0.59 ... 3.9 in |
Field of view |
67° |
Bending radius | 90 mm / 3.5 in |
Illumination | 5 LEDs, automatic |
White balance Image sensor |
Fixed CMOS |
Picture rate | 30 frames per second (fps) |
Display |
88.9 mm / 3.5 in TFT LCD monitor |
Interface | Mini USB 1.1 (AV out / AV in) |
Storage options | Image or video |
Storage | 8 GB memory card (can be increased to 32 GB) |
Compression format | MPEG 4 |
Picture format | JPEG (640 x 480 pixel resolution) |
Video output format | NTSC / PAL |
Video format | ASF (320 x 240) |
Operation and storage temperature | -10 ... 50°C / 14 ... 122°F |
Voltage supply | Rechargeable 3.7V lithium-ion battery |
Dimensions, handheld device | 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in |
Weight, incl. carrying case | 450 g / 1 lb |
1 x PCE-VE 355N videoscope
1 x 8 GB SD card
1 x USB cable
1 x Battery charger
1 x User manual
1 x Carrying case
Please note: Not to be used for medical applications!
Price excl. VAT &. delivery
2 year Warranty
PCE-VE 380N-SC30 is a waterproof camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
ES-45 VE 300N is a 45º mirror designed to increase the field of vision by 90º for PCE-VE series borescopes, industrial endoscopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
Screw-on magnetic hook attachment for removing small metallic objects from hard-to-reach places. This magnetic attachment is screwed securely onto the head of the camera cable, so the attachment stays firmly connected. Suitable for use with 5.5 mm diameter cables only.
**Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
PCE-VE-N-SCS includes two semi-flexible camera cables for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
PCE-VE-N-SC30 is a semi-flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
PCE-VE-N-SC10 is a flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible wit the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
PCE-VE-4W3-HR is a four-way articulating camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
PCE-VE-4W1-HR is a four-way articulating camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
PCE-VE-2W3-HR is a two-way articulating Hyperion camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
PCE-VE-2in1-N is a 2-in-1 semi-flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
Price excl. VAT &. delivery
2 year Warranty
GB-25-PCE-VE-N is a guide ball attachment for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras. The guide ball facilitates passage of the camera cable through tight spaces without contaminating the lens. The guide ball also aids in unscrewing the camera head.
**Attention: NOT compatible with the VE 200 Series!***
Price excl. VAT &. delivery
2 year Warranty
GB-15-PCE-VE-N is a guide ball attachment for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras. The guide ball facilitates passage of the camera cable through tight spaces without contaminating the lens. The guide ball also aids in unscrewing the camera head.
**Attention: NOT compatible with the VE 200 Series!***
